SC628ANP: DescriptionAudio Indicators & Alerts SONALERT 6-28V; CategoryTopical application Mechanical and electrical/engineering/automation; File Size63KB，1 Pages; ManufacturerMallory Sonalert

Download Datasheet Parametric View All

SC628ANP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SC628ANP	-	-	View	Buy Now

SC628ANP Overview

Audio Indicators & Alerts SONALERT 6-28V

SC628ANP Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Mallory Sonalert
Product Category	Audio Indicators & Alerts
RoHS	No -; RoHS Version Available
Sound Pressure Level	80 dBA
Tone	Pulse
Frequency	2.9 kHz
Voltage Rating	28 VAC/DC
Current Rating	30 mA
Diameter	1.687 in
Mounting	Panel
Factory Pack Quantity	1

Preview

Download Datasheet

View All

Mallory Sonalert Products Inc.

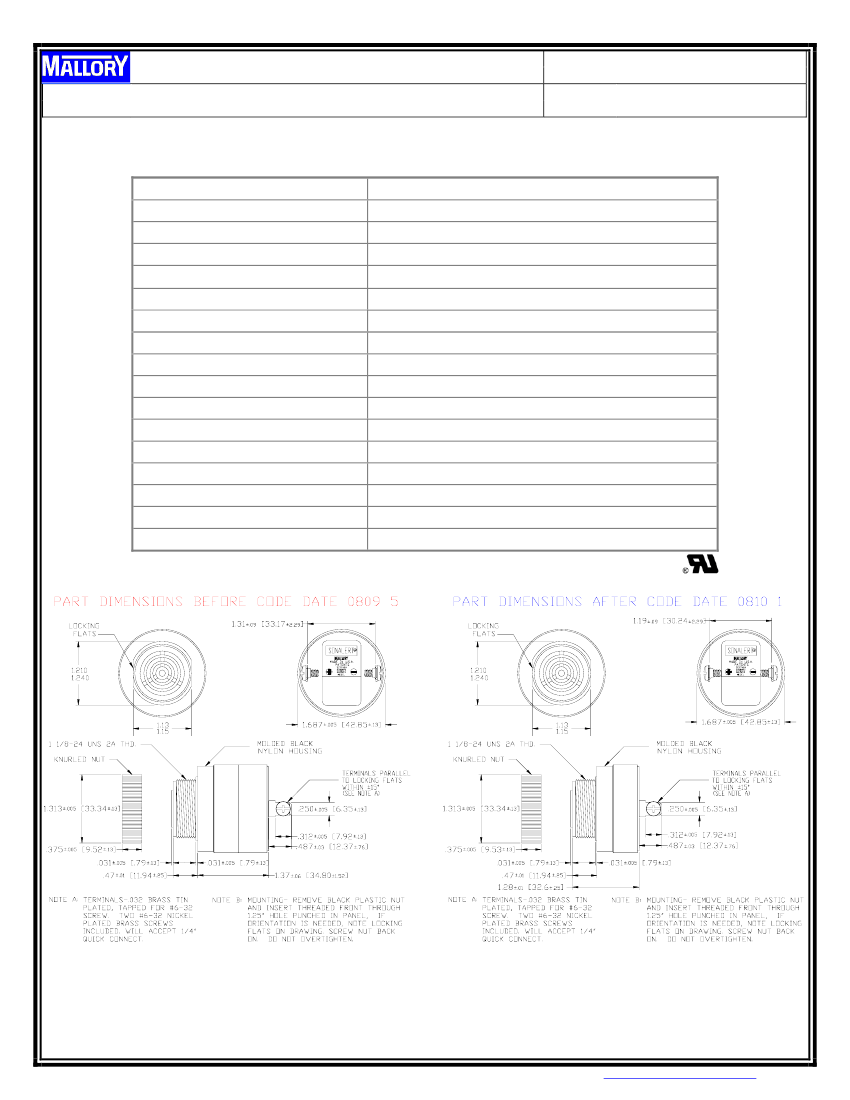

Sales Outline Drawing

Specifications:

Sound level Category

Mode of Operation

Mounting

Voltage Rating

Frequency

Loudness (Min. Voltage)

Loudness (Max Voltage)

Current Draw

Min Pulse Rate (PPS)

Max Pulse Rate (PPS)

Duty Cycle (%)

Storage Temperature

Operating temperature

Weight (Typical)

Housing

Options

Part #

SC628ANP

Revision

E

Loud Sound Level

Fast Pulse

Panel (see note B)

6 to 28 Vac/dc

2900 Hz

±500

Hz

80 dB(A) min. @ 2 FT and 6 Vac/dc

95 dB(A) min. @ 2FT and 28 Vac/dc

4 mA Max @ 6 Vac/dc

30 mA Max @ 28 Vac/dc

2 @ 6 Vac/dc

10 @ 28 Vac/dc

50 (Approx)

-40°C to +85°C

-30°C to +65°C

2.1 oz (59 g)

6/6 Nylon, Color Black

For other options contact factory

Dimensions:

Inches (mm)

UL Recognized

4411 South High School Road, Indianapolis, Indiana 46241 U.S.A

•

Phone: (317)612-1000 Fax: (317)612-1010

•

www.mallory-sonalert.com
