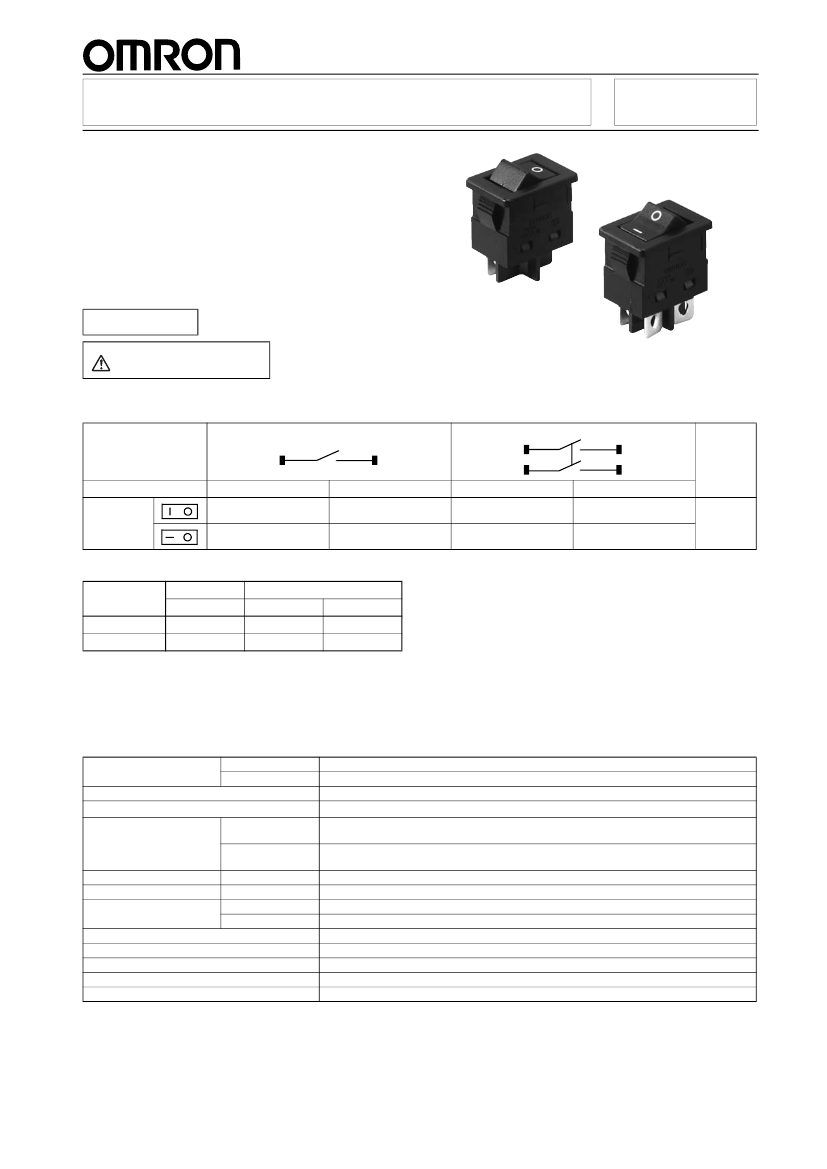

Panel seal Rocker Switch
Panel Seal Rocker Switch for High
Capacity Switching
• Miniature size with High current 16A switching.
• Easy to mount by snap fitting.
• Dust & waterproof construction with panel seal
(Equivalent to IP67 (IEC-60529)).
• UL, cUL and TV-8 standard approved.
Conforms to EN standards.
RoHS Compliant
Caution
Refer to Precautions
A8W
■List
of Models
SPST
Contact Form
2
2
3
5
DPST
3
6
Quantity
per
package
Color of caps and cases
Marking on
caps
Black
White
Black
White
A8WS-1162
A8WS-1163
A8WS-2262
A8WS-2263
A8WD-1162
A8WD-1163
A8WD-2262
100
A8WD-2263
■Ratings
Rated load
125 VAC
250 VAC
Non-inductive
Resistive load
16A
16A
Inductive
Inductive load
16A
16A
Motor load
10A
10A
■Approved
Safety Standards
UL, cUL (UL1054/CSA C22.2 No. 55)
16A 125 VAC, 16A 250 VAC, TV-8
DEMKO (EN61058-1)
16A 125 VAC, 16A 250 VAC
Note:
Quick connect terminals are not in compliance with IEC standards.
Note: 1.
The inductive load has a power factor of 0.7 minimum (AC).
2.
The motor load has an impulse current 6 times the normal current.
3.
The above ratings were tested under the following conditions:
(1) Ambient temperature: 20±2
°C
(2) Ambient humidity: 65±5 %RH
(3) Switching frequency: 7 times/min.
■Characteristics
Permissible operating
frequency
Insulation resistance
Contact resistance (initial value)
Mechanical
Electrical
20 operations / min max.
7 operations / min max.
100 MΩ min. (at 500 VDC with insulation tester)
20 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Between terminals
2,000 VAC 50/60Hz, for 1min
of the same polarity
Between terminal
and case ground
Malfunction
Malfunction
Mechanical
Electrical
4,000 VAC 50/60Hz, for 1min
10 to 55 Hz, 1.5-mm double amplitude
1,000 m/s
2
max.
50,000 operations min.
10,000 operations min.
117 A max.
Panel seal IEC IP67
- 25 to +55
°C
(at ambient humidity of 60 % max.) (with no icing or condensation)
25 to 85 %RH (at +15 to 35
°C)
7.8 g (SPST), 9.3 g (DPST)
Dielectric strength
Vibration resistance
Shock resistance
Durability
Inrush current
Degree of protection
Ambient operating temperature
Ambient operating humidity
Weight
1
A8W

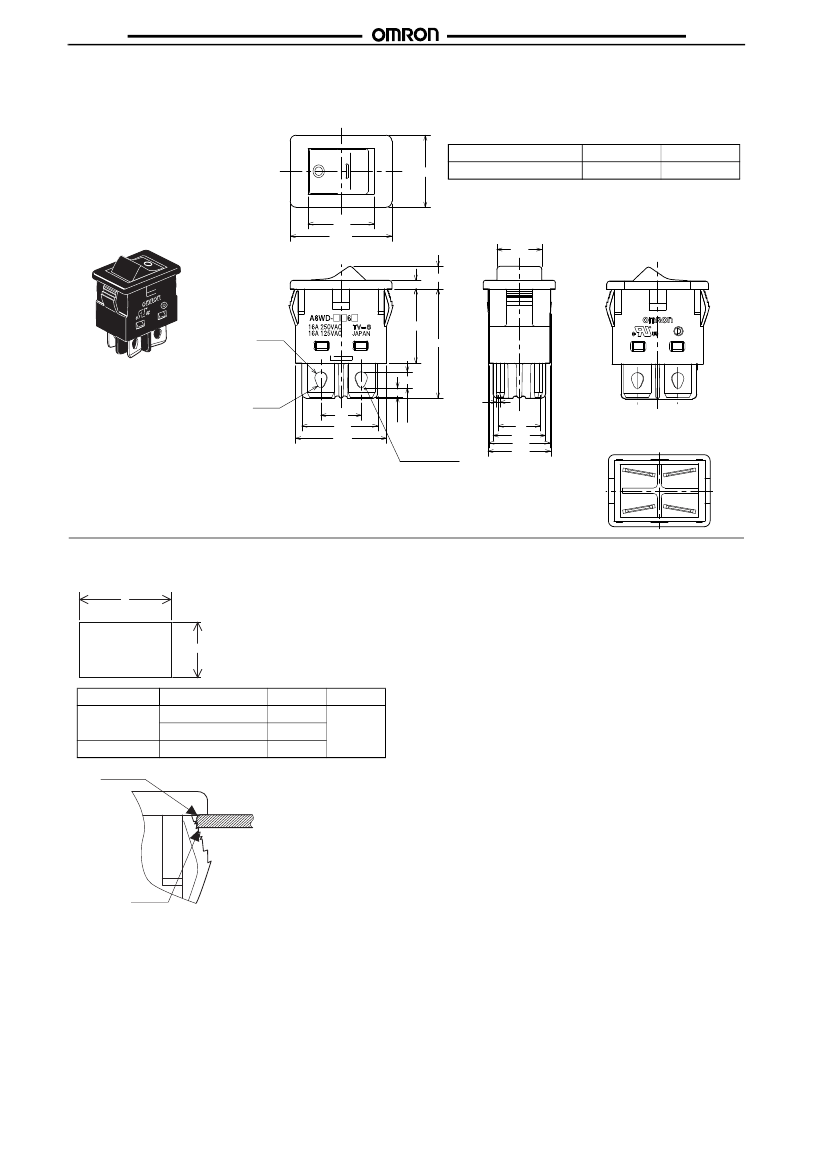

■Dimensions
A8WS-1162
A8WS-1163
A8WS-2262
A8WS-2263
A8WD-1162
A8WD-1163
A8WD-2262
A8WD-2263
(Unit: mm)
Note:
The following illustrations and drawings are for 2 poles (DPST) models,
1 pole (SPST) models have single side terminals.
A8W
●
Operating Characteristics
No. of poles
17
1 (SPST)
12 N {1,224 gf}
2 (DPST)
23 N {2,345 gf}
Operating force (OF) max.
15.6
24
+0.3
-0.5
10.6
2
5.3±0.5
17.5
2.8 dia.
25.8
3.8
2.1
1.6 dia.
9.6
17.9
21.5
0.8
10
12.4
14.4
14.8
Solder Terminal
Note:
Unless otherwise specified, a tolerance of ±0.3 mm applies to all dimensions.
■Panel
Cutout
X
Y
Panel thickness (mm)
Without rubber
cap
With rubber cap
1.0 to 1.9
2.0 to 2.8
0
2.0
-0.07
X (mm)
22.3
+0.1
0
23.2
+0.1
0
22.4
+0.1
0
Y (mm)
14.8
+0.1
0
R0.3
±
0.1
Edge
Process the above-mentioned R on the
mounting hole side of panel, or be sure that the
Play R is on the operation side of panel when
using.
Be sure that the Edge is on the reverse side of
panel when processing.
2
3 6
#250 Quick connect terminal (t=0.8) common use
Quick-connect Terminals are not in compliance with IEC standards.
2 5
A8W
■Optional
Accessories (Sold separately)
Rubber cap for high dustproof.
A8W
A8W-RUBBER CAP
17.4
9.5
4.3
3.7
18
25
