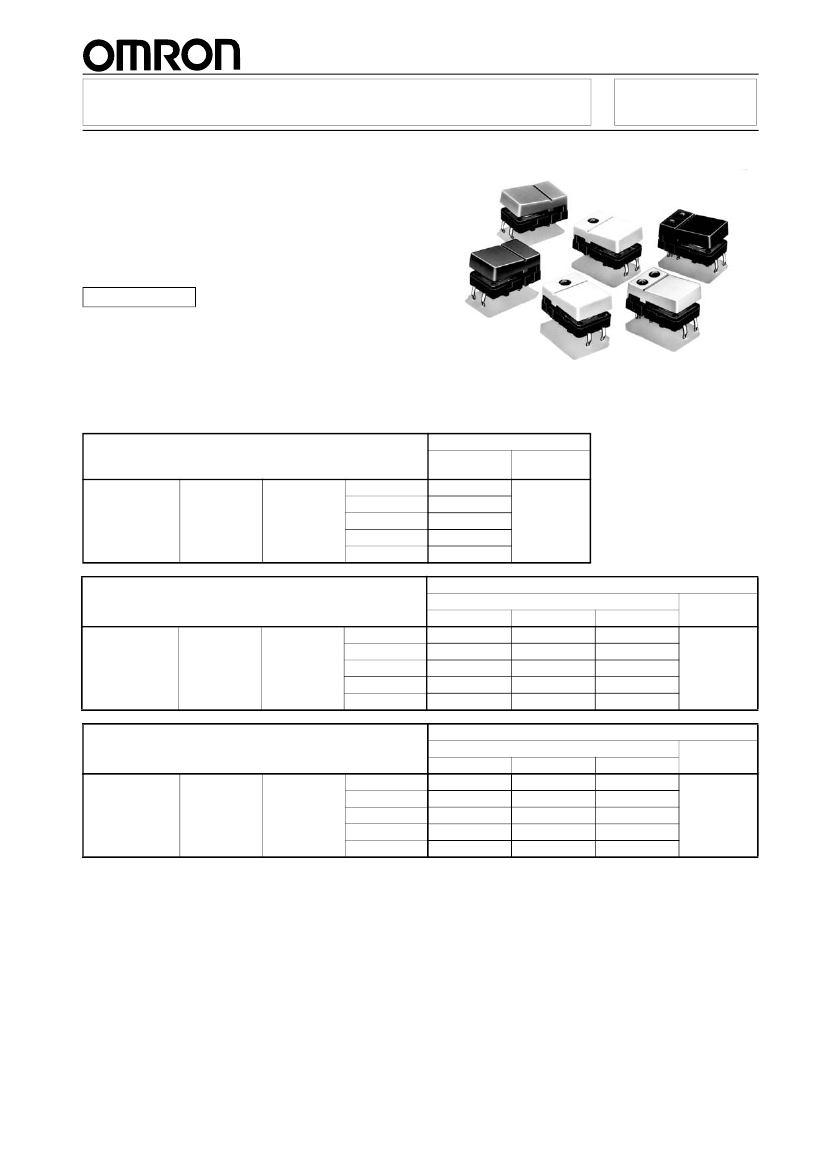

Hinged Tactile Switch
Through-hole-mounting Switches with
Hinges for a Sharp Snap Action
• Quick, superior snap action through hook-type
hinge construction.
• Available with 1 or 2 LEDs or without LEDs.
• The hinge button is available in a wide variety of
colors (five standard colors).
RoHS Compliant
B3J
■
List of Models
Box
Operation type
Contact
material
Silver plated
Operating
force (OF)
1.27 N {130 gf}
Color of
hinged button
Ivory
Black
Orange
Yellow
Blue
Model
B3J-1000
B3J-1100
B3J-1200
B3J-1300
B3J-1400
Minimum
packing unit
Non-lighted:
B3J-1000 Series
300 pcs
Box
Operation type
One LED:
B3J-2000 Series
B3J-3000 Series
B3J-4000 Series
Contact
material
Silver plated
Operating
force (OF)
1.27 N {130 gf}
Color of
hinged button
Ivory
Black
Orange
Yellow
Blue
LED color
Red
B3J-2000
B3J-2100
B3J-2200
B3J-2300
B3J-2400
Yellow
B3J-3000
B3J-3100
B3J-3200
B3J-3300
B3J-3400
Green
B3J-4000
B3J-4100
B3J-4200
B3J-4300
B3J-4400
Box
Minimum
packing unit
300 pcs
Operation type
Two LEDs:
B3J-5000 Series
B3J-6000 Series
B3J-7000 Series
Contact
material
Silver plated
Operating
force (OF)
1.27 N {130 gf}
Color of
hinged button
Ivory
Black
Orange
Yellow
Blue
LED color
Red/Yellow
B3J-5000
B3J-5100
B3J-5200
B3J-5300
B3J-5400
Red/Green
B3J-6000
B3J-6100
B3J-6200
B3J-6300
B3J-6400
Yellow/Green
B3J-7000
B3J-7100
B3J-7200
B3J-7300
B3J-7400
Minimum
packing unit
300 pcs
1
B3J
■
B3J
Ratings/Characteristics
1 to 50 mA, 3 to 24 VDC
10
μA
at 1 VDC (resistive load)
-25°C to +70°C at 60%RH max. (with no icing or condensation)
35% to 85% (at +5 to +35°C)
SPST-NO
100 mΩ max.
100 MΩ min. (at 250 VDC with insulation tester)
500 VAC, 50/60 Hz for 1 min
5 ms max.
Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Destruction: 1,000 m/s
2
{approx. 100G} max.
Malfunction: 100 m/s
2
{approx. 10G} max.
3,000,000 operations min.
Approx. 1.5 to 1.7 g
IEC IP00
Not possible
Rating (resistive load)
Minimum applicable load (reference value)
Ambient operating temperature
Ambient operating humidity
Contact form
Contact resistance (initial value)
Insulation resistance
Dielectric strength
Bounce time
Vibration resistance
Shock resistance
Durability
Weight
Degree of protection
Washing
■
Operating Characteristics
1.27±0.49 N {130±50 gf}
0.29 N {30 gf} min.
0.3
+0.2
/
–0.1
mm
Operating force (OF)
Releasing force (RF)
Pretravel (PT)
■
LED Specifications
Item
Red
2.0
20
84
5
20
84
5
Yellow
2.0
20
84
5
Green
2.1
Standard value (V)
Standard value (mA)
Absolute maximum value (mW)
Absolute maximum value (V)
Forward voltage VF
Forward current IF
Permissible loss P
Reverse voltage VR
Note:
Since the built-in LED does not contain any limiting resistors, externally connect limiting resistors within the limits shown in the
above table.
2
B3J
■
B3J
(Unit: mm)

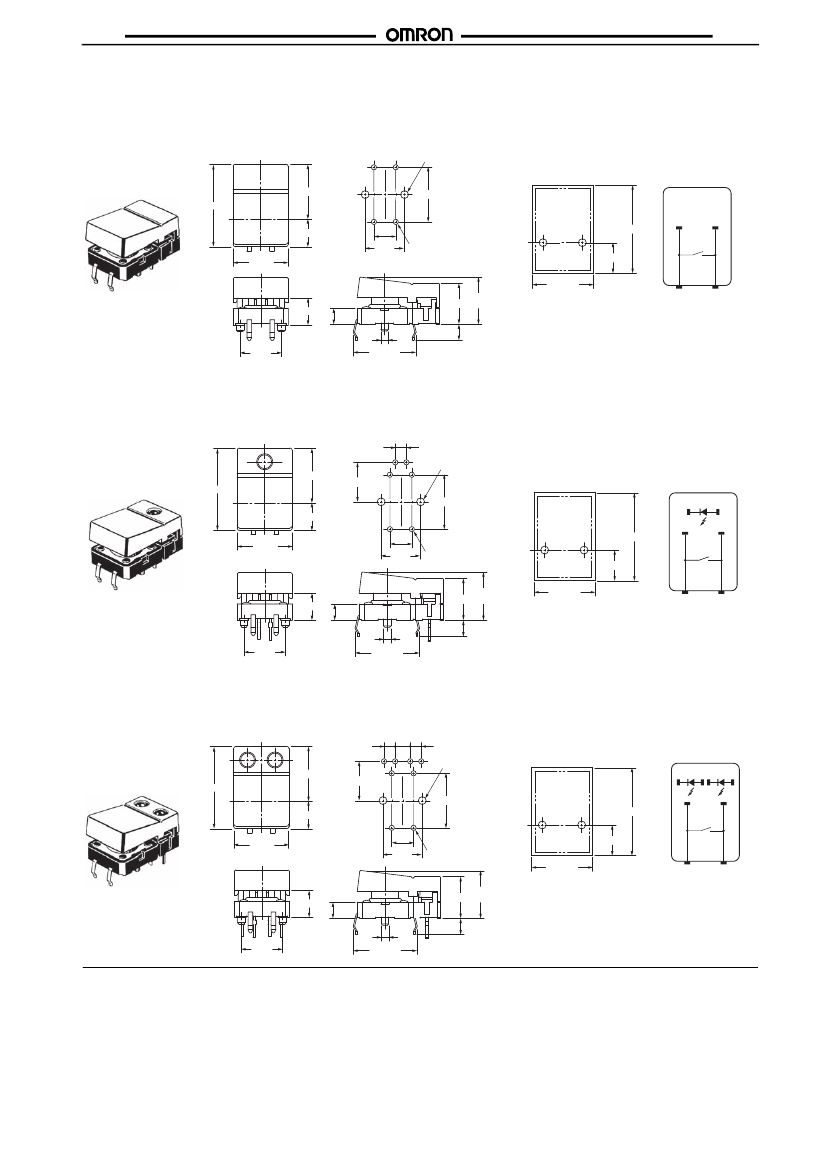

PCB Processing Dimensions
(Reference Only)
(Top View)
Dimensions
Types with no LED
B3J-1@00
Terminal Arrangement
/Internal Connections
(Top View)
Two, 1.8
±0.05
dia.
(for positioning
boss)
Panel Cutout
12
18
±0.2
5
±0.1
9
±0.1
12
±0.2
12.5
±0.1
6
19.6
±0.2
Four, 1.2
±0.05
dia.
6.8
2
4
13.6
±0.2
6
9
±0.2
3.5
3.5
10.3
±0.2
1
3
9
±0.1
1.6 dia.
13.8
±0.5
1 LED Types
B3J-2@00
B3J-3@00
B3J-4@00
PCB Processing Dimensions
(Reference Only)
(Top View)
2.54
±0.1
Two, 1.8
±0.05
dia.
(for positioning
boss)
12
18
±0.2
12.5
±0.1
6
5
±0.1
12
±0.2
9
±0.1
Six, 1.2
±0.05
dia.
6.8
19.6
±0.2
2
4
K
A
9
±0.1
Panel Cutout
Terminal Arrangement
/Internal Connections
(Top View)
6
9
±0.2
3.5
10.3
±0.2
13.6
±0.2
1
3
3.5
9
±0.1
1.6 dia.
13.8
±0.5
2 LED Types
B3J-5@00
B3J-6@00
B3J-7@00
PCB Processing Dimensions
(Reference Only)
(Top View)
3.46
±0.1
2.54
±0.1
2.54
±0.1
Two, 1.8
±0.05
dia.
(for positioning
boss)
Panel Cutout
Terminal Arrangement
/Internal Connections
(Top View)
K
AK
A
12
18
±0.2
9
±0.1
12.5
±0.1
2
19.6
±0.2
4
6
5
±0.1
12
±0.2
9
±0.1
Eight, 1.2
±0.05
dia.
13.6
±0.2
6.8
1
3
6
9
±0.2
3.5
10.3
±0.2
3.5
9
±0.1
1.6 dia.
13.8
±0.5
Note:
Unless otherwise specified, a tolerance of
±0.4
mm applies to all dimensions.
3
B3J
■
B3J
Precautions
Be sure to read the safety precautions common to all Tactile Switches for correct use.
•
Application examples provided in this document are for reference only. In actual applications, confirm equipment functions and safety
before using
the product.
•
Consult your OMRON representative
before using
the product
under
conditions
which
are not described in the manual or applying the product to nuclear control systems, railroad
systems, aviation systems,
vehicles,
combustion systems, medical equipment, amusement machines, safety equipment, and other systems or equipment that may have a serious
influence on lives and property if
used
improperly. Make sure that the ratings and performance characteristics of the product provide a margin of safety for the system or
equipment, and
be
sure to provide the system or equipment
with
double safety mechanisms.
Note: Do not use this document to operate the Unit.
OMRON Corporation
Electronic and Mechanical Components Company
Contact: www.omron.com/ecb
Cat. No. A071-E1-07
1014(0207)(O)
4
