38FSP8B9M6RT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 38FSP8B9M6RT

38FSP8B9M6RT: DescriptionPushbutton Switches Pushbutton Switch, subminiature, SPST, right angle, PC Mount, RoHS Compliant; CategoryMechanical and electronic products switch; File Size403KB，4 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric View All

38FSP8B9M6RT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	38FSP8B9M6RT	-	-	View	Buy Now

38FSP8B9M6RT Overview

Pushbutton Switches Pushbutton Switch, subminiature, SPST, right angle, PC Mount, RoHS Compliant

38FSP8B9M6RT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Grayhill
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	18 weeks
Actuator type	PLUNGER
body width	8.16 mm
body height	5.04 mm
Body length or diameter	9.2 mm
Contact (AC) maximum rated R load	.02A@20VAC
Maximum contact current (AC)	0.02 A
Maximum contact current (DC)	0.02 A
Contact (DC) maximum rated R load	.02A@20VDC
Maximum contact voltage (AC)	20 V
Maximum contact voltage (DC)	20 V
Electrical life	30000 Cycle(s)
JESD-609 code	e4
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	PUSHBUTTON SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Termination type	SOLDER

Preview

Download Datasheet

View All

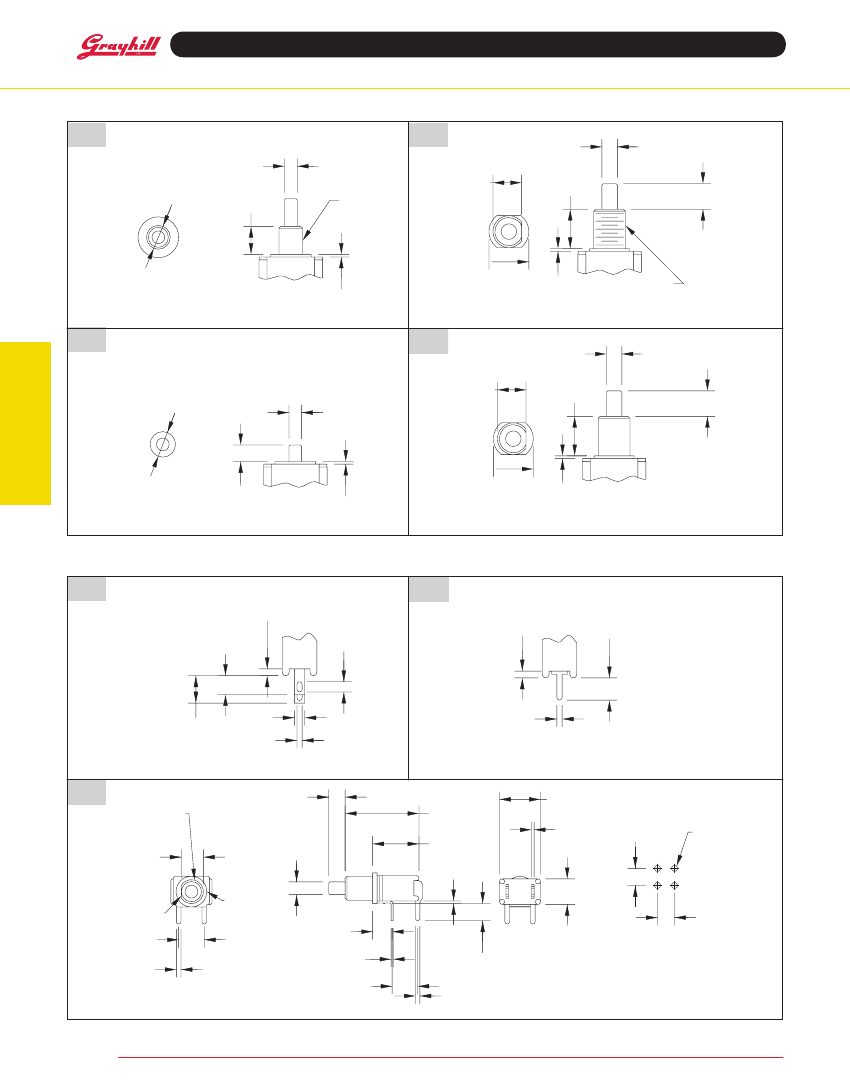

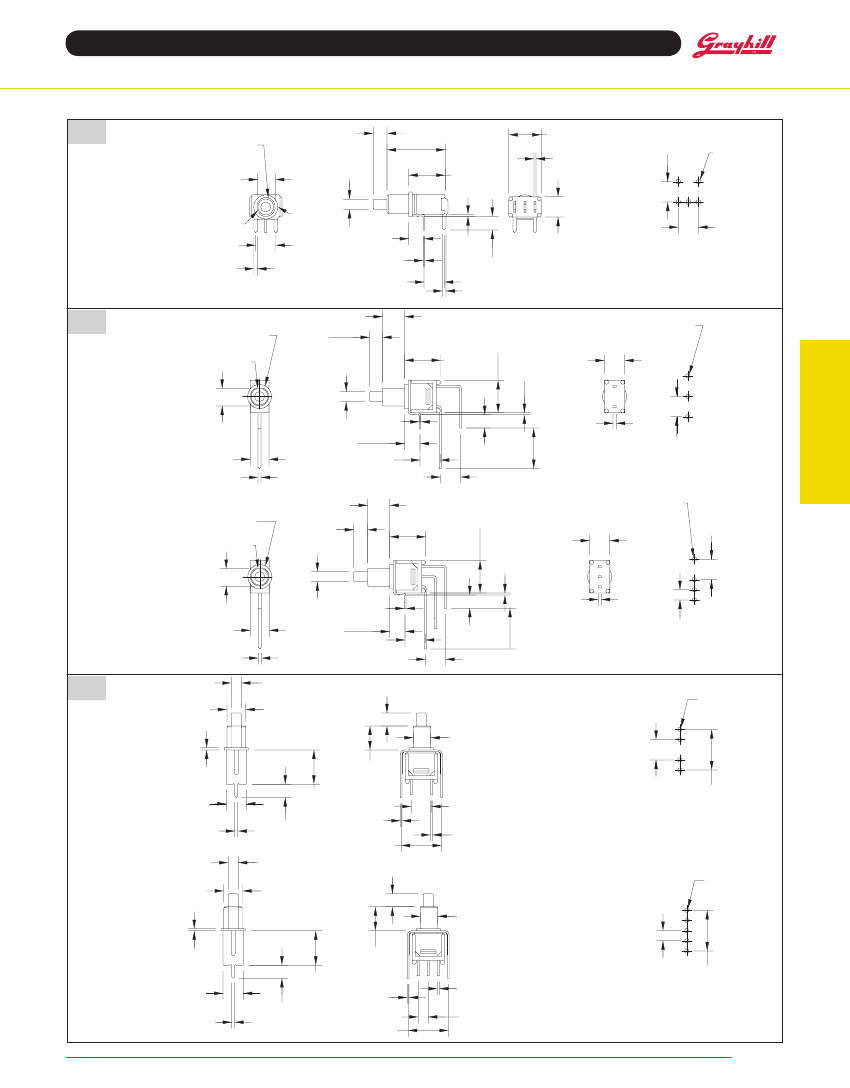

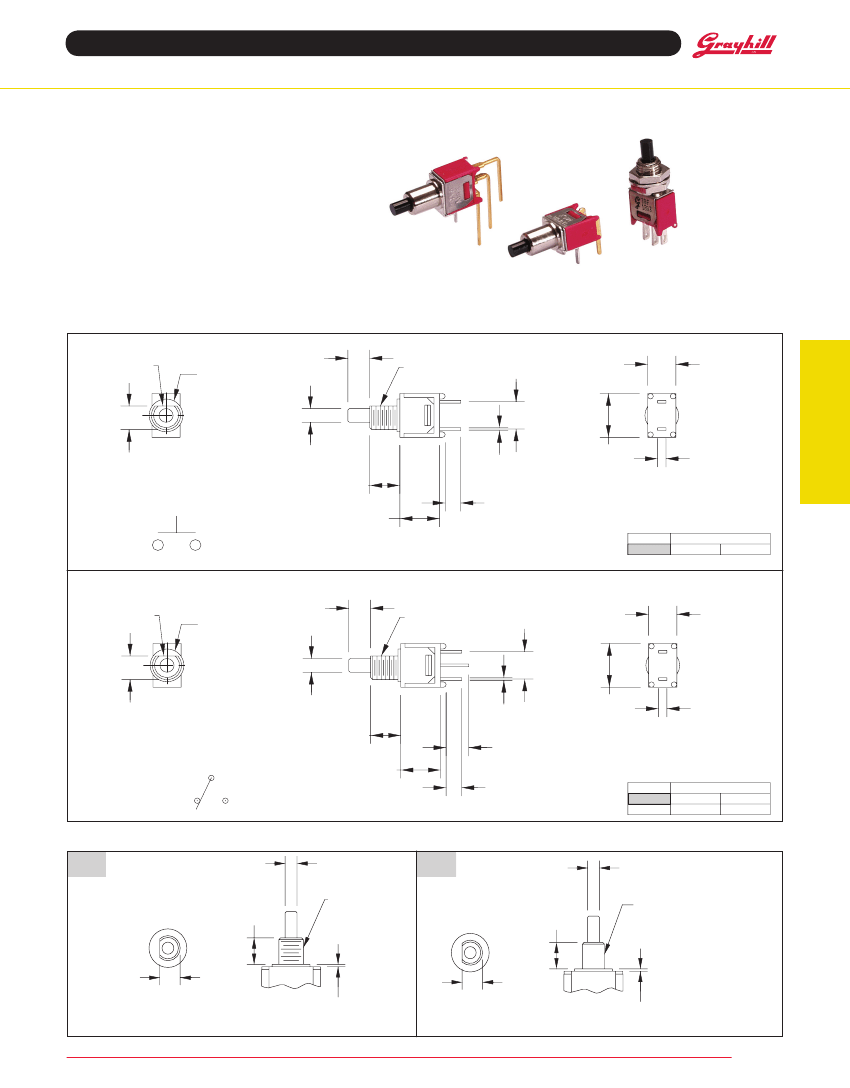

Subminiature Pushbutton Switches

SerieS 38F

Sub-Miniature

Pushbutton Switches

FeatureS

• Save Space and Weight

• SPDT and DPDT Circuitry

• Choice of Actuators, Bushings,

and Terminations

• UL Recoginized

MOdeLS

SPSt

FLAT

Ø.240

(Ø6.10)

in inches (and millimeters)

.155

(3.94)

10-48UNS

.200

(5.08)

.200

(5.08)

Pushbutton Switches

.173

(4.39)

Ø.100

(Ø2.54)

.214

(5.45)

.282

(7.18)

.020

(0.51)

.110

(2.79)

.321

(8.16)

.059

(1.52)

SCHEMATIC

()=MOMENTARY

MODEL NO.

SP9

SWITCH POSITION

OFF

(ON)

SPdt

FLAT

Ø.240

(Ø6.10)

.155

(3.94)

10-48UNS

.200

(5.08)

.200

(5.08)

.173

(4.39)

Ø.100

(Ø2.54)

.214

(5.45)

2COMM.

N.C.1

3 N.O.

.020

(0.51)

.160

(4.06)

.110

(2.79)

.321

(8.16)

.059

(1.52)

SCHEMATIC

.282

(7.18)

MODEL NO.

SP8

()=MOMENTARY

TERM. COMM.

SWITCH POSITION

(ON)

2-3

2-1

BuSHinG OPtiOnS

in inches (and millimeters)

Ø.100

(Ø2.54)

.220

(5.59)

10-48 UNS

Ø.100

(Ø2.54)

.220

(5.59)

Ø.187

(Ø4.75)

.173

(4.39)

.020

(0.51)

.173

(4.39)

.020

(0.51)

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
