88901372 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 88901372

88901372: DescriptionTimers 22MM DLY MAKE 24 VDC .5 TO 10 MIN; CategoryTopical application Mechanical and electrical/engineering/automation; File Size129KB，3 Pages; ManufacturerCrouzet; Environmental Compliance

Download Datasheet Parametric View All

88901372 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	88901372	-	-	View	Buy Now

88901372 Overview

Timers 22MM DLY MAKE 24 VDC .5 TO 10 MIN

88901372 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Crouzet
Product Category	Timers
RoHS	Details
Product	Analog Timer
Type	Solid State Timer
Timing Range	0.5 min to 10 min
Display Type	Analog
Accuracy	+/- 0.2 %
Current Rating	200 mA
Operating Temperature Range	- 20 C to + 60 C
Termination Style	Screw
Operating Supply Voltage	24 VDC
Factory Pack Quantity	1

Preview

Download Datasheet

View All

22/11/2013

www.crouzet.com

MBA Ø 22 panel mounted timers MBA3F Part number 88901372

Solid state output

Panel-mounted pushbutton-type timer

Function A delay on energisation

10 timing ranges : 0.05 s to 60 min

Supply 24 V DC and 110 →240 V DCAC 50 →60 Hz

Fast adjustment of timing period on PLCs (compatible with IEC1131)

IP 65

Part numbers

Type

88 901 372

MBA3F

Functions

Time ranges

0,5 min →10 min

Output

State

Nominal rating

200 mA

Supply voltage

24 V DC

Specifications

Repetition accuracy (with constant parameters)

Display precision

Maximum reset time by de-energisation MBA3F during

timed delay

Maximum reset time by de-energisation MBA3F after

timing

Maximum reset time by de-energisation MBA2F after

timing

Maximum reset time by de-energisation MBA2F after

timing

Solid state open collector PNP output

Voltage drop at terminals

Nominal rating

Leakage current

Electrical life (number of operations)

Protection against polarity inversions

Protection against load short circuits

Display of output state by LED : output in operation

Display of output state by LED : Power on

Dielectric strength (V rms)

Ripple

Temperature limits use (°C)

Temperature limits stored (°C)

Varistor protection against overvoltage

Drift Temperature

Drift Voltage

Conformity to standards VDE 0435 / ICE 255 / ICE 1131 /

ICE 801 4

Protection class according to NFC C 20010-IEC 529-DIN

40050 Panel-mounted

Protection class according to NFC C 20010 - IEC 529 - DIN

40050 Terminal

Housing material

Terminal capacity Single-wire

Terminal capacity Multi-wire with ferrule

Terminal screws

Tightening torque (Nm)

Weight (g)

+/-0,2 %

±5%

7 ms

5 ms

60 ms

30 ms

MBA2F : ≤ 5 V AC

MBA3F : ≤ 3 V DC

MBA2F : 400 mA at 200C (derating 5 mA/ °C)

MBA3F : 200 mA at 20 °C (derating 1.5 mA/ °C)

MBA2F : ≤ 5 mA AC

MBA3F : ≤ 0,1 mA DC

> 10

1500 V / 50 Hz / 1 min

± 10 %

-20 →+60

-20 →+80

+/- 0,05 %/ °C

+/- 0,2 %/V

IP65

IP10

Self-extinguishing

1 x 4 mm

1 x 2,5 mm

0,5 Nm

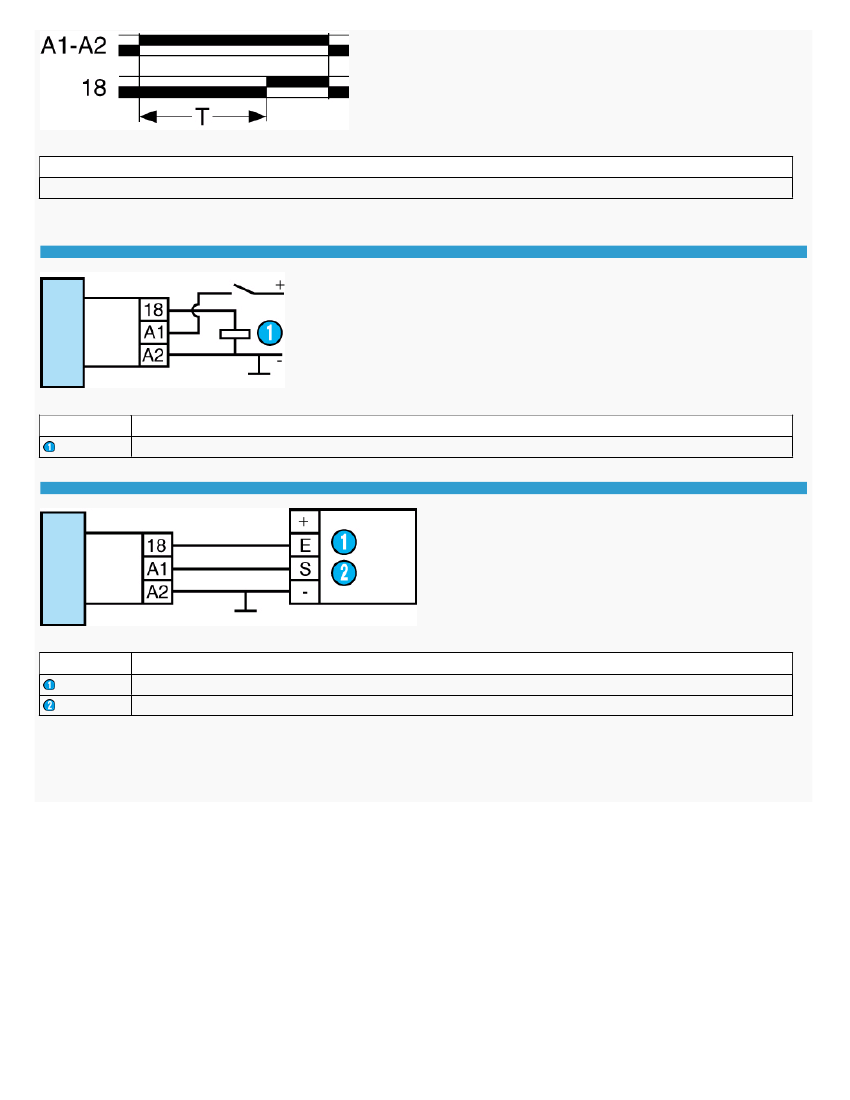

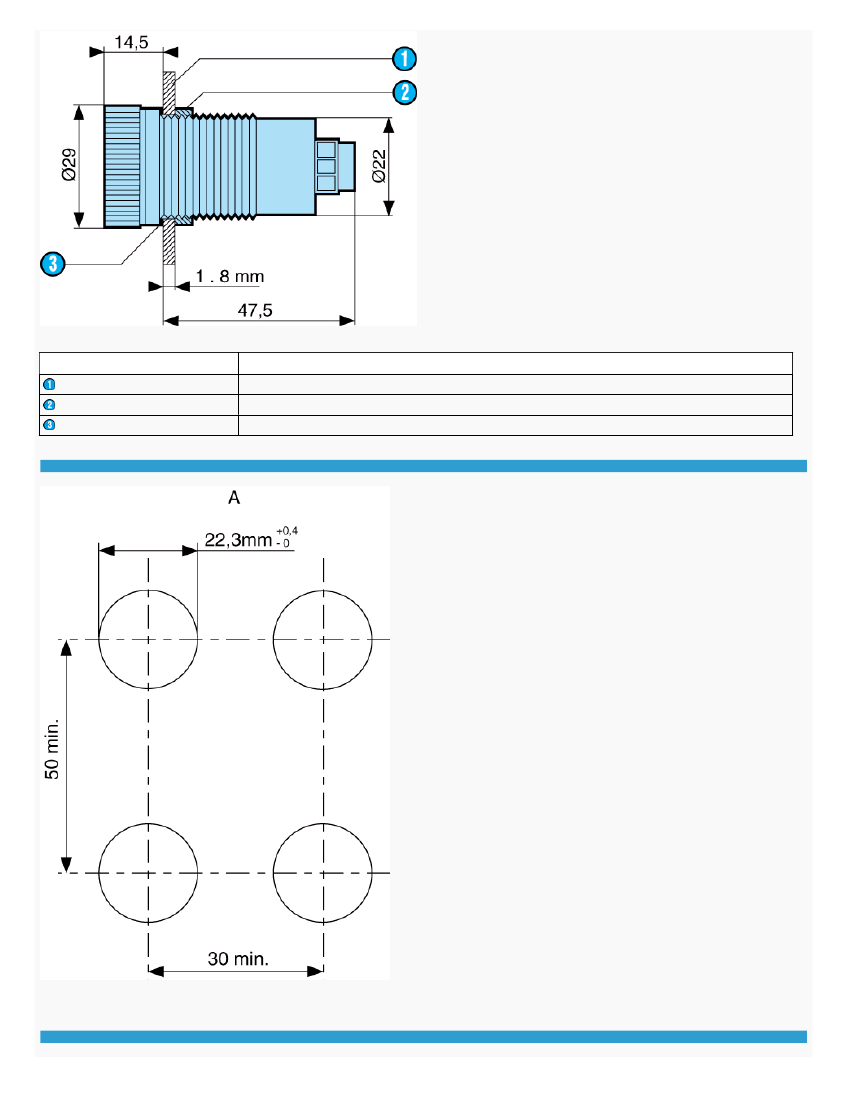

Dimensions (mm)

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected

Recommended Resources

The principle of D/A conversion using resistors

SCA broadcast receiver circuit diagram

Timing control circuit (2)

Voice Controlled AC Voltage Stabilizer Circuit

Light controlled thyristor photoelectric safety protector

Zero-voltage zero-current switching three-level DC converter
