84BN-AB1-022AN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 84BN-AB1-022AN

84BN-AB1-022AN: DescriptionInput Devices KEYBOARD,12BTN,NO LEGEND KEYBOARD,12BTN,NO LEGEND ounting nuts; CategoryTopical application Mechanical and electrical/engineering/automation; File Size129KB，2 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric Compare View All

84BN-AB1-022AN Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	84BN-AB1-022AN	-	-	View	Buy Now

84BN-AB1-022AN Overview

Input Devices KEYBOARD,12BTN,NO LEGEND KEYBOARD,12BTN,NO LEGEND ounting nuts

84BN-AB1-022AN Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Grayhill
Product Category	Input Devices
RoHS	Details
Product	Keypads
Features	3 x 4 keypad, backlit with self adhesive legends
For Use With	Low Light Applications
Current Rating	10 mA
Voltage Rating	24 V
Factory Pack Quantity	1

Preview

Download Datasheet

View All

Standard Keypads

SERIES 84B

Backlit with Self

Adhesive Legends

FEATURES

• Backlit for Low Light Applications

• Waterproof Silicone Rubber

• Audible, Tactile Contacts

• Low Contact Resistance

• Optional RFI/EMI Shielding

• 3,000,000 Operations per Button

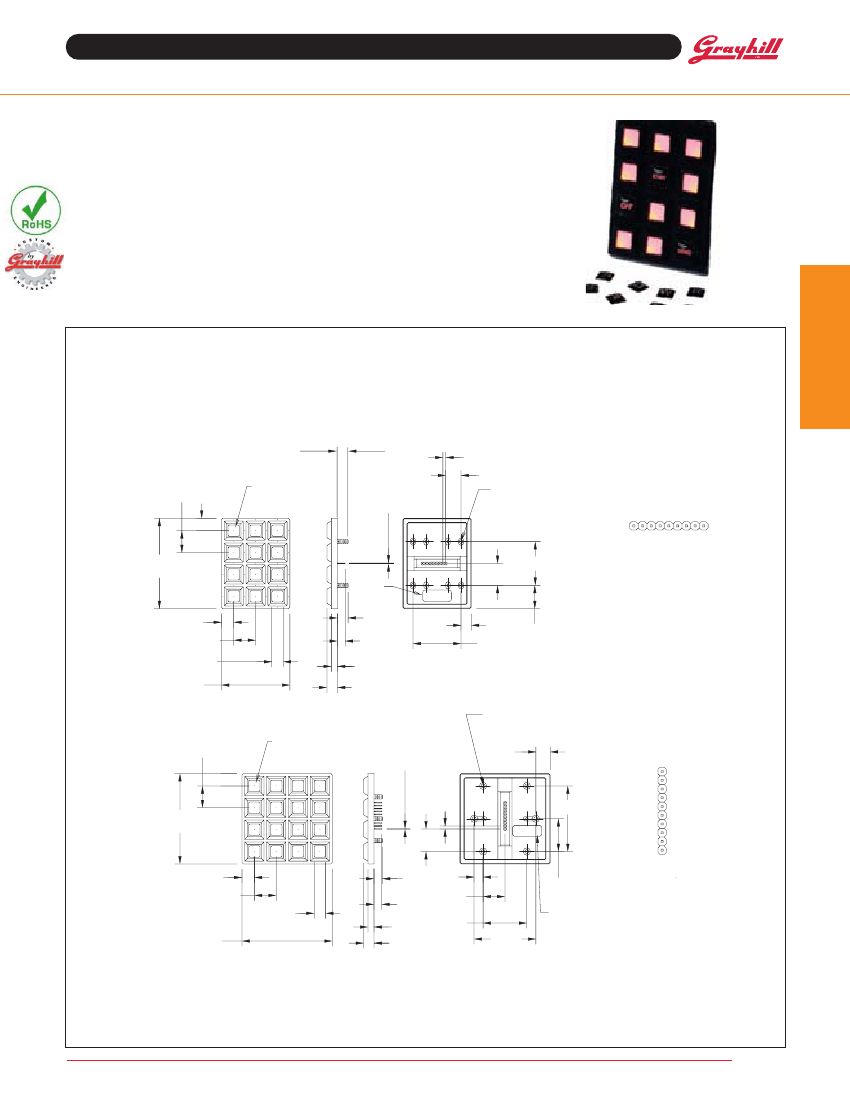

DIMENSIONS

In inches (and millimeters)

Keyboards and Keypads

3 x 4 Keyboard

.290 REF (STYLE 1)

.368 REF (STYLE 2)

.100 TYP.

.525

.750,3 EQ SPS.,

TOL.NON-ACCUM.

SWITCH

POSITION

IDENTIFICATION

.025.002 SQUARE

TERMINAL PINS

7 PLACES

#6-32 MTG

STUD,

4 PLACES

X Y A B CDE F G

.425

3.100

.020

1.500

.750

DETAIL A

TERMINAL PIN IDENTIFICATION

DETAIL

SCALE=1.5:1

LABEL

4 x

4 Keyboard

.350

1.650

.425

.750,2 EQ.SPS.,

TOL.NON-ACCUM.

.390 SQ. LEGEND

INSERT AREA

2.350 ± .020

.368

REF.

.267

REF.

.207

.357

.800

#6-32 MTG

STUD,

6 PLACES

.750,3 EQ SPS.,

TOL.NON-ACCUM.

SWITCH

POSITION

IDENTIFICATION

.025 .002

SQ. TERMINAL

PINS 10 PLCS.

.490

.425

.100

TYP.

2.250

3.100

.020

.775

.425

.750,3 EQ.SPS.,

TOL.NON-ACCUM.

.390 SQ.

LEGEND

INSERT AREA

3.100 ± .020

.290 REF

(STYLE 1) .310

.368 REF

(STYLE 2)

.750

.267

REF.

1.500

.207

.357

2.120

DETAIL A

1.125

TERMINAL PIN IDENTIFICATION

DETAIL

SCALE=1.5:1

LABEL

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

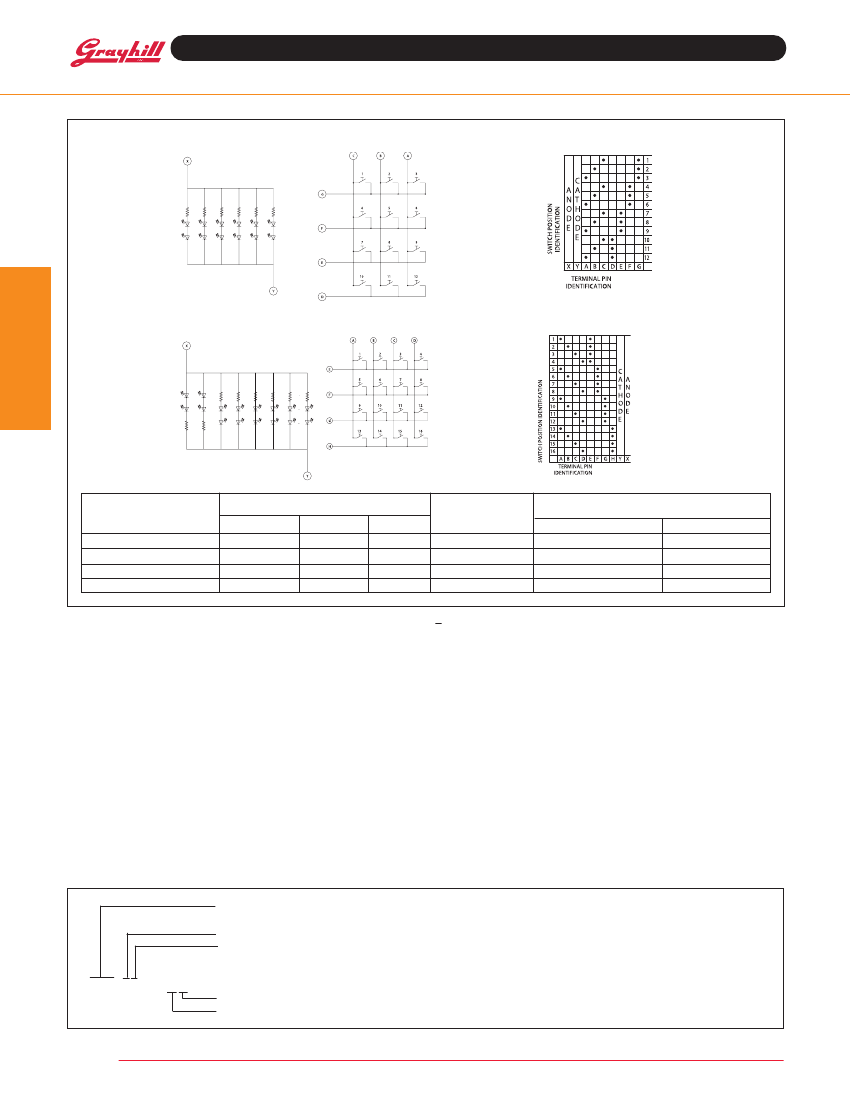

Keypads

84BN-AB1-022AN Related Products

	84BN-AB1-022AN	84B-BB2-022AN	84BN-AB1-022CN	84B-BB1-022CN	84BN-BB1-022C	84B-BB1-022DN
Description	Input Devices KEYBOARD,12BTN,NO LEGEND KEYBOARD,12BTN,NO LEGEND ounting nuts	Input Devices KEYBOARD,4X4,RED Keypad, 4 x 4, backlit, insertable legend, white	Input Devices KEYBOARD,12BTN,NO LEGEND KEYBOARD,12BTN,NO LEGEND ounting nuts	Input Devices Keypad, 4 x 4, backlit, insertable legend, red	Input Devices KEYBOARD,16BTN Keypad, 4x4, backlit, insertable legend, orange	Input Devices Keypad, 4 x 4, backlit, insertable legend, orange
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Grayhill	Grayhill	Grayhill	Grayhill	Grayhill	Grayhill
Product Category	Input Devices	Input Devices	Input Devices	Input Devices	Input Devices	Input Devices
RoHS	Details	Details	Details	Details	Details	Details
Product	Keypads	Keypads	Keypads	Keypads	Keypads	Keypads
Features	3 x 4 keypad, backlit with self adhesive legends	4 x 4 keypad, backlit with self adhesive legends	3 x 4 keypad, backlit with self adhesive legends	4 x 4 keypad, backlit with self adhesive legends	4 x 4 keypad, backlit with self adhesive legends	4 x 4 keypad, backlit with self adhesive legends
For Use With	Low Light Applications	Low Light Applications	Low Light Applications	Low Light Applications	Low Light Applications	Low Light Applications
Current Rating	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA
Voltage Rating	24 V	24 V	24 V	24 V	24 V	24 V
Factory Pack Quantity	1	1	1	1	1	1
