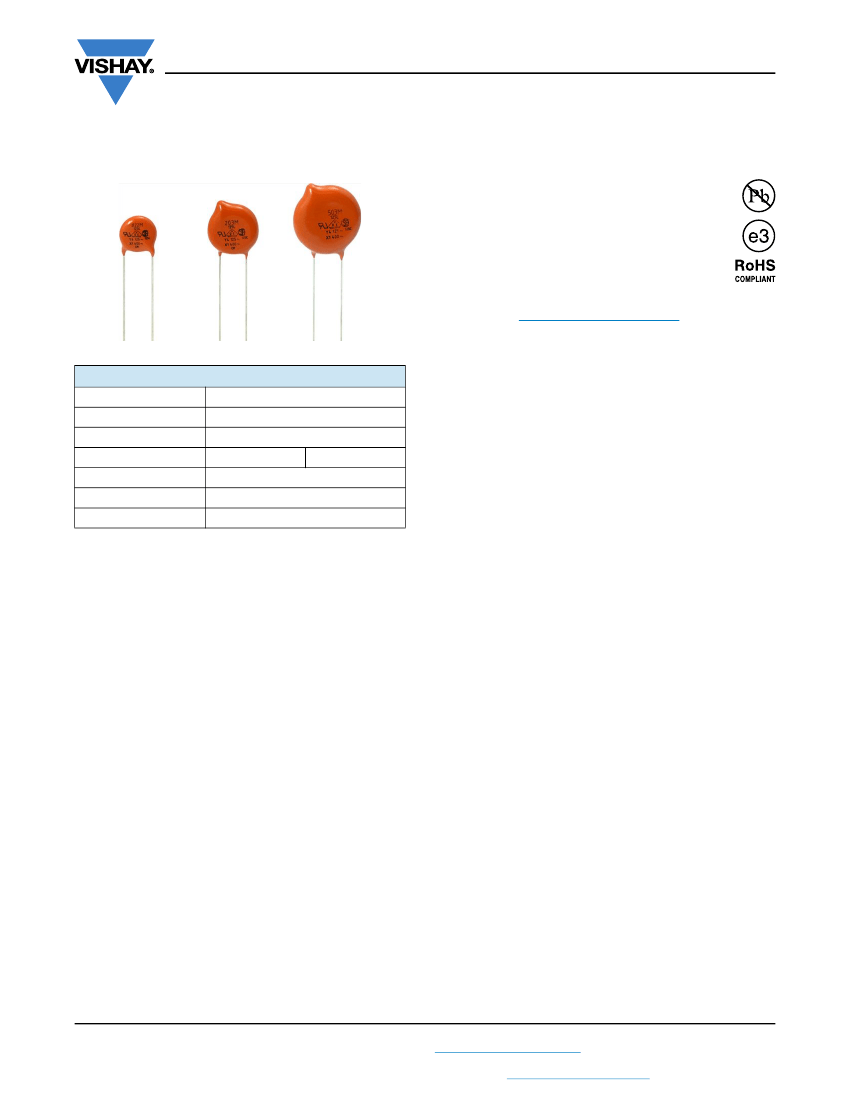

125L Series
www.vishay.com
Vishay Cera-Mite
AC Line Rated Ceramic Disc Capacitors
Class X1, 400 V
AC
/ Class Y4, 125 V
AC
FEATURES
• Complying with IEC 60384-14 3
rd
edition
• High reliability
• Complete range of capacitance values
• Radial leads
• Singlelayer AC disc safety capacitors
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• X1, Y4 according to IEC 60384-14.3
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Voltage (V
AC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
125
1000
50 000
Radial
VALUE
2
Y5V
400
• Across-the-line
• Line by-pass
• Antenna coupling
DESIGN
The capacitors consist of a ceramic disc of which both sides
are silver-plated. Connection leads are made of tinned
copper having a diameter of 0.032" (0.81 mm) or 0.025"
(0.64 mm). The capacitors may be supplied with radial
kinked or straight leads having a lead spacing of 0.375"
(9.5 mm) or 0.250" (6.4 mm). The standard tolerance is
± 20 %. Coating is made of flame retardant epoxy resin in
accordance with “UL 94 V-0”.
INSULATION RESISTANCE
Min. 1000
F
TOLERANCE ON CAPACITANCE
± 20 %
CAPACITANCE RANGE
1.0 nF to 0.050 μF
DISSIPATION FACTOR
2.0 % max. at 1 kHz; 1 V
RATED VOLTAGE
IEC 60384-14.3:
• X1:
• Y4:
400 V
AC
, 50 Hz
125 V
AC
, 50 Hz
CERAMIC DIELECTRIC
Y5V (Class 2)
CLIMATIC CATEGORY ACC. TO EN 60068-1
25/125/21
DIELECTRIC STRENGTH BETWEEN LEADS
Component test:
2000 V
AC
, 50 Hz, 2 s
As repeated test admissible only once with:
1800 V
AC
, 50 Hz, 2 s
Random sampling test (destructive test):
2000 V
AC
, 50 Hz, 60 s
OPERATING TEMPERATURE RANGE
-30 °C to +125 °C
DIELECTRIC STRENGTH OF BODY INSULATION
2300 V
AC
, 50 Hz, 60 s (destructive test)
Revision: 02-Mar-15
Document Number: 23106
1
For technical questions, contact:
ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
125L Series
www.vishay.com
Vishay Cera-Mite
DIMENSIONS
in inches (millimeters)
1.250 min.
(32)
D
max.
Tinned Copper Leads
Ø
T
max.
0.125
max. (3.2)
LS
LO
ORDERING INFORMATION, CERAMIC X1 / Y4 CAPACITORS 125L
C
(pF)
1000
1500
2000
2200
3300
4700
5000
6800
± 20
8200
0.010 μF
0.015 μF
0.018 μF
0.020 μF
0.022 μF
0.030 μF
0.050 μF
0.530 (13.5)
0.560 (14.3)
0.720 (18.3)
0.790 (20.1)
0.720 (18.3)
0.790 (20.1)
0.720 (18.3)
0.925 (23.5)
0.193 (5.0)
0.195 (5.0)
0.205 (5.3)
0.375 (9.5)
0.205 (5.3)
0.250 (6.4)
0.192 (4.9)
0.240 (6.1)
0.275 (7.0)
22
20
22
22
0.025 (0.64)
0.032 (0.81)
0.025 (0.64)
0.025 (0.64)
0.106 (2.7)
0.087 (2.2)
0.094 (2.4)
0.087 (2.2)
0.087 (2.2)
125LS18-R
125LS20-R
125LS22-R
125LS30-R
125LS50-R
0.094 (2.4)
0.098 (2.5)
0.102 (2.6)
125LD82-R
125LS10-R
125LS15-R
TOL.
(%)
D
max.
DIAMETER
INCH (mm)
0.330 (8.4)
0.330 (8.4)
0.330 (8.4)
0.330 (8.4)
0.365 (9.3)
0.400 (10.2)
0.430 (11.0)
0.490 (12.5)
T
max.
THICKNESS
INCH (mm)
0.195 (5.0)
0.195 (5.0)
0.188 (4.8)
0.250 (6.4)
0.182 (4.7)
0.195 (5.0)
0.185 (4.7)
20
0.195 (5.0)
0.198 (5.1)
0.032 (0.81)
0.094 (2.4)
0.098 (2.5)
125LD50-R
125LD68-R
0.083 (2.1)
0.094 (2.4)
0.087 (2.2)
125LD22-R
125LD33-R
125LD47-R
WIRE SIZE
AWG
INCH (mm)
LS
LEAD SPACE
INCH (mm)
± 1 mm
LO
LEAD OFFSET
INCH (mm)
± 0.5 mm
0.094 (2.4)
0.098 (2.5)
0.091 (2.3)
ORDERING
CODE
125LD10-R
125LD15-R
125LD20-R
Notes
• Alternate lead spacings of 7.5 mm and 10 mm are available bulk or tape and reel on request.
• Minimum lead clearance according to IEC 60384-14: 0.118" (3 mm)
TAPE AND REEL OPTIONS
Part number codes and specifications for tape and reel packaging are found in the general information document - find web-link
below.
Revision: 02-Mar-15
Document Number: 23106
2
For technical questions, contact:
ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
125L Series
www.vishay.com

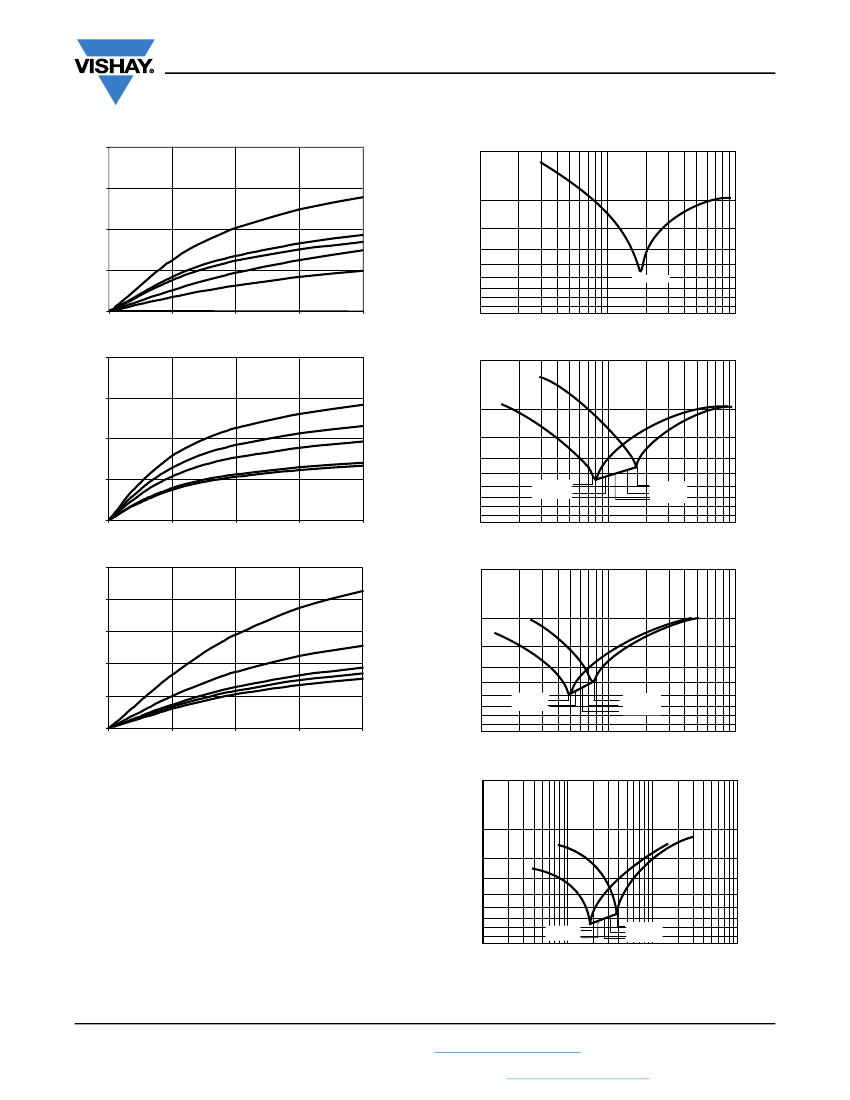

LEAKAGE CURRENT VS. VOLTAGE
(Typical)
2
Leakage Current (mA) RMS
Vishay Cera-Mite
INSERTION LOSS VS. FREQUENCY
(Typical)
10
125LD33-R
Insertion Loss (dB)
1.5
20
30
40
50
125LD10-R
1
125LD22-R
125LD20-R
125LD15-R
125LD47-R
0.5
0
0
500
1000
AC Voltage (V) RMS
4
Leakage Current (mA) RMS
1500
2000
100
1
10
Frequency (MHz)
100
10
125LS10-R
125LD82-R
Insertion Loss (dB)
3
20
30
40
50
125LD47-R
125LD33-R
125LD15-R
125LD20-R
125LD22-R
2
125LD68-R
125LD50-R
125LD47-R
1
0
0
500
1000
1500
AC Voltage (V) RMS
2000
100
1
10
Frequency (MHz)
100
25
Leakage Current (mA) RMS
125LS50-R
10
20
Insertion Loss (dB)
20
30
40
50
125LS15-R
125LS10-R
125LD50-R
125LD68-R
125LD82-R
15
125LS30-R
10
5
0
0
500
1000
1500
AC Voltage (V) RMS
125LS22-R
125LS20-R
125LS18-R
2000
100
1
10
Frequency (MHz)
100
10
Insertion Loss (dB)
20
30
40
50
125LS18-R
125LS20-R
125LS22-R
100
125LS50-R
125LS30-R
0.1
1
10
Frequency (MHz)
100
Revision: 02-Mar-15
Document Number: 23106
3
For technical questions, contact:
ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
125L Series
www.vishay.com
Vishay Cera-Mite

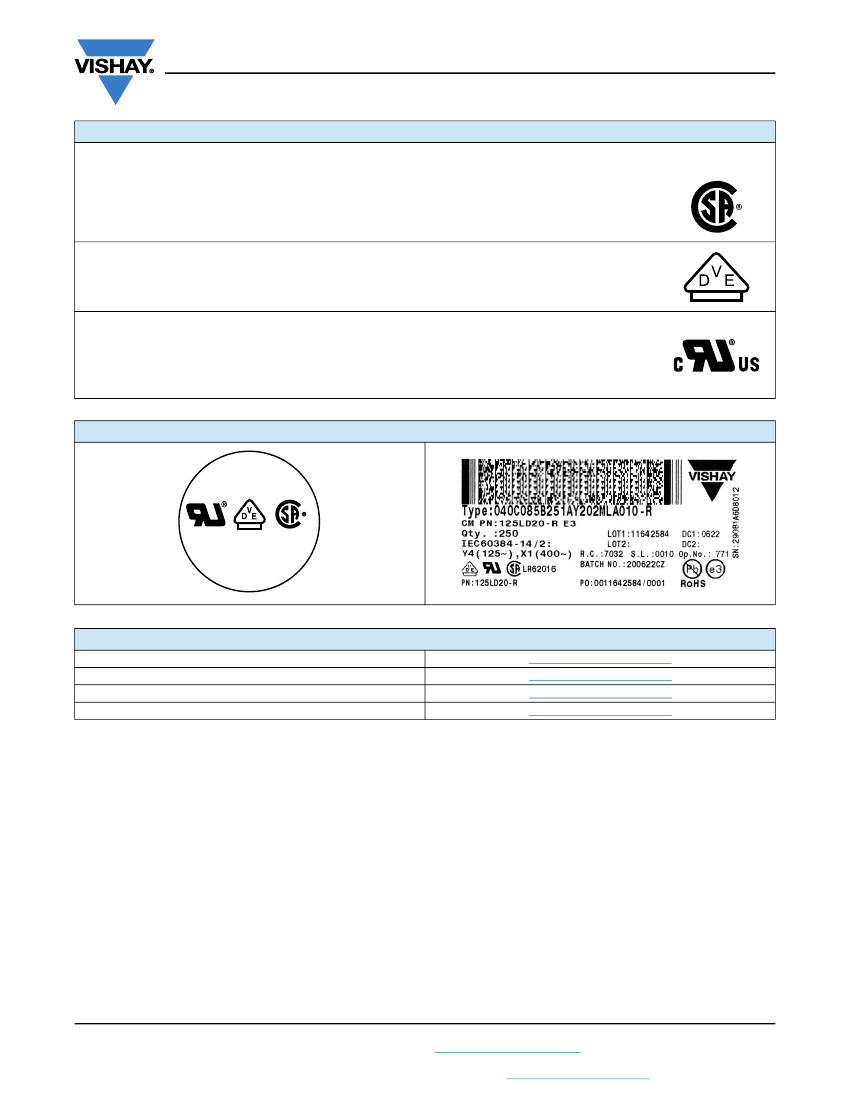

APPROVALS
IEC 60384-14.3 - Safety tests
This approval together with CB test certificate substitutes all national approvals.
CB Certificate
Y4-capacitor: CB test certificate:
X1-capacitor: CB test certificate:
VDE
Y4-capacitor: VDE marks approval:
X1-capacitor: VDE marks approval:
DIN EN 60384-14 VDE 0565-1-1:2006-04 - Safety tests
Underwriters Laboratories Inc.
Y4-capacitor: UL test certificate:
X1-capacitor: UL test certificate:
UL 60384-14, CSA E60384-1:03, CSA E60384-14:09
Fixed capacitors for electromagnetic interference suppression and connection to the supply mains.
E99264
E99264
1 nF to 50 nF
1 nF to 50 nF
125 V
AC
400 V
AC
40003976
40003976
1 nF to 50 nF
1 nF to 50 nF
125 V
AC
400 V
AC
CA/13650/CSA
CA/13650/CSA
1 nF to 50 nF
1 nF to 50 nF
125 V
AC
400 V
AC
MARKING
Sample
102M
125L
125 °C
Y4 125 ~
X1 400 ~
CM
RELATED DOCUMENTS
General Information
CB Test Certificate
VDE Marks Approval
UL Test Certificate
www.vishay.com/doc?23140
www.vishay.com/doc?22234
www.vishay.com/doc?22235
www.vishay.com/doc?22236
Revision: 02-Mar-15
Document Number: 23106
4
For technical questions, contact:
ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
