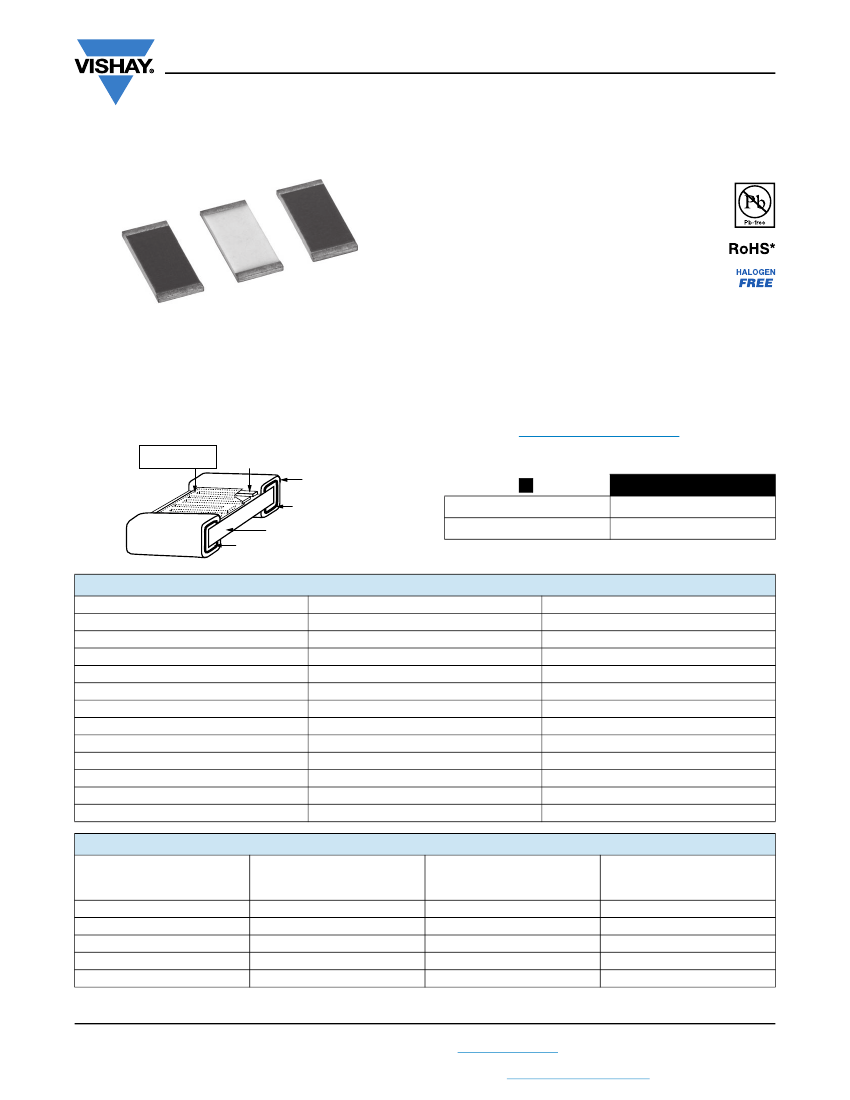

PLTT
www.vishay.com
Vishay Dale Thin Film
Precision Low TCR High Temperature Thin Film Resistor,
Surface Mount Chip, ± 5 ppm/°C TCR, 0.02 % Tolerance
FEATURES
• PLTT0603 case size is qualified to AEC-Q200
for automotive applications
• -55 °C to 215 °C operating temperature range
Available
Vishay’s proven precision thin film wraparound resistors will
meet your exact requirements. These resistors are ideal for
use in oil industry precision applications requiring low noise,
long term stability under high temperature, ultra low
temperature coefficient of resistance, and low voltage
coefficient. The chip resistors are available in any resistance
ohmic value in the range specified below.
CONSTRUCTION
SPM
Passivation
Enhancement
Passivated Nichrome
Resistive Film
Plated
Gold
(10 μ" to 20 μ")
Nickel Barrier
High Purity
Alumina
Substrate
Adhesion Layer
• TCR of ± 5 ppm/°C standard
Available
• Tolerances to ± 0.02 %
• Anti corrosion resistant film with (SPM) special
passivation method
• Stable film and performance characteristics
• 0.5 % max. at 2000 h, 215 °C, 25 % rated power
• Non-standard resistance values available
• Very low noise and voltage coefficient
(< -30 dB, 0.1 ppm/V)
• UL 94 V-0 flame resistant
• Gold terminations (10 μ" to 20 μ")
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
TYPICAL PERFORMANCE
ABSOLUTE
TCR
TOL.
5
0.02
STANDARD ELECTRICAL SPECIFICATIONS
TEST
Material
Resistance Range
TCR: Absolute
Tolerance: Absolute
Stability: Absolute
Stability: Ratio
Voltage Coefficient
Working Voltage
Operating Temperature Range
Storage Temperature Range
Noise
Shelf Life Stability: Absolute
SPECIFICATIONS
Passivated nichrome
50
to 3 M
± 5 ppm/°C
± 0.1 % to ± 0.02 %
R
± 0.5 %
-
± 0.1 ppm/V (typical)
100 V to 200 V
-55 °C to +215 °C
-55 °C to +215 °C
< - 35 dB (typical)
R
± 0.01 %
CONDITIONS
-
-
-55 °C to +215 °C
+25 °C
2000 h at 215 °C, 25 % rated power
-
-
-
-
-
-
1 year at +25 °C
COMPONENT RATINGS
CASE SIZE
0603
0805
1206
2010
2512
Note
• Consult factory for additional case size
Revision: 08-Jul-16
Document Number: 60082
1
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
POWER RATING
AT 70 °C
(mW)
150
250
400
800
1000
WORKING VOLTAGE
(V)
75
100
200
200
200
RESISTANCE RANGE
()
75 to 130K
250 to 260K
500 to 775K
500 to 2M
500 to 3M
PLTT
www.vishay.com
Vishay Dale Thin Film
DIMENSIONS
in inches
D
T
E
L
W
CASE SIZE
0603
0805
1206
2010
2512
TERM
G
G
G
G
G
L
0.064 ± 0.006
0.080 ± 0.006
0.126 ± 0.008
0.209 ± 0.009
0.259 ± 0.009
W
0.032 ± 0.005
0.050 ± 0.005
0.063 ± 0.005
0.098 ± 0.005
0.124 ± 0.005
T
0.015 to 0.033
0.015 to 0.033
0.015 to 0.033
0.015 to 0.033
0.015 to 0.033
D
0.012 ± 0.005
0.016 ± 0.008
0.020 + 0.005/- 0.010
0.020 ± 0.005
0.020 ± 0.005
E
0.015 ± 0.005
0.015 ± 0.005
0.020 + 0.005/- 0.010
0.020 ± 0.005
0.020 ± 0.005
ENVIRONMENTAL TESTS
- MIL-PRF-55342
ENVIRONMENTAL TEST
Thermal Shock
Short Time Overload
Low Temperature Operation
Resistance to Soldering Heat
Moisture Resistance
High Temperature Exposure
Life
TCR
CONDITIONS
MIL-STD-202 method 107 Cond F, -65 °C to +150 °C
MIL-PRF-55342 Para 4.8.6, 2.5x rated working voltage
MIL-PRF-55342 Para 4.8.5, -65 °C
MIL-STD-202 method 210
MIL-STD-202 method 106, no power applied
MIL-PRF-55342 Para 4.8.7, at 150 °C for 100 h
MIL-STD-202 method 108, 25 % rated power
for 2000 h at 215 °C
MIL-STD-202 method 304
TYPICAL VISHAY
PERFORMANCE
± 0.02 %
± 0.01 %
± 0.01 %
± 0.01 %
± 0.02 %
± 0.02 %
± 0.50 %
± 5 ppm/°C
ENVIRONMENTAL TESTS
- AEC-Q200 PLTT0603 Case Size Only
ENVIRONMENTAL TEST
High temperature storage
Temperature cycling
Moisture resistance
Biased humidity
Life
Mechanical shock
Vibration
Resistance to soldering heat
Electrostatic discharge
Solderability
TCR
Die shear
Flame retardance
CONDITIONS
MIL-STD-202 method 108, 1000 h at 125 °C
JESD22 method JA-104, 1000 cycles,
-55 °C to +155 °C
MIL-STD-202 method 106, no power applied
MIL-STD-202 method 103, 1000 h at 85 °C,
85 % RH, 10 % rated power
MIL-STD-202 method 108,
1000 h at 175 °C, 50 % rated power
MIL-STD-202 method 213, condition C
MIL-STD-202 method 204, 10 Hz to 2 kHz
MIL-STD-202 method 210, condition B
AEC-Q200-002, human body (< 1 k: 1 kV; > 1 k: 2 kV)
MIL-STD-883 method 2003 para 2.3.1 and J-STD-002
MIL-STD-202 method 304
MIL-PRF-55342, 0.5 kg for 30 s minimun
AEC-Q200-001 para 4.0
TYPICAL VISHAY
PERFORMANCE
± 0.10 %
± 0.25 %
± 0.10 %
± 0.20 %
± 0.50 %
± 0.02 %
± 0.02 %
± 0.02 %
< 1 k: 1 kV; > 1 k: 2 kV
Pass
± 5 ppm /°C
Pass
Pass
Revision: 08-Jul-16
Document Number: 60082
2
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PLTT
www.vishay.com
Vishay Dale Thin Film
DERATING CURVE
100
Percent of Rated Power
75
50
25
0
0
70
175
215
230
Ambient Temperature °C
PLTT0805 500
STABILITY TEST RESULTS
0.50
0.40
0.30
PLTT0805 50 k STABILITY TEST RESULTS
0.50
0.40
0.30
Maximum
Δ
(%)
0.20
0.10
0.00
Test Conditions:
Case
Size:
0805
Resistance Value: 500
Ω
Applied Power: 25 % of rated power
Test Chamber Temperature: 215 °C
0
125 250 425 500 750 1000 1100 1250 1525 1775 2000
Maximum
Δ
(%)
0.20
0.10
0.00
Test Conditions:
Case
Size:
0805
Resistance Value: 50 kΩ
Applied Power: 25 % of rated power
Test Chamber Temperature: 215 °C
0
125 250 425 500 750 1000 1100 1250 1525 1775 2000
- 0.10
- 0.20
- 0.30
- 0.40
- 0.50
- 0.10
- 0.20
- 0.30
- 0.40
- 0.50
Time on Test (h)
Note
• Performance obtained with following mounting conditions
PCB: Polymide IPC-7831A STD land patterns
Solder paste: PbSnAg (93.5/5/1.5)
Time on Test (h)
GLOBAL PART NUMBER INFORMATION
P
GLOBAL
MODEL
PLTT
L
CASE
SIZE
0603
0805
1206
2010
2512
T
T
0
8
0
5
Z
1
0
0
1
Q
G
T
1
TCR
CHARACTERISTIC
Z
= ± 5 ppm/°C
RESISTANCE
The first 3 digits are
significant figures and
the last digit specifies
the number of zeros to
follow. “R” designates
the decimal point.
Example:
1001
= 1 k
2500
= 250
Special values with more
than 4 significant figures,
use a R for value below
1 k and a K for values
greater than 1 k to
signify a decimal point.
982R6
= 982.6
532R41
= 532.41
TOLERANCE
Q
=
± 0.02 %
(1)
A
= ± 0.05 %
B
= ± 0.1 %
D
= ± 0.5 %
F
=±1%
G
=±2%
TERMINATION
G
= Wraparound Gold
over Ni barrier
(10 μ" min. Au)
PACKAGING
WS
= WAFFLE
WI
= 100 min./1mult
(item single lot date code)
WP
= 100 min./1mult
(package unit single lot
date code)
TAPE AND REEL
T0
= 100 min., 100 mult
T1
= 1000 min., 1000 mult
T5
= 500 min., 500 mult
TF
= Full reel
TS
= 100 min., 1 mult
TI
= 100 min./1mult
(item single lot date code)
TP
= 100 min., 1 mult
(package unit single lot
date code)
(1)
Note
Q tolerances are available only for resistance values
250
.
Document Number: 60082
3
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Revision: 08-Jul-16
