UQCFVA560JAT2A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> UQCFVA560JAT2A

UQCFVA560JAT2A: DescriptionMultilayer Ceramic Capacitors MLCC - SMD/SMT 250V 56pF C0G 0805 5% Tol; CategoryPassive components; File Size4MB，13 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

UQCFVA560JAT2A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UQCFVA560JAT2A	-	-	View	Buy Now

UQCFVA560JAT2A Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT 250V 56pF C0G 0805 5% Tol

UQCFVA560JAT2A Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	AVX
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT
RoHS	Details
Capacitance	56 pF
Voltage Rating DC	250 VDC
Dielectric	A
Tolerance	5 %
Case Code - in	0805
Case Code - mm	2012
Height	1.3 mm
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Product	RF Microwave / High Q
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Length	2.01 mm
Package / Case	0805 (2012 metric)
Termination Style	SMD/SMT
Type	Microwave MLCCs High Q Ultra Low ESR
Width	1.24 mm
Factory Pack Quantity	500
Unit Weight	0.000194 oz

Preview

Download Datasheet

View All

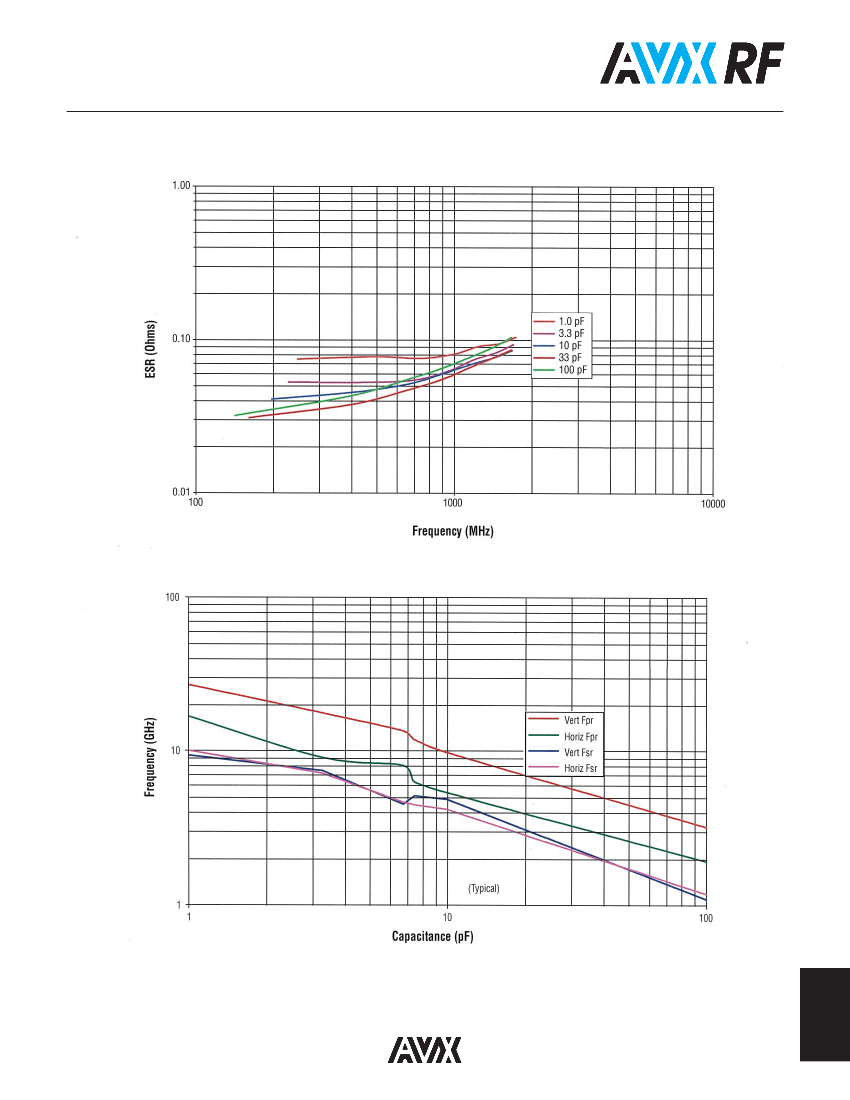

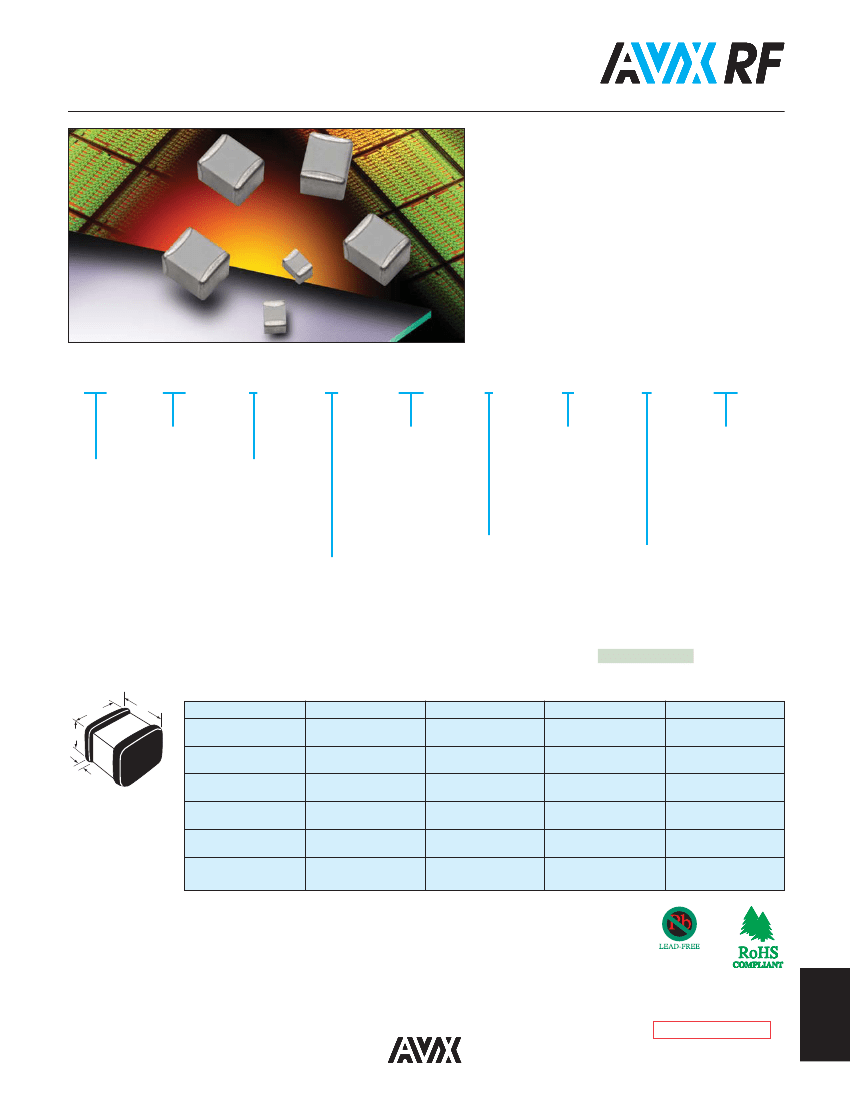

Microwave MLCs

UQ Series High Q Ultra Low ESR MLC

FEATURES:

•

Ultra Low ESR

High Q

High Self Resonance

Capacitance Range 0.1 pF to 1000 pF

APPLICATIONS:

•

RF Power Amplifiers

Low Noise Amplifiers

Filter Networks

MRI Systems

HOW TO ORDER

Case Size

AVX Style

CA = 0605

CB = 1210

CR = 0709

CL = 0402

CS = 0603

CF = 0805

See mechanical

dimensions below

100

Capacitance

EIA Capacitance Code in pF.

Failure Rate

Code

A = Not

Applicable

Packaging Code

ME = 7" Reel Marked

(0605, 1210 &

0709 only)

2A = 7" Unmarked

(0402, 0603, &

0805 only)

* Vertical T&R available

Voltage

Code

5 = 50V

1 = 100V

E = 150V

2 = 200V

V = 250V

9 = 300V

7 = 500V

First two digits = significant

figures or “R” for decimal

place.

Third digit = number of zeros

or after “R” significant fig-

ures.

Temperature

Coefficient Code

A = 0±30ppm/°C

Capacitance

Tolerance Code

A = ±.05 pF

B = ±.1 pF

C = ±.25 pF

D = ±.5 pF

F = ±1%

G = ±2%

J = ±5%

K = ±10%

M = ±20%

Termination Style

Code

J = Nickel Barrier

Sn/Pb (60/40)

**T

= 100% Tin

**C

= Non-Magnetic

Barrier/Tin

**RoHS compliant

MECHANICAL DIMENSIONS:

inches (millimeters)

Width (W)

.055±.015

(1.40±.381)

.110±.015

(2.79±.381)

.090±.010

(2.29±.254)

.020±.004

(0.51±.100)

.032±.006

(0.81±0.15)

.049±.008

(1.24±0.20)

Case

UQCA

UQCB

Length (L)

.055 + .015 - .010

(1.40+ .381 - .254)

.110 + .020 - .010

(2.79 +.508 -.254)

.070 ± .015

(1.78 ± .381)

.040 ± .004

(1.02 ± .100)

.063 ± .006

(1.60 ± 0.15)

.079 ± .008

(2.01 ± 0.20)

Thickness (T)

.057 (1.45) max.

.102 (2.59) max.

.115 (2.92) max.

.024 (.600) max.

.035 (.890) max.

.051 (1.30) max.

Band Width (bw)

.010 + .010 -.005

(.254 +.254 -.127)

.015±.010

(.381±.254)

.010 + .010 -.005

(.254 +.254 -.127)

.010 ± .006

(0.25 ± 0.15)

.014 ± .006

(0.36 ± 0.15)

.020 ± 0.01

(0.51 ± 0.25)

A 1J

UQCR

UQCL

UQCS

UQCF

TAPE & REEL:

All tape and reel specifications are in compliance with EIA RS481

(equivalent to IEC 286 part 3).

—8mm carrier

—7" reel: UQCA = 500 or 4000 pc T&R

UQCB = 500 or 1000 pc T&R

UQCR = 500 or 1000 pc T&R

12132017

LEAD-FREE COMPATIBLE

COMPONENT

UQCL = 500, 4000 or 10,000 pc T&R

UQCS = 500 or 4000 pc T&R

UQCF = 500 or 4000 pc T&R

For RoHS compliant products,

please select correct termination style.

Also available in:

Not RoHS Compliant

175
