Epoxy and Polish LC Connectors
An Evolant
™
Solutions Product
Corning
Cable Systems
Description
The epoxy and polish LC connector is a single-fiber small-
form-factor connector that provides very high density in a
small space. Designed for multimode and single-mode per-
formance, the LC utilizes an RJ latch design for easy mating
and removal. The LC uses a 1.25 mm diameter ceramic ferrule
to achieve its small size, allowing two duplexed LC connectors
to fit in the same space as a simplex SC.
Features / Benefits
• Small size allows higher density
• RJ latch for easy connection
• Bulk packaged for quicker assembly
• Variety of boot colors available

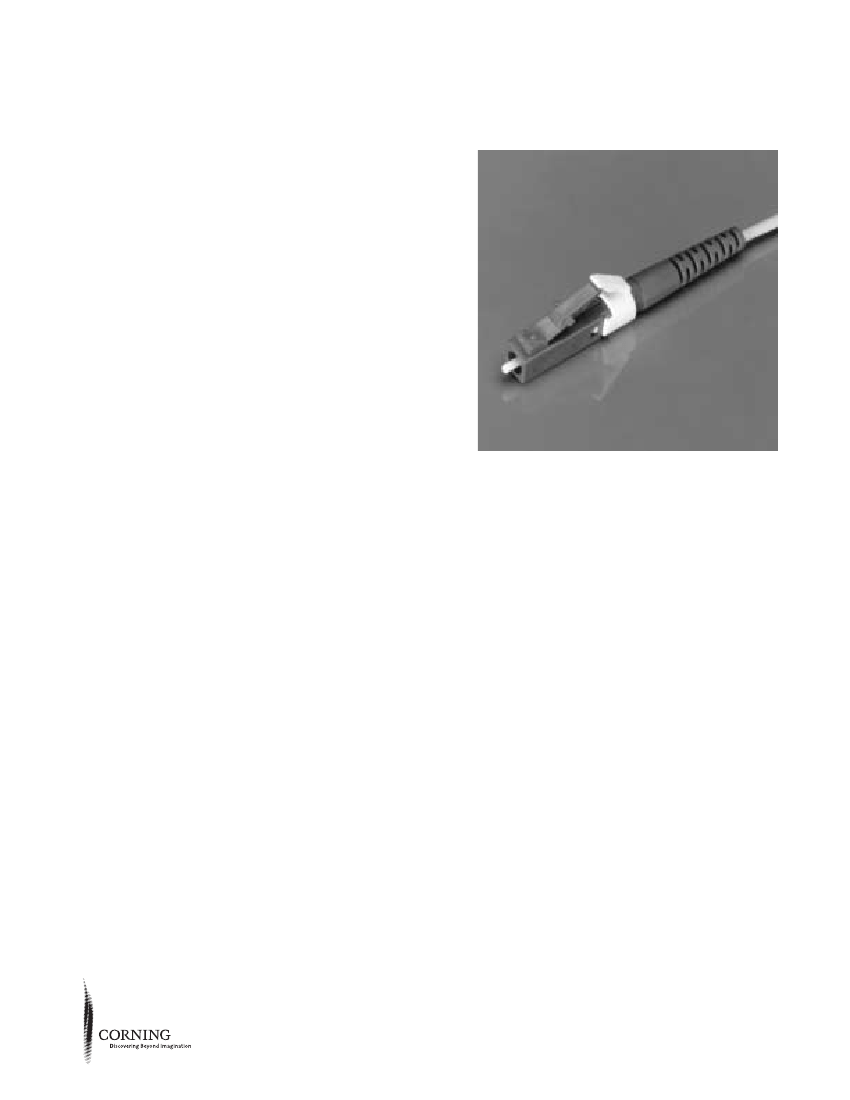

LC Heat-Cured Single-Mode Connector
| Photo
LAN256
• Meets ANSI/TIA/EIA-568B.3 standard
• Used on 900 µm tight-buffered fiber, 1.6 mm and 2.0 mm
single-fiber cable
• Meets TIA/EIA-604-10
• Optional trigger installable after termination
Product Specifications
Epoxy and Polish LC Connectors
An Evolant
™
Solutions Product
Corning
Cable Systems
Specifications
Parameter
Insertion Loss
Reflectance
Temperature Cycling
Durability
Tensile Strength
Material
Single-mode (untuned)
0.2 dB Average
< -55 dB
< 0.3 dB change, -40º to +75ºC;
21 cycles
< 0.2 dB change per FOTP-21,
500 rematings
< 0.2 dB change per FOTP-21
Composite Housing; Pre-radiused
Zirconia Ferrule
Single-mode (tuned)
0.15 dB Average
Multimode
0.2 dB Average
< -20 dB
same
same
same
Ordering Information
Part Number
95-050-LC-BPxy
95-100-LC-BPxy
95-250-LC-BPxy
95-252-LC-BPxy
TER-LC-COR-SR-SM
TER-LC-COR-SR-MMZ
TER-LCS-COR-SR-SM
TER-LCS-COR-SR-MMZ
TRIGGER-BP-D
TRIGGER-BP-S
Description
LC Multimode Connector, 50 µm, bulk packaged in quantities of 100
LC Multimode Connector, 62.5 µm bulk packaged in quantities of 100
LC Single-mode Connector, untuned, bulk packaged in quantities of 100
LC Single-mode Connector, tuned, bulk packaged in quantities of 100
Duplex Adapter for LC Single-mode Connector; senior/senior version
Duplex Adapter for LC 62.5 µm Multimode Connector; senior/senior version; zirconia insert
Simplex Adapter for LC Single-mode Connector; senior/senior version
Simplex Adapter for LC 62.5 µm Multimode Connector; senior/senior version; zirconia insert
LC Duplex Trigger; package of 50
LC Simplex Trigger; package of 100
X = Size: 9 = 900 µm boot only, 2 = 2 mm boot only, 1 = 1.6 mm boot only
Y = Color: B = black, R = red, N = navy blue, W = white, G = green, Y = yellow
Accessories
Part Number
SP1000
CPF-LC-12
TKT-SFF-125
TKT-025
CCK-CUPC-125
LSCOPE-9
LSCOPE-2
SP1000-RPP-85
SP1000-GPP
SP1000-RPP-50
Description
Connector Polishing Machine
Polishing Fixture, LC 12 Port, Single-mode and Multimode
Small-Form-Factor Installation Kit, Includes Heat Gun
Termination Kit for Corning Cable Systems Multimode and Single-mode Heat-Cured
Connectors
LC Consumables Kit for the SP1000 Polisher; terminates up to 200 connectors
Microscope, 200x
Microscope Adapter for 1.25 mm Ferrule Connectors
Polishing Pad for SP1000, 85 durometer
Glass Polishing Plate for SP1000
Polishing Pad for SP1000, 50 durometer
Corning Cable Systems LLC • PO Box 489 • Hickory, NC 28603-0489 USA
1-800-743-2675 • FAX: +1-828-901-5973 • International: +1-828-901-5000 • http://www.corning.com/cablesystems
Corning Cable Systems reserves the right to improve, enhance and modify the features and specifications of Corning Cable Systems’ products
without prior notification. Evolant is a trademark of Corning Cable Systems Brands, Inc. Discovering Beyond Imagination is a trademark of
Corning Incorporated. All other trademarks are the properties of their respective owners. Corning Cable Systems is ISO 9001 certified.
© 2002 Corning Cable Systems. All rights reserved. Published in the USA. EVO-249-EN / September 2002 / 2M
