T489C106K020ATE500 datasheet, PDF

Datasheet> All Categories > Passive components> T489C106K020ATE500

T489C106K020ATE500: DescriptionTantalum Capacitors - Solid SMD 10.0UF 20.0V; CategoryPassive components; File Size1MB，17 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

T489C106K020ATE500 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	T489C106K020ATE500	-	-	View	Buy Now

T489C106K020ATE500 Overview

Tantalum Capacitors - Solid SMD 10.0UF 20.0V

T489C106K020ATE500 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	KEMET
Product Category	Tantalum Capacitors - Solid SMD
Capacitance	10 uF
Voltage Rating DC	20 VDC
Tolerance	10 %
ESR	500 mOhms
Case Code - in	2412
Case Code - mm	6032
Height	2.5 mm
Mfr Case Code	C Case
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Packaging	Reel
Length	6 mm
Package / Case	2412 (6032 metric)
Product	Tantalum Solid Low ESR Standard Grade
Termination Style	SMD/SMT
Width	3.2 mm
Leakage Current	1.5 uA
Dissipation Factor DF	6
Factory Pack Quantity	500
Unit Weight	0.007918 oz

Preview

Download Datasheet

View All

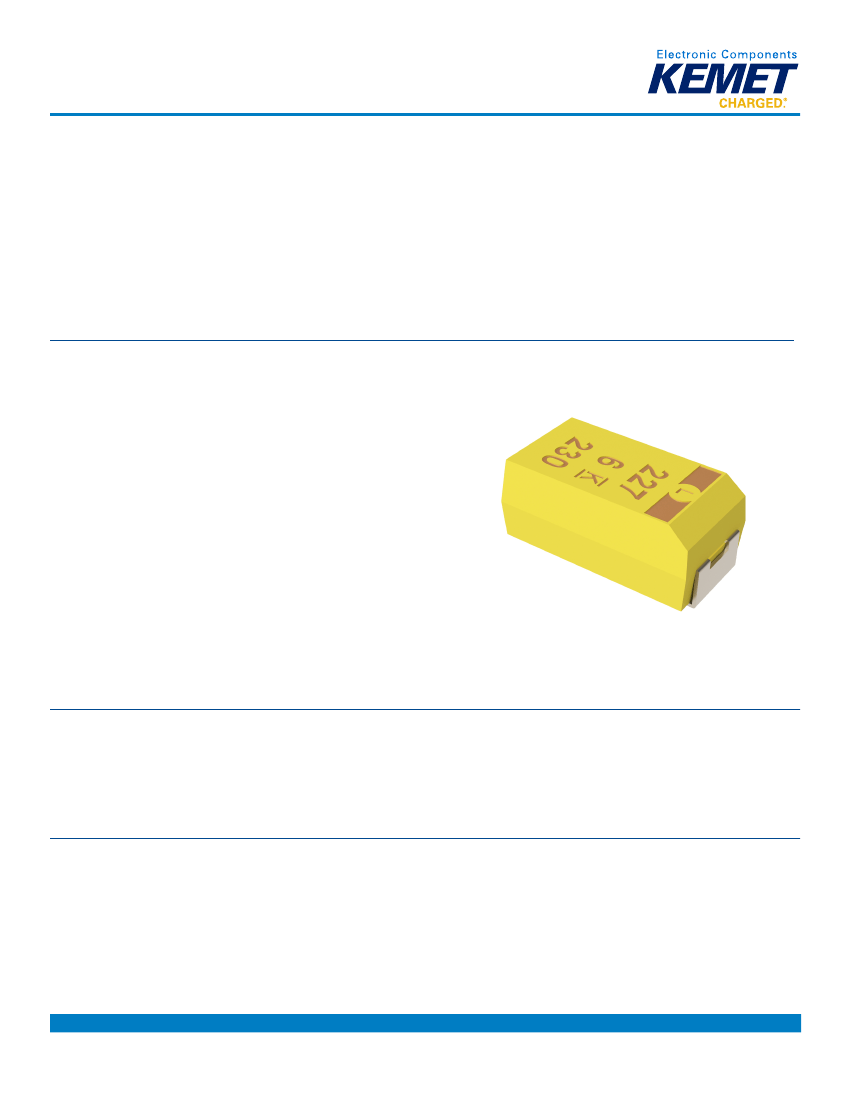

Tantalum Surface Mount Capacitors – Standard Tantalum

T489 Low DC Leakage MnO

Overview

The KEMET T489 provides DC leakage current that is 25%

lower than the commercial T491. The T489 also offers

improved reliability, low ESR options and meets or exceeds

the requirements of EIA standard 535BAAC. The T489 is

classified as moisture sensitivity level (MSL) 1 under

J STD 020: unlimited floor life time at ≤ 30°C/85% RH.

The T489 standard terminations are available in 100%

matte tin and provide excellent wetting characteristics and

compatibility with today's surface mount solder systems. Tin/

lead (Sn/Pb) terminations are available upon request for any

part number. Gold-plated terminations are also available for

use with conductive epoxy attachment processes. Standard

packaging of these devices is Tape & Reel in accordance with

EIA 481. This system provides perfect compatibility with all

tape-fed placement units.

Benefits

• DC Leakage at 0.0075 CV

• Improved reliability: 0.50%/1,000 hours, 85°C, rated

voltage

• Low ESR options available

• Meets or exceeds EIA standard 535BAAC

• Taped and reeled per EIA 481

• Symmetrical, compliant terminations

• Laser-marked case

• Halogen-free epoxy

• Capacitance values of 0.1 μF to 470 μF

• Tolerances of ±10% and ±20%

• Voltage rating of 6.3 – 50 VDC

• RoHS compliant and lead-free terminations

• Operating temperature range of −55°C to +125°C

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Applications

Typical applications include decoupling and filtering, in industrial and automotive high-end applications.

Environmental Compliance

RoHS compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn solder or gold-plated.

One world. One KEMET

T2024_T489 • 3/19/2018
