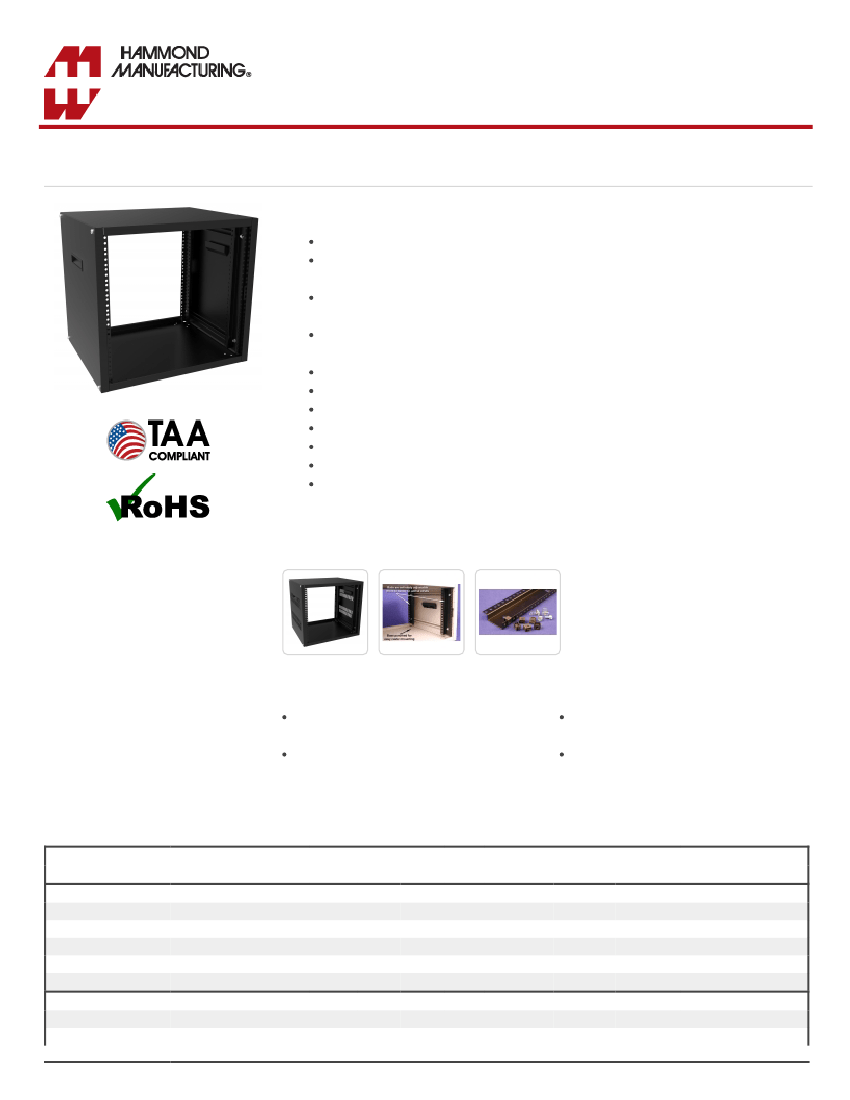

Knockdown Desktop Cabinet
RCH Series
800 lbs Weight Capacity
Features
Heavy duty, 16-gauge steel, 19” rack mount - desktop rack cabinet.
Panel rails are infinitely adjustable (front to back), round hole punched for 10-32 clip-nuts
to full EIA hole centers.
Includes two pairs of rails (for rear support of heavier equipment or shelves), rubber feet,
black ABS plastic handles, a starter pack of
10-32 clip nuts & screws.
Simple assembly using one bolt in each corner to lock the sides to the top and bottom
(hardware included).
Front & back lip is .585" (14 mm) so usable depth is reduced by 1.17" (30 mm).
Tested to nearly double the suggested load rating of 800 lbs (363 kg).
Rugged textured powder paint finish.
Knockdown design ships unassembled for easy handling and shipping protection.
TAA Compliant.
RoHS Compliant.
Manufactured in North America.
You may also like our SDC (Multi-Use) Cabinet.
Gallery
Accessories
Solid Locking Door
Outlet Strips
Round Hole Punched Combination
Mounting Rail
10-32 Mounting Screw and Clip Nut
Combo-Pack
RCHS (Solid Side Panels Included)
Part No.
Black
RCHS1900817BK1
RCHS1901017BK1
RCHS1901417BK1
RCHS1901717BK1
RCHS1902217BK1
RCHS1902817BK1
RCHS1901024BK1
RCHS1901424BK1
RCHS1901724BK1
Part No.
RAL 7035 Light Gray
RCHS1900817LG1
RCHS1901017LG1
RCHS1901417LG1
RCHS1901717LG1
RCHS1902217LG1
RCHS1902817LG1
RCHS1901024LG1
RCHS1901424LG1
RCHS1901724LG1
Overall Dimensions
Height
10.75
12.50
16.00
19.50
24.75
30.00
12.50
16.00
19.50
Width
21.00
21.00
21.00
21.00
21.00
21.00
21.00
21.00
21.00
Depth
17.50
17.50
17.50
17.50
17.50
17.50
24.50
24.50
24.50
Rack
Units
5U
6U
8U
10U
13U
16U
6U
8U
10U
Usable Mounting Dimensions
Height
8.75
10.50
14.00
17.50
22.75
28.00
10.50
14.00
17.50
Width
19.00
19.00
19.00
19.00
19.00
19.00
19.00
19.00
19.00
Depth
16.25
16.25
16.25
16.25
16.25
16.25
23.25
23.25
23.25
Included Clip Nuts
and Screws
8
16
16
16
16
16
16
16
16
https://www.hammfg.com/dci/products/cabinet-systems/rch
1/3
4/12/2018
Part No.
Black
RCHS1902224BK1
RCHS1902824BK1
RCHS1901031BK1
RCHS1901431BK1
RCHS1901731BK1
RCHS1902231BK1
RCHS1902831BK1
Part No.
RAL 7035 Light Gray
RCHS1902224LG1
RCHS1902824LG1
RCHS1901031LG1
RCHS1901431LG1
RCHS1901731LG1
RCHS1902231LG1
RCHS1902831LG1
Knockdown Desktop Cabinet (RCH Series) - Hammond Mfg.
Overall Dimensions
Height
24.75
30.00
12.50
16.00
19.50
24.75
30.00
Width
21.00
21.00
21.00
21.00
21.00
21.00
21.00
Depth
24.50
24.50
31.50
31.50
31.50
31.50
31.50
Rack
Units
13U
16U
6U
8U
10U
13U
16U
Usable Mounting Dimensions
Height
22.75
28.00
10.50
14.00
17.50
22.75
28.00
Width
19.00
19.00
19.00
19.00
19.00
19.00
19.00
Depth
23.25
23.25
30.25
30.25
30.25
30.25
30.25
Included Clip Nuts
and Screws
16
16
16
16
16
16
16
RCHV (Vented Side Panels Included)
Part No.
Black
RCHV1900817BK1
RCHV1901017BK1
RCHV1901417BK1
RCHV1901717BK1
RCHV1902217BK1
RCHV1902817BK1
RCHV1901024BK1
RCHV1901424BK1
RCHV1901724BK1
RCHV1902224BK1
RCHV1902824BK1
RCHV1901031BK1
RCHV1901431BK1
RCHV1901731BK1
RCHV1902231BK1
RCHV1902831BK1
Part No.
RAL 7035 Light Gray
RCHV1900817LG1
RCHV1901017LG1
RCHV1901417LG1
RCHV1901717LG1
RCHV1902217LG1
RCHV1902817LG1
RCHV1901024LG1
RCHV1901424LG1
RCHV1901724LG1
RCHV1902224LG1
RCHV1902824LG1
RCHV1901031LG1
RCHV1901431LG1
RCHV1901731LG1
RCHV1902231LG1
RCHV1902831LG1
Overall Dimensions
Height
10.75
12.50
16.00
19.50
24.75
30.00
12.50
16.00
19.50
24.75
30.00
12.50
16.00
19.50
24.75
30.00
Width
21.00
21.00
21.00
21.00
21.00
21.00
21.00
21.00
21.00
21.00
21.00
21.00
21.00
21.00
21.00
21.00
Depth
17.50
17.50
17.50
17.50
17.50
17.50
24.50
24.50
24.50
24.50
24.50
31.50
31.50
31.50
31.50
31.50
Rack
Units
5U
6U
8U
10U
13U
16U
6U
8U
10U
13U
16U
6U
8U
10U
13U
16U
Usable Mounting Dimensions
Height
8.75
10.50
14.00
17.50
22.75
28.00
10.50
14.00
17.50
22.75
28.00
10.50
14.00
17.50
22.75
28.00
Width
19.00
19.00
19.00
19.00
19.00
19.00
19.00
19.00
19.00
19.00
19.00
19.00
19.00
19.00
19.00
19.00
Depth
16.25
16.25
16.25
16.25
16.25
16.25
23.25
23.25
23.25
23.25
23.25
30.25
30.25
30.25
30.25
30.25
Included Clip Nuts
and Screws
8
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
Optional Door Kit
Part No.
Black
RCHD1908BK1
RCHD1910BK1
RCHD1914BK1
RCHD1917BK1
RCHD1922BK1
RCHD1928BK1
Part No.
RAL 7035 Light Gray
RCHD1908LG1
RCHD1910LG1
RCHD1914LG1
RCHD1917LG1
RCHD1922LG1
RCHD1928LG1
Use with Cabinet Panel Height
Rack Units
5U
6U
8U
10U
13U
16U
Height
8.75
10.50
14.00
17.50
22.75
28.00
Optional Caster Kit
Overall Height
Wheel
Part No.
1425PHD
Diameter
2.00
Added
to Cabinet
2.50
Hole Mounting Pattern
Width
0.94
Depth
2.12
Caster Set
Weight
Capacity
800
Quantity
Included
In Set
4
Caster
with Brakes
Included
2
