Type 1 Mild Steel Small Wallmount Enclosure
N1J Series
Hinge Door with Quarter Turn
Application
Designed for indoor use to house controls, instruments and components not requiring oil-
tight or dust-tight protection.
Standards
UL-50 Type 1
CSA Type 1
Complies with
NEMA Type 1
IEC 60529, IP20
Construction
Formed and spot welded from 16 gauge steel.
Formed steel covers close by use of slotted quarter turn latch.
Full swing door using butt hinges.
Through holes in back for wall mounting.
Bonding stud is provided on the door and a grounding stud is provided on the box.
Includes 14 gauge steel inner panel.
Finish
Enclosure and cover are finished in ANSI 61 gray powder coating.
Inner panel is finished in white powder coating
Accessories
Perforated Panels for N1J Series
Enclosures
Type 1 Lock Kit
https://www.hammfg.com/electrical/products/commercial/n1j
1/2
4/23/2018
Type 1 Mild Steel Small Wallmount Enclosure (N1J Series) - Hammond Mfg.

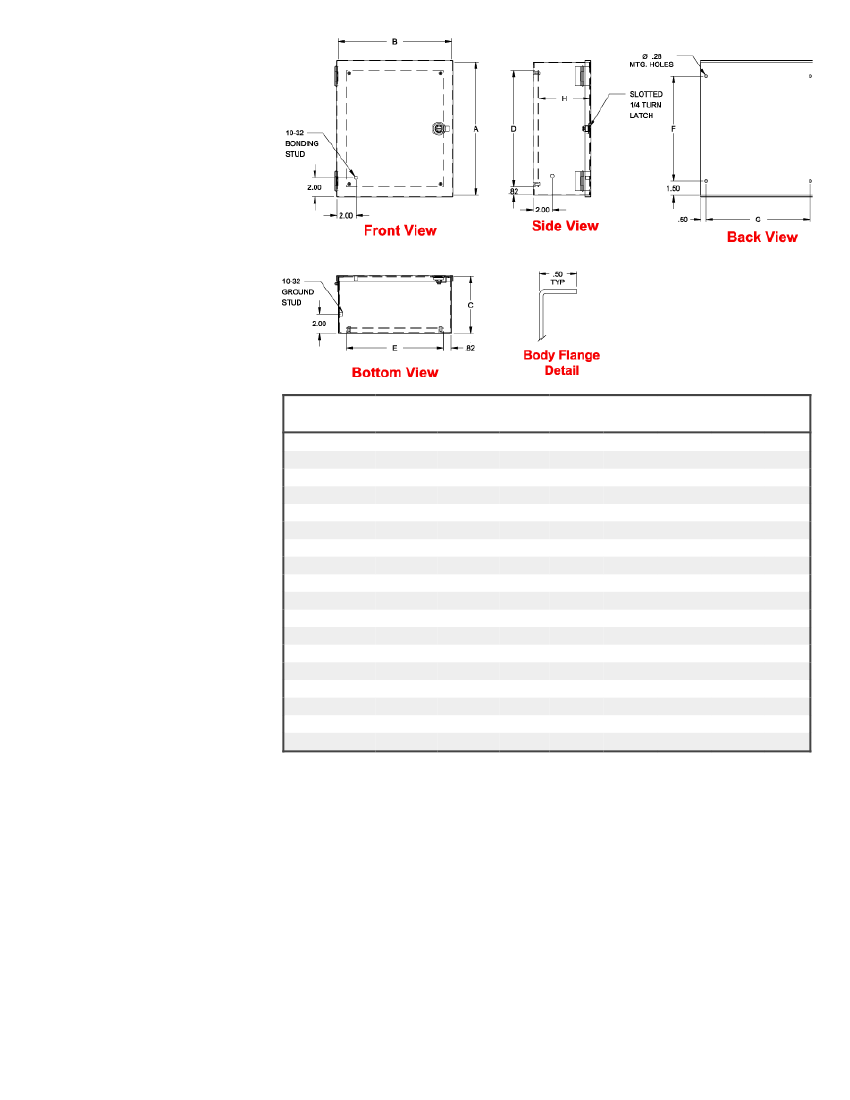

Overall Dimensions
Part No.
N1J664
N1J864
N1J884
N1J1084
N1J10104
N1J12104
N1J12124
N1J14124
N1J886
N1J1086
N1J10106
N1J12106
N1J12126
N1J14126
N1J16126
N1J20126
N1J12128
N1J14128
A
6.00
8.00
8.00
10.00
10.00
12.00
12.00
14.00
8.00
10.00
10.00
12.00
12.00
14.00
16.00
20.00
12.00
14.00
B
6.00
6.00
8.00
8.00
10.00
10.00
12.00
12.00
8.00
8.00
10.00
10.00
12.00
12.00
12.00
12.00
12.00
12.00
C
4.00
4.00
4.00
4.00
4.00
4.00
4.00
4.00
6.00
6.00
6.00
6.00
6.00
6.00
6.00
6.00
8.00
8.00
Panel Size
D
4.25
6.25
6.25
8.25
8.25
10.25
10.25
12.25
6.25
8.25
8.25
10.25
10.25
12.25
14.25
18.25
10.25
12.25
E
4.25
4.25
6.25
6.25
8.25
8.25
10.25
10.25
6.25
6.25
8.25
8.25
10.25
10.25
10.25
10.25
10.25
10.25
F
Centers
G
5.00
5.00
7.00
7.00
9.00
9.00
11.00
11.00
7.00
7.00
9.00
9.00
11.00
11.00
11.00
11.00
11.00
11.00
H
3.43
3.43
3.43
3.43
3.43
3.43
3.43
3.43
5.43
5.43
5.43
5.43
5.43
5.43
5.43
5.43
7.43
7.43
3.00
5.00
5.00
7.00
7.00
9.00
9.00
11.00
5.00
7.00
7.00
9.00
9.00
11.00
13.00
17.00
9.00
11.00
