EIA-Based Vector-Pak
tm
Subrack Systems
Subracks for EFP Modules
CMA Module Racks

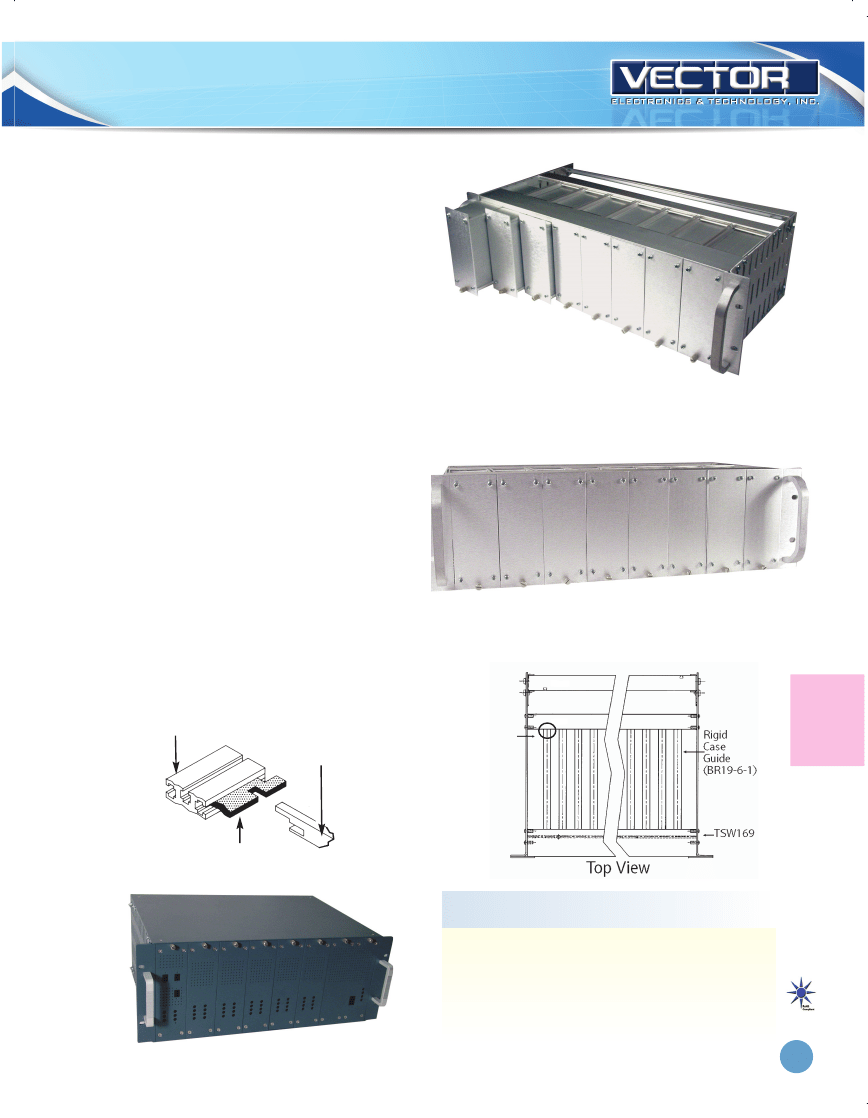

These 19” Rackmount Subracks provide attractive, sturdy,
and mechanically excellent housings to enclose electronic
assemblies.
These units provide the benefits and features of custom
enclosures without the expense.
EFP modules feature aluminum extruded sides to accept
.062” thick P.C. cards. Extended front panels on modules
allow thumb screw locking of module to subrack for easy
insertion and extraction. The extended front panel also pro-
vides an attractive appearance.
Side panels fasten to sturdy Vector TSW model (1.75” wide)
Struts with two screws . Subrack models accept widths of
1.6”, 2.0” and 3.0” EFP modules; 4.5” module optional. Rear
Struts are adjustable in width and height.
• 1.6”, 2.0” and 3.0” evenly spaced modules are accepted
• Side Panels have double screw attachment to wide TSW
(1.75”) metal strut
• Rear Struts are adjustable in width and height with
BR16-1 bracket
• Special aluminum extruded case guides and spacers
provide secure mounting for modules.
• Standard 19” width. Other widths available by
special order
• Filler panels available where mixing widths creates gaps
• Aluminum construction, brushed, with clear irridite finish
• Paint options available
Rear
Subracks
Rear Strut
EFP Case
guide
(BR19-6-1)
View A
Shows guide
fixed position
Spacer
BR34 Type
Subrack Part
Number
CMA13-16/90
CMA13-20/90
CMA13-30/90
CMA14-16/90
CMA14-20/90
CMA14-30/90
CMA15-20/90
# Of
Width
Modules
10
8
5
10
8
5
8
19”
19”
19”
19”
19”
19”
19”
Height
3U
3U
3U
3U
3U
3U
4U
Depth
9.00”
9.00”
9.00”
12.00”
12.00”
12.00”
12.00”
www.vectorelect.com
800-423-5659
45
EIA-Based Vector-Pak
tm
Subrack Systems
CMA Modules (EFPs)
• Extended Front Panels provide thumb screw mounting and
flush fit from module to module and with strut line.
• Modules provide shielding
• Front Panels may be customized with cutouts and/or color
(Contact factory).
• All covers have locking detent; slides out of groove when
released.
• Supplied in Kit form
• Modules with 6.5” depth accept 4.5” X 6.5” cards.
• Modules with 9.7” depth accept 4.5” X 9.6” cards.

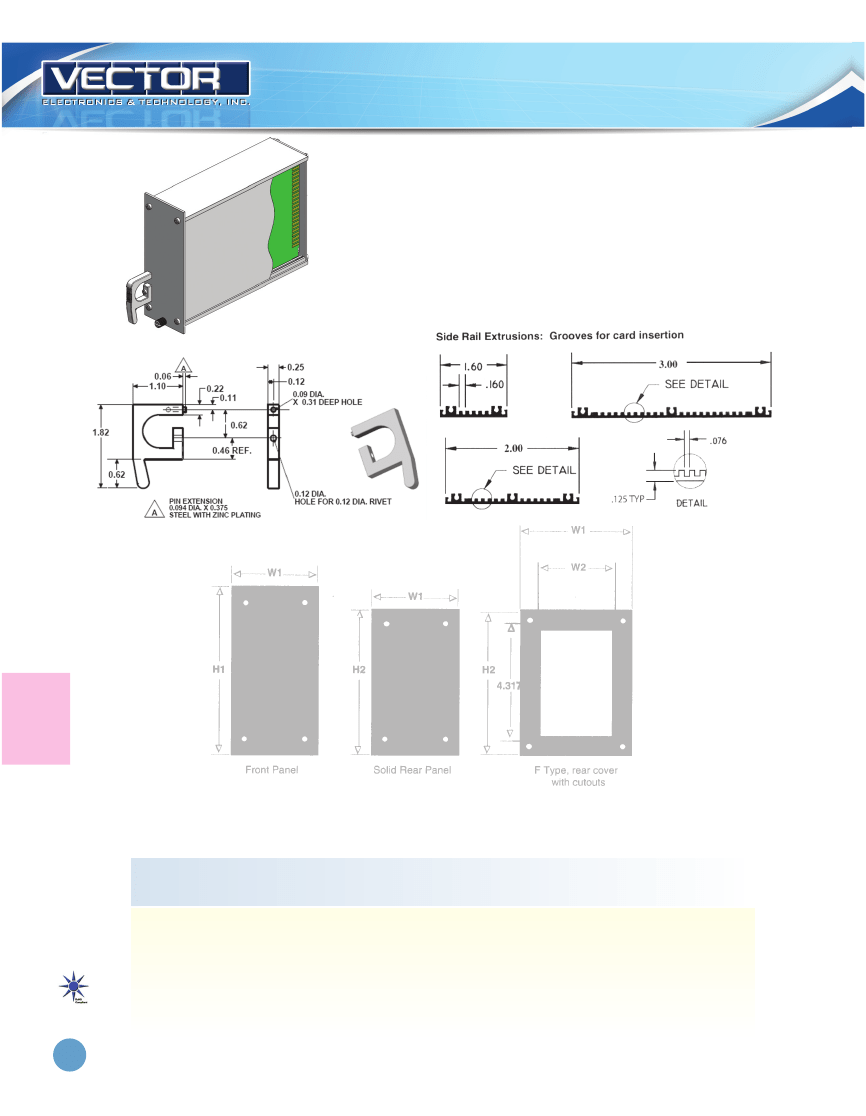

Side Rail Extrusions: Grooves for card insertion
EFP204A66F - 2” EFP Modules with HA11 handle
HA11 handle Pkg of 2,
order part number HA11/2
EIA
Subracks
• Front panel is removable and may be customized
• HA11 finger-pull handle available separately (order part #HA11/2
• Rear panels: single piece with cutouts (F type)
• Replacement side panels PL4566 (4.5” X 6.6”) and PL4597 (4.5” X 9.7”)
Kit Type
Closed Rear
Panel
Kit Type
Open Rear
Panel
L
6.5”
9.6”
6.5”
9.6”
6.5”
9.6”
6.5”
9.6”
9.6”
W1
1.65”
1.65”
2.05”
2.05”
3.05”
3.05”
4.55”
4.55”
2.05”
W2
1.31”
1.31”
1.71”
1.71”
2.71”
2.71”
4.21”
4.21”
1.71”
H1
5.22”
5.22”
5.22”
5.22”
5.22”
5.22”
5.22”
5.22”
6.97”
H2
4.62”
4.62”
4.62”
4.62”
4.62”
4.62”
4.62”
4.62”
6.37”
Solid
Front
Panel #
FP16A52
FP16A52
FP2A52
FP2A52
FP3A52
FP3A52
FP3A52
FP45A52
FP2A70
Solid
Rear
Cover
BP13-4
BP13-4
BP17-4
BP17-4
BP27-4
BP27-4
BP42-4
BP42-4
BP17-6
Open
Rear
Panel
BP13-40F
BP13-40F
BP17-40F
BP17-40F
BP27-40F
BP27-40F
BP27-40F
BP42-40F
N/A
46
*
EFP164A66
EFP164A66F
EFP164A97
EFP164A97F
EFP204A66
EFP204A66F
EFP204A97
EFP204A97F
EFP304A66
EFP304A66F
EFP304A97
EFP304A97F
EFP454A66
EFP454A66F
EFP454A97
N/A
EFP206A97
N/A
*
4U for CMA15-20/90
www.vectorelect.com
Specification subject to change without notice
800-423-5659
