LP03-2R7-3 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> LP03-2R7-3

Preview

LP03-2R7-3: DescriptionSMT High Current Inductors; CategoryPassive components inductor; File Size271KB，1 Pages; ManufacturerICE Components; Websitehttp://www.icecomponents.com/; Environmental Compliance

Download Datasheet Parametric View All

LP03-2R7-3 Overview

SMT High Current Inductors

LP03-2R7-3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ICE Components
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
DC Resistance	0.0028 Ω
Nominal inductance(L)	2.7 µH
Inductor Applications	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	3
Maximum operating temperature	155 °C
Minimum operating temperature	-40 °C
Maximum rated current	18 A
self resonant frequency	50 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz

Preview

Download Datasheet

View All

ICE Components, Inc.

Voice: 800.729.2099

Fax: 678.560.9304

cust.serv@icecomp.com

www.icecomponents.com

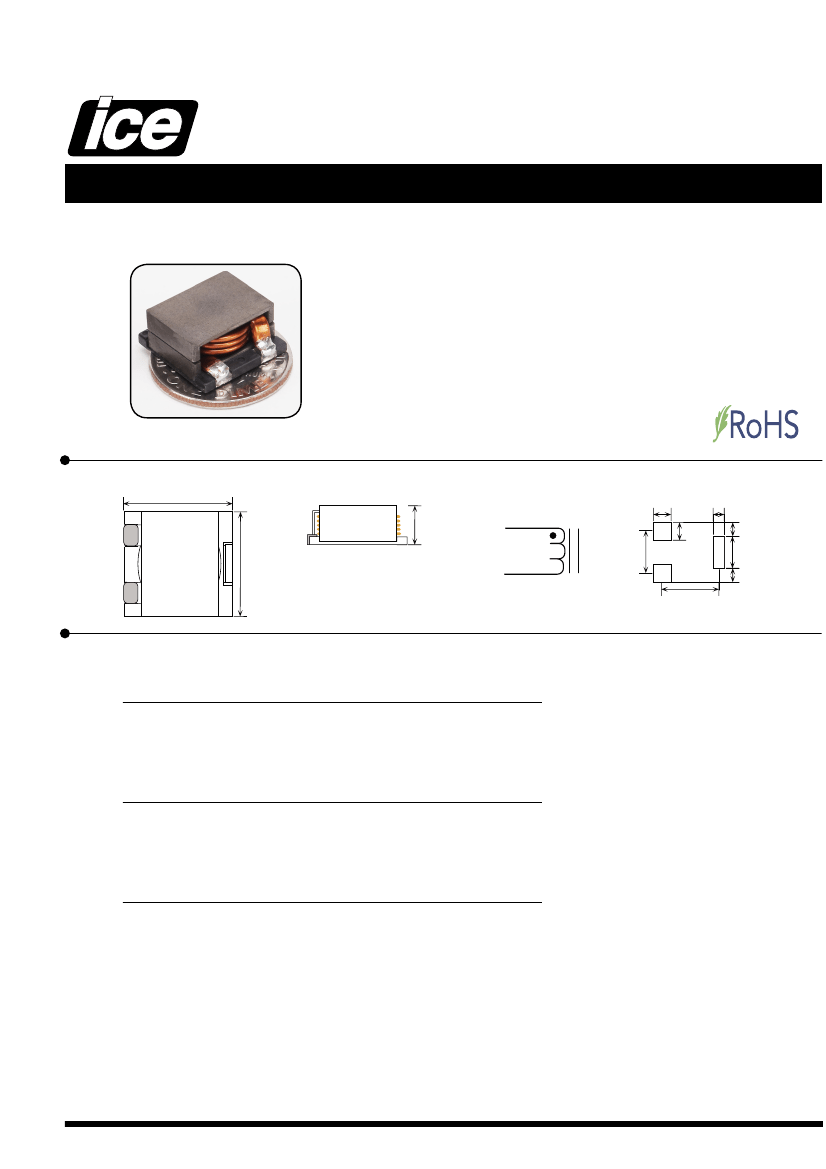

SMT High Current Inductors

FEATURES

-Will Handle Up To 100A

-Uses Distributed Gap Material

-155ºC Temperature Rating

-Suitable for Pick And Place Applications

-Withstands Solder Reﬂow

LP03 Series

APPLICATIONS

-Computers

-AC/DC Converters

-Output Power Chokes

-High Current Applications

PACKAGING

-

Reel Diameter:

13"

-Reel Width:

24mm

-Quantity Per Reel: LP03-XXX-1

LP03-XXX-2

LP03-XXX-3

400 pcs

300 pcs

Mechanical

13.8

C

1

Recommended PCB Layout

Schematic

13.5

C=LP03-XXX-1: 4.5mm max.

LP03-XXX-2: 5.2mm max.

LP03-XXX-3: 6.5mm max.

7.2

3.5

1

3.2

2.5

2.60

3

2

12.0

5.20

2.60

2

Electrical Specifications

Part

Number

Inductance

1

DCR max

(µH,nom.) (mΩ)

I

SAT

2

(A)

I

DC

3

(A)

SRF typ

(MHz)

LP03-0R1-1

LP03-0R4-1

LP03-0R9-1

LP03-1R5-1

LP03-1R4-2

LP03-2R1-2

LP03-3R0-2

LP03-4R1-2

LP03-1R2-3

LP03-2R7-3

LP03-3R7-3

LP03-4R9-3

LP03-7R6-3

LP03-110-3

0.10

0.40

0.90

1.50

1.40

2.10

3.00

4.10

1.20

2.70

3.70

4.90

7.60

11.0

0.15

0.65

1.40

3.20

2.40

4.00

6.00

6.80

1.20

2.80

4.10

4.80

7.90

11.7

100

65.0

40.0

30.0

35.0

30.0

25.0

23.0

45.0

30.0

23.0

21.0

16.0

13.0

50.0

32.0

23.0

15.5

19.0

16.0

14.0

11.5

25.0

18.0

15.5

14.0

11.0

9.0

>100

70

>100

50

40

30

>100

50

40

30

25

20

Tested @ 100kHz, 0.1Vrms.

Inductance drops 30% at rated I

SAT

.

Temperature rise = 40ºC at rated I

DC

.

Electrical speciﬁcations at 25ºC.

Operating temperature range: -40ºC

to + 155ºC.

6. Meets UL 94V-0.

7. For Lead Free components, please

add "LF" as sufﬁx.

1.

2.

3.

4.

5.

Speciﬁcations subject to change without notice.

(10/06) LP03-1
