REVISION
THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR OR
COMMUNICATED TO A THIRD PARTY WITHOUT THE
EXPRESS WRITTEN PERMISSION OF AN OFFICER OF
QUALTEK ELECTRONICS.
REV.
A
DESCRIPTION
RoHS Compliancy
DATE
06-01-06
APPROVED
DP
NOTES:
1.
2.
3.
4.
82.42 ± 0.5
5.
6.
MATERIAL: C1008 SWRM6 BRIGHT BASIC WIRE
FINISH: BRIGHT NICKEL CHROME PLATING
0.30 ± 0.05 DEPTH OF SERRATIONS ON WIRE
RING:
∅1.6
± 0.1mm
RIB:
∅1.8
± 0.1mm
GENERAL TOLERANCE UNLESS NOTED IS ± 0.5mm
RoHS COMPLIANT
∅4.57
±
∅89.8
0.2
0.1
4.57 REF
∅14.2
3.1 REF
1.5
Dim
range
(mm)
0-5
5-16
16-64
64-250
250-1000
1000-1500
Tolerance
+/-
(mm)
0.1
0.15
0.2
0.4
0.5
1.0
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
FAN-S DIVISION
08189

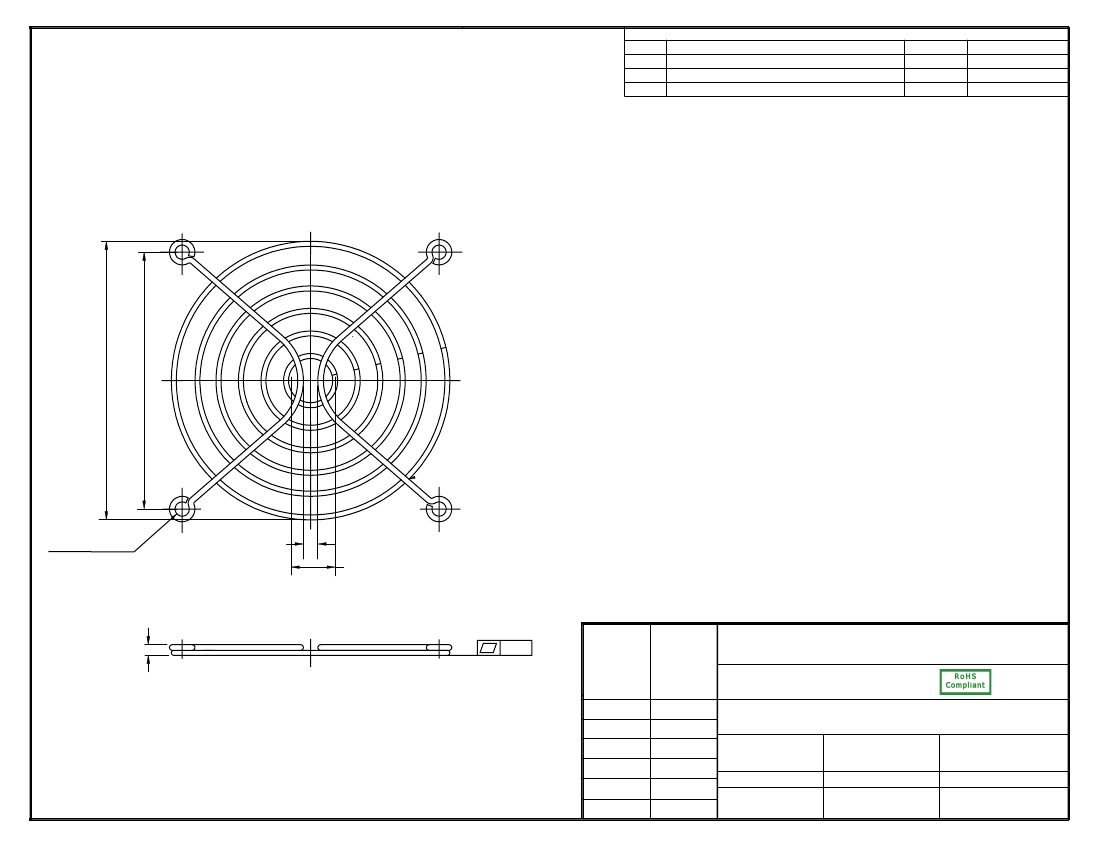

WIRE FORM FAN GUARD (89.8mm)
UNIT: mm
REV: A
Approved / Date
JJH / 03-14-05
Drawn / Date
B. ZHANG
03-14-05
Checked / Date
03-14-05
