579704B00000G: DescriptionHeat Sinks SLIDEON COOLER TO202 RT SIDE FIN 22.86mm; CategoryThermal management products Heat resisting bracing; File Size228KB，2 Pages; ManufacturerAavid Thermalloy; Environmental Compliance

Download Datasheet Parametric Compare View All

579704B00000G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	579704B00000G	-	-	View	Buy Now

579704B00000G Overview

Heat Sinks SLIDEON COOLER TO202 RT SIDE FIN 22.86mm

579704B00000G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Aavid Thermalloy
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Main material	ALUMINUM
color	BLACK
structure	SLIDE ON
Surface layer	ANODIZED
high	22.86 mm
length	18.92 mm
Thermal resistance	24 Ω
Heat Resistant Support Device Type	HEAT SINK
width	10.66 mm
Base Number Matches	1

Preview

Download Datasheet

View All

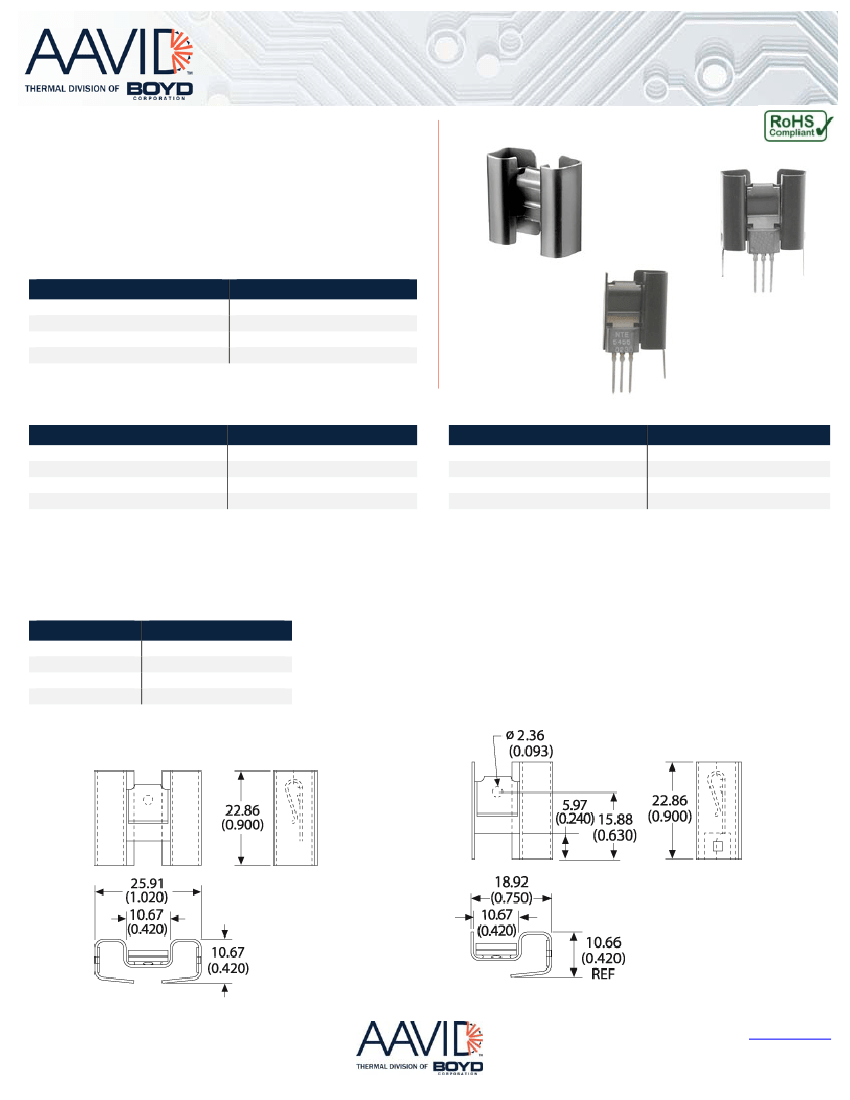

DATASHEET

BOARD LEVEL COOLING ‐ Slide On 5742

Board Level Cooling – Slide On 5742

Slide On 5742 is a series of slide on board level heat sinks designed to cool

TO‐202 devices.

ORDERING INFORMATION

Part Number

574204B00000G

574204B03300G

579604B00000G

579704B00000G

Device Type

TO‐202

HEAT SINK DETAILS

Property

Material

Finish

Device Attachment Options

Thermal Interface Material

Details

Aluminum

Black Anodize

Integrated Mounting Clip

‐

Property

Heat Sink Width (mm)

Heat Sink Length (mm

Heat Sink Height (mm)

Heat Sink Mounting Direction

Details

See Table Below

10.67

22.86

Vertical

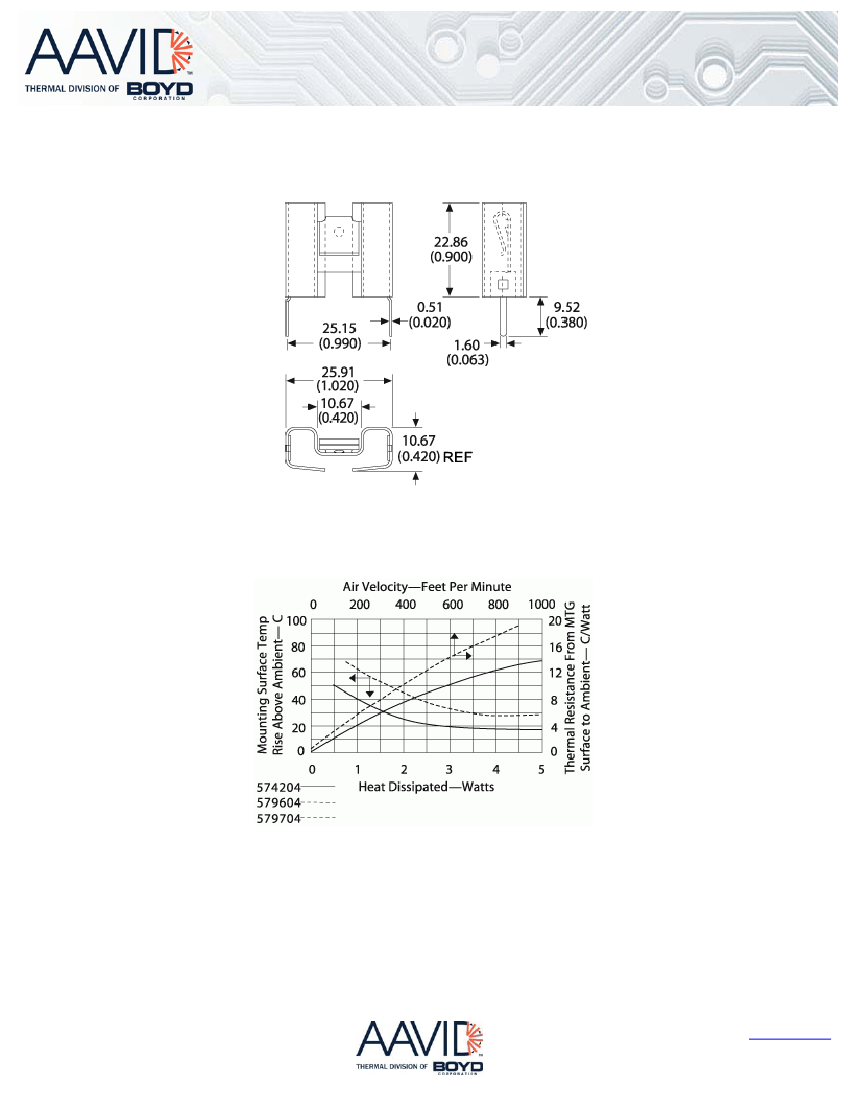

MECHANICAL & PERFORMANCE

Drawing dimensions are shown in mm, (in)

Part Number: 574204B00000G

Part Numbers: 579604B00000G and 579704B00000G

Part Number

574204B00000G

574204B03300G

579604B00000G

579704B00000G

Heat Sink Width

25.91

18.92

USA: 1.855.322.2843

EUROPE: 39.051.764002

ASIA: 86.21.6115.2000 x8122

Board Level Cooling

www.aavid.com

579704B00000G Related Products

	579704B00000G	574204B03300G	574204B00000G
Description	Heat Sinks SLIDEON COOLER TO202 RT SIDE FIN 22.86mm	Heat Sinks SLIDEON COOLER TO202 22.86mm VERT BLK	Heat Sinks BLACK ANODIZE TO-202
Is it Rohs certified?	conform to	conform to	conform to
Maker	Aavid Thermalloy	Aavid Thermalloy	Aavid Thermalloy
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown
Main material	ALUMINUM	ALUMINUM	ALUMINUM
color	BLACK	BLACK	BLACK
structure	SLIDE ON	SLIDE ON	SLIDE ON
Surface layer	ANODIZED	ANODIZED	ANODIZED
high	22.86 mm	22.86 mm	22.86 mm
length	18.92 mm	25.91 mm	25.91 mm
Thermal resistance	24 Ω	16.8 Ω	16.8 Ω
Heat Resistant Support Device Type	HEAT SINK	HEAT SINK	HEAT SINK
width	10.66 mm	10.67 mm	10.67 mm
Base Number Matches	1	1	1
Factory Lead Time	-	8 weeks	8 weeks
fin direction	-	FOLDEDBACK	FOLDEDBACK
