PolarTEC
™
Series PT2,12,F2,3030
Innovative
Technology
for a
Connected
World
Thermoelectric Modules
The PolarTEC
™
Series consists of porch-style thermoelectric modules (TEMs). The hot
side of the ceramic has an extended edge that allows strong lead attachment
to accommodate the wiring of multiple TEMs into an array.
This product line is available in 4, 6, and 8 Amp configurations and is ideal for
high-volume production. Assembled with Bismuth Telluride semiconductor material
and thermally conductive Aluminum Oxide ceramics, the PolarTEC
™
Series is
designed for higher current and larger heat-pumping applications.
FEaTurES
• Strong Lead Attachment
• Precise Temperature Control
• Reliable Solid State Operation
• No Sound or Vibration
• DC Operation
• RoHS Compliant
perforMance SpecificaTionS
hot Side Temperature (°c)
Qmax (Watts)
delta Tmax (°c)
imax (amps)
Vmax (Volts)
Module resistance (ohms)
Suffix ThickneSS
(prior To Tinning)
Ta
TB
0.141” +/- 0.001”
0.141” +/- 0.0005”
25
19.5
65
2.3
14.5
5.76
flaTneSS &
paralleliSM
aPPliCaTionS
• Analytical Instrumentation
• Photonics Laser Systems
• Electronic Enclosure Cooling
• Food and Beverage Cooling
• Chillers (Liquid Cooling)
• Consumer Appliances
50
21.9
74
2.3
16.4
6.50
hoT
face
Lapped
Lapped
cold
face
Lapped
Lapped
lead
length
6.0”
6.0”
0.001” / 0.001”
0.0005” / 0.0005”
SEaling oPTion
Suffix
r
e
SealanT color
RTV
Epoxy
White
Black
TeMp range
-60 to 204 °C
-55 to 150 °C
deScripTion
Non-corrosive, silicone adhesive sealant
Low density syntactic foam epoxy encapsulant
global
solutions:
local
support
Americas: +1 888.246.9050
Europe: +46.31.420530
Asia: +86.755.2714.1166
clv.customerpos@lairdtech.com
www.lairdtech.com
TM
PolarTEC
™
Series PT2,12,F2,3030
Innovative
Technology
for a
Connected
World
Thermoelectric Modules

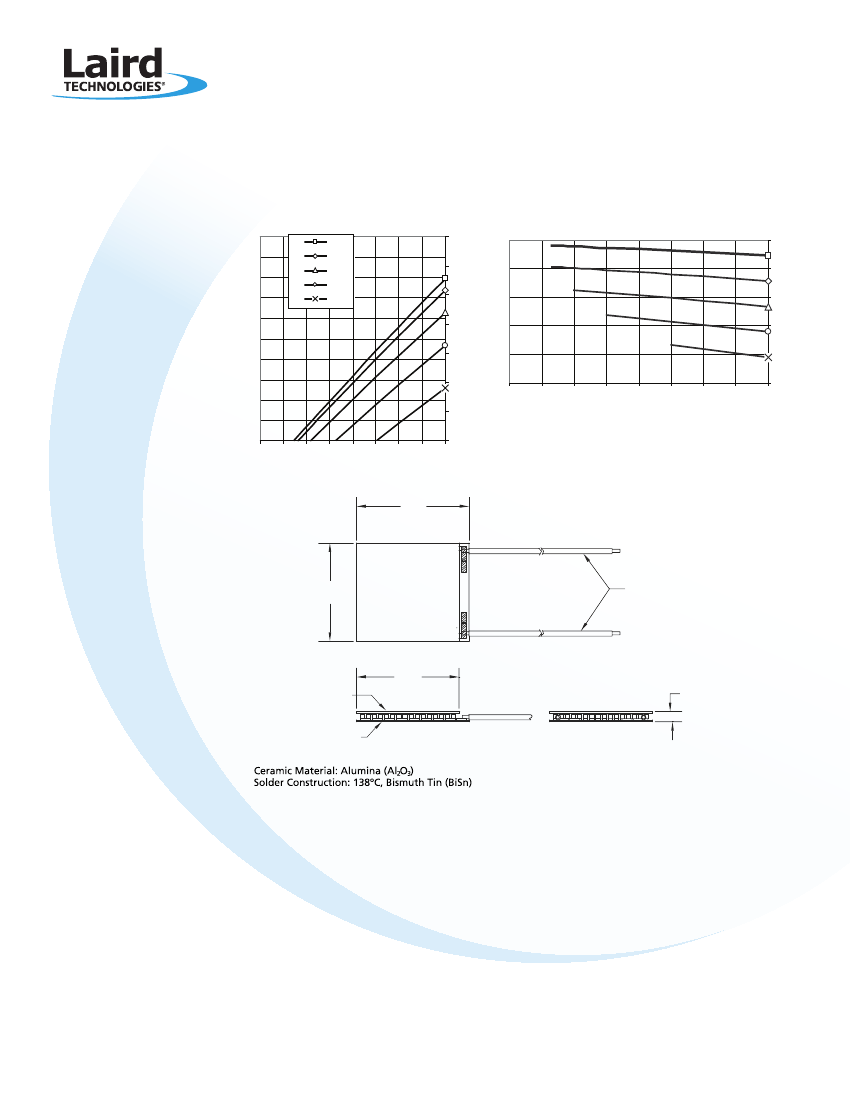

Performance Curves at Th = 25°C
ThErmo
2.3 A
1.9 A
0.9 A
0.5 A
1.4 A
ElECTriC
25.0
15.0
12.0
9.0
Qc (W)
15.0
6.0
3.0
0.0
10.0
5.0
80
70
60
50
40
30
20
10
0
Delta T (°C)
Delta T (C)
0.0
80
70
60
50
40
30
20
10
0
Delta T (°C)
1.34
(34.0)
(+) RED
1.18
(30.0)
AWG 24 PVC
(SEE TABLE)
(-) BLACK
COLD FACE
(SEE TABLE)
1.18
(30.0)
THICKNESS
(SEE TABLE)
HOT FACE
(SEE TABLE)
oPEraTing TiPS
• Max Operating Temperature: 80°C
• Do not exceed Imax or Vmax when
operating module
• Reference assembly guidelines for
recommended installation
THR-DS-PT2,12,F2,3030 0610
Any information furnished by Laird Technologies, Inc. and its agents is believed to be accurate and reliable. All specifications are subject to change without notice. Responsibility
for the use and application of Laird Technologies materials rests with the end user, since Laird Technologies and its agents cannot be aware of all potential uses. Laird
Technologies makes no warranties as to the fitness, merchantability or suitability of any Laird Technologies materials or products for any specific or general uses. Laird
Technologies shall not be liable for incidental or consequential damages of any kind. All Laird Technologies products are sold pursuant to the Laird Technologies’ Terms and
Conditions of sale in effect from time to time, a copy of which will be furnished upon request. © Copyright 2010 Laird Technologies, Inc. All Rights Reserved. Laird, Laird
Technologies, the Laird Technologies Logo, and other marks are trade marks or registered trade marks of Laird Technologies, Inc. or an affiliate company thereof. Other product
or service names may be the property of third parties. Nothing herein provides a license under any Laird Technologies or any third party intellectual property rights.
