563002B00000G

Description
Heat Sinks TO-220 VERT 13.0 TR CHANNEL STYLE
CategoryThermal management products    Heat resisting bracing
File Size221KB，2 Pages
ManufacturerAavid Thermalloy
Environmental Compliance
Download Datasheet Parametric Compare View All

563002B00000G Online Shopping

Suppliers Part Number Price MOQ In stock
563002B00000G - - View Buy Now

563002B00000G Overview

Heat Sinks TO-220 VERT 13.0 TR CHANNEL STYLE

563002B00000G Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerAavid Thermalloy
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Factory Lead Time8 weeks
Samacsys DescriptionHeat Sinks Channel Style Stamped Heatsink with Three Integrated Tabs for TO-220, Vertical Mounting, 13 n Thermal Resistance, Black Anodized, 3.10mm Hole, 29.97mm
Main materialALUMINUM
colorBLACK
structureFIN
fin directionTRANSVERSE
Surface layerANODIZED
high29.97 mm
length25.4 mm
contourU
Thermal resistance13 Ω
Heat Resistant Support Device TypeHEAT SINK
width12.7 mm
Base Number Matches1

Preview

Download Datasheet
DATASHEET


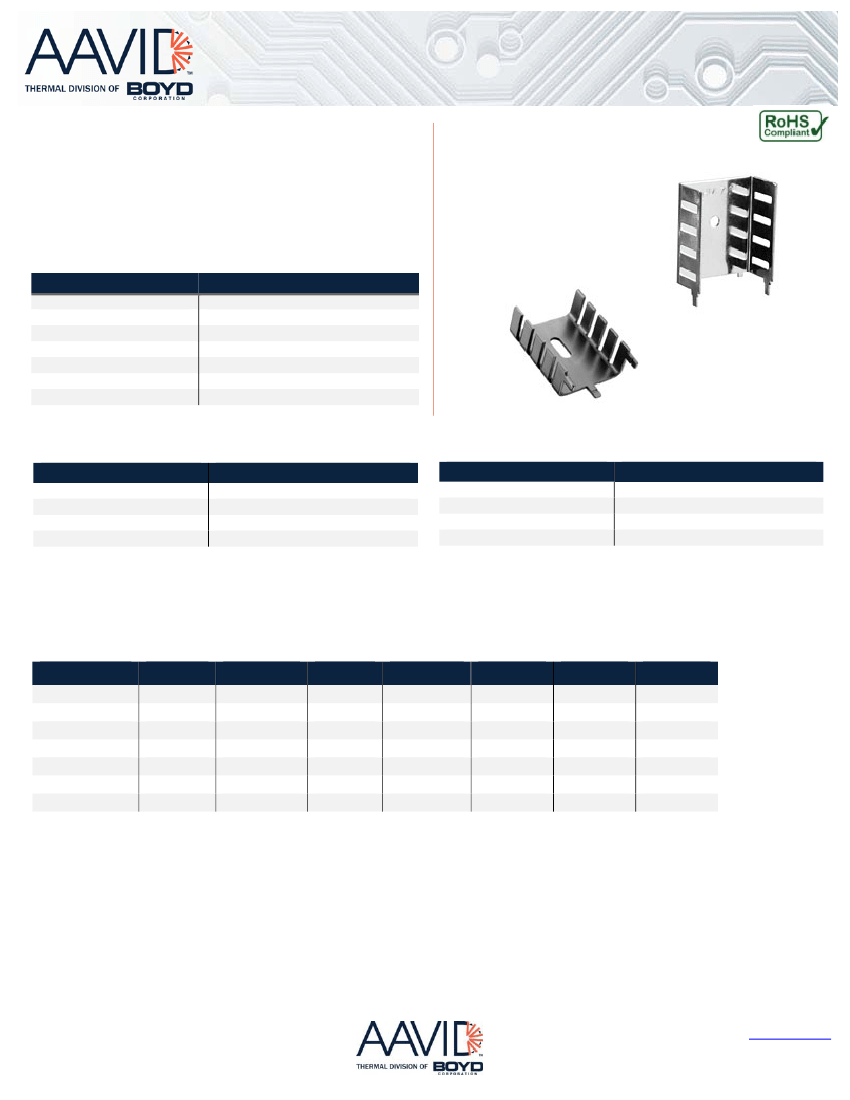

BOARD LEVEL COOLING – Channel 5600
Board Level Cooling – Channel 5600




Channel 5600 is a series of channel board level heat sinks designed to cool
TO‐220 and TO‐220‐single gauge devices. Representative image only.
ORDERING INFORMATION

Part Number
563002B00000G
563002D00000G
563002T00000G
576602B00000G
576602D00000G
576602T00000G
7121DG


Device Type
TO‐220, TO‐220‐single gauge (0.020")
TO‐220, TO‐220‐single gauge (0.020")
TO‐220, TO‐220‐single gauge (0.020")
TO‐220, TO‐220‐single gauge (0.020")
TO‐220, TO‐220‐single gauge (0.020")
TO‐220, TO‐220‐single gauge (0.020")
D2 Pak (TO‐263)






HEAT SINK DETAILS
Property
 Material
Finish
Device Attachment Options
Thermal Interface Material
Details
See Table Below
See Table Below
Requires Mounting Kit
‐
Property
 Heat Sink Width (mm)
Heat Sink Length (mm)
Heat Sink Height (mm)
Heat Sink Mounting Direction
Details
25.40
12.70
See “H” Dim below
Vertical, Horizontal



MECHANICAL & PERFORMANCE

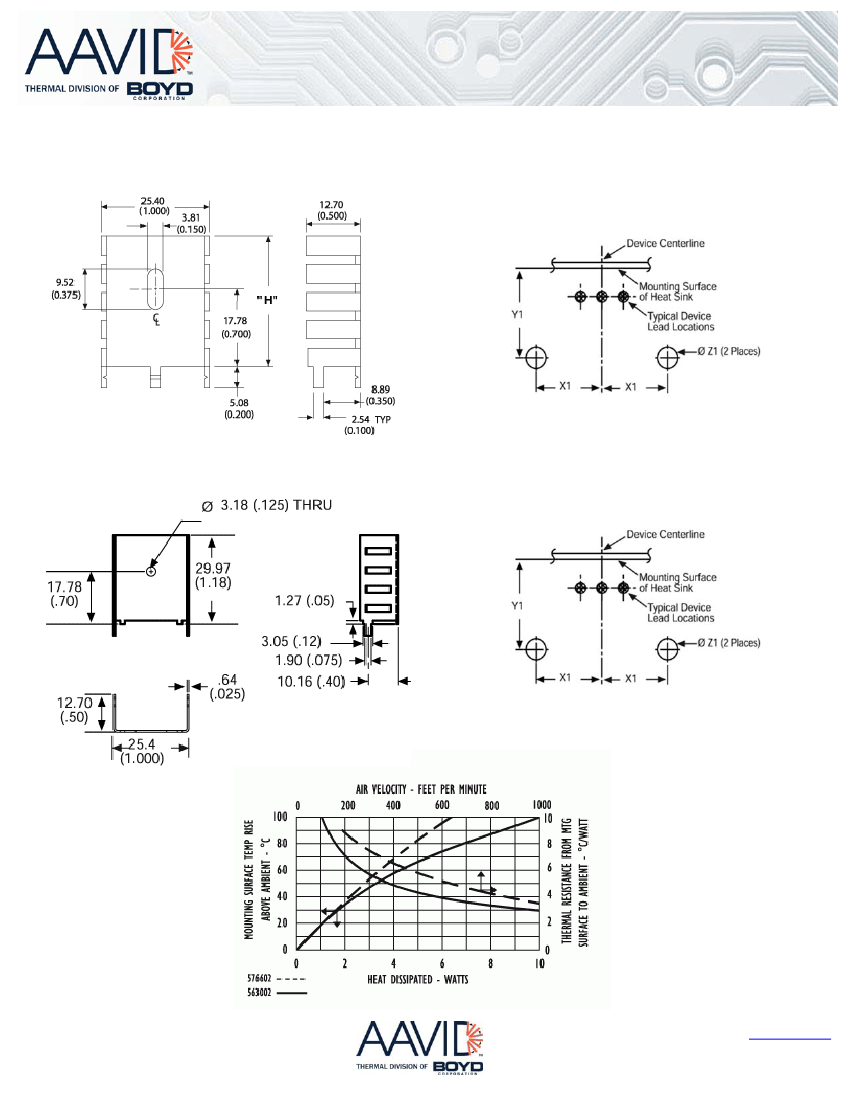

Drawing dimensions are shown in mm, (in)

“H” Dim
29.97
29.97
29.97
24.13
24.13
24.13
29.97
Part Number
563002B00000G
563002D00000G
563002T00000G
576602B00000G
576602D00000G
576602T00000G
7121DG

Material
Aluminum
Aluminum
Aluminum
Aluminum
Aluminum
Aluminum
Copper
Finish
Black Anodize
Tin Plated
Black Paint
Black Anodize
Tin Plated
Black Paint
Tin Plated
“X” Dim
12.07 (0.475)
12.07 (0.475)
12.07 (0.475)
12.07 (0.475)
12.07 (0.475)
12.07 (0.475)
12.40 (0.488)
“Y” Dim
9.53 (0.375)
9.53 (0.375)
9.53 (0.375)
9.53 (0.375)
9.53 (0.375)
9.53 (0.375)
9.53 (0.375)
“YT” Dim
0.64 (0.025)
0.64 (0.025)

0.64 (0.025)

0.64 (0.025)

0.64 (0.025)

0.64 (0.025)

0.64 (0.025)

“Z” Dim
3.10 (0.122)
3.10 (0.122)
3.10 (0.122)
3.10 (0.122)
3.10 (0.122)
3.10 (0.122)
2.54 (0.100)











USA: 1.855.322.2843
EUROPE: 39.051.764002
ASIA: 86.21.6115.2000 x8122










    Board Level Cooling
    www.aavid.com


563002B00000G Related Products

563002B00000G 576602T00000G 563002D00000G
Description Heat Sinks TO-220 VERT 13.0 TR CHANNEL STYLE Heat Sinks TO-220 VERT 16.6TR NC/NR Heat Sinks TIN HEAT SINK TO-220
Is it Rohs certified? conform to conform to conform to
Maker Aavid Thermalloy Aavid Thermalloy Aavid Thermalloy
package instruction ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code compliant unknown unknown
Main material ALUMINUM ALUMINUM ALUMINUM
structure FIN FIN FIN
fin direction TRANSVERSE TRANSVERSE TRANSVERSE
high 29.97 mm 24.13 mm 29.97 mm
length 25.4 mm 25.4 mm 25.4 mm
contour U U U
Thermal resistance 13 Ω 16.6 Ω 13 Ω
Heat Resistant Support Device Type HEAT SINK HEAT SINK HEAT SINK
width 12.7 mm 12.7 mm 12.7 mm
Base Number Matches 1 1 1
Factory Lead Time 8 weeks - 8 weeks
color BLACK BLACK -
Surface layer ANODIZED - TIN
