576802B04100G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Thermal management products> Heat resisting bracing> 576802B04100G

576802B04100G: DescriptionHeat Sinks TO-220 VERT 27.3 TR; CategoryThermal management products Heat resisting bracing; File Size219KB，2 Pages; ManufacturerAavid Thermalloy; Environmental Compliance

Download Datasheet Parametric Compare View All

576802B04100G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	576802B04100G	-	-	View	Buy Now

576802B04100G Overview

Heat Sinks TO-220 VERT 27.3 TR

576802B04100G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Aavid Thermalloy
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	8 weeks
Main material	ALUMINUM
color	BLACK
structure	CLIP
Surface layer	ANODIZED
high	19.05 mm
length	12.7 mm
contour	U
Thermal resistance	27.3 Ω
Heat Resistant Support Device Type	HEAT SINK
width	12.7 mm
Base Number Matches	1

Preview

Download Datasheet

View All

DATASHEET

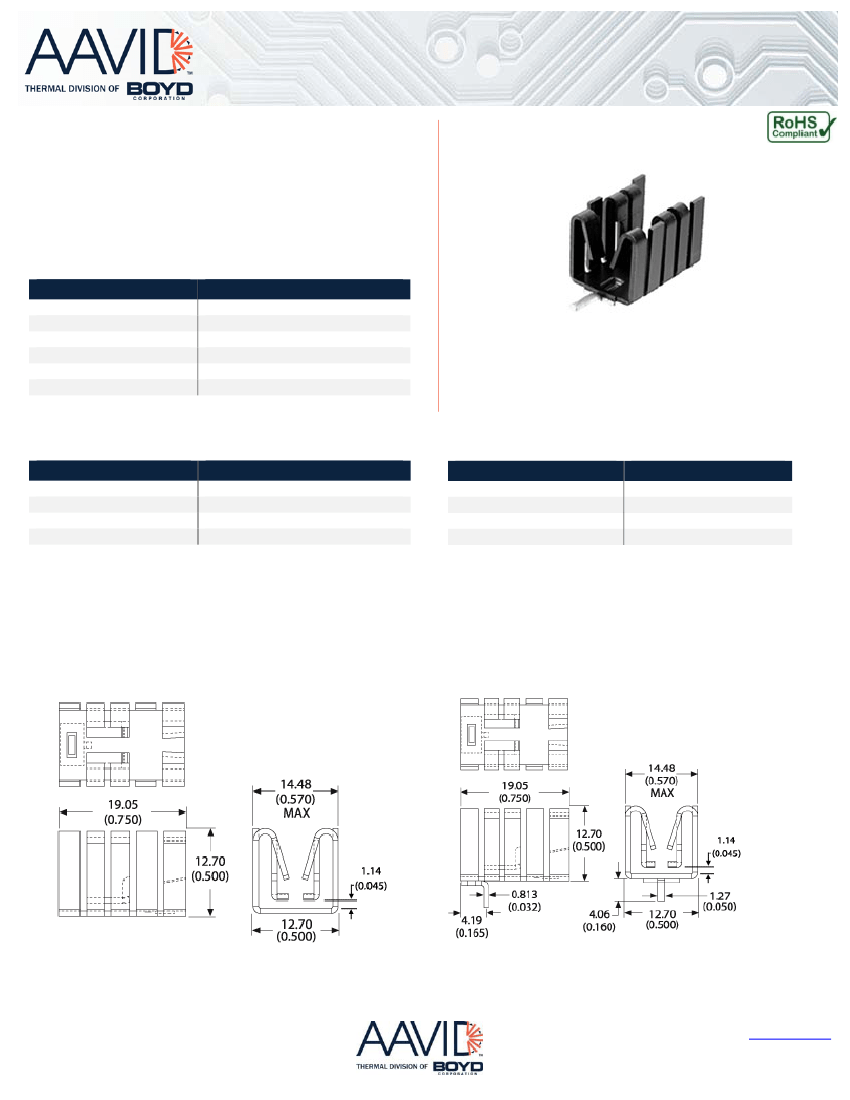

BOARD LEVEL COOLING ‐ Plug In 5768

Board Level Cooling – Plug In 5768

Device Type

TO‐220, TO‐220‐single gauge, TO‐262

Plug In 5768 is a series of plug in channel board level heat sinks designed to

cool TO‐220, TO‐220‐single gauge, and TO‐262 devices. Representative image

only.

ORDERING INFORMATION

Part Number

576802B00000G

576802B03100G

576802B03300G

576802B03900G

576802B04000G

576802B04100G

HEAT SINK DETAILS

Property

Material

Finish

Device Attachment Options

Thermal Interface Material

Details

Aluminum

Black Anodize

Integrated Spring Action Clips

N/A

Property

Heat Sink Width (mm)

Heat Sink Length (mm)

Heat Sink Height (mm)

Heat Sink Mounting Direction

Details

12.7

19.05

Horizontal, Vertical

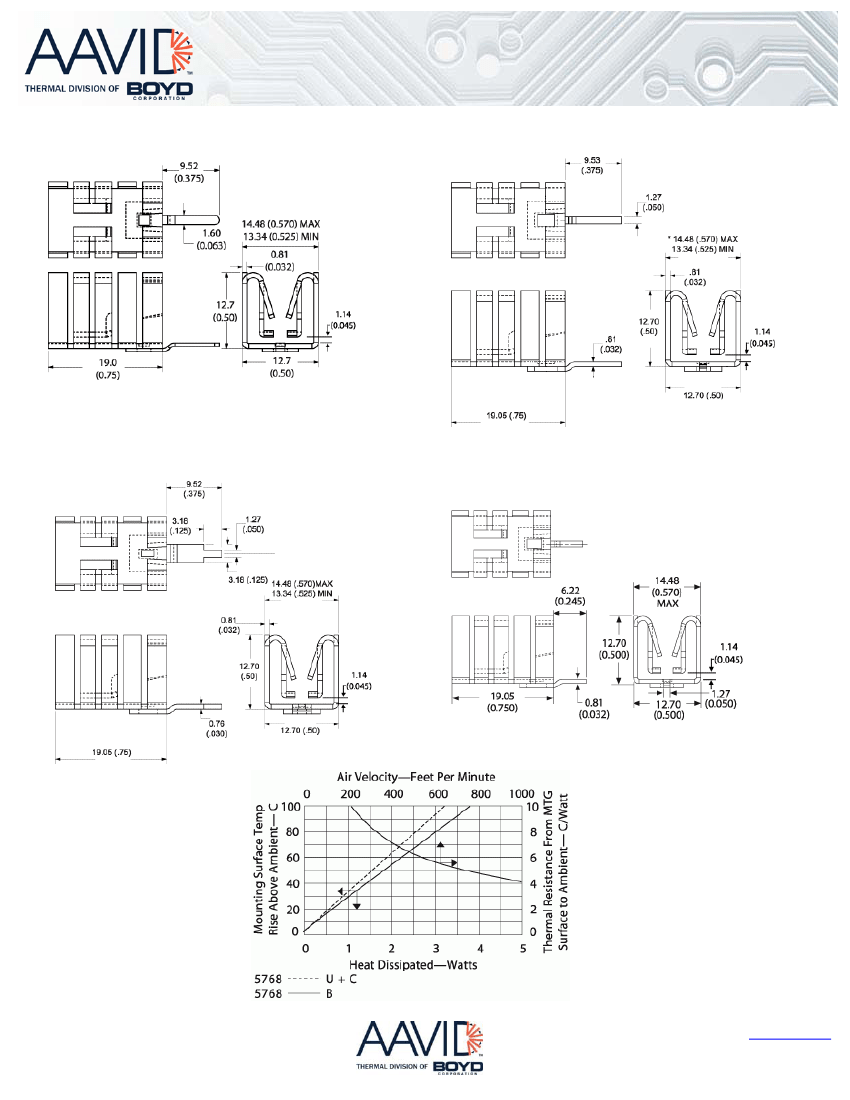

MECHANICAL & PERFORMANCE

Drawing dimensions are shown in mm, (in)

Part Number: 576802B03100G

Part Number: 576802B00000G

USA: 1.855.322.2843

EUROPE: 39.051.764002

ASIA: 86.21.6115.2000 x8122

Board Level Cooling

www.aavid.com
