OA254AN-22-2WB

Description
AC Fans Fan AC 254mm 230VAC 600CFM Ball Wires
CategoryThermal management products
File Size393KB，1 Pages
ManufacturerOrion Fans
Websitehttp://www.orionfans.com
Environmental Compliance
Download Datasheet Parametric View All

OA254AN-22-2WB Online Shopping

Suppliers Part Number Price MOQ In stock
OA254AN-22-2WB - - View Buy Now

OA254AN-22-2WB Overview

AC Fans Fan AC 254mm 230VAC 600CFM Ball Wires

OA254AN-22-2WB Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerOrion Fans
Product CategoryAC Fans
Shipping RestrictionsDue to size or weight of the product, your shipping charge may increase.
RoHSDetails
Frame Dimensions - mm254 mm L x 89 mm W x 254 mm H
Operating Supply Voltage230 VAC
Airflow600 CFM
Bearing TypeBall
Noise55 dBA
Speed2000 RPM
Power Rating45 W
Housing MaterialAluminum
Termination StyleWire Leads
Height254 mm
Length254 mm
Pressure Type0.59 in
Size254 mm
Width89 mm
Current TypeAC
Factory Pack Quantity1

Preview

Download Datasheet

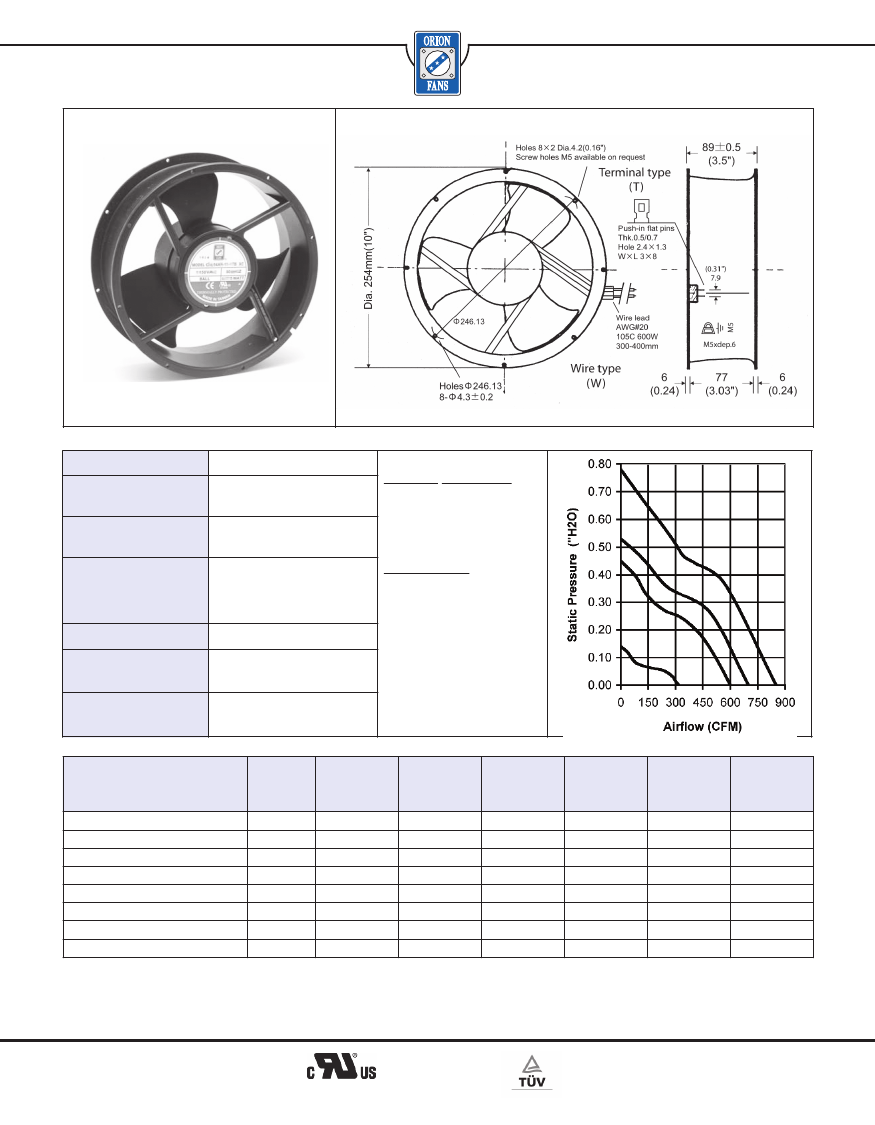

OA254 ‘XC Series’
AC Fan - 115V, 230V High Performance
254 x 89mm (10.0” x 3.5”)
Frame
Impeller
Connection
Motor
Bearing System
Insulation Resistance
Dielectric Strength
Diecast Aluminum
PBT, UL94V-0 plastic
2x Lead Wires or Terminals
Capacitor drive, thermally
protected
Dual ball
Operating Temperature
Ball Bearing
-20C ~ +80C
Storage Temp
-40C ~ +80C
Life Expectancy
Ball Bearing
60,000 hours (L10 at 40C)
Weight: ~ 5.4 lbs.
>100M ohm between lead-
wire and frame (500VDC)
1 min at 1500 VAC, 50/60Hz
Speed
(RPM)
2700
2200
2000
1100
2700
2200
2000
1100
m0
Model Number
OA254AN-11-1
OA254AN-11-1
OA254AN-11-2
OA254AN-11-3
OA254AN-22-1
OA254AN-22-1
OA254AN-22-2
OA254AN-22-3
* XC
*
*
*
* XC
*
*
*
Airflow (CFM)
850
700
600
320
850
700
600
320
Noise (dB)
69
65
55
48
69
65
55
48
Volts AC
115
115
115
115
230
230
230
230
Voltage Range
80~130
80~130
80~130
80~130
160~260
160~260
160~260
160~260
Watts
75
70
45
32
75
70
45
32
Max. Static
Pressure
(“H
2O)
0.78
0.53
0.45
0.14
0.78
0.53
0.45
0.14
* Indicate “TB” for terminal type or “WB” for Wire leads (300mm)
Knight Electronics, Inc.
10557 Metric Drive
Dallas, Texas 75243
214-340-0265
RoHS Compliant
24
Information and data is subject to
change without prior notification.
Orion Fans
