8506TV: DescriptionAC Fans AC Tubeaxial Fan, 76x37mm Round, 115VAC, 27.7CFM, 11W, 33dBA, 3250RPM, Ball Bearing; CategoryThermal management products Heat resisting bracing; File Size75KB，1 Pages; Manufacturerebm-papst; Websitehttp://www.ebmpapst.com; Environmental Compliance

Download Datasheet Parametric Compare View All

8506TV Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8506TV	-	-	View	Buy Now

8506TV Overview

AC Fans AC Tubeaxial Fan, 76x37mm Round, 115VAC, 27.7CFM, 11W, 33dBA, 3250RPM, Ball Bearing

8506TV Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
air flow volume	27.7 CFM
Bearing type	BALL
structure	AXIAL
diameter	76 mm
life expectancy	60000 h
noise	33 dB
Maximum operating temperature	95 °C
Minimum operating temperature	-40 °C
rated power	11 W
Rated voltage	115 V
speed	3250 rpm
Heat Resistant Support Device Type	AC FAN
weight	370 g
width	37 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Max.

47

m /h

3

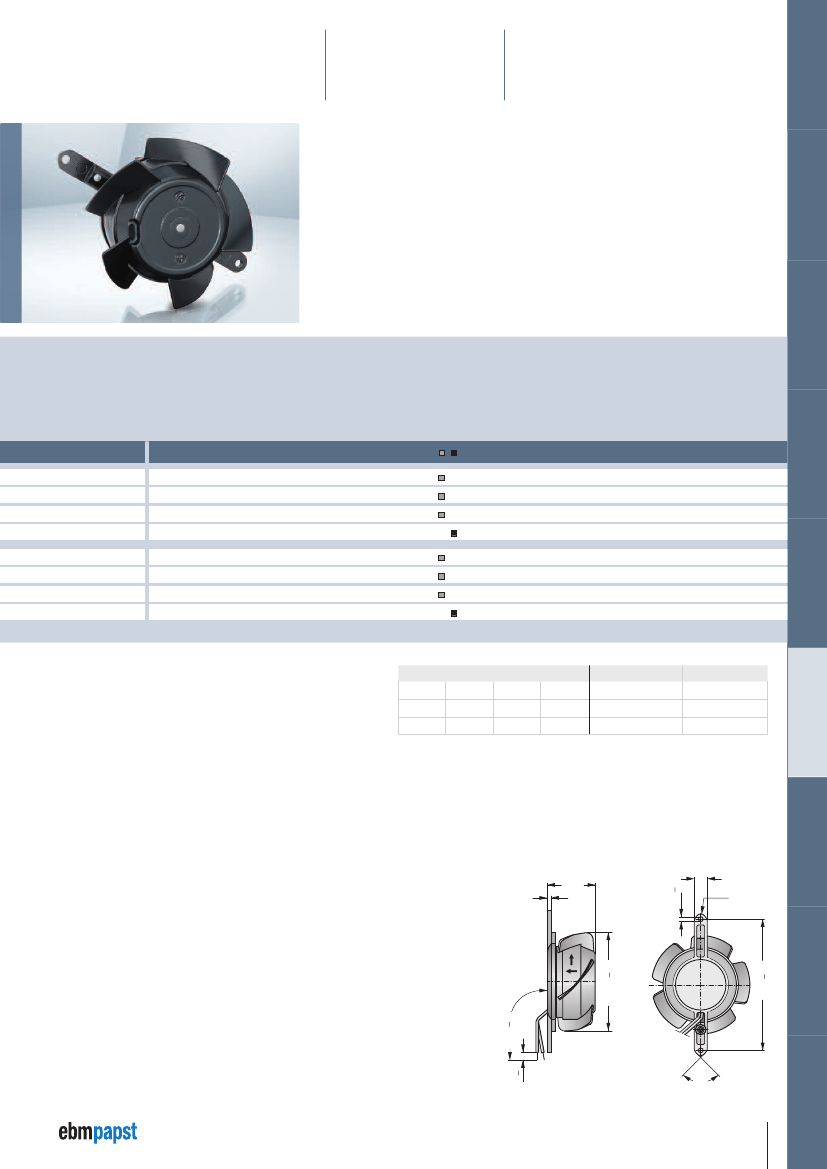

AC axial fans

Ø 76 x 37 mm

– Material:

–

– Possible special versions:

Impeller: Die-cast aluminum

(See page 12)

Mounting bracket: Metal

- Moisture protection

Direction of air flow:

Exhaust over mounting bracket

- Salt spray protection

Direction of rotation:

Clockwise,

- Degree of protection: IP 54 / IP 65

looking towards rotor

Connection:

Via 2 single wires

Weight:

370 g

Sound pressure level

Sintec sleeve bearings

Ball bearings

Temperature range

Nominal voltage

Series 8000 TV

Power consumption

Service life L10

at 40 °C

Nominal speed

Frequency

Type

8880 TV

8850 TV

8550 TV

8556 TV

8830 TV

8800 TV

8500 TV

8506 TV

Subject to change

m

3

/h

24

31

40

27

36

47

cfm

14.1

18.2

23.5

15.9

21.2

27.7

VAC

230

115

Hz

50

60

dB(A)

15

20

27

28

18

24

32

33

/

Watts

9.0

12.0

8.0

11.0

rpm

-1

1 650

2 100

2 650

2 750

1 850

2 450

3 150

3 250

°C

-10...+80

-10...+70

-40...+90

-10...+80

-10...+70

-10...+75

-40...+95

Hours

60 000 / 25 000

52 500 / 25 000

52 500 / 15 000

62 500 / 25 000

55 000 / 27 500

55 000 / 25 000

55 000 / 15 000

3

37

+1

3,7

+ 0,15

10

R4

325

+10

ø75,8

Tin-plated

90°

207

2016-01

Representatives

6

+1

Accessories

0,3

101

+ 0,2

AC centrifugal fans

The air flow and sound level of fans without external

housing depend on the installation conditions.

The stated air flow and noise have been measured with

an orifice 76.5 mm Ø at a distance of approx. 17 mm

from the mounting bracket.

The air flow capacity of fan series 8000 N is achievable

because of the exceptionally favorable installation

conditions. The noise in the optimal operating range

can be measured for these fans only in a specific

application.

Fan type

8880 TV

8550 TV

8556 TV

8850 TV

8500 TV

8506 TV

8830 TV

8800 TV

Length "L"

325 mm long

Connection wires

AWG 18, TR 64

AWG 18

AC axial fans

ACmaxx / EC fans

DC fans - specials

Nominal data

at T max

Air flow

DC centrifugal fans

DC axial fans

Information

8506TV Related Products

	8506TV	8800TV	8880TV	8556TV	8850TV	8500TV	8830TV	8550TV
Description	AC Fans AC Tubeaxial Fan, 76x37mm Round, 115VAC, 27.7CFM, 11W, 33dBA, 3250RPM, Ball Bearing	AC Fans AC Axial, 76x37mm 115V/21.2CFM/Sleeve	AC Fans AC Axial, 76x37mm 230V/14.1CFM/Sleeve	AC Fans AC Axial, 76x37mm 230VAC/23.5CFM/Ball	AC Fans AC Tubeaxial Fan, 76x37mm Round, 230VAC, 18.2CFM, 12W, 20dBA, 2100RPM, Sleeve Bearing	AC Fans AC Tubeaxial Fan, 76x37mm Round, 115VAC, 27.7CFM, 11W, 32dBA, 3150RPM, Sleeve Bearing	AC Fans AC Tubeaxial Fan, 76x37mm Round, 115VAC, 15.9CFM, 8W, 18dBA, 1850RPM, Sleeve Bearing	AC Fans AC Tubeaxial Fan, 76x37mm Round, 230VAC, 23.5CFM, 12W, 27dBA, 2650RPM, Sleeve Bearing
Product Attribute	-	Attribute Value	Attribute Value	-	Attribute Value	Attribute Value	Attribute Value	-
Manufacturer	-	ebm-papst	ebm-papst	-	ebm-papst	ebm-papst	ebm-papst	-
Product Category	-	AC Fans	AC Fans	-	AC Fans	AC Fans	AC Fans	-
RoHS	-	Details	Details	-	Details	Details	Details	-
Frame Dimensions - mm	-	76 mm L x 37 mm W x 37 mm H	76 mm L x 37 mm W x 37 mm H	-	76 mm L x 37 mm W x 37 mm H	76 mm L x 37 mm W x 37 mm H	76 mm L x 37 mm W x 37 mm H	-
IP Rating	-	IP20	IP20	-	IP20	IP20	IP20	-
Height	-	37 mm	37 mm	-	37 mm	37 mm	37 mm	-
Length	-	76 mm	76 mm	-	76 mm	76 mm	76 mm	-
Width	-	37 mm	37 mm	-	37 mm	37 mm	37 mm	-
Current Type	-	AC	AC	-	AC	AC	AC	-
Factory Pack Quantity	-	1	1	-	1	1	1	-
Unit Weight	-	13.051366 oz	13.051366 oz	-	13.051366 oz	13.051366 oz	13.051366 oz	-
