R2E225-BD92-19
AC centrifugal fan
backward-curved
ebm-papst Mulfingen GmbH & Co. KG
Bachmühle 2 · D-74673 Mulfingen
Phone +49 7938 81-0
Fax +49 7938 81-110
info1@de.ebmpapst.com
www.ebmpapst.com
Limited partnership · Headquarters Mulfingen
Amtsgericht (court of registration) Stuttgart · HRA 590344
General partner Elektrobau Mulfingen GmbH · Headquarters Mulfingen
Amtsgericht (court of registration) Stuttgart · HRB 590142
Nominal data
Type
Motor
Phase
Nominal voltage
Frequency
Method of obtaining data
Valid for approval/standard
Speed (rpm)
Power consumption
Current draw
Capacitor
Capacitor voltage
Min. back pressure
Min. back pressure
Min. ambient temperature
Max. ambient temperature
Starting current
min
-1
W
A
µF
VDB
Pa
in. wg
°C
°C
A
VAC
Hz
R2E225-BD92-19
M2E068-DF
1~
230
50
fa
-
2650
135
0.6
4
450
0
0
-25
55
1.2
1~
230
60
fa
-
2950
200
0.88
4
450
0
0
-25
55
1.2
ml = Max. load · me = Max. efficiency · fa = Free air · cs = Customer specification · ce = Customer equipment
Subject to change
Item no. 10530-5-9980 · ENU · Change 94607 · Approved 2017-11-13 · Page 1 / 6
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
R2E225-BD92-19
AC centrifugal fan
backward-curved
Technical description
Weight
Fan size
Rotor surface
Impeller material
Number of blades
Direction of rotation
Degree of protection
Insulation class
Moisture (F) / Environmental (H)
protection class
Max. permitted ambient temp.
for motor (transport/storage)
Min. permitted ambient temp. for
motor (transport/storage)
Installation position
Condensation drainage holes
Mode
Motor bearing
Touch current according to IEC
60990 (measuring circuit Fig. 4,
TN system)
Motor protection
With cable
Protection class
Conformity with standards
Approval
2.3 kg
225 mm
Painted black
PA6 plastic, glass-fiber reinforced
7
Clockwise, viewed toward rotor
IP44
"F"
H1
+ 80 °C
- 40 °C
Shaft horizontal or rotor on bottom; rotor on top on request
On rotor side
S1
Ball bearing
< 0.75 mA
Thermal overload protector (TOP) internally connected
Variable
I (with customer connection of protective earth)
EN 60335-1
CCC; CSA C22.2 No. 100; UL 1004-1; EAC
Item no. 10530-5-9980 · ENU · Change 94607 · Approved 2017-11-13 · Page 2 / 6
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
R2E225-BD92-19
AC centrifugal fan
backward-curved

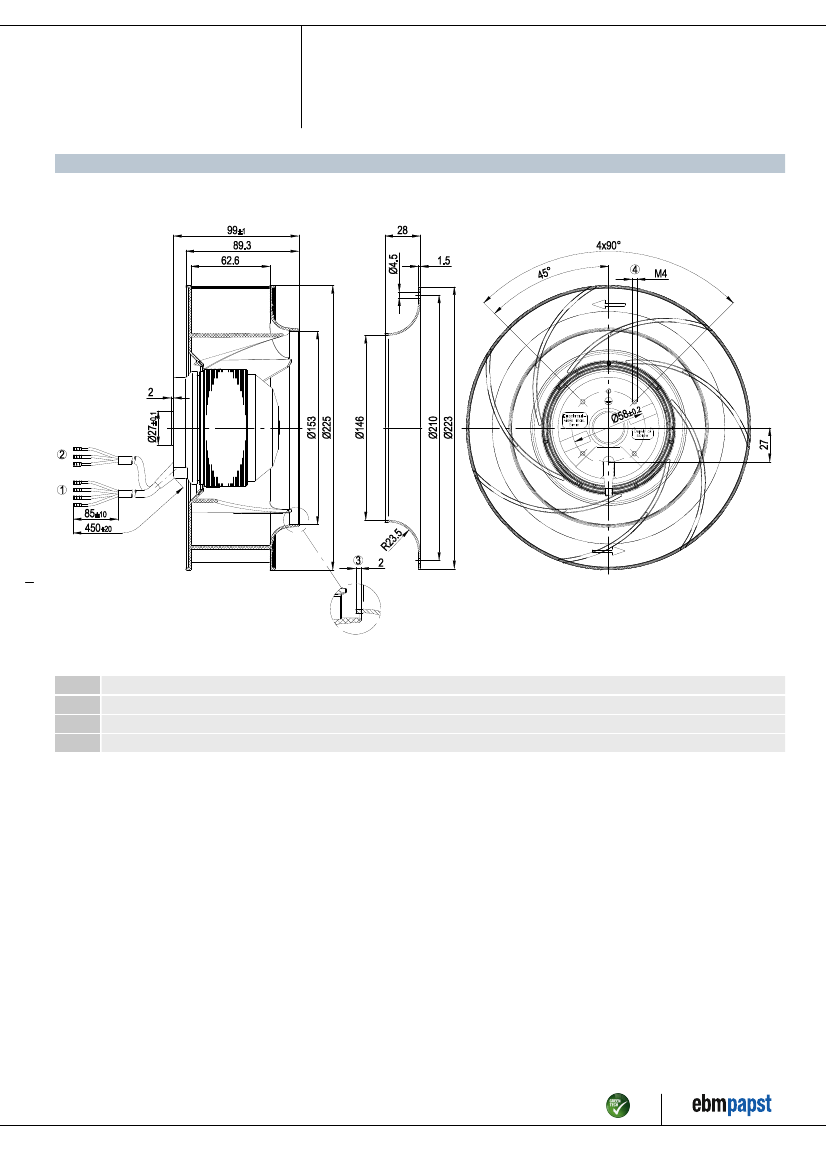

Product drawing
1
2
3
4
Cable PVC, 4x crimped splices
Cable, 3x crimped splices
Accessory part: inlet ring 96358-2-4013, not included in scope of delivery
Max. clearance for screw 5 mm
Item no. 10530-5-9980 · ENU · Change 94607 · Approved 2017-11-13 · Page 3 / 6
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
R2E225-BD92-19
AC centrifugal fan
backward-curved
Connection diagram
1
U1
Z
U2
PE
2
2.1
2.2
2.3
2.4
Fan connection diagram
blue
brown
black
green/yellow
Hall IC circuit
Hall IC
red (+5 V)
white (out)
black (0 V)
Item no. 10530-5-9980 · ENU · Change 94607 · Approved 2017-11-13 · Page 4 / 6
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
R2E225-BD92-19
AC centrifugal fan
backward-curved

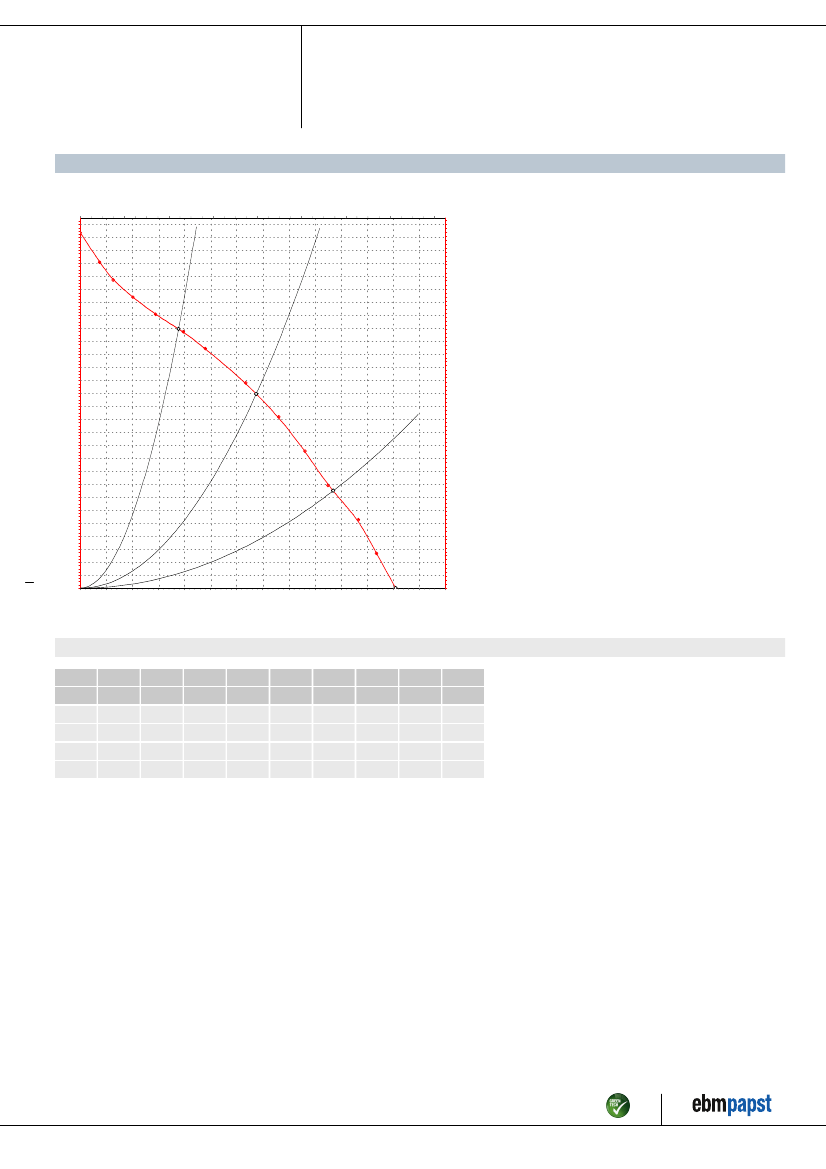

Curves: Air performance 50 Hz
Druck p f s[Pa] für Rho=1,2kg/m^3
0
560
540
520
500
480
460
440
420
400
380
360
340
320
p f s[Pa]
100
200
300
qv[cfm]
400
500
600
700
800
2,2
2,1
2
1,9
1,8
1,7
Measurement: LU-57084-1
Air performance measured according to ISO
5801 installation category A. For detailed
information on the measurement setup,
contact ebm-papst. Intake sound level:
Sound power level according to ISO 13347 /
sound pressure level measured at 1 m
distance from fan axis. The values given are
valid under the specified measuring
conditions and may vary due to conditions of
installation. For deviations from the standard
configuration, the parameters have to be
checked on the installed unit.
4
1,6
1,5
1,4
p fs_E [IN H2O]
1,3
300
280
260
240
220
200
180
160
140
120
100
80
60
40
3
1,2
1,1
1
0,9
0,8
0,7
2
0,6
0,5
0,4
0,3
0,2
a]
s[P
pf
20
0
0
100
200
300
400
500
600
700
800
qv[m^3/h]
900
1.000
1.100
0,1
1.300
0
1.400
1
1.200
Measured values
U
V
1
2
3
4
230
230
230
230
f
Hz
50
50
50
50
n
min
-1
2700
2660
2595
2645
P
e
W
135
138
150
140
I
A
0.60
0.60
0.65
0.61
q
V
m
3
/h
1210
970
675
375
p
fs
Pa
0
150
300
400
q
V
cfm
710
570
395
220
p
fs
in. wg
0.00
0.60
1.20
1.61
U = Power supply · f = Frequency · n = Speed (rpm) · P
e
= Power consumption · I = Current draw · q
V
= Air flow · p
fs
= Pressure increase
Item no. 10530-5-9980 · ENU · Change 94607 · Approved 2017-11-13 · Page 5 / 6
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
