Datasheet> All Categories > Thermal management products> BCB0812GHN

Preview

BCB0812GHN: DescriptionBlowers DC Blower, 80x75x30mm, 12VDC; CategoryThermal management products; File Size455KB，1 Pages; ManufacturerDelta Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

BCB0812GHN Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BCB0812GHN	-	-	View	Buy Now

BCB0812GHN Overview

Blowers DC Blower, 80x75x30mm, 12VDC

BCB0812GHN Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Delta Electronics
Product Category	Blowers
RoHS	Details
Type	Centrifugal Blower
Current Type	DC
Operating Supply Voltage	12 VDC
Airflow	25.99 CFM
Bearing Type	Ball
Noise	67.8 dBA
Speed	9500 RPM
Power Rating	17.4 W
Frame Dimensions - mm	75 mm L x 30 mm W x 80 mm H
Housing Material	Plastic
Termination Style	Wire Leads
Packaging	Bulk
Height	80 mm
Length	75 mm
Pressure Type	2.663 in H2O
Size	75 mm
Width	30 mm
Factory Pack Quantity	105

Preview

Download Datasheet

View All

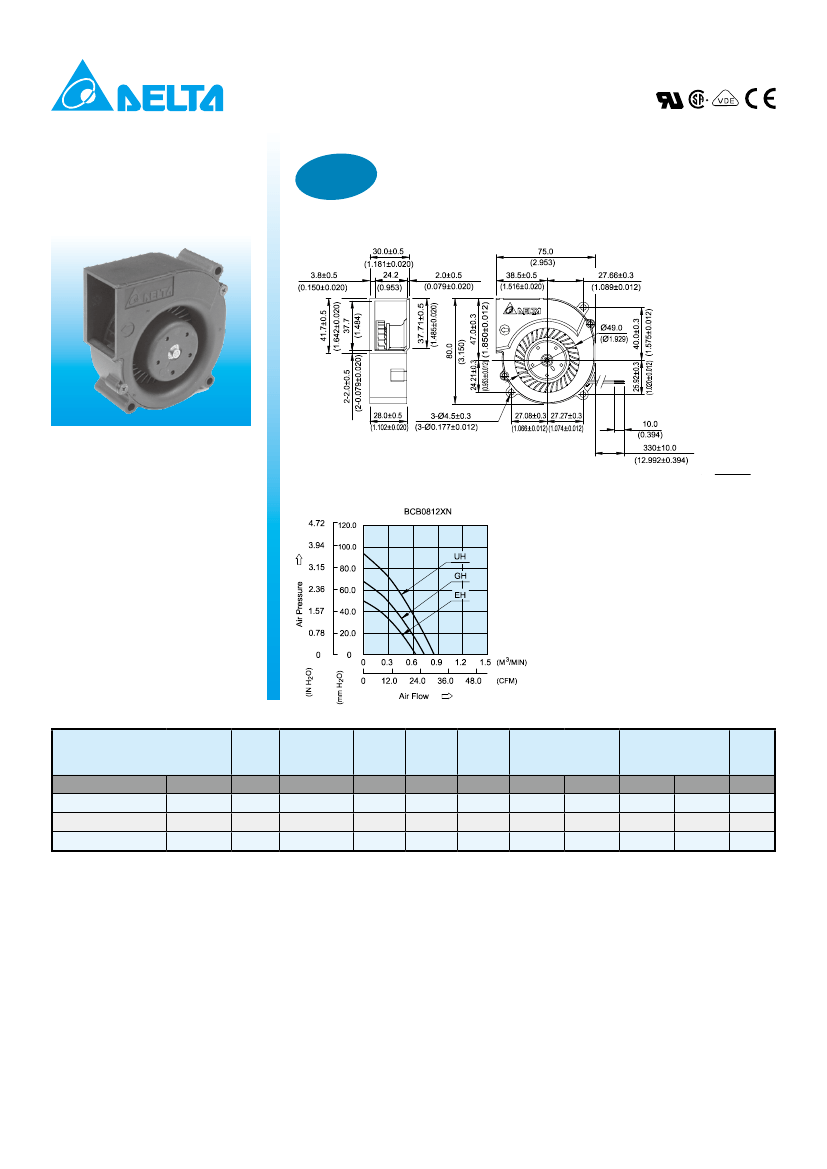

BCB

75 x 80 x 30 MM SERIES

■

DIMENSIONS

DRAWING

*

Bearing Type

Ball Bearings

*

Material

Impeller & Frame : Plastic (UL 94V-0)

Lead Wires :

*

UL 1007 AWG #24 OR Equivalent

Red Wire Positive(+)

Black Wire Negative(-)

*

Weight : 140g (4.94 oz)

UNIT :

mm

(INCH)

■

P

& Q CURVE

(AT RATED VOLTAGE)

MODEL

PART NO.

BCB0812EHN

BCB0812GHN

BCB0812UHN

FUNCTION

-R00 / -F00

Rated

Voltage

VDC

12

Operating

Voltage

Range

VDC

6.0 to 13.2

Input

Current

Amp

1.00

1.45

2.30

Input

Power

Watt

12.00

17.40

27.60

Speed

R.P.M.

8200

9500

10800

Maximum

Air Flow

m

3

/min

0.632

0.736

0.854

CFM

22.32

25.99

30.16

Maximum

Air Pressure

mmH

2

O

49.54

67.64

93.35

IN H

2

O

1.950

2.663

3.675

Noise

dB-A

64.0

67.8

69 .3

* Function type is optional.

* The max. air flow and the speed are measured in free air ; max. air pressure is measured at zero air flow.

* Noise is measured in anechoic chamber in free air, one meter from intake side.

* All readings are typical values at rated voltage.

* Specifications are subject to change without notice.

141

http://www.deltaww.com
