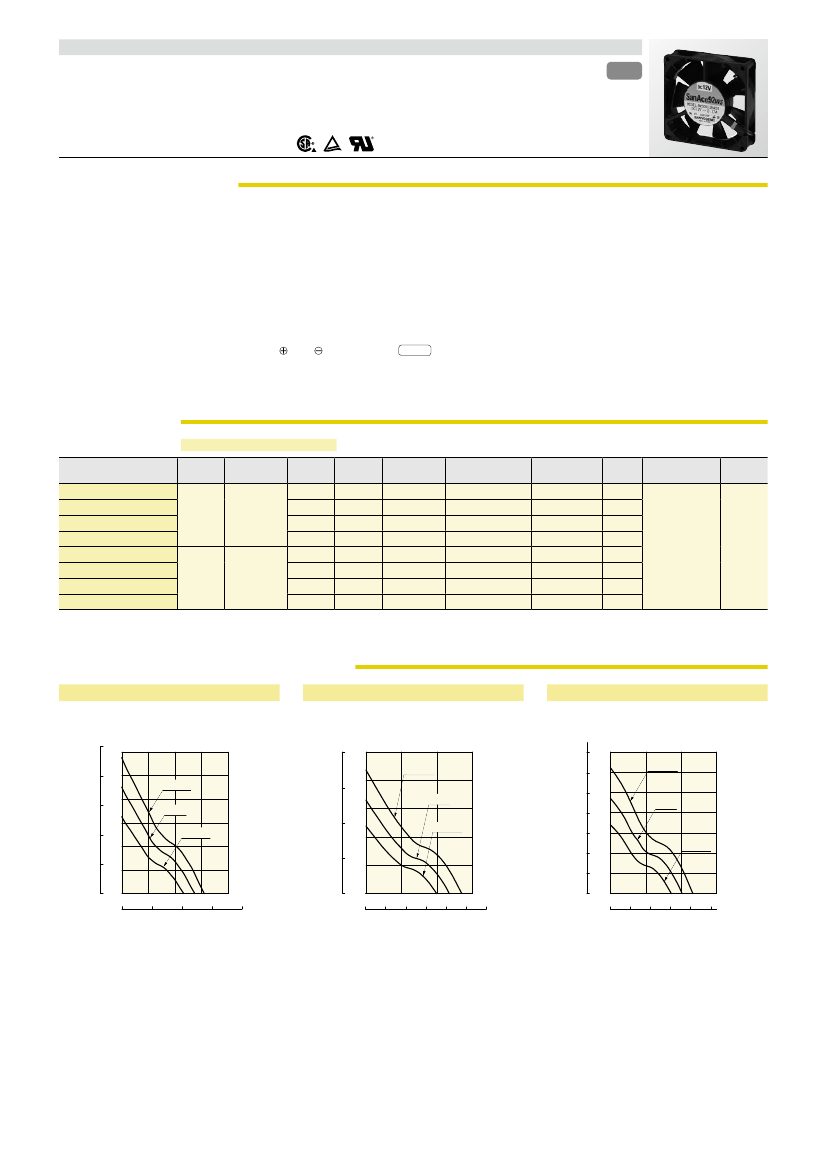

Splash Proof Fan
92
×
92
×
25
mm
San Ace 92WS 9WS
type
■
General Specifications
・
Motor protection function
…………………
・
Dielectric strength
……………………………
・
Insulation resistance
…………………………
・
Sound pressure level (SPL)
………………
・
Storage temperature
………………………
・
Lead wire
………………………………………
IP54
・
Material
…………………………………………
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
・
Expected life
……………………………………
See the table below. (L10 life: 90% survival rate for continuous operation in indoor free air
at 60˚C, rated voltage)
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 529.
50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
10 MΩ or more with a 500 VDC megger (between lead wire conductors and frame)
At 1 m away from the air inlet
-30 to +70˚C (Non-condensing)
Black or Blue
Sensor
Red
・
Mass
………………………………………………
150 g
・
Ingress protection
……………………………
IP54
Yellow
■
Specifications
The models listed below
have ribs and pulse sensors.
Model no.
Rated voltage Operating voltage range Rated current Rated input
[V]
[V]
[A]
[W]
Rated speed
[min
-1
]
Max. airflow
[m³/min]
[CFM]
Max. static pressure
[Pa]
SPL
[dB (A)]
Operating temperature Expected life
[˚C]
[h]
9WS0912H401
9WS0912F401
9WS0912M401
9WS0912L401
9WS0924H401
9WS0924F401
9WS0924M401
9WS0924L401
12
10.2 to 13.8
24
20.4 to 27.6
0.17
0.13
0.1
0.06
0.1
0.07
0.06
0.05
2.04
1.56
1.2
0.72
2.4
1.68
1.44
1.2
2850
2450
2100
1700
2850
2450
2100
1700
1.38
1.18
1.01
0.8
1.38
1.18
1.01
0.8
48.7
41.7
35.7
28.2
48.7
41.7
35.7
28.2
45.1
32.3
23.5
16.7
45.1
32.3
23.5
16.7
[inchH²O]
0.181
0.13
0.094
0.067
0.181
0.13
0.094
0.067
33
30
27
23
33
30
27
23
-
20 to
+
70
40000/60˚C
Other sensor specifications are available as options. Refer to the index (p. 560).
■

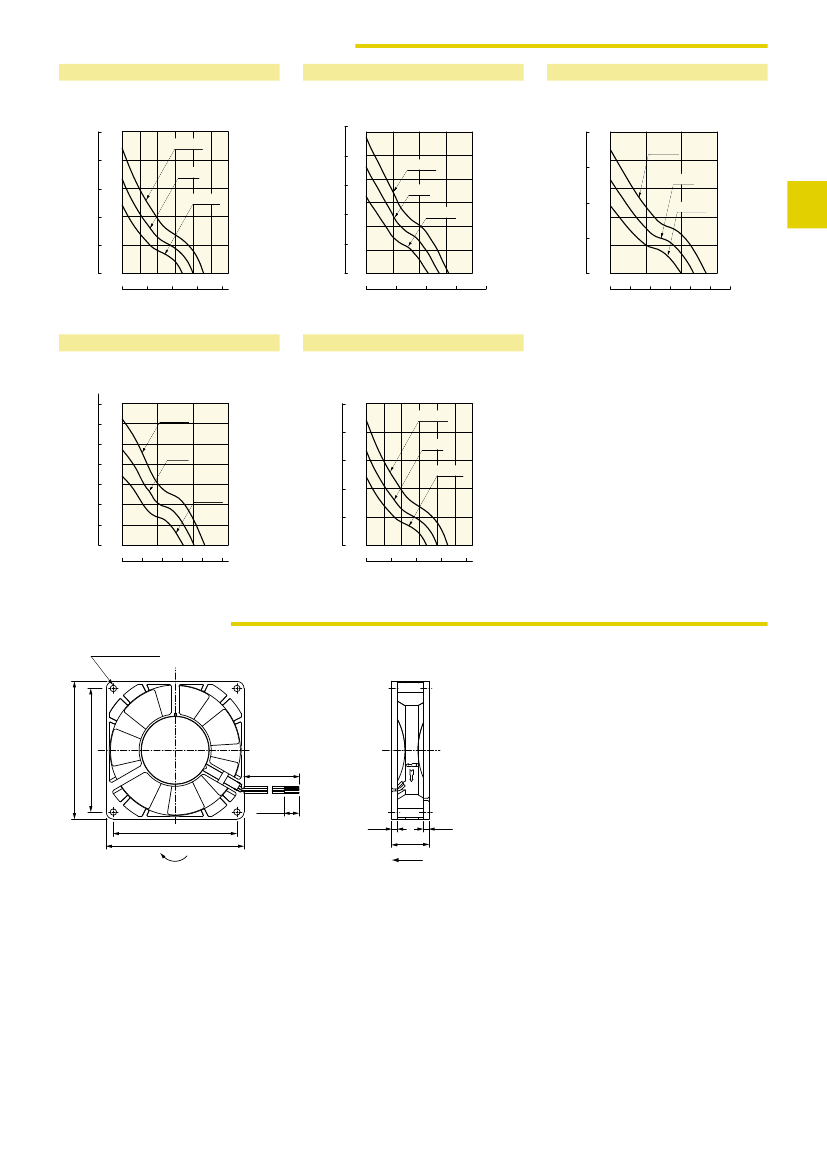

Airflow - Static Pressure Characteristics
9WS0912H401
With pulse sensor
9WS0912F401
With pulse sensor
9WS0912M401
With pulse sensor
Operating voltage range
(inch H
2
O) (Pa)
Operating voltage range
(inch H
2
O) (Pa)
Operating voltage range
(inch H
2
O) (Pa)
0.25
0.20
0.15
0.10
0.05
0
60
0.20
50
0.14
13.8 V
0.12
30
13.8 V
Static pressure
静圧
Static pressure
静圧
40
30
20
10
0
0
0.5
20
0.15
0.10
Static pressure
静圧
50
13.8 V
12 V
10.2 V
40
30
20
12 V
10.2 V
0.10
0.08
0.06
0.04
0.02
10
20
12 V
0.05
0
10.2 V
10
0
0
10
0.5
20
30
1.0
40
1.5
50
1.0
1.5
60
2.0
(m
3
/min)
(m
3
/min)
0
0
0
10
0.5
20
30
1.0
40
1.5
(m
3
/min)
50
(CFM)
風量
Airflow
40
80
(CFM)
風量
Airflow
60
(CFM)
風量
Airflow
290
■
Reference Dimensions of Mounting Holes and Vent Opening
(unit: mm)
Inlet side, Outlet side
4-
ø
4.5
82.5
±
0.3
ø
1
02
89
82.5
±
0.3
89
■
Options
Finger guards
Model no.: 109-099C, 109-099E, 109-099H
page: p. 513
Resin finger guards
Model no.: 109-1001G
page: p. 520
292
