New
FFB

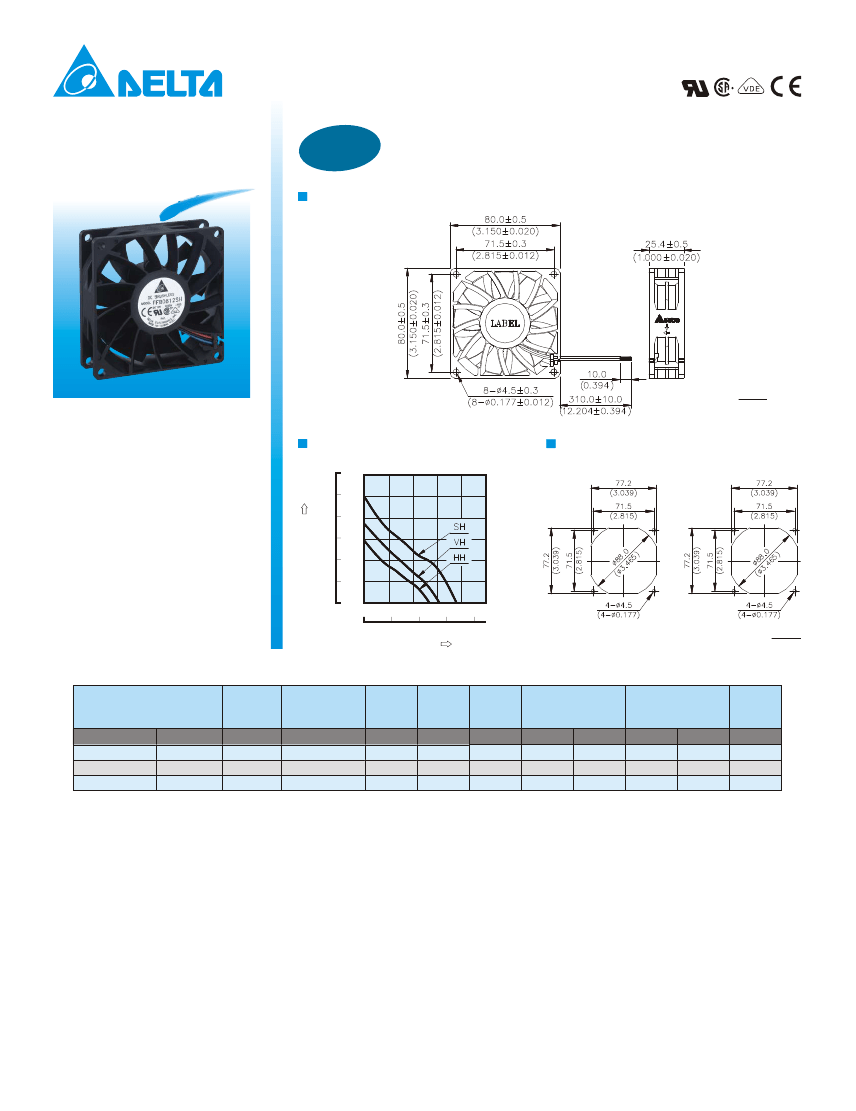

80 x 80 x 25.4 MM SERIES
DIMENSIONS DRAWING
UNIT:
mm
(INCH)
*
Bearing Type
Air Pressure
Ball Bearings
*
Material
Impeller & Frame : Plastic (UL 94V-0)
*
Lead Wires :
UL 1007 AWG #24 Or Equivalent
Red Wire Positive (+)
Black Wire Negative (-)
*
Weight : 115g (4.06 oz)
P & Q CURVE
(AT RATED VOLTAGE)
0.48
0.40
0.32
0.24
0.16
0.08
0
(mm H
2
O)
(IN H
2
O)
MOUNTING PANEL CUTOUT
OUTLET SIDE
INLET SIDE
FFB0812X
12.0
10.0
8.0
6.0
4.0
2.0
0
0
0
0.5
20.0
1.0
40.0
Air Flow
1.5
60.0
2.0
3
2.5
(M /MIN)
80.0
(CFM)
UNIT:
mm
(INCH)
MODEL
PART NO.
FFB0812HH
FFB0812VH
FFB0812SH
FUNCTION
-R00 / -F00
-R00 / -F00
-R00 / -F00
Rated
Voltage
VDC
12
12
12
Operating
Voltage
Range
VDC
7.0 to 13.2
7.0 to 13.2
7.0 to 13.2
Rated
Current
Amp
0.26
0.34
0.50
Rated
Input
Power
Watt
3.12
4.08
6.00
Speed
R.P.M.
3500
4000
4500
Maximum
Air Flow
m
3
/min
1.339
1.545
1.898
CFM
47.22
54.56
67.02
Maximum
Air Pressure
mmH
2
O
5.81
7.39
9.95
IN H
2
O
0.229
0.291
0.392
Noise
dB-A
41.7
45.4
48.6
* Function type is optional.
* The max. air flow and the speed are measured in free air ; max. air pressure is measured at zero air flow.
* Noise is measured in anechoic chamber in free air, one meter from intake side.
* All readings are typical values at rated voltage.
* Specifications are subject to change without notice.
