569022B00000G

Description
Heat Sinks - LED TO-220 DUAL 5.5TR
CategoryThermal management products    Heat resisting bracing
File Size203KB,2 Pages
ManufacturerAavid Thermalloy
Environmental Compliance
Download Datasheet Parametric View All

569022B00000G Online Shopping

Suppliers Part Number Price MOQ In stock
569022B00000G - - View Buy Now

569022B00000G Overview

Heat Sinks - LED TO-220 DUAL 5.5TR

569022B00000G Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerAavid Thermalloy
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
Main materialALUMINUM
colorBLACK
fin directionFOLDEDBACK
Surface layerANODIZED
high33.27 mm
length46.48 mm
Thermal resistance5.5 Ω
Heat Resistant Support Device TypeHEAT SINK
width46.48 mm
Base Number Matches1
DATASHEET

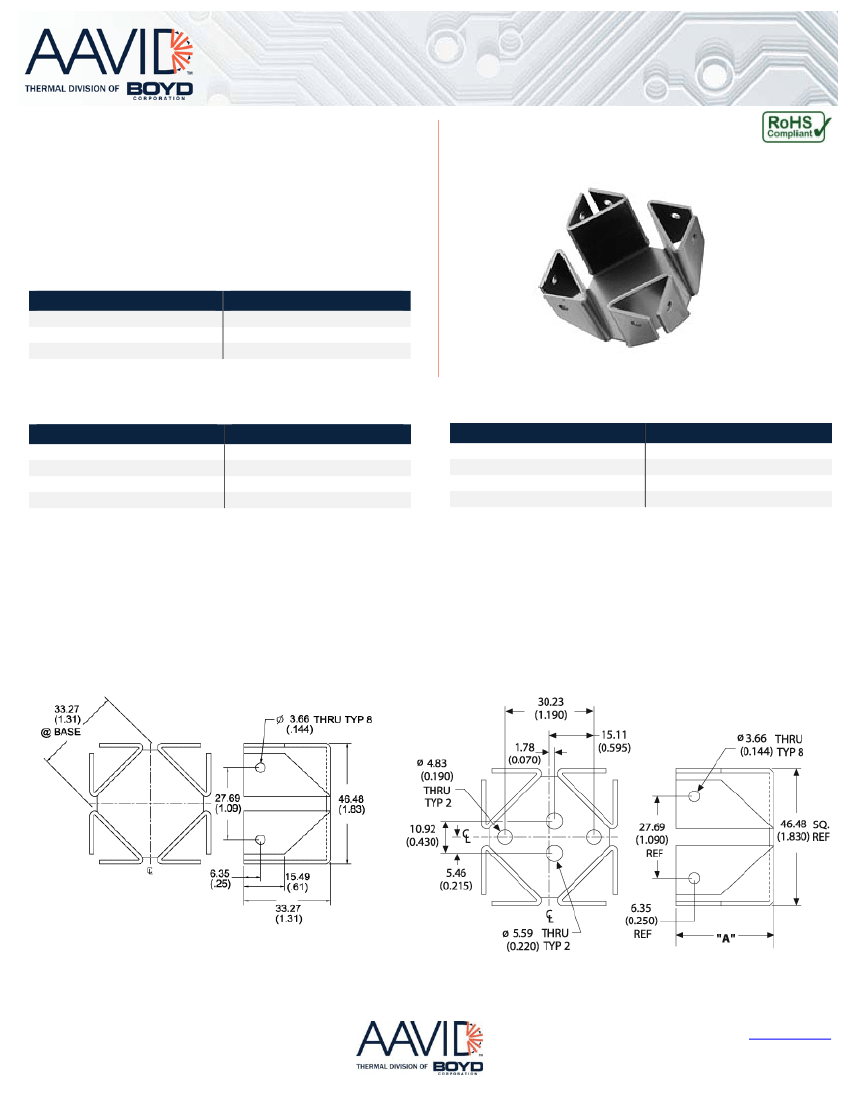

Board Level Cooling – Square Basket 5690


BOARD LEVEL COOLING – Square Basket 5690
Square Basket 5690 is a series of square basket board level heat sinks
designed to cool LED, TO‐3, and TO‐220 devices. Representative image only.




ORDERING INFORMATION

Part Number
569000B00000G
569003B00000G
569022B00000G

Device Type
LED
TO‐3
TO‐220



HEAT SINK DETAILS
Property
 Material
Finish
Device Attachment Options
Thermal Interface Material
Details
Aluminum
Black Anodize
Requires Mounting Kit
‐
Property
 Heat Sink Width (mm)
Heat Sink Length (mm)
Heat Sink Height (mm)
Heat Sink Mounting Direction
Details
46.48
46.48
33.27
Horizontal


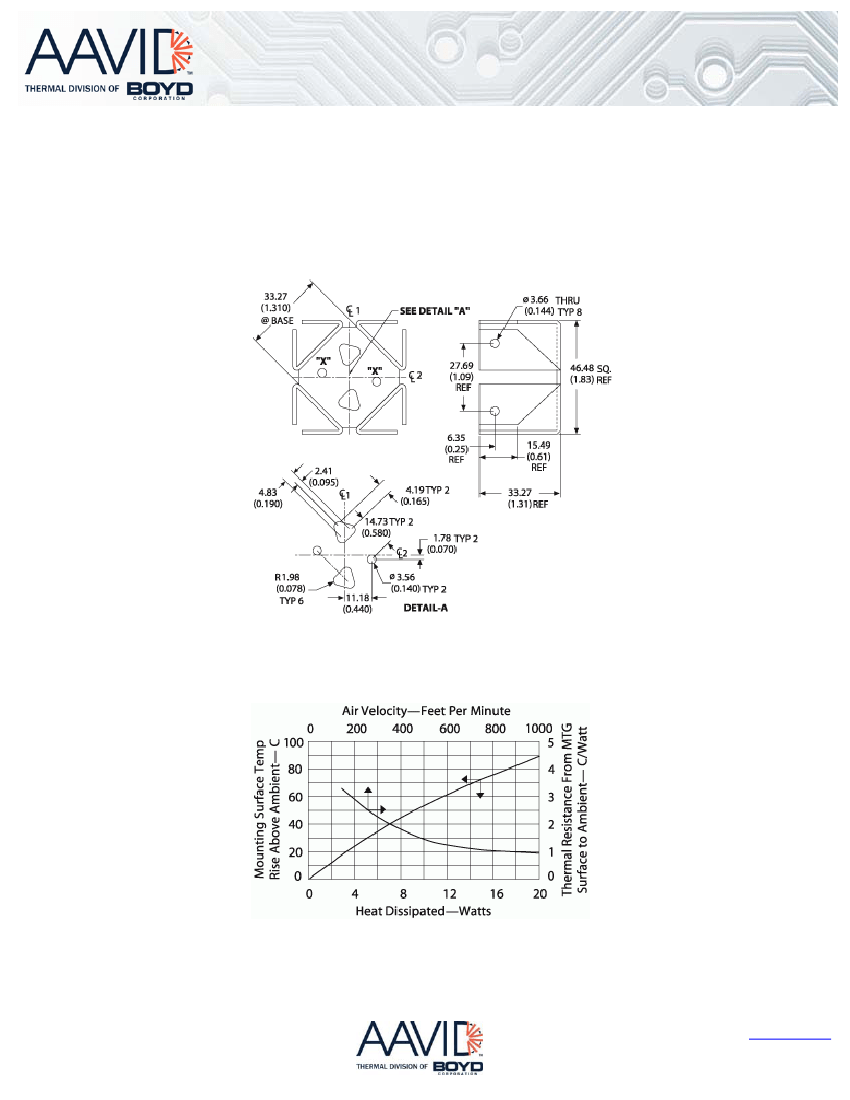

MECHANICAL & PERFORMANCE
Drawing dimensions are shown in mm, (in)




Part Number 569000B00000G

Part Number: 569003B00000G


USA: 1.855.322.2843
EUROPE: 39.051.764002
ASIA: 86.21.6115.2000 x8122










    Board Level Cooling
    www.aavid.com
