581102B02100G: DescriptionHeat Sinks FLAT BACK EXTR TO220 38.1mm VERT BLK; CategoryThermal management products Heat resisting bracing; File Size204KB，2 Pages; ManufacturerAavid Thermalloy; Environmental Compliance

Download Datasheet Parametric Compare View All

581102B02100G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	581102B02100G	-	-	View	Buy Now

581102B02100G Overview

Heat Sinks FLAT BACK EXTR TO220 38.1mm VERT BLK

581102B02100G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Aavid Thermalloy
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Factory Lead Time	8 weeks
Is Samacsys	N
Main material	ALUMINUM
color	BLACK
structure	EXTRUDED
Surface layer	ANODIZED
high	38.1 mm
length	16.26 mm
Thermal resistance	16.8 Ω
Heat Resistant Support Device Type	HEAT SINK
width	16.26 mm
Base Number Matches	1

Preview

Download Datasheet

View All

DATASHEET

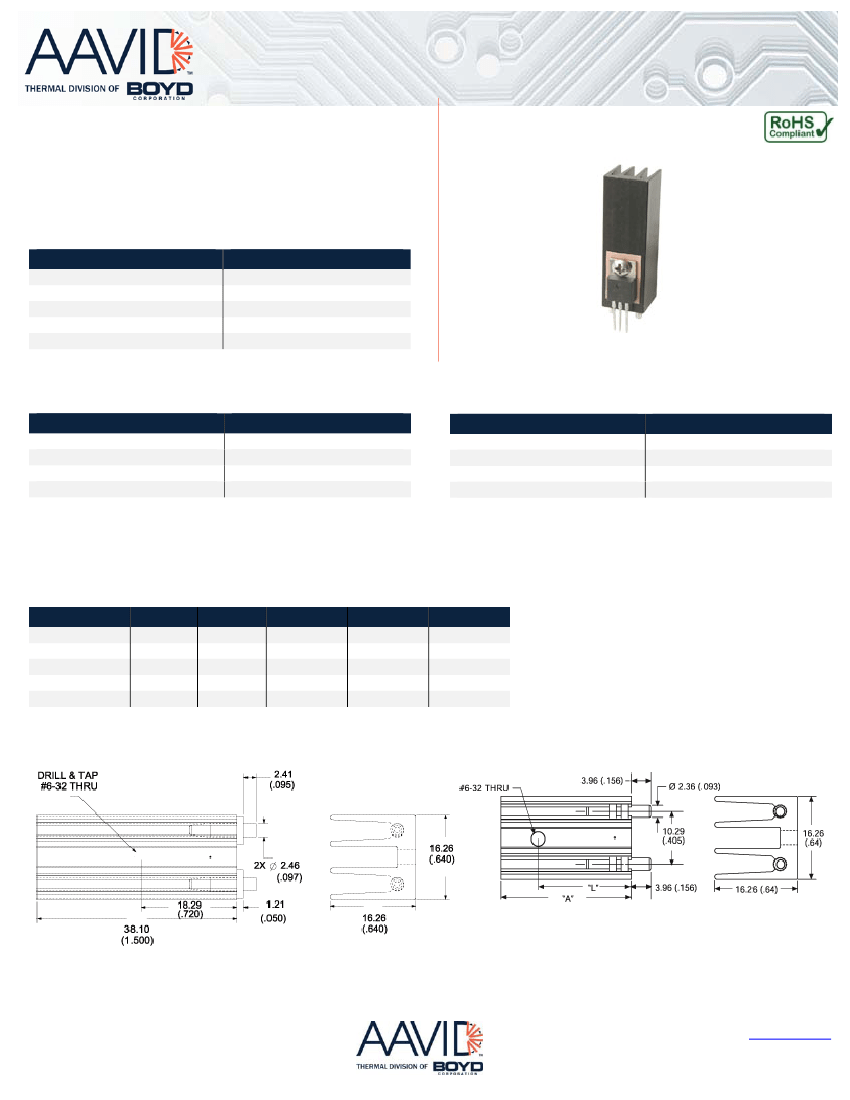

BOARD LEVEL COOLING – Extruded 5810

Board Level Cooling – Extruded 5810

Device Type

TO‐220, TO‐220‐single gauge

TO‐218

TO‐220, TO‐220‐single gauge

Extruded 5810 is a series of rectangular bi‐directional board level heat sinks

designed to cool TO‐218, TO‐220, and TO‐220‐single gauge devices.

Representative image only.

ORDERING INFORMATION

Part Number

581002B02500G

581101B02500G

581102B02100G

581102B02500G

581202B02500G

HEAT SINK DETAILS

Property

Material

Finish

Device Attachment Options

Thermal Interface Material

Details

Aluminum

Black Anodize

Requires Mounting Kit

‐

Property

Heat Sink Width (mm)

Heat Sink Length (mm)

Heat Sink Height (mm)

Heat Sink Mounting Direction

Details

16.26

See “A” Dim below

Vertical

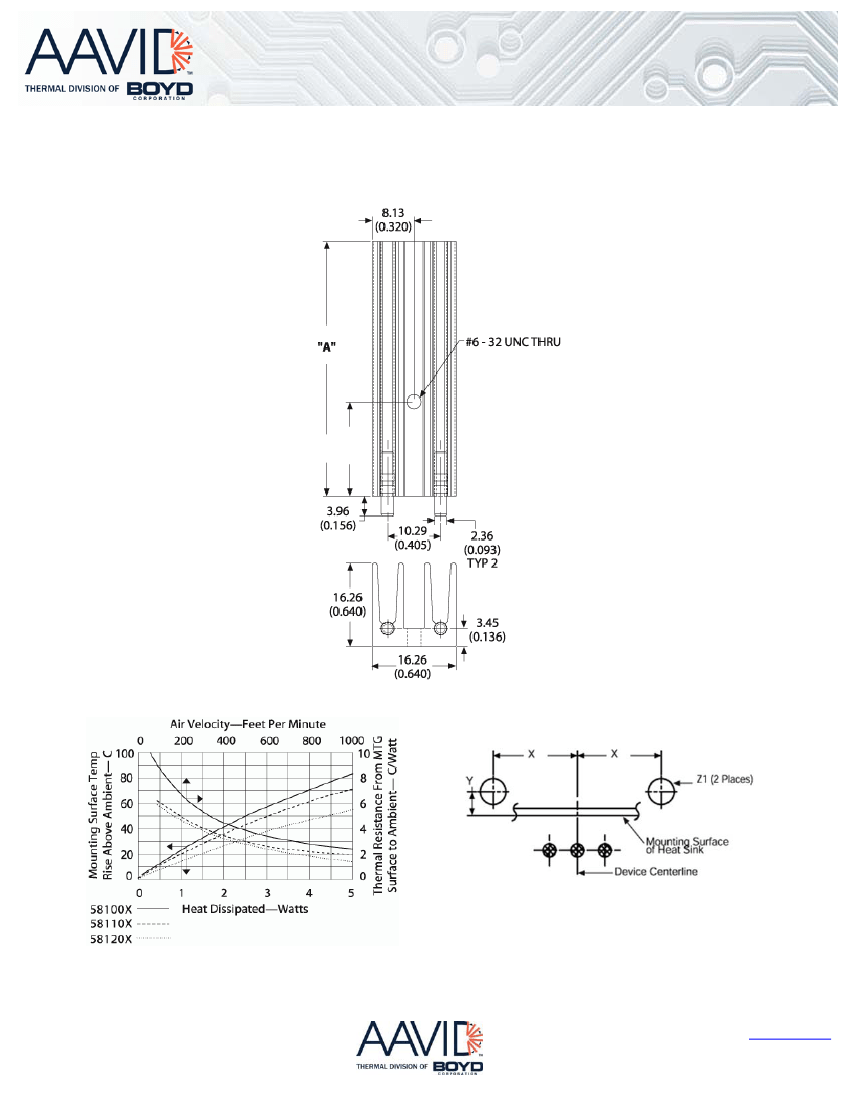

MECHANICAL & PERFORMANCE

Drawing dimensions are shown in mm, (in)

“X” Dim

5.16 (0.203)

Part Number “A” Dim “L” Dim

581002B02500G

581101B02500G

581102B02100G

581102B02500G

581202B02500G

25.40

38.10

50.88

18.29

21.59

‐

18.29

“Y” Dim

3.45 (0.136)

“Z” Dim

2.67 (0.105)

3.10 (0.122)

2.67 (0.105)

Part Number: 581202B02500G

Part Number: 581102B02100G

USA: 1.855.322.2843

EUROPE: 39.051.764002

ASIA: 86.21.6115.2000 x8122

Board Level Cooling

www.aavid.com
