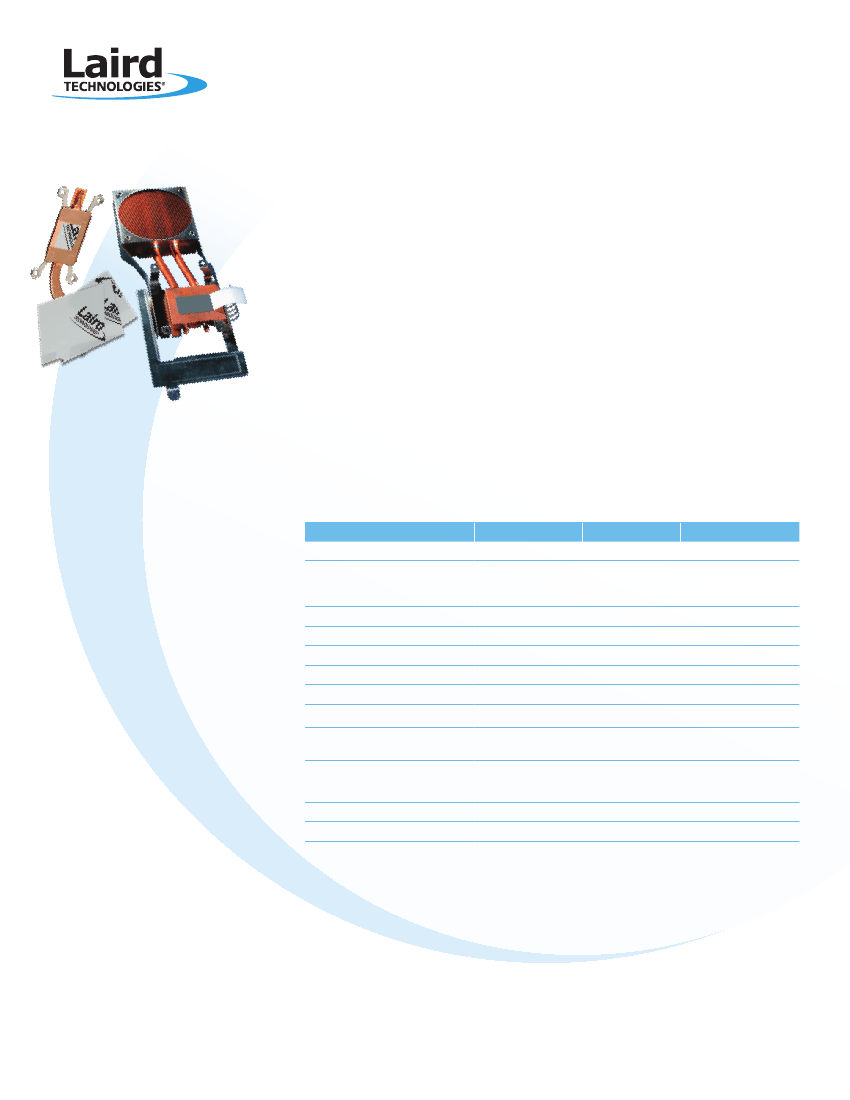

Tpcm 670
TM
Tpcm 670DF
TM
Tpcm™ 670 is a high performance, inherently tacky, easy to rework phase change thermal
interface material. Developed specifically to meet the high thermal conductivity and low
thermal resistance requirements of Intel
®
mobile processors. Tpcm 670 is optimized for
multi-core and general CPU and GPU processors including Intel’s Penryn Quad-Core
mobile processor.
FEATURES AND BENEFITS
• Minimizes contact thermal resistance by filling the microscopic irregularities of the
components it contacts. Begins to soften and flow at approximately 48ºC.
• Designed to minimize migration (pump out) at CPU operating temperatures using a unique
material formulation that softens, but does not fully change phase.
• Naturally tacky at room temperature, requiring no adhesive.
• Heat sink preheating not required.
• Supplied on tabbed liners for easy manual or automatic application.
• Exceptionally high reliability.
• Available with Laird Technologies easy release DF
(patent pending)
layer. DF
(patent pending)
minimizes the force required to disassemble after burn-in while still maintaining the highest
possible thermal performance and exceptional reliability.
PROPERTIES
Color
Thickness, inches (mm)
0.008” (0.20)
0.010 (.25)
Tpcm
TM
670
Grey
0.005 (0.125)
0.008” (0.20)
0.010 (.25)
*Tpcm
TM
670DF
TEST METHOD
Visual
Thickness Tolerance, inches (mm)
Construction & Composition
Specific Gravity, g/cc
Shelf Life
Operating Temperature Range, °C
Phase Change Softening Range,°C
Thermal Conductivity, W/mK
Thermal Resistance
Outer core, 25 micron die height offset,
°C-cm
2
/W, (°C-mm
2
/W)
50 psi °C-in
2
/ W
345 Kpa, °C-cm
2
/W
* patent pending
+/-0.001” (0.025)
Non-reinforced Film
2.50
1 year
-40 to 125°C
45 to 70°C
4.3
0.117 (11.7)
0.010
0.065
0.025
0.161
Hot Disk Thermal
Constants Analyzer
Intel Mobile TIM Tester
ASTM D5470 (modified)
ASTM D5470 (modified)
Helium Pycnometer
global
solutions:
local
support
Americas: +1.800.843.4556
Europe: +49.8031.2460.0
Asia: +86.755.2714.1166
CLV-customerservice@lairdtech.com
www.lairdtech.com/thermal
TM
THR-DS-Tpcm-670-670DF 0910
