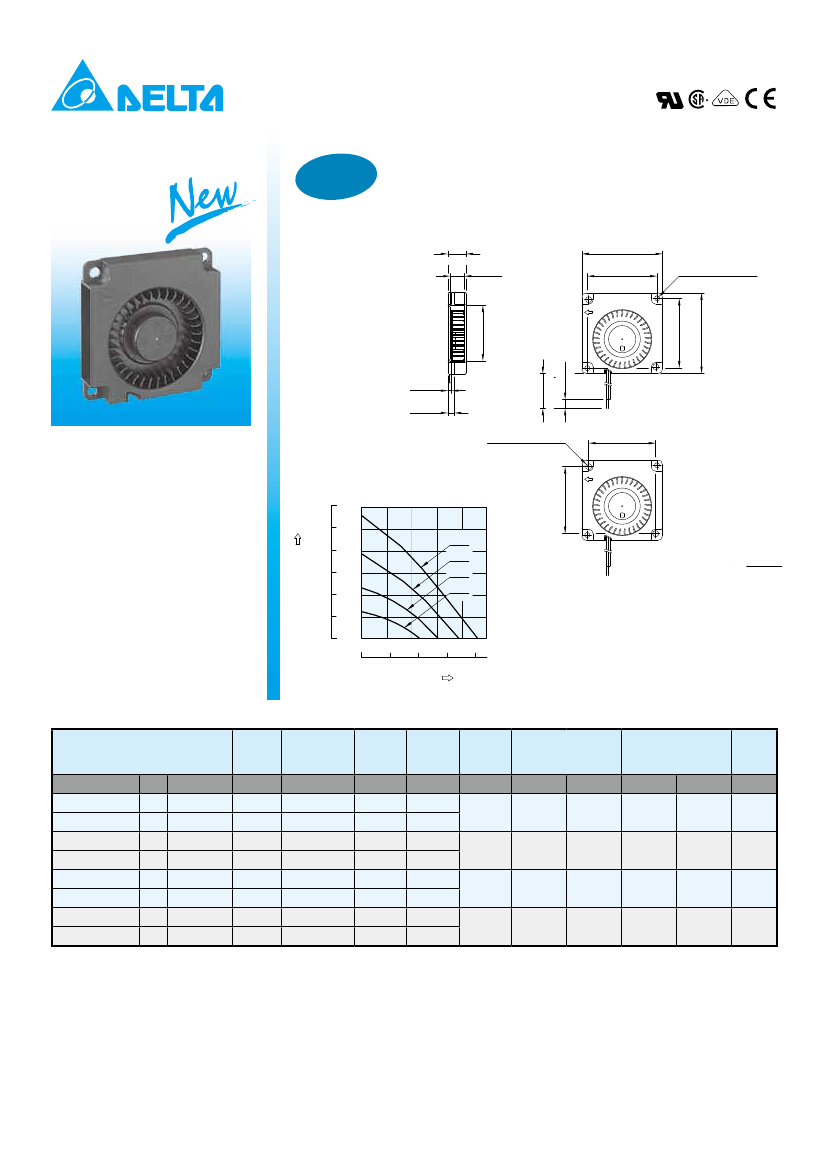

BFB
45 x 45 x 10 MM SERIES
DRAWING
10.0±0.5
(0.394±0.020)
7.8
(0.307)
45.0±0.5
(1.772±0.020)
38.5±0.3
(1.516±0.012)
2-Ø2.8±0.3
(2-Ø0.110±0.012)
■
DIMENSIONS
2.0
(0.079)
3.5
(0.138)
Air Pressure
*
Bearing Type
Ball Bearings
*
Material
Impeller & Frame : Plastic (UL 94V-0)
Lead Wires :
*
UL 1571 AWG #28 OR Equivalent
Red Wire Positive(+)
Black Wire Negative(-)
*
Weight : 13g (0.46 oz)
2-Ø3.4±0.3
(2-Ø0.134±0.012)
150.0±10.0
(5.906±0.394)
5.0
(0.197)
37.0±0.3
(1.457±0.012)
0.60
0.50
0.40
0.30
0.20
0.10
0
(IN H
2
O)
15.0
12.5
10.0
7.5
5.0
2.5
0
(mm H
2
O)
0
0
BFB04505/12XA-A
HH
H
M
L
UNIT :
mm
(INCH)
.02
0.8
.04
1.6
.06
2.4
.08
1.0 (M
3
/MIN)
3.2
(CFM)
Air Flow
MODEL
PART NO.
BFB04505LA
BFB04512LA
BFB04505MA
BFB04512MA
BFB04505HA
BFB04512HA
BFB04505HHA
BFB04512HHA
REV. FUNCTION
-A
-A
-A
-A
-A
-A
-A
-A
-R00 / -F00
-R00 / -F00
-R00 / -F00
-R00 / -F00
-R00 / -F00
-R00 / -F00
-R00 / -F00
-R00 / -F00
Rated
Voltage
VDC
5
12
5
12
5
12
5
12
Operating
Voltage
Range
VDC
4.0 to 5.5
7.0 to 13.2
4.0 to 5.5
7.0 to 13.2
4.0 to 5.5
7.0 to 13.2
4.0 to 5.5
7.0 to 13.2
Input
Current
Amp
0.05
0.04
0.07
0.05
0.11
0.06
0.16
0.08
Input
Power
Watt
0.25
0.48
0.35
0.60
0.55
0.72
0.80
0.96
Speed
R.P.M.
3500
4500
5500
6500
Maximum
Air Flow
m
3
/min
0.047
0.061
0.078
0.093
CFM
1.66
2.15
2.75
3.28
37.0±0.3
(1.457±0.012)
■
P
& Q CURVE
(AT RATED VOLTAGE)
Maximum
Air Pressure
mmH
2
O
3.11
5.78
9.72
14.09
IN H
2
O
0.122
0.228
0.383
0.555
38.5±0.3
(1.516±0.012)
45.0±0.5
(1.772±0.020)
30.7
(1.209)
Noise
dB-A
21.5
27.0
30.5
35.5
* Function type is optional.
* The max. air flow and the speed are measured in free air ; max. air pressure is measured at zero air flow.
* Noise is measured in anechoic chamber in free air, one meter from intake side.
* All readings are typical values at rated voltage.
* Specifications are subject to change without notice.
119
http://www.deltaww.com
BFB
45 x 45 x 10 MM SERIES
DRAWING
10.3±0.3
(0.406±0.012)
45.0±0.5
(1.772±0.020)
38.5±0.2
(1.516±0.008)
3-Ø2.8
+0.10
-0.05
(3-Ø0.110
+0.004
)
-0.002
(1.516±0.008)
45.0±0.5
(1.772±0.020)
■
DIMENSIONS
(5.906±0.394)
150.0±10.0
(0.197)
38.5±0.2
35.56
(1.400)
3.5±0.2
(0.138±0.008)
5.0
UNIT :
mm
(INCH)
Air Pressure
*
Bearing Type
Ball Bearings
*
Material
Impeller & Pillow : Plastic (UL 94V-0)
Lead Wires :
*
UL 1571 AWG #28 OR Equivalent
Red Wire Positive(+)
Black Wire Negative(-)
*
Weight : 18.1g (0.64 oz)
■
P
& Q CURVE
(AT RATED VOLTAGE)
15.0
12.5
10.0
7.5
5.0
2.5
0
(mm H
2
O)
0
0
.02
0.8
.04
1.6
.06
2.4
.08
1.0
(M
3
/MIN)
3.2
(CFM)
0.60
0.50
0.40
0.30
0.20
0.10
0
(IN H
2
O)
BFB04505/12XA-C
HH
H
M
L
Air Flow
MODEL
PART NO.
BFB04505LA
BFB04512LA
BFB04505MA
BFB04512MA
BFB04505HA
BFB04512HA
BFB04505HHA
BFB04512HHA
REV. FUNCTION
-C
-C
-C
-C
-C
-C
-C
-C
-R00/-F00
-R00/-F00
-R00/-F00
-R00/-F00
-R00/-F00
-R00/-F00
-R00/-F00
-R00/-F00
Rated
Voltage
VDC
5
12
5
12
5
12
5
12
Operating
Voltage
Range
VDC
4.0 to 5.5
5.0 to 13.2
4.0 to 5.5
5.0 to 13.2
4.0 to 5.5
5.0 to 13.2
4.0 to 5.5
5.0 to 13.2
Input
Current
Amp
0.08
0.05
0.12
0.06
0.16
0.08
0.25
0.13
Input
Power
Watt
0.40
0.60
0.60
0.72
0.80
0.96
1.25
1.56
Speed
R.P.M.
3900
4500
5150
5900
Maximum
Air Flow
m
3
/min
0.057
0.072
0.084
0.099
CFM
1.99
2.55
2.96
3.49
Maximum
Air Pressure
mmH
2
O
5.38
7.09
9.93
14.22
IN H
2
O
0.212
0.279
0.391
0.560
Noise
dB-A
21.5
27.0
30.5
35.5
* Function type is optional.
* The max. air flow and the speed are measured in free air ; max. air pressure is measured at zero air flow.
* Noise is measured in anechoic chamber in free air, one meter from intake side.
* All readings are typical values at rated voltage.
* Specifications are subject to change without notice.
120
http://www.deltaww.com
