ATS-53210D-C1-R0 datasheet, PDF

Datasheet> All Categories > Thermal management products> ATS-53210D-C1-R0

ATS-53210D-C1-R0: DescriptionHeat Sinks MAXIGRIP HTSNK 21 X 21 X 9.5 (MM); CategoryThermal management products; File Size242KB，1 Pages; ManufacturerAdvanced Thermal Solutions; Environmental Compliance

Download Datasheet Parametric View All

ATS-53210D-C1-R0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ATS-53210D-C1-R0	-	-	View	Buy Now

ATS-53210D-C1-R0 Overview

Heat Sinks MAXIGRIP HTSNK 21 X 21 X 9.5 (MM)

ATS-53210D-C1-R0 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Advanced Thermal Solutions
Product Category	Heat Sinks
RoHS	Details
Product	Heat Sinks
Mounting Style	Snap On
Heatsink Material	Aluminum
Fin Style	Straight Fin
Thermal Resistance	20.25 C/W
Length	21 mm
Width	21 mm
Height	9.5 mm
Designed for	BGA
Color	Black
Packaging	Bulk
Factory Pack Quantity	100

Preview

Download Datasheet

View All

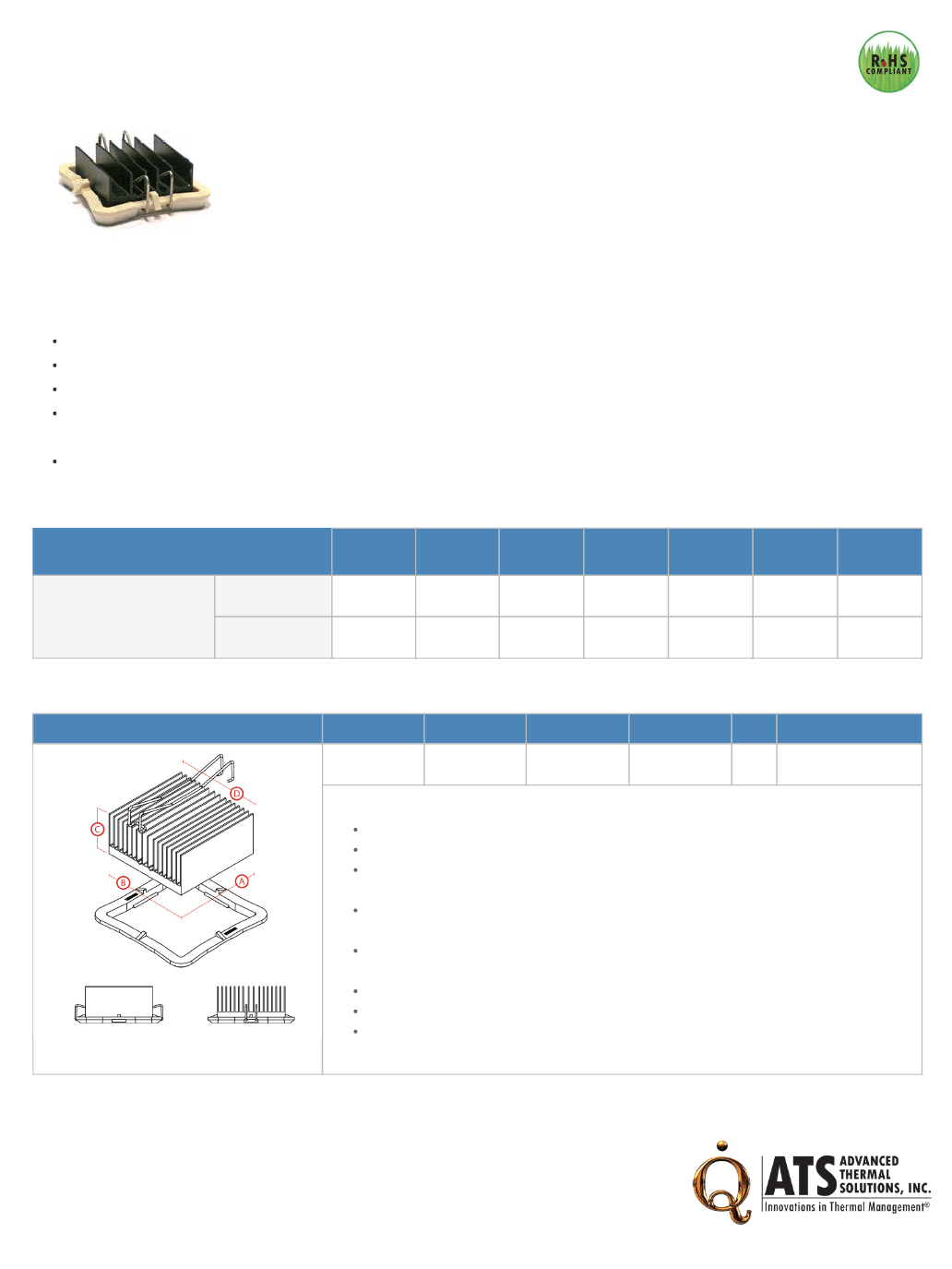

BGA Heat Sink - High Performance

Straight Fin w/maxiGRIP

ATS Part#:

Description:

ATS-53210D-C1-R0

21.00 x 21.00 x 9.50 mm BGA Heat Sink - High Performance Straight Fin

w/maxiGRIP

Heat Sink Type:

Heat Sink Attachment:

Equivalent Part Number:

*Image above is for illustration purpose only.

Straight Fin

maxiGRIP

ATS-53210D-C2-R0

Discontinued

Features & Benefits

High aspect ratio, straight fin heat sinks that are ideal for compact PCB environments

maxiGRIP™

attachment applies steady, even pressure to the component and does not require holes in the PCB

Designed specifically for BGAs and other surface mount packages

Meets Telcordia GR-63-Core Office Vibration; ETSI 300 019 Transportation Vibration; and MIL-STD-810 Shock Testing and

Unpackaged Drop Testing standards

Comes preassembled with high performance, phase changing, thermal interface material

Thermal Performance

AIR VELOCITY

@200 LFM

1.0 M/S

Unducted Flow

THERMAL RESISTANCE

Ducted Flow

10.9

N/A

20.2 °C/W

@300 LFM

1.5 M/S

16.2 °C/W

@400 LFM

2.0 M/S

14 °C/W

@500 LFM

2.5 M/S

12.5 °C/W

@600 LFM

3.0 M/S

11.5 °C/W

@700 LFM

3.5 M/S

10.6 °C/W

@800 LFM

4.0 M/S

10 °C/W

Product Detail

Schematic Image

Dimension A

21.00 mm

Dimension B

21.00 mm

Dimension C

9.50 mm

Dimension D

N/A mm

TIM

T766

Finish

BLACK-ANODIZED

Notes:

Dimension

and

refer to component size.

Dimension

is the heat sink height from the bottom of the base to the top of the fin field.

ATS-53210D-C2-R0 is the exact heat sink assembly with an equivalent thermal interface material

(Saint Gobain C1100F). NOTE: Saint Gobain C1100F is discontinued effective 12/31/10.

Thermal performance data are provided for reference only. Actual performance may vary by

application.

ATS reserves the right to update or change its products without notice to improve the design or

performance.

ATS certifies that this heat sink assembly is RoHS-6 and REACH compliant.

Optional

maxiGRIP™

Installation/Removal Tool Set P/N:

MGT170

Contact ATS to learn about custom options available.

*Image above is for illustration purpose only.

For more information, to find a distributor or to place an order, please contact us at

781-769-2800 (North America),

sales@qats.com

www.qats.com.

| 89-27 Access Road | Norwood MA | 02062 | USA

Rev - 040517
