A2E250-AM06-01
AC axial fan
sickled blades (S series)
ebm-papst Mulfingen GmbH & Co. KG
Bachmühle 2
D-74673 Mulfingen
Phone: +49(0)7938/81-0
Fax: +49(0)7938/81-110
info1@de.ebmpapst.com
www.ebmpapst.com
Nominal data
Type
Motor
Phase
Nominal voltage
Frequency
Type of data definition
Valid for approval / standard
Speed
Power input
Current draw
Motor capacitor
Capacitor voltage
Capacitor standard
Max. back pressure
Max. ambient temperature
[Pa]
[°C]
[V]
[Hz]
A2E250-AM06-01
M2E068-CF
1~
230
50
rfa
CE
[min
-1
] 2450
[W]
115
[A]
[µF]
[VDB]
0.51
3
400
P0 (CE)
120
65
1~
230
60
rfa
CE
2600
150
0.66
3
400
P0 (CE)
85
50
ml = max. load · me = max. efficiency · rfa = running at free air · cs = customer specs · cu = customer unit
Subject to alterations
Item no.: 10232-5-9980 · Revision status: KM65103 · Print-out on 03/10/2010 · Created by Y. Uhlmann (VM-TDO) · Page 1 of 6
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone: +49(0)7938/81-0 · Fax: +49(0)7938/81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
A2E250-AM06-01
AC axial fan
sickled blades (S series)
Technical features
Leackage current
Size
Operation mode
Direction of rotation
Mounting position
Humidity class
Direction of air flow
Insulation class
Cable exit
Condensate discharge holes
Bearing motor
Mass
Material of blades
Motor protection
Product conforming to
standard
Surface of rotor
Number of blades
Type of protection
Protection class
Max. permissible ambient
motor temp. (transp./ storage)
Min. permissible ambient
motor temp. (transp./storage)
Approval
< 0.75 mA
250 mm
S1
Counter-clockwise, seen on rotor
Shaft horizontal or rotor on bottom; rotor on top on request
F1-2
"A"
"B"
Variable
Rotor-side
Ball bearing
1.9 kg
Sheet steel, coated in black
Thermal overload protector (TOP) wired internally
CE; EN 60335-1
Coated in black
7
IP 44
I
+ 80 °C
- 40 °C
CCC
Item no.: 10232-5-9980 · Revision status: KM65103 · Print-out on 03/10/2010 · Created by Y. Uhlmann (VM-TDO) · Page 2 of 6
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone: +49(0)7938/81-0 · Fax: +49(0)7938/81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
A2E250-AM06-01
AC axial fan
sickled blades (S series)

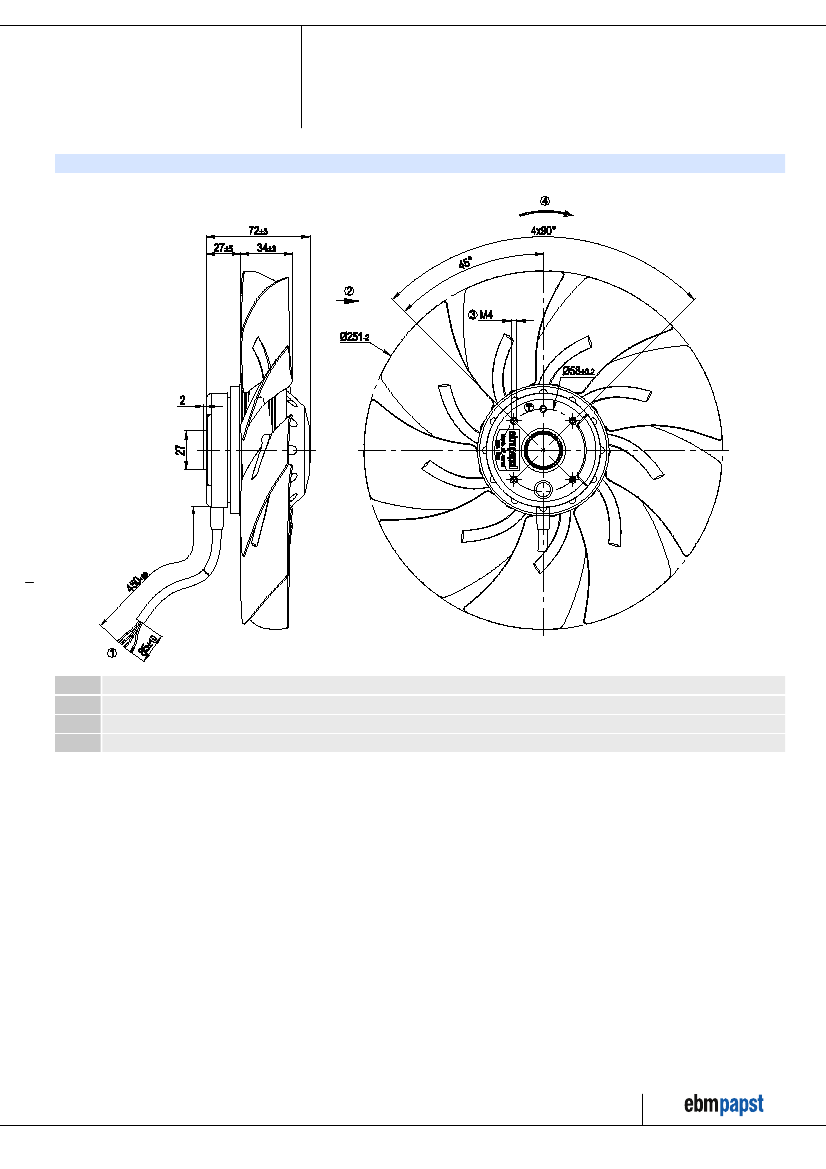

Product drawing
1
2
3
4
Connection line PVC, 4x crimped core-end sleeves
Direction of air flow "A"
Depth of screw max. 5 mm
Direction of rotation counterclockwise, seen on rotor
Item no.: 10232-5-9980 · Revision status: KM65103 · Print-out on 03/10/2010 · Created by Y. Uhlmann (VM-TDO) · Page 3 of 6
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone: +49(0)7938/81-0 · Fax: +49(0)7938/81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
A2E250-AM06-01
AC axial fan
sickled blades (S series)
Connection screen
U1
PE
blue
green/yellow
Z
brown
U2
black
Item no.: 10232-5-9980 · Revision status: KM65103 · Print-out on 03/10/2010 · Created by Y. Uhlmann (VM-TDO) · Page 4 of 6
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone: +49(0)7938/81-0 · Fax: +49(0)7938/81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
A2E250-AM06-01
AC axial fan
sickled blades (S series)
Charts: Air flow 50 Hz
Druck Pfa [Pa] für Rho=1,2kg/m^3
210
200
190
180
0
200
400
V [cfm]
600
800
1.000
1.200
0,8
0,75
0,7
Measurement: LU-59608
170
160
150
140
130
0,5
0,45
0,4
0,35
0,3
70
60
50
40
30
0,1
20
10
0
0
200
400
600
800
1.000
1.200
V [m^3/h]
1.400
1.600
0,05
0
0,25
0,2
Pfa_E [IN H2O]
120
Pfa [Pa]
110
100
90
80
0,65
0,6
0,55
4
3
2
0,15
1.800
Pfa
]
[Pa
1
2.000
Measured values
U
[V]
1
2
3
4
230
230
230
230
f
[Hz]
50
50
50
50
n
[min
-1
]
2450
2420
2335
2270
P
1
[W]
115
120
128
134
I
[A]
0.51
0.52
0.56
0.58
°
V
[m
3
/h]
1820
1635
1375
1000
p
fa
[Pa]
0
40
80
115
