Ø4.8 ± 0.2
NOTES:
1.
2.
3.
4.
5.
6.
Ø15.1 ± 0.5
Ø106.43
104.78
MATERIAL: C1008 BRIGHT BASIC WIRE
FINISH: BRIGHT NICKEL CHROME PLATING
0.35 ± 0.05 DEPTH OF SERRATIONS ON WIRE
RING:
∅1.8
± 0.1mm
RIB:
∅2.3
± 0.1mm
GENERAL TOLERANCE UNLESS NOTED IS ± 0.5mm
RoHS COMPLIANT
4.57REF
Dim
range
(mm)
0-5
Tolerance
+/-
(mm)
0.1
0.15
0.2
0.4
0.5
1.0
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
FAN-S DIVISION
08213
5.66REF
1.5
5-16
16-64
64-250
250-1000
1000-1500

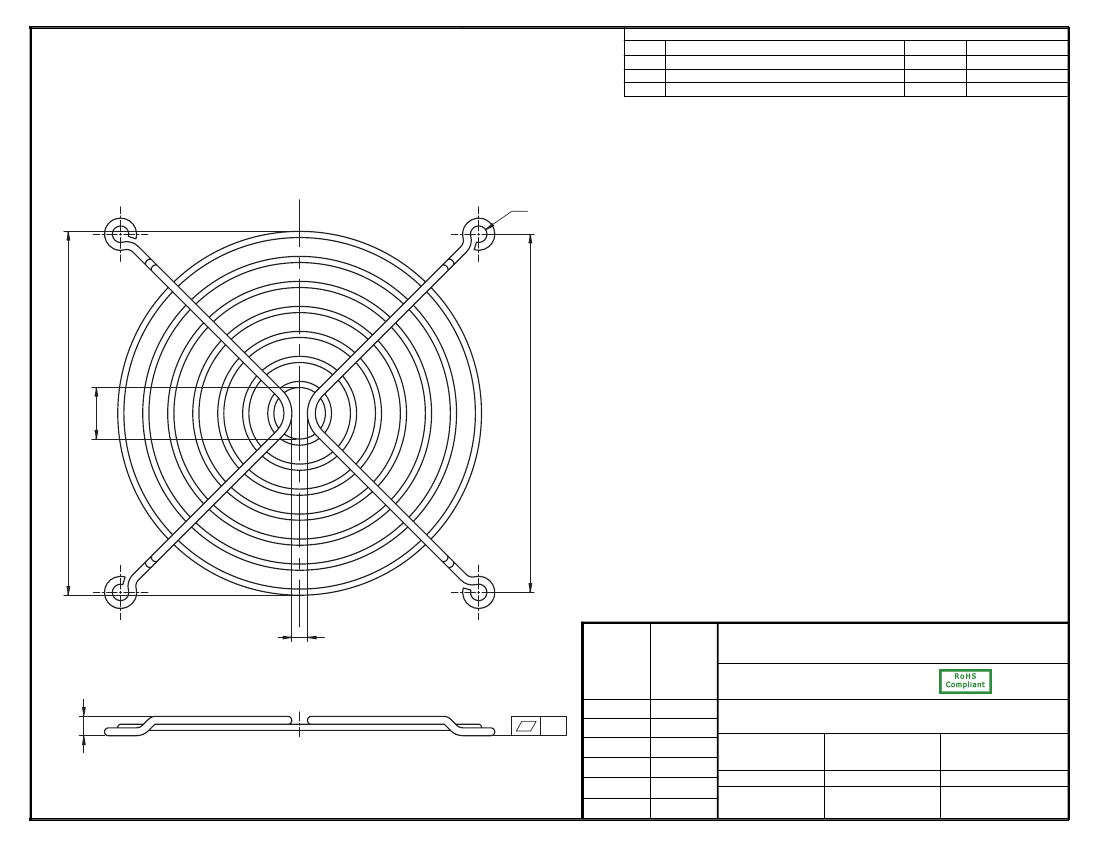

WIRE FORM FAN GUARD (120mm)
UNIT: mm
REV: C
Approved / Date
JJH / 08-23-02
Drawn / Date
B. ZHANG
08-23-02
Checked / Date
08-23-02
