R2D220-AB02-10
AC centrifugal fan
backward curved
ebm-papst Mulfingen GmbH & Co. KG
Bachmühle 2 · D-74673 Mulfingen
Phone +49 7938 81-0
Fax +49 7938 81-110
info1@de.ebmpapst.com
www.ebmpapst.com
Limited partnership · Headquarters Mulfingen
County court Stuttgart · HRA 590344
General partner Elektrobau Mulfingen GmbH · Headquarters Mulfingen
County court Stuttgart · HRB 590142
Nominal data
Type
Motor
Phase
Nominal voltage
Connection
Frequency
Type of data definition
Valid for approval / standard
Speed
Power input
Current draw
Min. back pressure
Max. ambient temperature
min
-1
W
A
Pa
°C
Hz
VAC
R2D220-AB02-10
M2D068-DF
3~
380
Y
50
fa
CE
2800
75
0.18
0
50
3~
440
Y
60
fa
CE
3250
110
0.20
0
50
ml = max. load · me = max. efficiency · fa = running at free air · cs = customer specs · cu = customer unit
Subject to alterations
Item no. 11338-5-9980 · Revision 73098 · Release 2011-01-18 · Page 1 / 6
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
R2D220-AB02-10
AC centrifugal fan
backward curved
Technical features
Mass
Size
Surface of rotor
Material of impeller
Number of blades
Direction of rotation
Type of protection
Insulation class
Humidity class
Max. permissible ambient motor
temp. (transp./ storage)
Min. permissible ambient motor
temp. (transp./storage)
Mounting position
Condensate discharge holes
Operation mode
Motor bearing
Touch current acc. IEC 60990
(measuring network Fig. 4, TN
system)
Cable exit
Protection class
Product conforming to standard
Approval
2 kg
220 mm
Coated in black
Plastic PA6, fibreglass-reinforced
11
Clockwise, seen on rotor
IP 44; Depending on installation and position as per EN 60034-5
"B"
F2-2
+ 80 °C
- 40 °C
Shaft horizontal or rotor on bottom; rotor on top on request
Rotor-side
S1
Ball bearing
< 0.75 mA
Lateral
I (if protective earth is connected by customer)
EN 60335-1, motor does not have factory-installed overheating protection
CCC
Item no. 11338-5-9980 · Revision 73098 · Release 2011-01-18 · Page 2 / 6
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
R2D220-AB02-10
AC centrifugal fan
backward curved

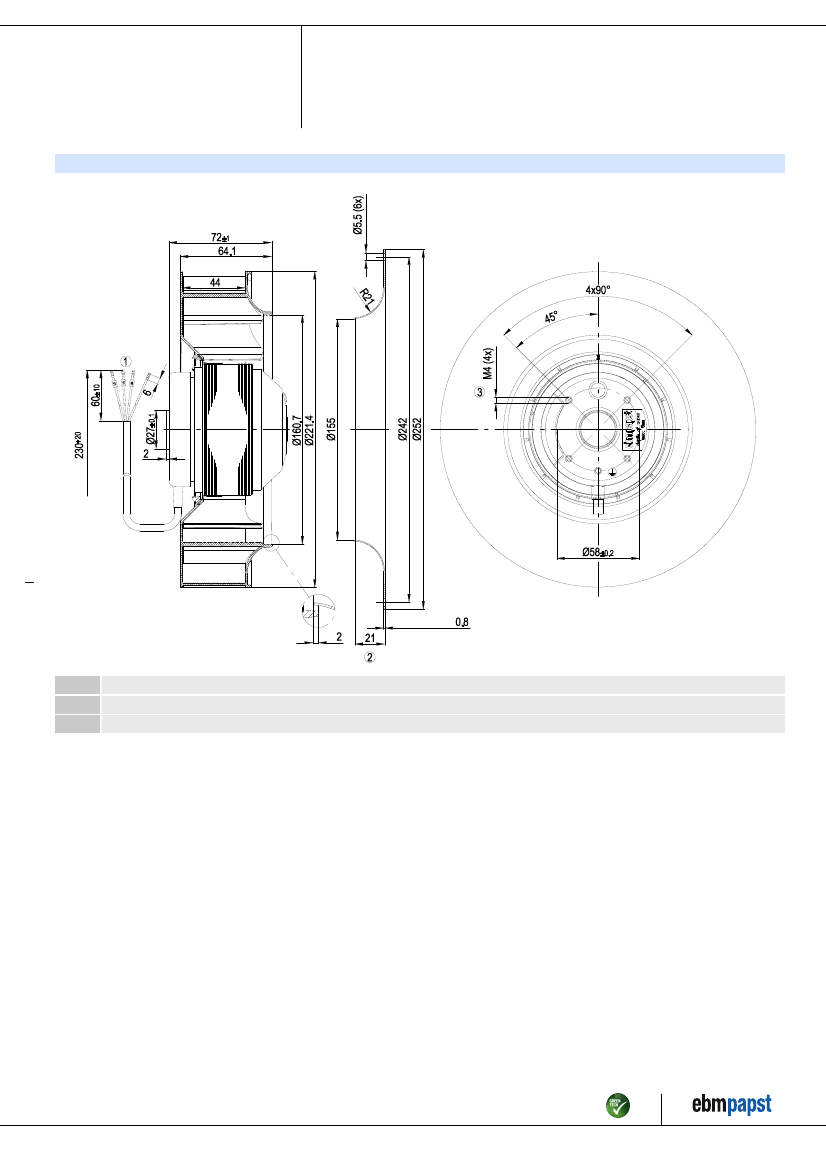

Product drawing
1
2
3
Connection line silicone 4G 0.5 mm², 4 x brass lead tips crimped
Accessory part: Inlet nozzle 09609-2-4013, not included in the standard scope of delivery
Depth of screw max. 5 mm
Item no. 11338-5-9980 · Revision 73098 · Release 2011-01-18 · Page 3 / 6
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
R2D220-AB02-10
AC centrifugal fan
backward curved
Connection screen
Y
L3
Star connection
brown
L1
PE
black
green/yellow
L2
blue
Item no. 11338-5-9980 · Revision 73098 · Release 2011-01-18 · Page 4 / 6
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
R2D220-AB02-10
AC centrifugal fan
backward curved

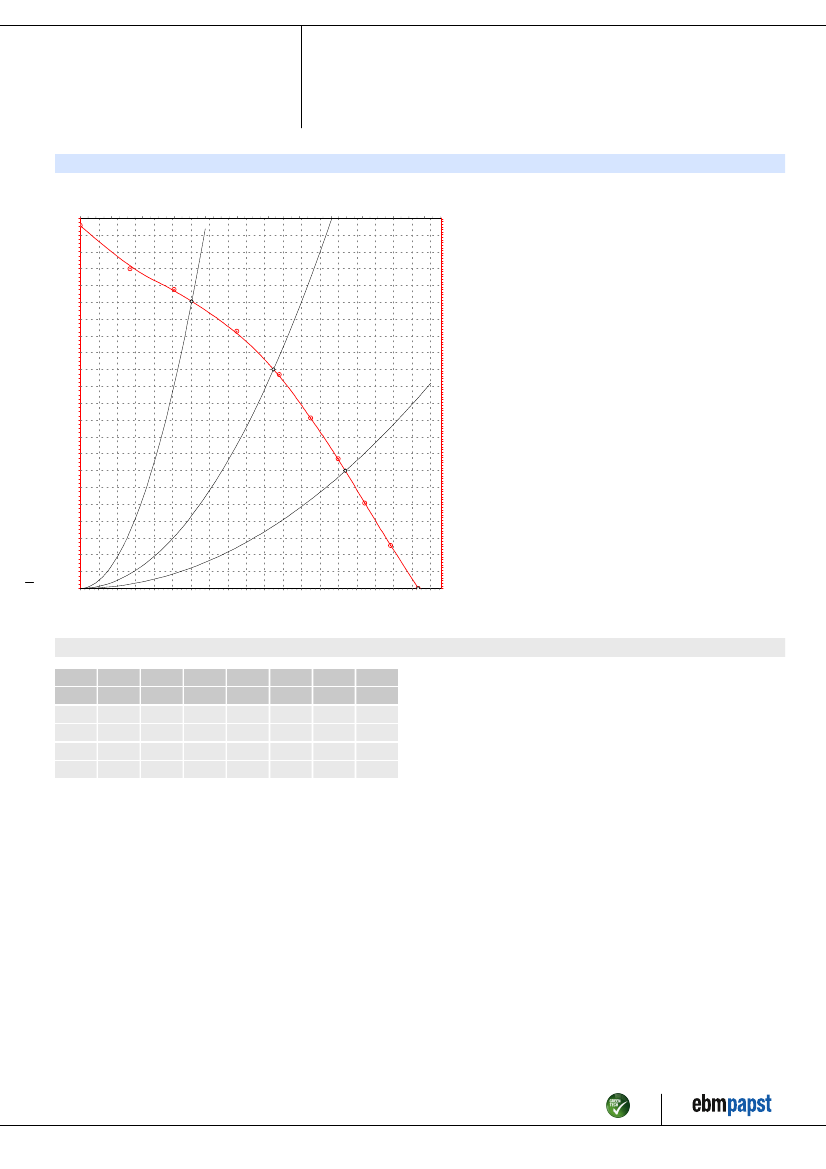

Charts: Air flow 50 Hz
Druck p f s[Pa]für Rho=1,2kg/m^3
440
420
400
380
360
340
320
300
280
260
240
p s[Pa]
f
0
50
100
150
200
250
qv[cfm]
300
350
400
450
500
550
1,75
1,7
1,65
1,6
1,55
1,5
1,45
Measurement: LU-7969
Air performance measured as per ISO 5801
Installation category A. For detailed
information on the measuring set-up, please
contact ebm-papst. Suction-side noise
levels: LwA measured as per ISO 13347 /
LpA measured with 1m distance to fan axis.
The values given are valid under the
measuring conditions mentioned above and
may vary according to the actual installation
situation. With any deviation from the
standard set-up, the specific values have to
be checked and reviewed with the unit
installed.
4
1,4
1,35
1,3
1,25
1,2
1,15
1,1
1,05
0,95
0,9
0,85
0,8
0,75
0,7
0,65
p fs_E[IN H2O]
3
1
220
200
180
160
140
120
100
80
60
40
20
0
0
50
100
150
200
250
300
350
400 450 500 550
qv[m^3/h]
600
650
700
750
800
850
2
0,6
0,55
0,5
0,45
0,4
0,35
0,3
0,25
0,2
0,15
0,1
0,05
0
900
]
[Pa
f
ps
1
950
Measured values
U
V
1
2
3
4
380
380
380
380
f
Hz
50
50
50
50
n
min
-1
2800
2710
2665
2710
P
e
W
75
84
95
85
I
A
0.18
0.20
0.21
0.20
qv
m
3
/h
915
720
525
300
p
fs
Pa
0
140
260
340
U = Supply voltage · f = Frequency · n = Speed · P
e
= Power input · I = Current draw · qv = Air flow · p
fs
= Pressure increase
Item no. 11338-5-9980 · Revision 73098 · Release 2011-01-18 · Page 5 / 6
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
