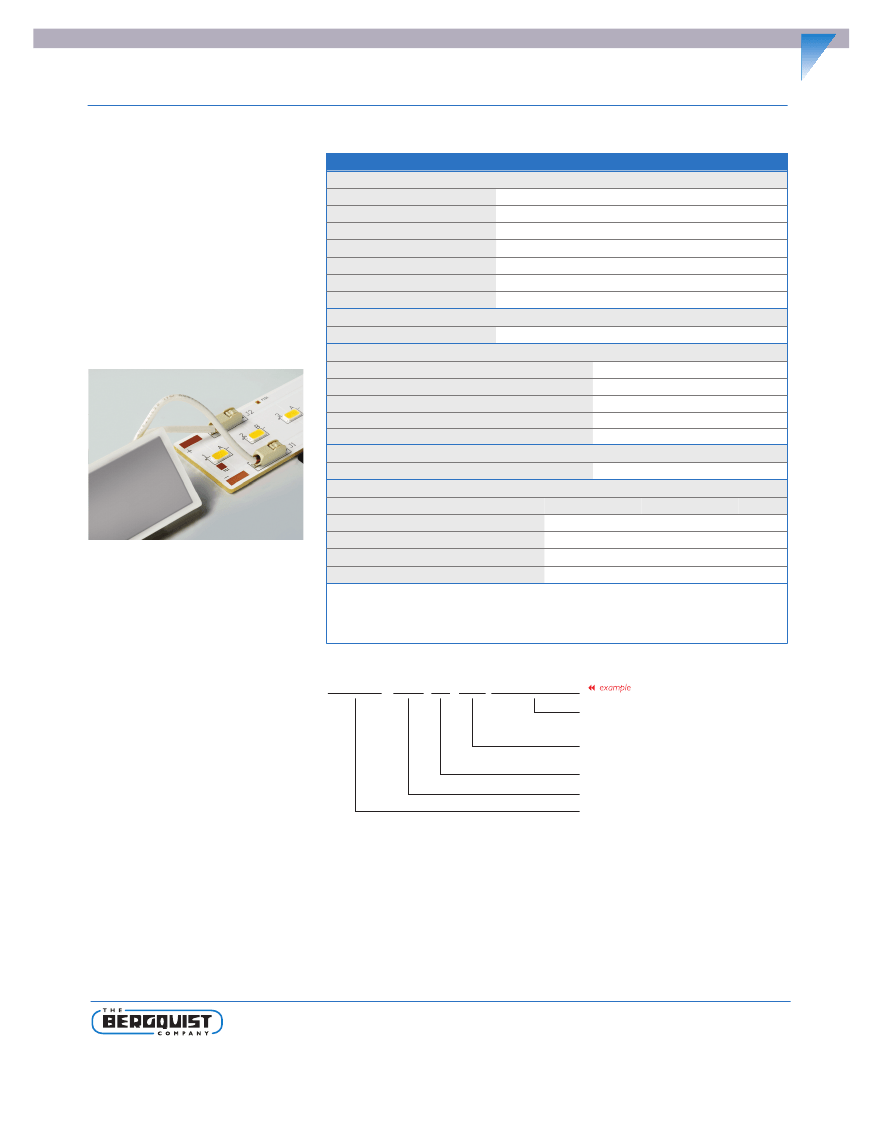

BP800-0.005-00-1212 datasheet, PDF

Datasheet> All Categories > Thermal management products> BP800-0.005-00-1212

BP800-0.005-00-1212: DescriptionThermal Interface Products BONDPLY 800 .005" 12X12"; CategoryThermal management products; File Size242KB，1 Pages; ManufacturerBergquist Company; Environmental Compliance

Download Datasheet Parametric Compare View All

BP800-0.005-00-1212 Overview

Thermal Interface Products BONDPLY 800 .005" 12X12"

BP800-0.005-00-1212 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Bergquist Company
Product Category	Thermal Interface Products
RoHS	Details
Type	Thermally Conductive Adhesive Tape
Material	Fiberglass
Length	12 in
Width	12 in
Thickness	0.005 in
Factory Pack Quantity	1

BP800-0.005-00-1212 Preview

Features and Benefits

Thermally Conductive, Fiberglass Reinforced Pressure Sensitive Adhesive Tape

PROPERTY

Color

Bond-Ply 800

METRIC VALUE

Gray

0.127, 0.203

600

1.0

Fiberglass

TEST METHOD

Visual

ASTM D374

ASTM D3386

—

ASTM D1002

ASTM D149

ASTM D150

ASTM D412

—

• Thermal impedance:

0.60°C-in

/W (@50 psi)

• High bond strength to most epoxies

and metals

• Double-sided, pressure sensitive

adhesive tape

• High performance, thermally conductive

acrylic adhesive

• More cost-effective than heat-cure

adhesive, screw mounting or clip mounting

TYPICAL PROPERTIES OF BOND-PLY 800

IMPERIAL VALUE

Gray

0.005, 0.008

1500

-40 to 257

150

600

Fiberglass

Reinforcement Carrier

Thickness (inch) / (mm)

Elongation (%, 45° to Warp & Fill)

Tensile Strength (psi) / (MPa)

CTE (um/m-°C), -40°C to +125°C

Continuous Use Temp (°F) / (°C)

ADHESION

Lap Shear @ RT (psi) / (MPa) (1)

-40 to 125

VALUE

4000

6000

V-O

0.8

4.0

ELECTRICAL

Dielectric Breakdown Voltage (Vac), 0.005

Dielectric Breakdown Voltage (Vac), 0.008

Dielectric Constant (1000 Hz)

Volume Resistivity (Ohm-meter)

Flame Rating

TEST METHOD

ASTM D149

ASTM D257

U.L. 94

THERMAL

Thermal Conductivity (W/m-K)

THERMAL PERFORMANCE vs PRESSURE

Initial Assembly Pressure (psi for 5 seconds)

ASTM D5470

4.8

0.60

0.72

5.6

100

4.3

5.3

0.58

0.71

200

4.2

5.2

0.57

0.71

Section A

Section B

Section C

Section D

• Mount LED assembly to troffer housing

• Mount LED assembly to heat sink

• Mount heat spreader onto power

converter PCB or onto motor

control PCB

• Mount heat sink to BGA graphic processor

or drive processor

Typical Applications

Include:

Section E

Bond-Ply

800 is a thermally conductive,

electrically isolating double-sided tape.

Bond-Ply

800 is utilized in lighting

applications that require thermal transfer

and electric isolation. High bond strengths

obtained at ambient temperature lead to

significant processing cost savings in labor,

materials and throughput due to the

elimination of mechanical fasteners and

high temperature curing.

TO-220 Thermal Performance (°C/W), 0.005

TO-220 Thermal Performance (°C/W), 0.008

5.0

0.63

0.78

6.2

5.0

0.62

0.74

6.0

Thermal Impedance (°C-in /W), 0.005 (2)

Thermal Impedance (°C-in

/W), 0.008 (2)

Building a Part Number

BP800

–

0.005

– 00

– 1212 –

1) Tested per ASTM D1002 with aluminum lap shear samples, 75 psi applied for 5 seconds then pressure removed. 0.5 square inch

Bond-Ply 800 sample.

2) The ASTM D5470 test fixture was used. The recorded value includes interfacial thermal resistance. These

values are provided for reference only. Actual application performance is directly related to the surface roughness, flatness and

pressure applied.

Standard Options

NA = Selected standard option. If not selecting a standard

option, insert company name, drawing number, and

revision level.

1212 = 12" x 12" sheets,12250 = 12" x 250' rolls

or 00 = custom configuration

00 = Standard double-sided adhesive

BP800 = Bond-Ply 800 Material

Standard thicknesses available: 0.005", 0.008"

Note: To build a part number, visit our website at www.bergquistcompany.com.

Configurations Available:

• Sheet form, roll form and die-cut parts

The Bergquist Company -

North American Headquarters

18930 West 78th Street

Chanhassen, MN 55317

Phone: 800-347-4572

Fax: 952-835-0430

The Bergquist Company -

European Headquarters

Netherlands

Phone: 31-35-5380684

Fax: 31-35-5380295

www.bergquistcompany.com

The Bergquist Company -

Asia Headquarters

Hong Kong

Phone: 852-2690-9296

Fax: 852-2690-3408

All statements, technical information and recommendations herein are based on tests we believe to be reliable, and

THE FOLLOWING IS MADE IN LIEU OF ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING THE IMPLIED

WARRANTIES OF MARKETABILITY AND FITNESS FOR PURPOSE. Sellers’ and manufacturers’ only obligation shall be to

replace such quantity of the product proved to be defective. Before using, user shall determine the suitability of the product

for its intended use, and the user assumes all risks and liability whatsoever in connection therewith. NEITHER SELLER NOR

MANUFACTURER SHALL BE LIABLE EITHER IN TORT OR IN CONTRACT FOR ANY LOSS OR DAMAGE, DIRECT,

INCIDENTAL, OR CONSEQUENTIAL, INCLUDING LOSS OF PROFITS OR REVENUE ARISING OUT OF THE USE OR

THE INABILITY TO USE A PRODUCT. No statement, purchase order or recommendations by seller or purchaser not

contained herein shall have any force or effect unless in an agreement signed by the officers of the seller and manufacturer.

PDS_BP800_0714
