ITNA-0239-D202 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> ITNA-0239-D202

ITNA-0239-D202: DescriptionPulse Transformers ITNA Pulse transform THT 0.17A; CategoryPower management transformer; File Size264KB，3 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ITNA-0239-D202 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ITNA-0239-D202	-	-	View	Buy Now

ITNA-0239-D202 Overview

Pulse Transformers ITNA Pulse transform THT 0.17A

ITNA-0239-D202 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SCHURTER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	16 weeks
application	GENERAL PURPOSE
Certification	VDE
ET product minimum value	400 V-us
high	13.6 mm
Insulation voltage	3500 V
JESD-609 code	e3
length	22.7 mm
Installation features	THROUGH HOLE MOUNTED
Number of functions	1
Maximum operating temperature	100 °C
Minimum operating temperature	-25 °C
method of packing	BULK
physical size	L22.7XB22.3XH13.6 (mm)
Primary inductance	2200 µH
Maximum pulse rise time	1000 ns
surface mount	NO
Terminal surface	Tin (Sn)
Transformer type	PULSE TRANSFORMER
Turns ratio (Np:Ns)	1:1
width	22.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

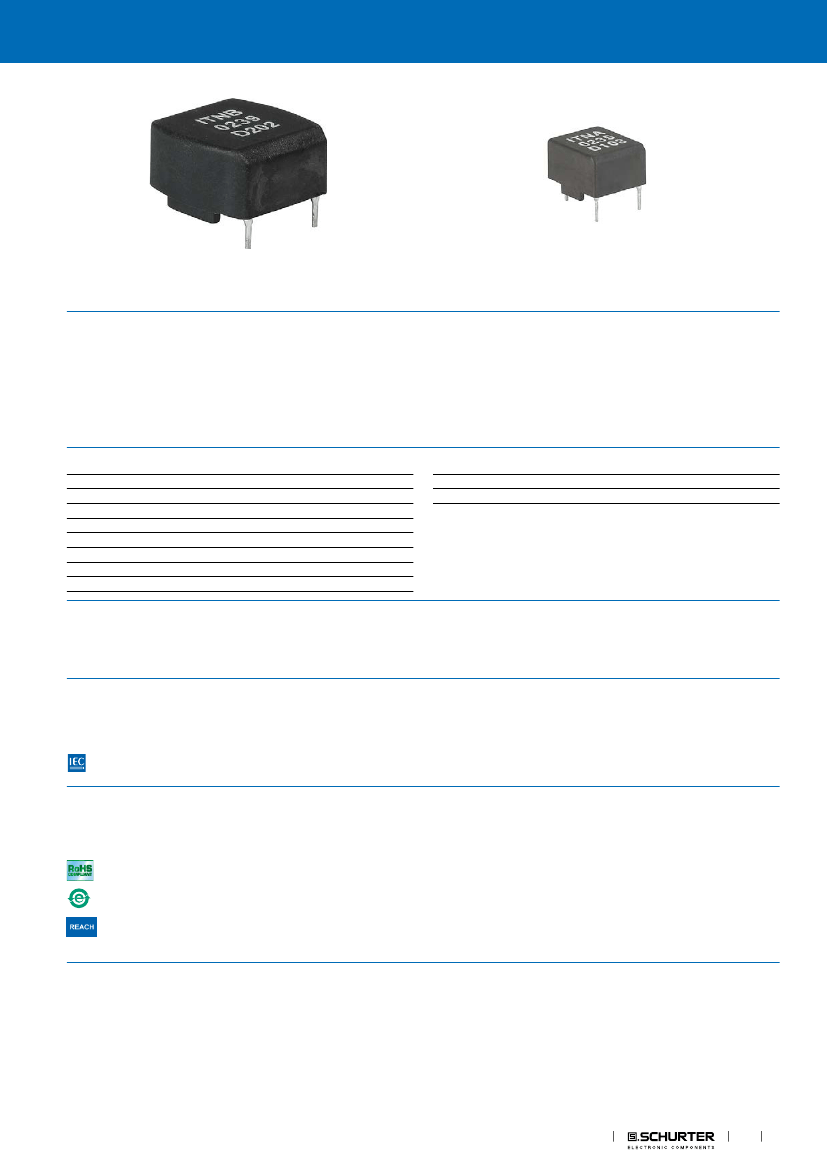

Pulse Transformers

https://www.schurter.com /PG85

Pulse transformers for THT mounting

Approvals and Compliances

Description

- High insulation rating (>3.2 kVAC) between the primary and the secon-

dary windings

- High insulation rating up to 500V between the secondary windings

- Small coupling capacitances between primary and secondary windings

limit transient feedback from the power supply side to the control elec-

tronics

- The defined partial discharge voltage guarantees an effecively unlimited

serviceable live

Applications

- Galvanic separation of drive- and power-circuit

- Mainly used in ignition circuits with Thyristors, Triacs, power transistors

and IGBT's

- DC/DC converters

- Line coupling transformers in high speed data transmission

Weblinks

pdf datasheet, html-datasheet, General Product Information, Distributor-

Stock-Check, Detailed request for product

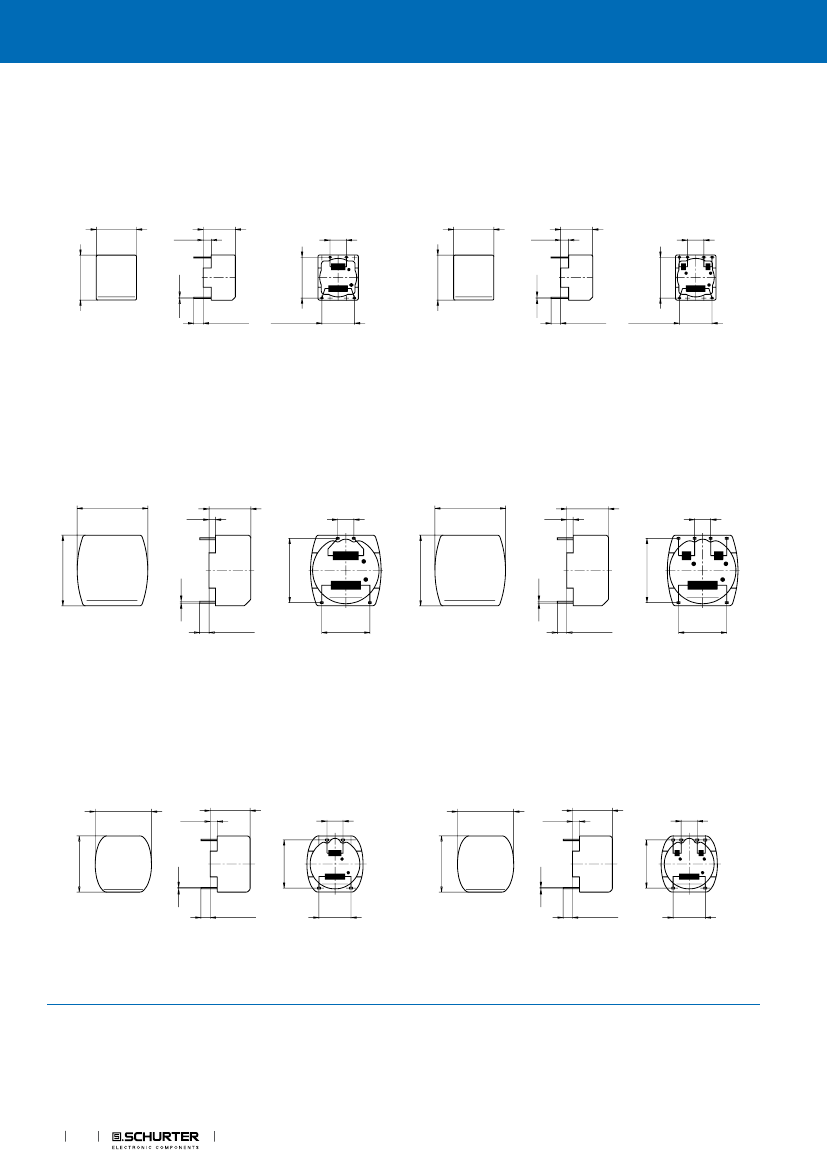

Technical Data

Rated voltage

Voltage Time Integral

Pulse Rise Time

Turns Ratio

Terminal Type

Weight

Material: Housing

Sealing Compound

up to 600 VAC

150 - 400 Vµs

0.05 - 1.5 µs

1:1, 2:1, 1:1:1

THT

6 - 11 g

UL 94V-0

Climatic Category

Allowable Operation Temp.

25/100/21 acc. to IEC 60068-1

-25 °C to 100 °C

Approvals and Compliances

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in

Details about

Approvals

Application standards

Application standards where the product can be used

Organization

Design

Designed for applications acc.

Standard

IEC/UL 60950

Description

IEC 60950-1 includes the basic requirements for the safety of information

technologyequipment.

Compliances

The product complies with following Guide Lines

Identification

Details

RoHS

China RoHS

REACH

Initiator

SCHURTER AG

Description

EU Directive RoHS 2011/65/EU

The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March

2007. It is similar to the EU directive RoHS.

On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,

Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as

"REACH") entered into force.

EMC Products

ITNA-0239-D202 Related Products

	ITNA-0239-D202	ITNF-0239-D202	ITRB-0249-D101	ITRA-0249-D104
Description	Pulse Transformers ITNA Pulse transform THT 0.17A	Pulse Transformers ITNF PULSE TRANSFORM THT 0.17A	Pulse Transformers ITRB Pulse transform THT 0.1A	Pulse Transformers ITRA Pulse transform THT 0.1A
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	SCHURTER	SCHURTER	SCHURTER	SCHURTER
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	16 weeks	16 weeks	16 weeks	16 weeks
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Certification	VDE	VDE	VDE	VDE
ET product minimum value	400 V-us	350 V-us	250 V-us	300 V-us
high	13.6 mm	13.6 mm	13 mm	13 mm
Insulation voltage	3500 V	3500 V	3200 V	3200 V
JESD-609 code	e3	e3	e3	e3
length	22.7 mm	22.7 mm	18.2 mm	18.2 mm
Installation features	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED
Number of functions	1	1	1	1
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
method of packing	BULK	BULK	BULK	BULK
physical size	L22.7XB22.3XH13.6 (mm)	L22.7XB22.3XH13.6 (mm)	L18.2XB17.8XH13.0 (mm)	L18.2XB17.8XH13.0 (mm)
Primary inductance	2200 µH	1600 µH	1400 µH	3500 µH
Maximum pulse rise time	1000 ns	1500 ns	50 ns	50 ns
surface mount	NO	NO	NO	NO
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Transformer type	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER
Turns ratio (Np:Ns)	1:1	1:1:1	2:1	1:1
width	22.3 mm	22.3 mm	17.8 mm	17.8 mm
Base Number Matches	1	1	1	1
