ZDM-01: DescriptionLED Power Supplies 12-24V LED Dimmer; CategoryPower/power management; File Size161KB，1 Pages; ManufacturerJKL Components; Environmental Compliance

Download Datasheet Parametric View All

ZDM-01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZDM-01	-	-	View	Buy Now

ZDM-01 Overview

LED Power Supplies 12-24V LED Dimmer

ZDM-01 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	JKL Components
Product Category	LED Power Supplies
RoHS	Details
Output Current-Channel 1	8 A
Output Voltage-Channel 1	5 V to 24 V
Output Power	192 W
Input Voltage	5 V to 24 V
Dimming	With Dimming
Number of Outputs	1 Output
Mounting Style	Screw
Length	89 mm
Width	60 mm
Height	57.4 mm
Industry	Commercial
Open Frame/Enclosed	Enclosed
Factory Pack Quantity	5

Preview

Download Datasheet

View All

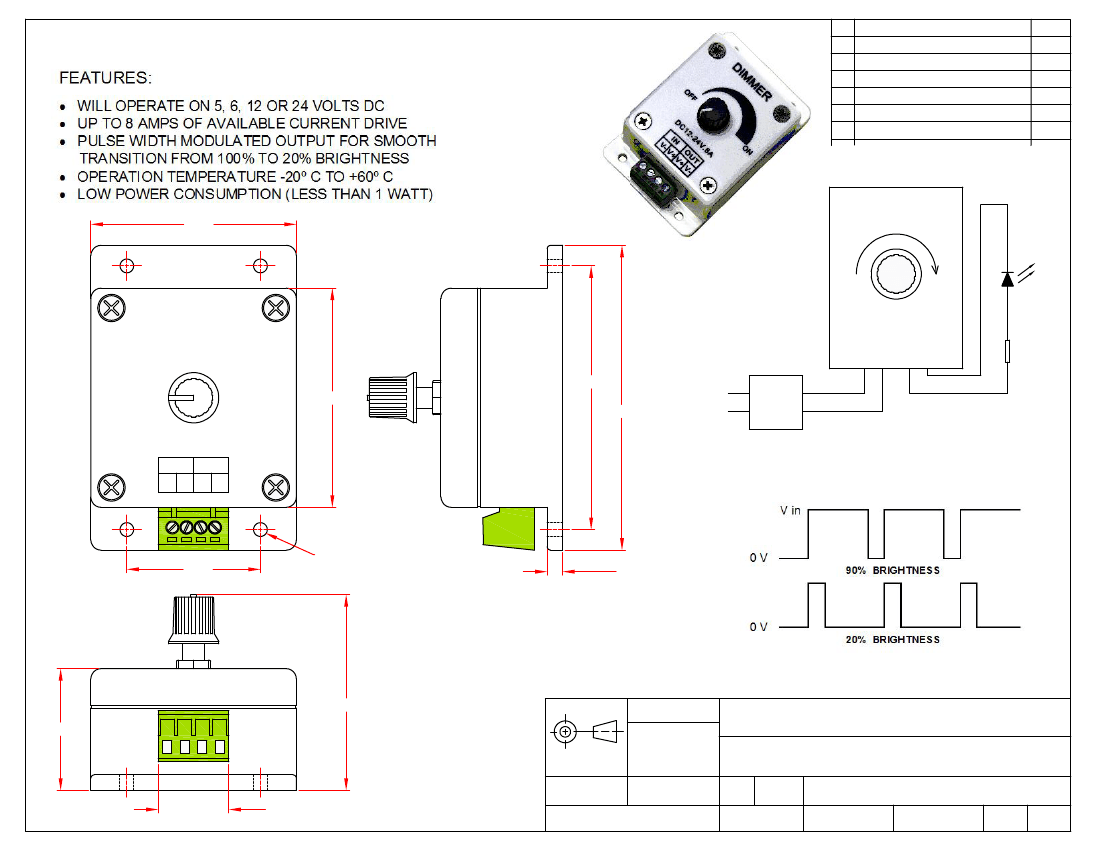

PWM LED DIMMER

REV.

DESCRIPTION/ECO NO.

RELEASED

DATE

6/15/10

4/14/11

4/26/11

6/24/13

12/19/14

7/19/16

A

B

C

D

E

ADD ELECTRICAL CHART

CHANGE 24V ON ELECT. CHART

ADD FEATURES NOTE & PHOTO

ADDED DIMENSIONS

NEW PHOTO

DIMMER

60.0

POWER

- +

LOAD

+ -

64.0

77.0

89.0

AC

-

+

POWER

SUPPLY

DC

IN OUT

V- V+ V+ V-

T

YPICAL APPLICATION

39.0

4 Plcs.

Ø 3.6

Shaft Diameter - 6.0mm

Rotation Angle - 120°

2 Plcs.

4.5

JKL PART NO.: ZDM-01

57.4 MAX.

35.4

THIRD ANGLE

PROJECTION

DRAWN BY

METRIC

DIMENSIONS ARE

IN MILLIMETERS

TOLERANCE UNLESS

OTHERWISE SPECIFIED

1 PL +/- REF.

2 PL +/- REF.

ANGLE +/- REF.

TITLE

JKL

COMPONENTS CORPORATION

PWM LED DIMMER

55335

FSCM NO.

APPV'D BY

DATE

SIZE

SCALE

20.7

L. WENGSTROM L.R.

7/19/16

- CAD DRAWING -

MANUAL REVISIONS NOT PERMITTED

A

DRAWING

NO.

RELEASED

DATE

ZDM-01

REVISION

DATE

NOT TO SCALE

6/15/10

7/19/16

REV.

NO.

E

SHEET

1

OF

1
