HWS150-15/A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> HWS150-15/A

HWS150-15/A: DescriptionSwitching Power Supplies 150W 15V 10A screw terminal cover; CategoryPower/power management The power supply circuit; File Size325KB，2 Pages; ManufacturerTDK-LAMBDA; Environmental Compliance

Download Datasheet Parametric View All

HWS150-15/A Overview

Switching Power Supplies 150W 15V 10A screw terminal cover

HWS150-15/A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TDK-LAMBDA
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	265 V
Minimum input voltage	85 V
Nominal input voltage	100 V
JESD-30 code	R-XXMA-X8
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	50 °C
Minimum operating temperature	-10 °C
Maximum output voltage	18 V
Minimum output voltage	12 V
Nominal output voltage	15 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	150 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

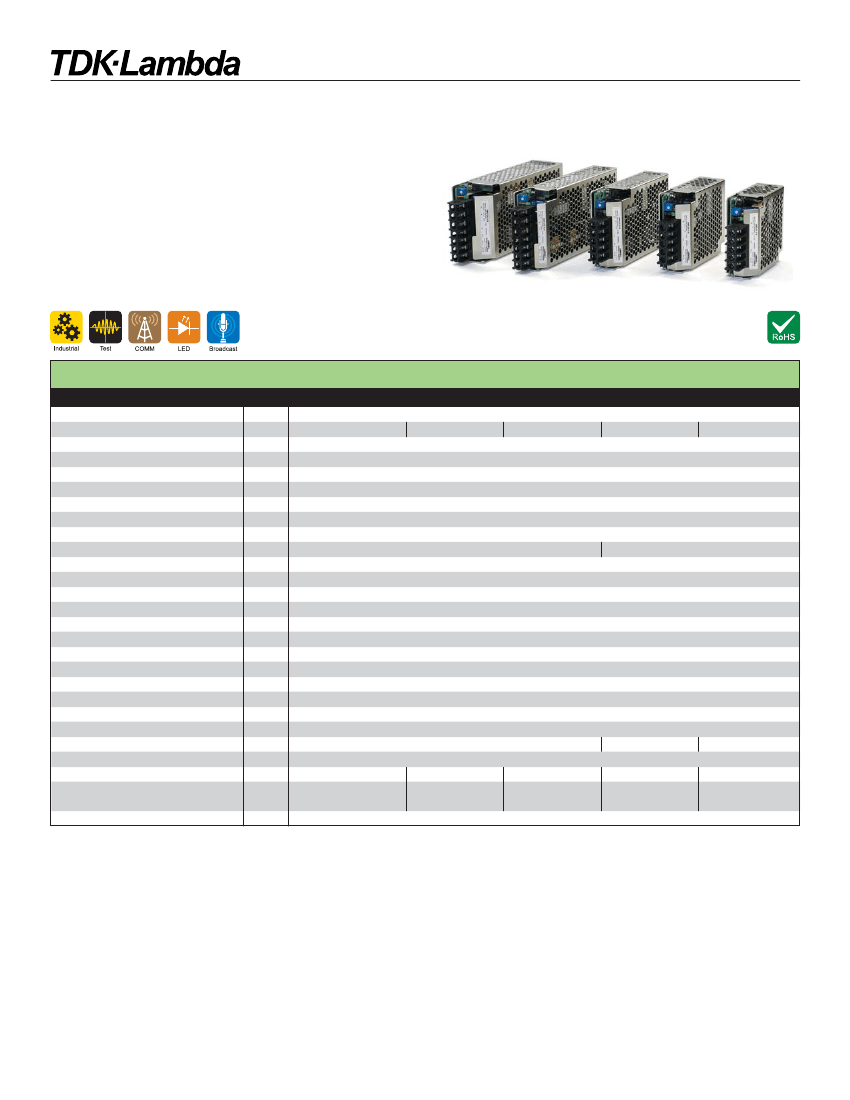

HWS Series

Single Output Industrial Power Supplies

Features



Limited Lifetime Warranty



UL508 approved



SEMI F47 Compliant (high line AC)



Universal Input (85 - 265VAC)



High Efﬁciency



Wide Range AC Input

Key Market Segments & Applications

Speciﬁcations

Model

Input Voltage range

Input Current (Typ)

(1)

Inrush Current

(1)

Power Factor

Temperature Coefﬁcient

Overcurrent Protection

Overvoltage Protection

Hold Up Time (Typ)

Leakage Current (max)

Remote Sense

Indicator

Operating Temperature (no cover)

Storage Temperature

Humidity (non condensing)

Cooling

Withstand Voltage

Isolation Resistance

Vibration (non operating)

Shock

Safety Agency Certiﬁcations

Line Dip

Conducted & Radiated EMI

Recommended EMI Filter

Immunity

Weight (Typ)

Size (WxHxD)

Size (WxHxD) /A version

Warranty

°C

yrs

HWS30

HWS50

HWS100

HWS150

85 - 265VAC (47 - 63Hz) or 120 - 370VDC

0.4 / 0.2

0.8 / 0.4

0.7 / 0.35

1.3 / 0.65

1.9 / 0.95

14 / 28

Meets EN61000-3-2

<0.02%/°C

>104%

Yes (See page 2)

<0.5mA (Typ 0.3mA at 100VAC, 0.5mA at 230VAC)

Yes

Green LED = ON

-10°C to +70°C, derate linearly to 20% load from 50°C to 70°C

(2)

-30 to +85°C

Operating: 30 - 90%RH, Non operating 10 - 95%RH

Convection

Input to Ground 2kVAC, Input to Output 3kVAC, Output to Ground 500VAC for 1 min.

>100M at 25°C & 70%RH, Output to Ground 500VDC

10 - 55Hz (1 minute sweep), 19.6m/s

constant X, Y, Z 1 hour

< 196.1m/s

UL60950-1, CSA60950-1, EN60950-1, EN50178, UL508, CE Mark

(3)

Complies with SEMI F47 (200VAC line only)

EN55011 / EN55022-B, FCC-B, VCCI-B

RSEL-2001W

RSEL-2002W

RSEL-2003W

IEC61000-4-2 (Level 3,2), -3, -4, -5, -6 (Level 3), -8, -11 (Level 4)

180

220

280

450

500

1.04x3.23x3.15

1.04x3.23x3.74 1.04x3.23x4.72 1.1x3.23x6.3

1.46x3.23x6.3

1.24x3.23x3.15

1.24x3.23x3.74 1.24x3.23x4.72 1.3x3.23x6.3

1.65x3.23x6.3

Limited lifetime warranty (See Lambda’s terms & conditions)

HWS15

(1) 100/200VAC

(2) -40°C Start up, see options table

(3) UL60601-1, EN60601-1, see options table

N ot Rec o m en de d For N e w D es i gns
