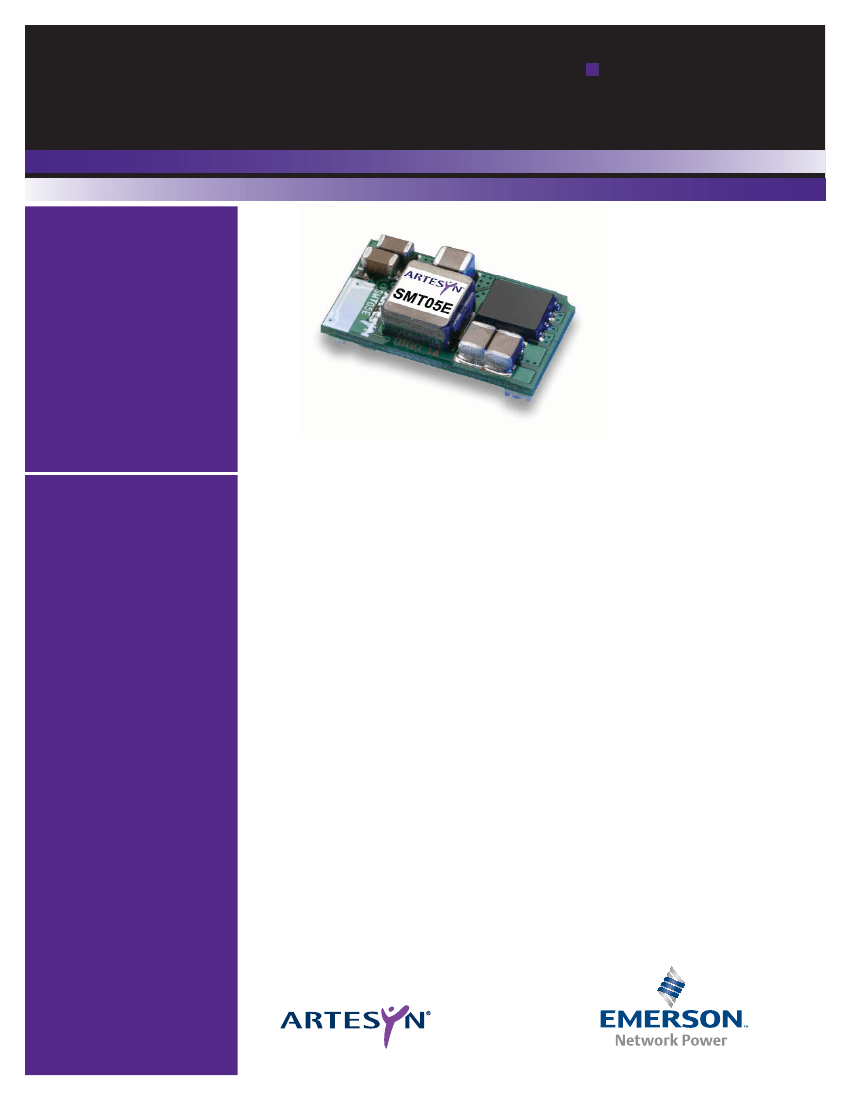

12 Vin single output
Total Power:
16.5W
Input Voltage: 10 - 14 Vdc
# of Outputs: Single
Special Features
• 5 A Current rating
• Input voltage range:
10 Vdc to 14 Vdc
• Output voltage range:
0.8 Vdc to 3.63 Vdc
• Ultra high efficiency:
91% @ 12 Vin and 3.3 Vout
• Extremely low internal power
dissipation
• Minimal thermal design
concerns
• Designed in reliability:
MTBF of 6,920,000 hours
per Telcordia SR-332
• Ideal solution where board
space is at a premium
or tighter card pitch is
required
• Industry standard
surface-mount footprint
• Available RoHS compliant
• 2 year warranty
The SMT05E series are non-isolated dc-dc converters packaged in
a surface-mount footprint giving designers a cost effective
solution for conversion from a 12 V source. The SMT05E has a
wide input range (10 Vdc to 14 Vdc) and offers a wide 0.8 Vdc to
3.63 Vdc output voltage range with a 5A load, which allows for
maximum design flexibility and a pathway for future upgrades.
The SMT05E is designed for applications that include distributed
power, workstations, optical network and wireless applications.
Implemented using state of the art surface-mount technology and
automated manufacturing techniques, the SMT05E offers
compact size and efficiencies of up to 91%.
Safety
UL/cUL CAN/CSA 22.2 No.
E174104
UL 60950 File No. E174104
TÜV Product Service (EN60950)
Certificate No. B 03 10 38572
CB report and certificate to
DE3-51686M1
Embedded Power for
Business-Critical Continuity
Specifications
All specifications are typical at nominal input, full load at 25
°
C unless otherwise stated.
Rev.06.26.07
smt05e_12
2 of 4
OUTPUT SPECIFICATIONS
Voltage adjustability
Setpoint accuracy
Line regulation
Load regulation
Total error band
Minimum load
Overshoot/undershoot
Ripple and noise
Temperature co-efficient
Transient response
5 Hz to 20 MHz
0.8-3.63 Vdc
±0.4% typ.
±0.2% typ.
±1.0% typ.
±3.0% typ.
0A
None
60 mV pk-pk
25 mV rms
±0.01%/°C
50 mV max. deviation
50 μs recovery to
within ±1.0%
EMC CHARACTERISTICS
Electrostatic discharge
Conducted immunity
Radiated immunity
GENERAL SPECIFICATIONS
Efficiency
Insulation voltage
Switching frequency
Approvals and
standards
Material flammability
Dimensions
Weight
Coplanarity
10-14 Vdc
No load (max.)
100 mA
1.85 A max. @ Io max.
and Vout = 3.3 V
30 mA rms
(See Note 1)
20 ms
PROTECTION
Short-circuit
Thermal
Continuous
Automatic recovery
MTBF
Telcordia SR-332
(LxWxH)
Fixed
91%
Non-isolated
330 kHz typ.
EN60950
UL/cUL60950
UL94V-0
20.32 x 11.43 x 5.97 mm
0.800 x 0.450 x 0.235 inches
3 g (0.11 oz)
100 μm
6,920,000 hours
EN61000-4-2, IEC801-2
EN61000-4-6
EN61000-4-3
INPUT SPECIFICATIONS
Input voltage range
Input current
Input current (max.)
Input reflected ripple
Remote ON/OFF
Start-up time
ENVIRONMENTAL SPECIFICATIONS
Thermal performance
(See Note 2)
Operating ambient,
temperature
Non-operating
-40 °C to +100 °C
-40 °C to +125 °C
Embedded Power for
Business-Critical Continuity
Specifications
All specifications are typical at nominal input, full load at 25
°
C unless otherwise stated.
Rev.06.26.07
smt05e_12
3 of 4
OUTPUT
POWER
(MAX.)
16.5 W
INPUT
VOLTAGE
10-14 Vdc
OUTPUT
VOLTAGE
0.8-3.63 Vdc
OUTPUT
CURRENT
(MIN.)
0A
OUTPUT
CURRENT
(MAX.)
5A
EFFICIENCY
(TYP.)
91%
REGULATION
LINE
±0.2%
LOAD
±1.0%
MODEL
NUMBER
(3,4)
SMT05E-12W3V3J
Part Number System with Options
S M T 0 5 E- 1 2 W 3 V 3 -T J
Packaging Options
(3)
No ‘-T’ Suffix = Pb-free RoHS 6/6 compliant
parts in trays e.g SMT30E-12W3V3J
-TJ = Pb-free RoHS 6/6 compliant part in Tape
and Reel e.g SMT30E-12W3V3-TJ
Product Family
SMT = Surface Mount
Rated Output Current
05 = 5 Amps
Performance
E = Enhanced Performace
Output Voltage
0.8 Vdc to 3.63 Vdc
Type of Output
S = Single
W = Wide
Input Voltage
12 = 10 Vdc to 14 Vdc
Output Voltage Adjustment of the SMT05E-12W3V3J Series
The ultra-wide output voltage trim range offers major advantages to users who
select the SMT05E-12W3V3J. It is no longer necessary to purchase a variety of
modules in order to cover ddcifferent output voltages. The output voltage can be
trimmed in a range of 0.8 Vdc to 3.63 Vdc. When the SMT05E-12W3V3J converter
leaves the factory the output has been adjusted to the default voltage of 0.8 V.
Notes
1
The SMT05E features an ‘Positive Logic’ Remote ON/OFF operation. If not
using the Remote ON/OFF pin, leave the pin open (the converter will be on).
The Remote ON/OFF pin is referenced to ground.
The following conditions apply for the SMT05E:
Configuration
Remote pin open circuit
Remote pin pulled low [Von/off <0.8 V]
Remote pin pulled high [Von/off >1.6 V]
Converter Operation
Unit is ON
Unit is OFF
Unit is ON
2
3
4
An ‘Negative Logic’ Remote ON/OFF version is also possible with this
converter. To order please place the suffix ‘-R’ at the end of the model numer,
e.g. SMT05E-12W3V3-RJ.
Full derating curves available in both the Longform Datasheet and
Application Note.
TSE RoHS 5/6 (non Pb-free) compliant versions may be available on special
request, please contact your local sales representative for details.
NOTICE: Some models do not support all options. Please contact your local
Artesyn representative or use the on-line model number search tool at
http://www.artesyn.com/powergroup/products.htm to find a suitable
alternative.
Embedded Power for
Business-Critical Continuity
Rev.06.26.07
smt05e_12
4 of 4
Americas
5810 Van Allen Way
Carlsbad, CA 92008
USA
Telephone: +1 760 930 4600
Facsimile: +1 760 930 0698
0.180
(4.57)
0.340
(8.64)
TOP VIEW
0.190
(4.83)
0.160
(4.06)
0.160
(4.06)
Europe (UK)
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
Telephone: +44 (0) 1384 842 211
Facsimile: +44 (0) 1384 843 355
0.450
(11.43)
4
3
2
0.350
(8.90)
5
BOTTOM VIEW
1
0.060
(1.52)
0.800
(20.32)
Asia (HK)
SIDE VIEW
0.235
(5.97)
16th - 17th Floors, Lu Plaza
2 Wing Yip Street, Kwun Tong
Kowloon, Hong Kong
Telephone: +852 2176 3333
Facsimile: +852 2176 3888
Seating
Plane
0.062
(1.57)
All dimensions in inches (mm)
All tolerance
±0.010in
(±0.25mm)
unless otherwise stated
For global contact, visit:
www.powerconversion.com
technicalsupport@powerconversion.com
While every precaution has been taken to ensure
accuracy and completeness in this literature, Emerson
Network Power assumes no responsibility, and disclaims
all liability for damages resulting from use of this
information or for any errors or omissions.
Connector (5PL)
Width :0.090 (2.29)
Length: 0.062 (1.57)
PIN CONNECTIONS
PIN NUMBER
1
2
3
4
5
FUNCTION
