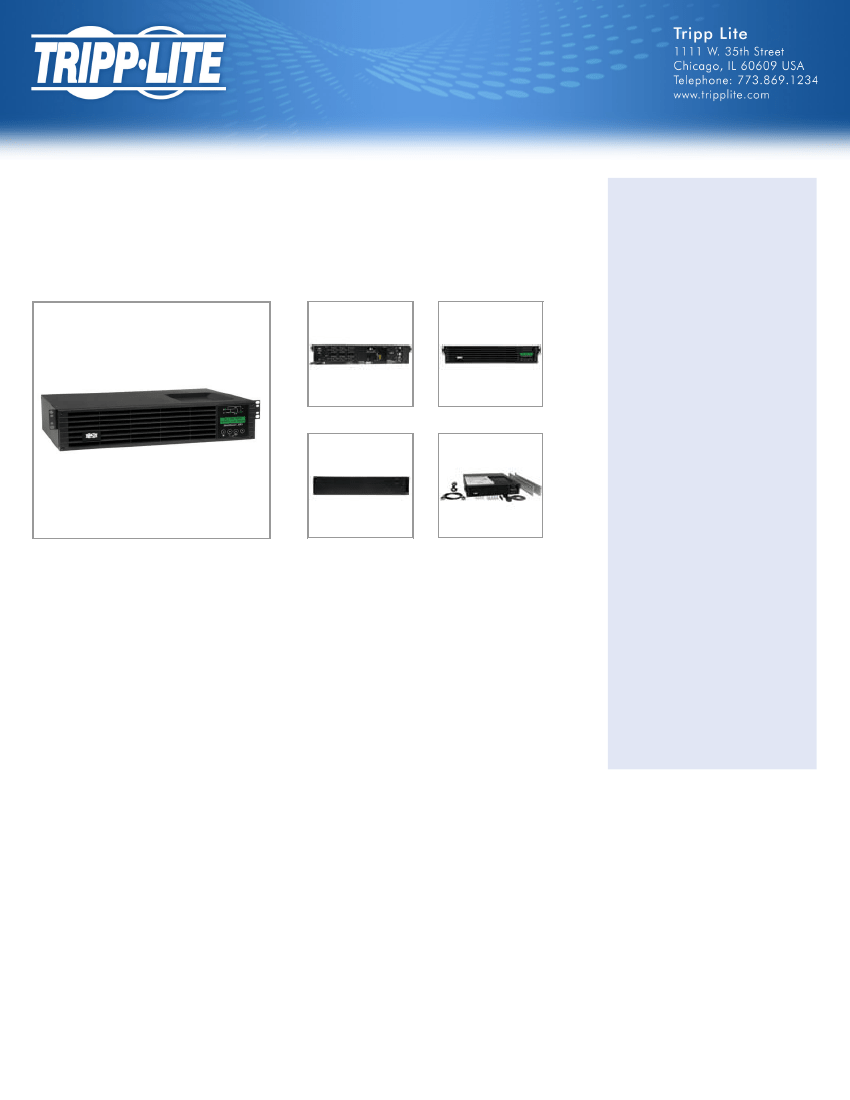

SmartOnline 120V 1.5kVA 1.35kW Double-
Conversion UPS, 2U Rack/Tower, Extended Run,
Network Card Slot, LCD, USB, DB9
MODEL NUMBER:
SU1500RTXLCD2U
Highlights
q
1500VA / 1.5kVA / 1350W on-
line double-conversion 2U rack /
tower UPS, Sine Wave
q
Extended runtime options, 0.9
Power Factor, Interactive LCD
interface, Economy-mode option
q
USB, RS232 & EPO ports. Slot
for network management card
options; 4-post mounting kit
q
NEMA 5-15P 120V 50/60Hz
input, 6 NEMA 5-15R outlets;
Configurable for
100/110/120/127V 50/60Hz
output
q
This product is ENERGY STAR
qualified for its ability to save
Description
Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and
network equipment in datacenters, computer rooms and network closets. Online, double-conversion
Uninterruptible Power Supply (UPS) with Transformerless, IGBT technology maintains perfectly regulated
output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully
regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously,
even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains
battery-derived AC output during power failures with zero transfer time. Extended runtime options
available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus
enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy
mode saves BTU heat output and energy costs. Network management interfaces support communications
via USB, RS-232, contact-closure and slot for network management card options. Built-in DB9 port offers
both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface
enables integration with built-in power management and auto shutdown features of Windows and Mac OS
X. PowerAlert UPS monitoring software is available via free download. Emergency Power Off (EPO)
interface. LED display reports UPS operating mode, line power availability, battery mode operation,
inverter operation, ECO mode status and output power availability. LED/LCD display panel easily rotates
for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel
and silent-mode LCD configuration options. Programmable self-test. Fault-tolerant auto-bypass mode.
Field-replaceable, hot-swappable internal batteries and external battery packs.
q
customers money while helping
to protect the environment
Package Includes
q
SU1500RTXLCD2U UPS
System
USB, Serial & EPO cabling
4 post rackmount installation kit
Instruction manual
q
q
Features
q
Tripp Lite SU1500RTXLCD2U 1500VA / 1.5kVA / 1350W on-line, double-conversion 2U rack / tower
UPS
q
Transformerless, IGBT technology
1/7
q
Selectable 100/110/120/127V output (120V factory preset)
NEMA 5-15P input, 6 NEMA 5-15R outlets
Two switched 3-outlet load banks support remote reboot or programmable load shedding options
Supports 2% output voltage regulation and zero transfer time in double conversion mode
Economy mode option offers enhanced efficiency, reduced power consumption and lower BTU
emissions
q
q
q
q
q
14 minutes runtime at 50% load (675W) and 4.2 minutes at 100% load (1350W) with internal batteries
BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack
compatible) external battery packs available (some configurations require Tripp Lite's External Battery
Configuration Software)
q
q
Intelligent battery management system with temperature-compensated charging extends battery life
LCD interface reports operating mode plus 9 selectable screens of UPS data (Load % & kW, Load % &
kVA, Power factor, Input volts & Hz, Output volts & Hz, Battery volts and charge %, Minutes runtime,
Capacity remaining, Kw/hr. consumption)
q
q
LCD interface also supports 16 screens of UPS configuration and setup options
4 post installation hardware included, Optional 2POSTRMKITWM enables 2 post rack / wallmount
installation, Optional 2-9USTAND enables tower placement
q
q
Single line TEL / Network surge suppression
Electronic bypass maintains utility output during a variety of UPS fault conditions
Battery independent restart ensures automatic UPS power-up without user interaction after lengthy
power outages, even when batteries are expired and require replacement
q
q
q
Frequency regulation / conversion mode offers generator-compatible frequency correction or conversion
of frequency from 50 to 60Hz or 60 to 50Hz
q
Built-in USB, RS-232, contact-closure and network management card options; Compatible with Tripp
Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD
and RELAYIOCARD
q
HID-compliant USB interface enables integration with built-in power management and auto shutdown
features of Windows and Mac OS X
q
USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert
software, available via FREE download from www.tripplite.com/poweralert
Specifications
OVERVIEW
UPC Carton UPC#
037332168610
OUTPUT
Output Volt Amp Capacity (VA)
1500
2/7
Output kVA Capacity (kVA)
Output Watt Capacity (Watts)
Output kW Capacity (kW)
Output Capacity Details
1.5
1350
1.35
ON LINE MODE: Maximum output capacity ratings is reduced to 1215 watts at 115V nominal and 1080 watts at
100V nominal; FREQUENCY REGULATION / CONVERSION MODE: Maximum output ratings are reduced in
frequency regulation / conversion mode (127/120V 945 watts / 115V 850 watts / 110V 804 watts / 100V 756 watts)
OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150%
load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and
frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE
bypass limits)
Power Factor
Crest Factor
Nominal Output Voltage(s)
Supported
Nominal Voltage Details
Frequency Compatibility
Frequency Compatibility Details
0.9
3:1
100V; 110V; 115V; 120V; 127V
120V factory-default nominal voltage; Less than 3% THD for linear loads and less than 5% for non-linear computer
loads
50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion
ON LINE MODE: Output frequency is automatically configured to match nominal input frequency on startup; Output
matches input frequency when +/-5Hz of nominal; Output is regulated to +/-0.05Hz when input frequency exceeds
+/-5Hz of nominal. UPS switches to battery mode when input frequency is below 40Hz or above 70Hz.
FREQUENCY REGULATION / CONVERSION MODE: Output is regulated to +/-0.05Hz of selected output frequency
input is 40 to 70Hz; UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. BATTERY
MODE: Output is regulated to +/-0.05Hz.
+/- 2%
+/- 10%
+/- 3%
(6) 5-15R
Two switchable three-outlet 5-15R load banks
Pure Sine wave
Pure Sine wave
Output Voltage Regulation (Line
Mode)
Output Voltage Regulation
(Economy Line Mode)
Output Voltage Regulation (Battery
Mode)
Output Receptacles
Load Management Receptacles
Output AC Waveform (AC Mode)
Output AC Waveform (Battery
Mode)
INPUT
Rated input current (Maximum Load)
Nominal Input Voltage(s) Supported
Nominal Input Voltage Description
UPS Input Connection Type
Input Circuit Breakers
UPS Input Cord Length (ft.)
UPS Input Cord Length (m)
Recommended Electrical Service
12A
100V AC; 110V AC; 115V AC; 120V AC; 127V AC
120V factory default
5-15P
20A
10
3.1
15A 120V
3/7
Input Phase
Single-Phase
BATTERY
Full Load Runtime (min.)
Half Load Runtime (min.)
Expandable Battery Runtime
External Battery Pack Compatibility
4.2 min. (1350w)
14 min. (675w)
Extended runtime supported via optional external battery packs
<a class="productLink" href="//www.tripplite.com/External-48V-2U-Rack-Tower-Battery-Pack-Enclosure-DC-
Cabling-select-UPS-Systems-BP48V24-2U~BP48V24-2U">BP48V24-2U</a> (limit 1); <a
class="productLink" href="//www.tripplite.com/External-48V-3U-Rack-Tower-Battery-Pack-Enclosure-DC-Cabling-
select-UPS-Systems-BP48V60RT-3U~BP48V60RT-3U">BP48V60RT-3U</a> (multi-pack compatible);
<a class="productLink" href="//www.tripplite.com/External-48V-2U-Rack-Tower-Battery-Pack-for-UPS-
Systems-BP48V27-2US~BP48V27-2US">BP48V27-2US</a> (multi-pack compatible)
Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software, see
manual for details
48
Less than 3 hours recharge to 90%; Add 6 hours per BP48V27-2US (typical, full load discharge)
<a class="productLink" href="//www.tripplite.com/2U-UPS-Replacement-48VDC-Battery-Cartridge-1-set-4-
select-Tripp-Lite-SmartPro-UPS~RBC94-2U">RBC94-2U</a>
Front panel battery access
Hot-swappable, user replaceable batteries
Yes
Expandable Runtime Description
DC System Voltage (VDC)
Battery Recharge Rate (Included
Batteries)
Internal UPS Replacement Battery
Cartridge
Battery Access
Battery Replacement Description
Expandable Runtime
VOLTAGE REGULATION
Voltage Regulation Description
Overvoltage Correction
Undervoltage Correction
Severe Undervoltage Correction
Online, double-conversion power conditioning maintains 2% output voltage regulation during brownouts and
overvoltages
Corrects overvoltages to 150V (0-100% load)
Corrects undervoltages to 100V at full load (90V at 100V nominal)
Corrects brownouts to 70V (70% load) & 55V (33% load)
USER INTERFACE, ALERTS & CONTROLS
Front Panel LCD Display
Switches
Alarm Cancel Operation
Audible Alarm
LED Indicators
Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data,
plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options
2 switches control off/on power status and alarm-cancel operation; 2 additional scroll-down and scroll-up / select
options enable LCD status viewing and configuration options
Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option
available
Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown
conditions
7 front panel LEDs indicate line power availability, AC to DC conversion, battery mode operation, inverter mode, eco
mode operation, bypass mode operation and AC output status
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating
570
4/7
UPS AC Suppression Response
Time
UPS Dataline Suppression
EMI / RFI AC Noise Suppression
Instantaneous
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
Yes
PHYSICAL
Included Mounting Accessory
Description
Installation Form Factors Supported
with Optional Accessories
Primary Form Factor
UPS Power Module Dimensions
(hwd, in.)
UPS Power Module Dimensions
(hwd, cm)
Rack Height (U Spaces)
Minimum Required Rack Depth
without External Battery Pack (in.)
Minimum Required Rack Depth with
External Battery Pack (in.)
UPS Power Module Weight (lbs.)
UPS Power Module Weight (kg)
Shipping Dimensions (hwd / in.)
Shipping Dimensions (hwd / cm)
Shipping Weight (lbs.)
Shipping Weight (kg)
Cooling Method
UPS Housing Material
Primary UPS Height (mm)
Primary UPS Width (mm)
Primary UPS Depth (mm)
Includes 4 post rackmount installation accessories
2 post rackmount (2POSTRMKITWM); Wallmount (2POSTRMKITWM); Tower (2-9USTAND)
Rackmount
3.5 x 17.5 x 18.5
8.89 x 44.45 x 46.99
2
21.5
25.5
45.2
20.50
9.200 x 23.300 x 19.200
23.37 x 59.18 x 48.77
60.2000
27.31
Fan
Steel
889
4,445
4,699
ENVIRONMENTAL
Operating Temperature Range
Storage Temperature Range
Relative Humidity
AC Mode BTU / Hr. (Full Load)
AC Economy Mode BTU / Hr. (Full
Load)
Battery Mode BTU / Hr. (Full Load)
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
+5 to +122 degrees Fahrenheit / -20 to +40 degrees Celsius with batteries; -13 to +131 Fahrenheit / -25 to +55
degrees Celsius without batteries
0 to 95%, non-condensing
455
294
559
5/7
