714-43-132-31-018000 datasheet, PDF

Datasheet> All Categories > The connector> socket> 714-43-132-31-018000

714-43-132-31-018000: DescriptionIC & Component Sockets 32P SGL IN LINE SKT SGL ROW ULTRA LOW; CategoryThe connector socket; File Size411KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

714-43-132-31-018000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	714-43-132-31-018000	-	-	View	Buy Now

714-43-132-31-018000 Overview

IC & Component Sockets 32P SGL IN LINE SKT SGL ROW ULTRA LOW

714-43-132-31-018000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	SIP SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	BERYLLIUM COPPER
Device slot type	IC SOCKET
Type of equipment used	SIP32
Shell material	PLASTIC
JESD-609 code	e3
Number of contacts	32
Base Number Matches	1

Preview

Download Datasheet

View All

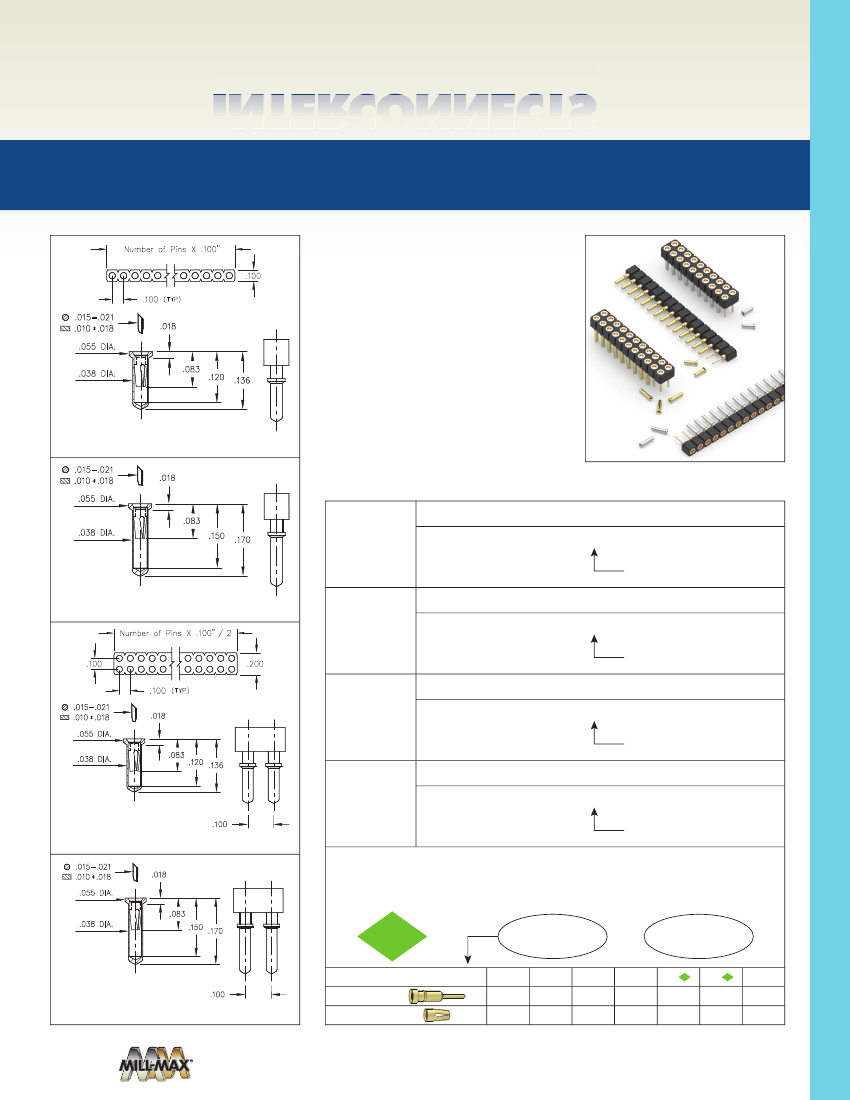

INTERCONNECTS

SERIES 714...01X • .100” GRID ULTRA LOW PROFILE CARRIERS •

SINGLE AND DOUBLE ROW STRIPS

•

Ultra low pro le receptacles sit .018” above

the board

•

Series 714 use MM #0552-1 and MM #0552-2

.015-.021

.010 .018

.055 DIA.

.038 DIA.

.083

pin receptacles. See page 158 for details

.018

•

Hi-Rel, 3- nger BeCu #11 contact is rated at

3 amps. See page 251 for details

.120

.136

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

FIG. 1

.015-.021

.010 .018

.055 DIA.

.083

.038 DIA.

.150

.170

.018

ORDERING INFORMATION

Single Row (.039” min. mounting hole)

FIG. 1

714 XX 1_ _ 31 012000

Specify number of pins

01-64

FIG. 2

Single Row (.039” min. mounting hole)

FIG. 2

714 XX 1_ _ 31 018000

Specify number of pins

01-64

Double Row (.039” min. mounting hole)

.015-.021

.010 .018

.055 DIA.

.038 DIA.

.083

.018

FIG. 3

.120 .136

714 XX 2_ _ 31 012000

Specify number of pins

04-64

Double Row (.039” min. mounting hole)

FIG. 4

.100

714 XX 2_ _ 31 018000

Specify number of pins

04-64

FIG. 3

.015-.021

.010 .018

.055 DIA.

.083

.038 DIA.

.150

.170

.018

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

µ”

For

Electrical, Mechanical

& Enviromental Data,

See page 264

SPECIFY PLATING CODE XX=

.100

µ”

200

µ”

200

µ”

FIG. 4

Sleeve (Pin)

Contact (Clip)

200

µ”

Sn/Pb 200

µ”

Sn/Pb

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 77 | INTERCONNECTS
