REVISIONS
REV
B1
ECO
-
DESCRIPTION
RELEASED DRAWING
DATE
JUN-19-2014
BY
BEN
APPR
TOMMY
33.0 Ref
11/16-24 UNEF THREAD
7/8-20 UNEF THREAD
31.8
MASTER KEYWAY
TITLE:

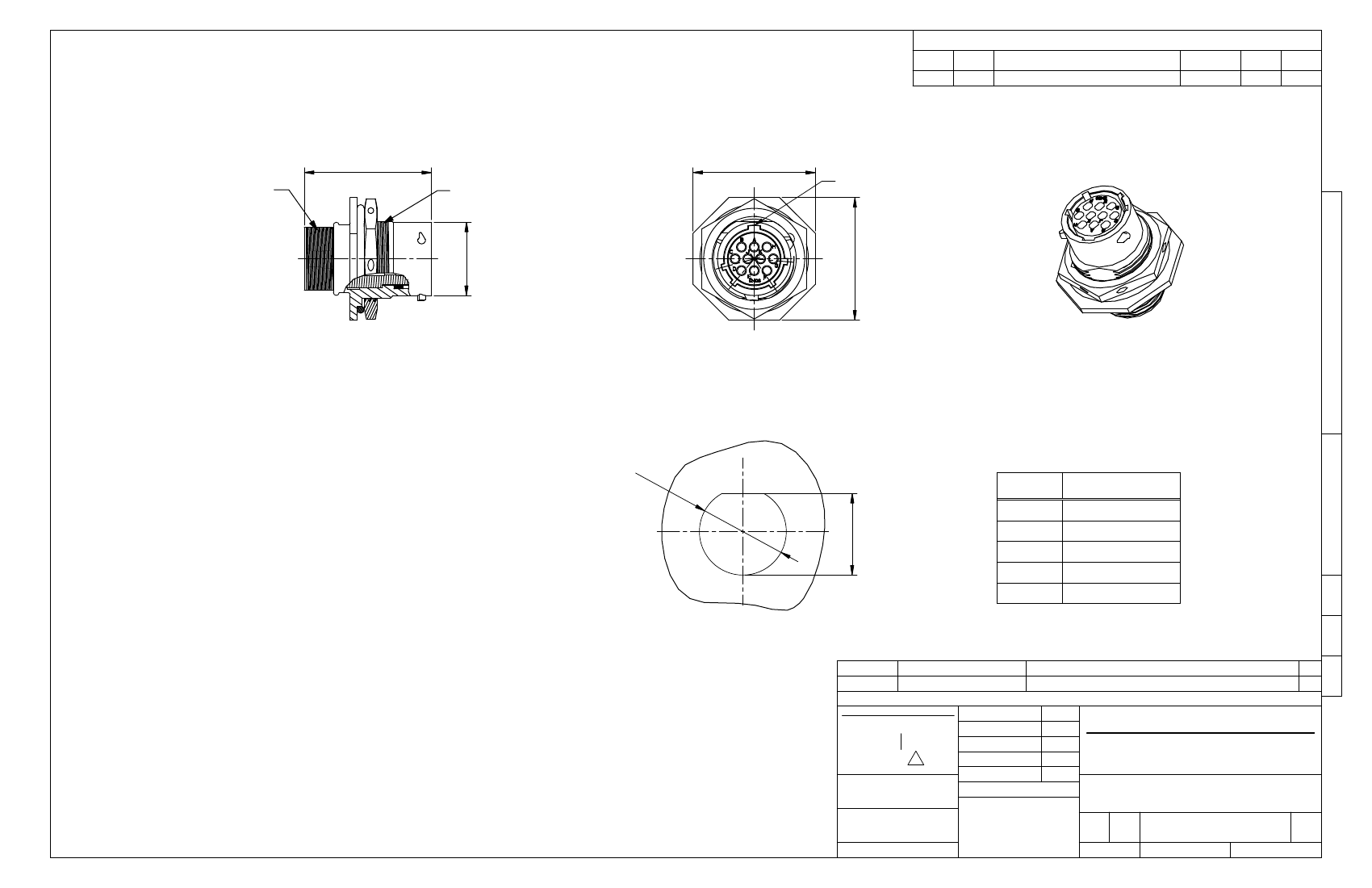

ECO-MATE,RECEPTACLE,JAM NUT,SIZE 12,10POS,SOCKET.
Ø19.0
NOTES：(UNLESS OTHERWISE SPECIFIED)
1. MATERIAL：
SHELL：ZINC ALLOY，NICKEL PLATED.
JAM NUT : AL ALLOY，NICKEL PLATED.
INSERT：THERMOPLASTIC，UL94 V-0.
O-RING：NBR.
SEAL GASKET：NBR.
2. SPECIFICATIONS：
2.1 RATED CURRENT：
2.1.1 STAMPED CONTACT 5A (MAX).
2.1.2 MACHINED CONTACT 7.5A (MAX).
2.2 RATED VOLTAGE：150V（AC/DC）.
2.3 OPERATING TEMPERATURE：-40℃½+105℃.
2.4 DIELECTRIC WITHSTANDING VOLTAGE：LESS THAN
2 MILLIAMPS CURRENT LEAKAGE@1500 VOLTS AC.
2.5 INSULATION RESISTANCE：5000 MEGOHMS MIN.
2.6 IP--CLASS：IP67.
2.7 MATING CYCLES DURABILITY：500 CYCLES MIN.
2.8 ROHS COMPLIANT.
3. SUITABLE CONTACTS ：20# CONTACTS.
4. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
31.8
DWG NO:
ø2
2.5
+0
.2
0
KEY POS
PART NUMBER
RT0W71210SNH
RT0W71210SWH
RT0W71210SXH
RT0W71210SYH
RT0W71210SZH
RT0W71210S*H
21.2
+0.2
0
N
W
X
Y
Z
REV:
B1
SH:
PANEL CUT OUT REFERENCE
SEE PART NUMBER
CHART
DESCRIPTION
PART NUMBER
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
MATERIAL SPECIFICATIONS:
CUSTOMER:
1
OF:
QUANTITY
ITEM
1
UNLESS OTHERWISE SPECIFIED
1)
2)
1
2
3
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC ±0.30
Fractions ±1/64
PL DEC ±0.15
Angles ±1°
PL DEC ±0.08
X
DATE
BEN
JUN-19-2014
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
3) Note reference =
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
ECO-MATE,RECEPTACLE,JAM NUT,
SIZE 12,10POS,SOCKET.
TYPE
DWG NO:
REVISION
B
C-
RT0W71210S*H
SHEET
B1
OF
NONE
1
1
