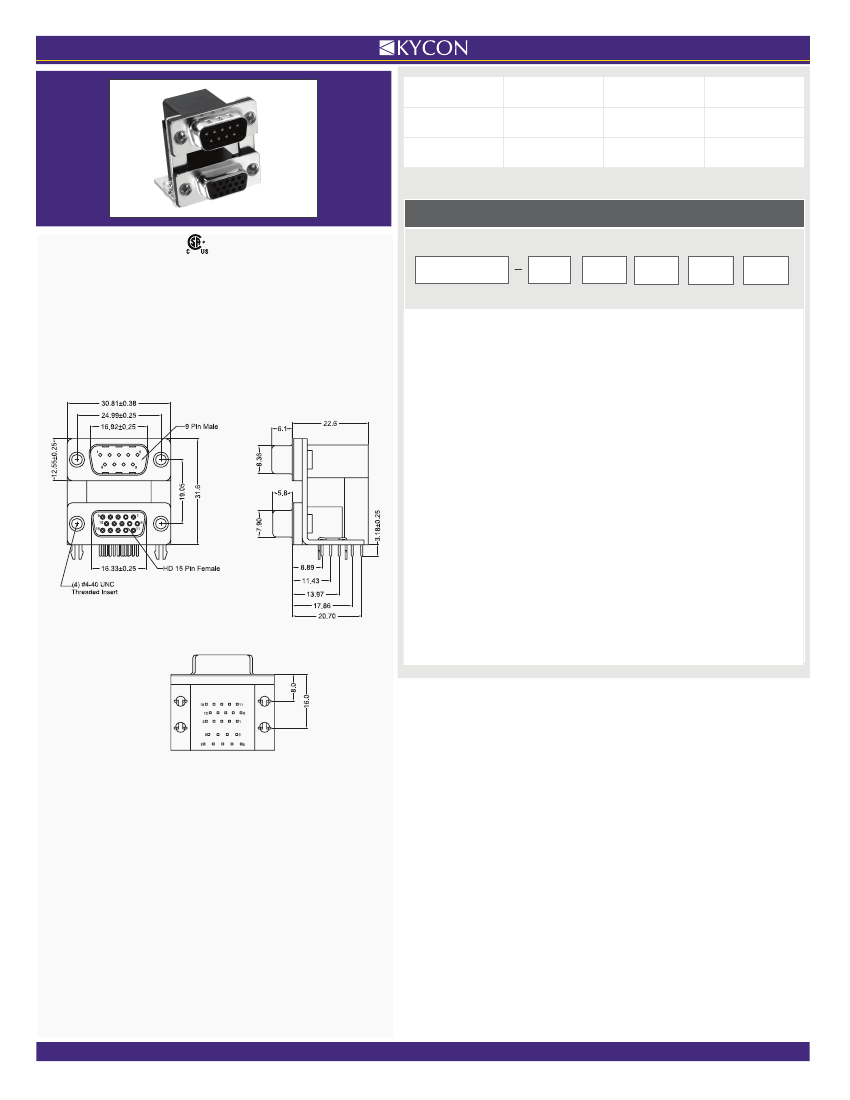

D-Sub Dualport Connectors DL-PRT 25F OVR HD15F 750" 4GB JS
| Parameter Name | Attribute value |
| Product Attribute | Attribute Value |
| Manufacturer | Kycon |
| Product Category | D-Sub Dualport Connectors |
| RoHS | Details |
| Factory Pack Quantity | 15 |
| K42X-B25SE15SA4NJ | K42X-E9S/E15S-A4NJ | K42X-B25SE15SA4N | K42X-E9P/E15S-A4N | K42X-E9P/E15S-A4NJ | |
|---|---|---|---|---|---|
| Description | D-Sub Dualport Connectors DL-PRT 25F OVR HD15F 750" 4GB JS | D-Sub Dualport Connectors 2PORT 9/15P RECP/REC .750" 4GB JS | D-Sub Dualport Connectors 2 Port 25/HD15 .750 Rec/Rec w/Bd locks | D-Sub Dualport Connectors 2PORT 9/15P PLG/RECP .750 4GB | D-Sub Dualport Connectors DL-PRT 9M OVR HD15F 750" 4GB JS |
| Is it Rohs certified? | - | conform to | - | conform to | conform to |
| Maker | - | Kycon | - | Kycon | Kycon |
| Reach Compliance Code | - | compliant | - | compliant | compliant |
| body width | - | 1.244 inch | - | 1.244 inch | 1.244 inch |
| subject depth | - | 0.89 inch | - | 0.89 inch | 0.89 inch |
| body length | - | 1.213 inch | - | 1.213 inch | 1.213 inch |
| Body/casing type | - | RECEPTACLE | - | PLUG-RECEPTACLE | PLUG-RECEPTACLE |
| Connector type | - | D SUBMINIATURE CONNECTOR | - | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | - | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED |
| Contact completed and terminated | - | Tin (Sn) - with Nickel (Ni) barrier | - | Tin (Sn) - with Nickel (Ni) barrier | Tin (Sn) - with Nickel (Ni) barrier |
| Contact point gender | - | FEMALE | - | MALE/FEMALE | MALE/FEMALE |
| Contact material | - | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED |
| contact mode | - | STAGGERED | - | STAGGERED | STAGGERED |
| Contact resistance | - | 13 mΩ | - | 13 mΩ | 13 mΩ |
| Contact style | - | RND PIN-SKT | - | RND PIN-SKT | RND PIN-SKT |
| Dielectric withstand voltage | - | 700VAC V | - | 700VAC V | 700VAC V |
| Insulation resistance | - | 1000000000 Ω | - | 1000000000 Ω | 1000000000 Ω |
| Insulator color | - | BLACK | - | BLACK | BLACK |
| insulator material | - | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | - | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE |
| JESD-609 code | - | e3 | - | e3 | e3 |
| Installation option 1 | - | #4-40 | - | LOCKING | #4-40 |
| Installation method | - | RIGHT ANGLE | - | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | - | BOARD | - | BOARD | BOARD |
| PCB row number | - | 3+2 | - | 3+2 | 3+2 |
| Number of rows loaded | - | 2+3 | - | 2+3 | 2+3 |
| Maximum operating temperature | - | 105 °C | - | 105 °C | 105 °C |
| Minimum operating temperature | - | -55 °C | - | -55 °C | -55 °C |
| PCB contact pattern | - | STAGGERED | - | STAGGERED | STAGGERED |
| Plating thickness | - | FLASH inch | - | FLASH inch | FLASH inch |
| Rated current (signal) | - | 2 A | - | 2 A | 2 A |
| Guideline | - | UL | - | UL | UL |
| reliability | - | COMMERCIAL | - | COMMERCIAL | COMMERCIAL |
| Shell surface | - | TIN OVER NICKEL | - | TIN OVER NICKEL | TIN OVER NICKEL |
| Shell material | - | STEEL | - | STEEL | STEEL |
| Terminal length | - | 0.125 inch | - | 0.125 inch | 0.125 inch |
| Terminal pitch | - | 2.7686 mm | - | 2.7686 mm | 2.7686 mm |
| Termination type | - | SOLDER | - | SOLDER | SOLDER |
| Total number of contacts | - | 24 | - | 24 | 24 |
