390GB054NF2528H datasheet, PDF

Datasheet> All Categories > The connector> 390GB054NF2528H

390GB054NF2528H: DescriptionCircular MIL Spec Backshells SUB CBL SEAL RLF DC STRN RLF LO 45DG HVY; CategoryThe connector; File Size125KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

390GB054NF2528H Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	390GB054NF2528H	-	-	View	Buy Now

390GB054NF2528H Overview

Circular MIL Spec Backshells SUB CBL SEAL RLF DC STRN RLF LO 45DG HVY

390GB054NF2528H Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Glenair
Product Category	Circular MIL Spec Backshells
RoHS	N
MIL Type	MIL-DTL-28840
Factory Pack Quantity	1

Preview

Download Datasheet

View All

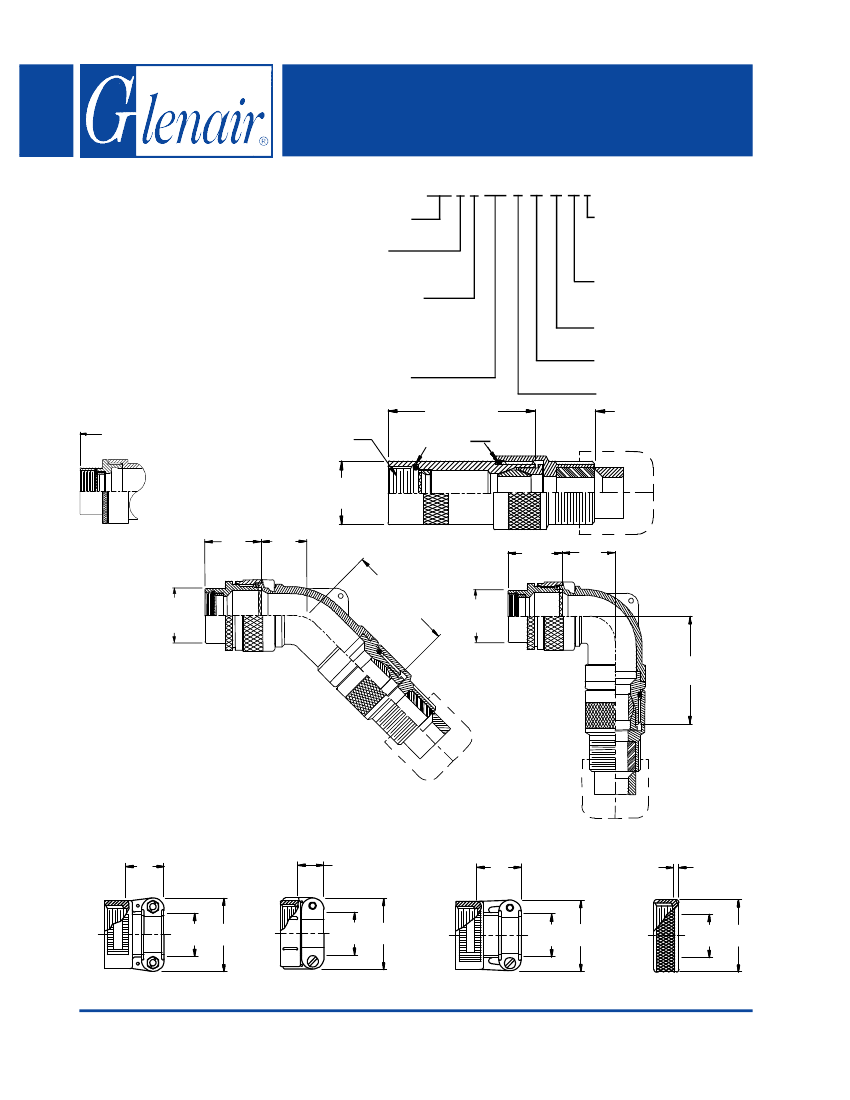

390-054

Submersible EMI/RFI Cable Sealing Backshell

with Strain Relief

Type F - Direct Coupling - Low Profile

390 F S 054 M 16 10 M 6

Product Series

Connector

Designator

Angle and Profile

A = 90

B = 45

S = Straight

Basic Part No.

Finish (Table II)

A Thread

(Table I)

STYLE 2

(STRAIGHT

See Note 1)

(Table I)

(Table III) (Table

IV)

F (Table IV)

(Table I)

H (Table IV)

Length *

O-Rings

1.281

(32.5)

Ref. Typ.

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Strain Relief Style

(H, A, M, D)

Cable Entry (Tables X, XI)

Shell Size (Table I)

A-B -C-D-E-F

G-H-J-K-L-S

DIRECT COUPLING

TYPE F INDIVIDUAL

AND/OR OVERALL

SHIELD TERMINATION

Length ± .060 (1.52)

Min. Order Length 2.0 Inch

(See Note 3)

* Conn. Desig. B See Note 4

CONNECTOR

DESIGNATORS

* Length

± .060 (1.52)

Minimum Order

Length 1.5 Inch

(See Note 3)

(Table III) (Table IV)

STYLE H

Heavy Duty

(Table X)

STYLE A

Medium Duty

(Table XI)

STYLE M

Medium Duty

(Table XI)

STYLE D

Medium Duty

(Table XI)

.135 (3.4)

Max

Cable

Entry

Cable

Range

Cable

Range

Cable

Range

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 39 - Page 66

390GB054NF2528H Related Products

	390GB054NF2528H	390DA054NF1408H	390AS054NF1006H6
Description	Circular MIL Spec Backshells SUB CBL SEAL RLF DC STRN RLF LO 45DG HVY	Circular MIL Spec Backshells CBL SEAL STRN RLF RC SLF LK FULL 90 HVY	Circular MIL Spec Backshells CBL SEAL STRN RLF RC SLF LK FULL STR HVY
Product Attribute	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Glenair	Glenair	Glenair
Product Category	Circular MIL Spec Backshells	Circular MIL Spec Backshells	Circular MIL Spec Backshells
RoHS	N	N	N
Factory Pack Quantity	1	1	1
