09-0404-00-02 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 09-0404-00-02

09-0404-00-02: DescriptionCircular Connector, 2 Contact(s), Polyamide, Female, Solder Terminal, Socket,; CategoryThe connector The connector; File Size972KB，8 Pages; ManufacturerFranz Binder GmbH & Co; Environmental Compliance

Download Datasheet Parametric View All

09-0404-00-02 Overview

Circular Connector, 2 Contact(s), Polyamide, Female, Solder Terminal, Socket,

09-0404-00-02 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Back shell type	SOLID
Body/casing type	SOCKET
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell material	POLYAMIDE
Termination type	SOLDER
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

binder

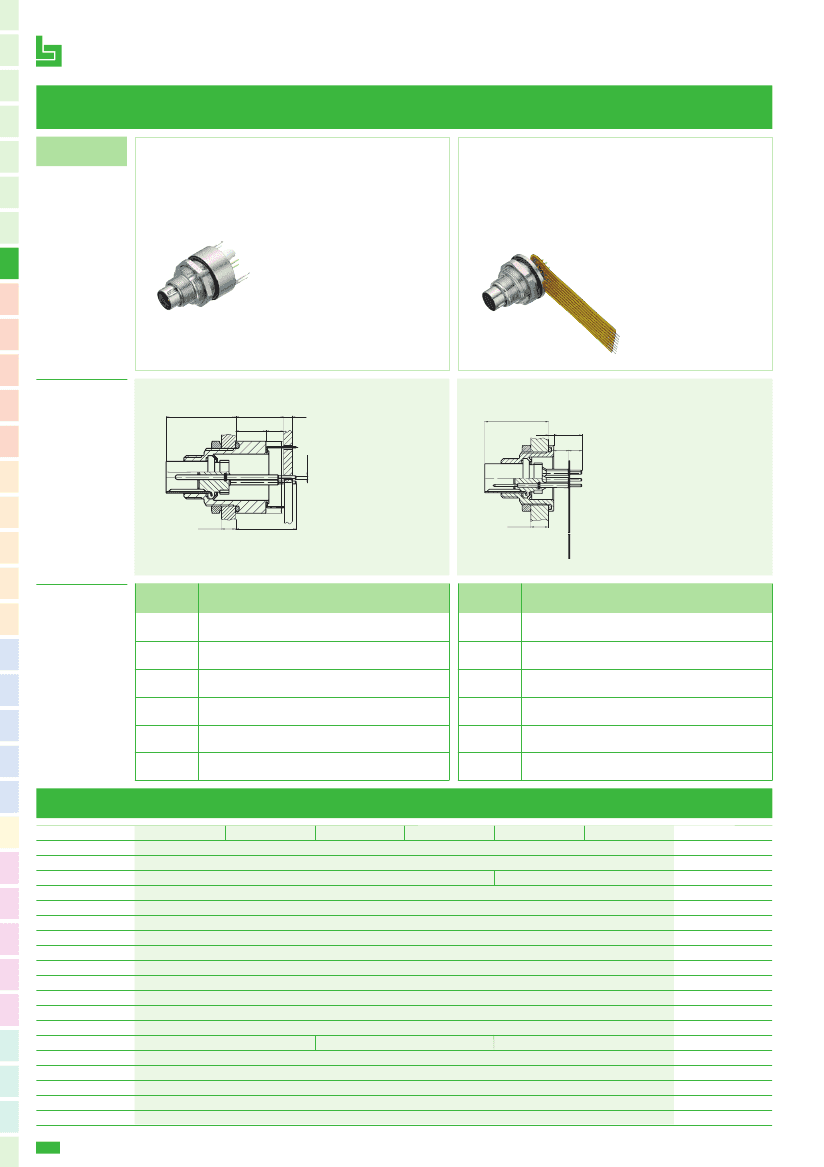

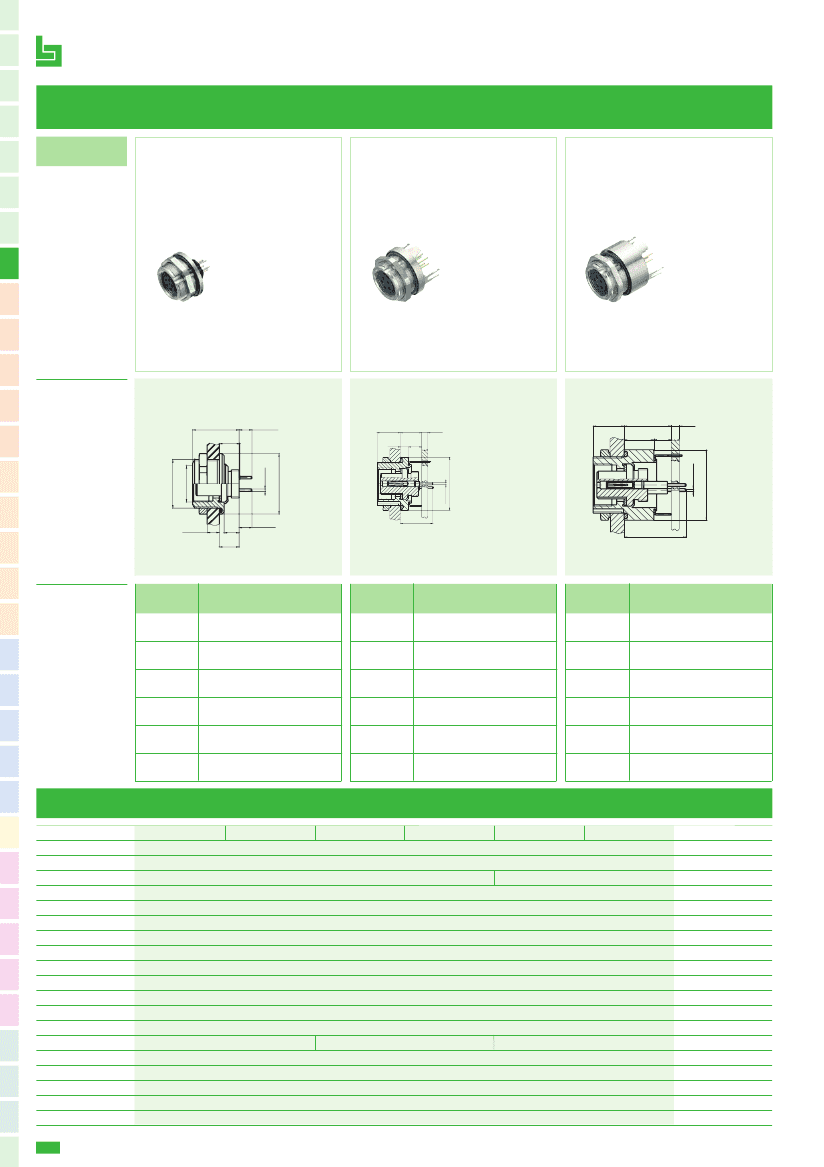

Subminiatursteckverbinder Serie 712 · 702

Subminiature connectors series 712 · 702

Bezeichnung

Description

Abbildung

Figure

Flanschstecker, löten

Male socket, solder

Flanschstecker, löten

von vorn verschraubbar

Male socket, solder

front fastened

IP67

M16 IP67 M16 IP40 PP IP67 Bajonett SI IP67

M9 IP67

M9 IP40 PP IP67 Bajonett SI IP67

SI IP40

Maßzeichnung

Drawing

13,9

9,1

15,7

9,1

M12 x 0,5

M9 x 0,5

Ø 6,6

Ø 15

M9 x 0,5

Ø 6,6

M23

Bajonett

2,5 max.

3 max.

RD24

M25

RD30

Bestell-Nr.

Ordering-No.

Polzahl

Contacts

Bestell-Nr.

Ordering-No.

09-0403-00-02

09-0407-00-03

09-0411-00-04

09-0415-00-05

09-0423-00-07

09-0427-00-08

Polzahl

Contacts

Bestell-Nr.

Ordering-No.

09-0403-80-02

09-0407-80-03

09-0411-80-04

09-0415-80-05

09-0423-80-07

09-0427-80-08

Verteiler

M12 PP

M12-A

Technische Daten

Specifications

Polzahl

Steckverbinder Verriegelung

Anschlussart

Anschlussquerschnitt (AWG)

Kabeldurchlass

Schutzart

Mechanische Lebensdauer

Obere Grenztemperatur

Untere Grenztemperatur

Bemessungsspannung

Bemessungs-Stoßspannung

Verschmutzungsgrad

Überspannungskategorie

Isolierstoffgruppe

Bemessungsstrom (40°C)

Durchgangswiderstand

Material Kontakt

Kontaktoberfläche

Material Kontaktkörper

Material Gehäuse

schrauben/screw

löten/solder

(max. AWG 24)

max. 0,25 mm

—

IP67

> 500 Steckzyklen/> 500 mating cycles

+ 85 °C

– 40 °C

125 V

1500 V

llI

≤ 3 mΩ

CuZn (Messing/brass)

Au (Gold/gold)

PA (UL 94 V-0)

Number of contacts

Connector locking system

Termination

Wire gauge

Cable outlet

Degree of protection

Mechanical operation

Upper temperature

Lower temperature

Rated voltage

Rated impulse voltage

Pollution degree

Overvoltage categorie

Material group

Rated current (40 °C)

Contact resistance

Material ot contact

Contact plating

Material of contact body

Material of housing

M12-B

max.0,14 mm

(max. AWG 26)

M12-D

M12-US

7/8‘‘

M18

BF-C

BF-B

BF-A

M9 IP67

Ø 15
