AISC-1210H-6R8N-T datasheet, PDF

Datasheet> All Categories > Passive components> inductor> AISC-1210H-6R8N-T

AISC-1210H-6R8N-T: DescriptionFixed Inductors 6.8uH 30%; CategoryPassive components inductor; File Size2MB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

AISC-1210H-6R8N-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AISC-1210H-6R8N-T	-	-	View	Buy Now

AISC-1210H-6R8N-T Overview

Fixed Inductors 6.8uH 30%

AISC-1210H-6R8N-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	CHIP, 1410, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
uppercase and lowercase codes	1410
DC Resistance	0.76 Ω
Nominal inductance(L)	6.8 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Maximum rated current	0.55 A
self resonant frequency	26 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	1 MHz
Tolerance	30%
Base Number Matches	1

Preview

Download Datasheet

View All

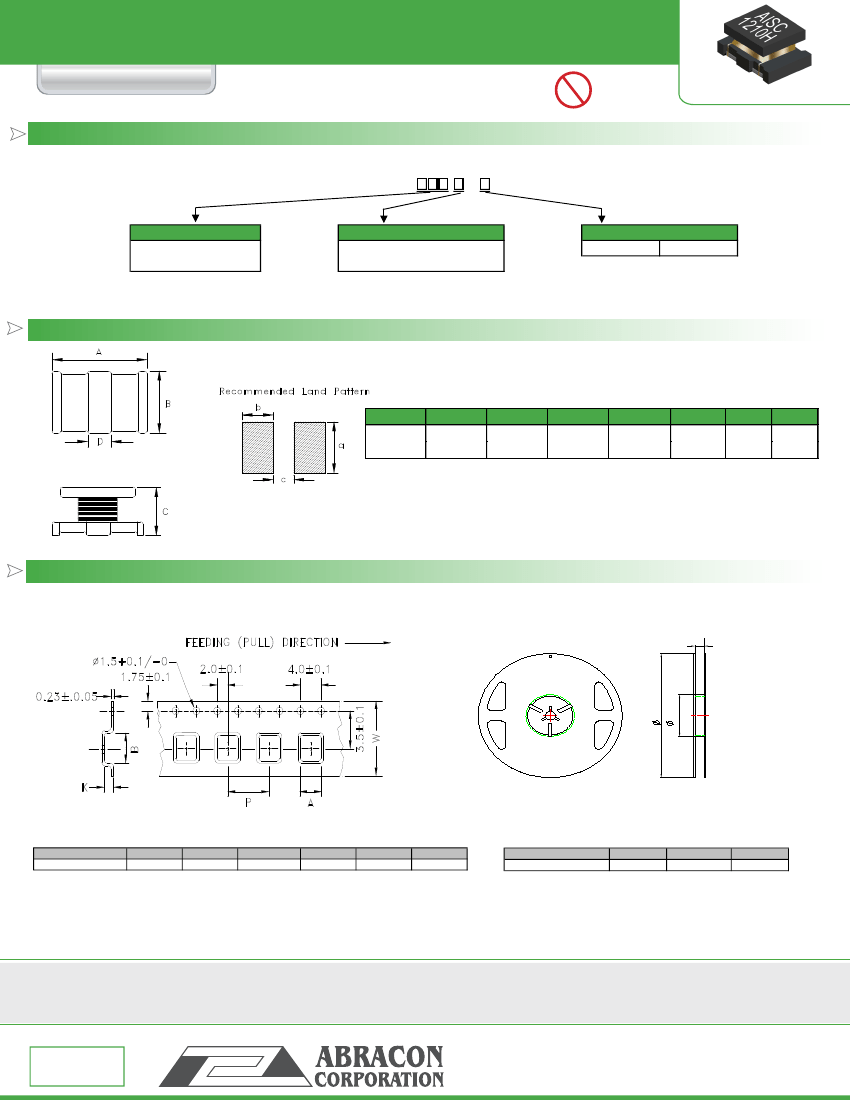

UNSHIELDED SMD POWER INDUCTOR

AISC-1210H

FEATURES:

• Low DC resistance permits high current flow

• Exhibit low voltage drops and inductance variations

with respect to temperature rise and DC current level

• Excellent solder heat resistance allows both flow and

reflow soldering methods

• Excellent mechanical reliability suitable for automotive, safety

application

RoHS

Compliant

APPLICATIONS:

3.5 x 2.5 x 2.5mm

| | | | | | | | | | | | | |

• Excellent for power line DC/DC conversion applications

• Used in video, communications, notebook computer

and other electronic equipment

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N:

Operating temperature:

Storage temperature:

AISC-1210H-xxx Series

-25°C to + 85°C

-25°C to + 85°C, 70% RH max.

SRF (MHz) Min

Test

Inductance

Abracon

Frequency

L (µH)

Part Number

0.15

1.0 MHz

AISC-1210H-R15 N

0.27

1.0 MHz

AISC-1210H-R27 N

0.39

1.0 MHz

AISC-1210H-R39 N

0.56

1.0 MHz

AISC-1210H-R56 N

0.82

1.0 MHz

AISC-1210H-R82 N

1.0

1.0 MHz

AISC-1210H-1R0 N

1.2

1.0 MHz

AISC-1210H-1R2 N

1.5

1.0 MHz

AISC-1210H-1R5 N

1.8

1.0 MHz

AISC-1210H-1R8 N

2.2

1.0 MHz

AISC-1210H-2R2 N

2.4

1.0 MHz

AISC-1210H-2R4 N

2.7

1.0 MHz

AISC-1210H-2R7 N

3.3

1.0 MHz

AISC-1210H-3R3 N

3.9

1.0 MHz

AISC-1210H-3R9 N

4.7

1.0 MHz

AISC-1210H-4R7 N

5.6

1.0 MHz

AISC-1210H-5R6 N

6.8

1.0 MHz

AISC-1210H-6R8 N

8.2

1.0 MHz

AISC-1210H-8R2 N

10.0

1.0 MHz

AISC-1210H-100 K

12.0

1.0 MHz

AISC-1210H-120 K

15.0

1.0 MHz

AISC-1210H-150 K

18.0

1.0 MHz

AISC-1210H-180 K

22.0

100 KHz

AISC-1210H-220 K

27.0

100 KHz

AISC-1210H-270 K

33.0

100 KHz

AISC-1210H-330 K

39.0

100 KHz

AISC-1210H-390 K

47.0

100 KHz

AISC-1210H-470 K

56.0

100 KHz

AISC-1210H-560 K

68.0

100 KHz

AISC-1210H-680 K

82.0

100 KHz

AISC-1210H-820 K

100.0

100 KHz

AISC-1210H-101 K

120.0

100 KHz

AISC-1210H-121 K

150.0

100 KHz

AISC-1210H-151 K

180.0

100 KHz

AISC-1210H-181 K

220.0

100 KHz

AISC-1210H-221 K

270.0

100 KHz

AISC-1210H-271 K

330.0

100 KHz

AISC-1210H-331 K

390.0

1 KHz

AISC-1210H-391 K

470.0

1 KHz

AISC-1210H-471 K

560.0

1 KHz

AISC-1210H-561 K

680.0

1 KHz

AISC-1210H-681 K

Inductance tolerance: N: ± 30%; K: ±10%

ABRACON IS

ISO 9001 / QS 9000

ISO 9001:2008

CERTIFIED

400

250

200

180

150

100

6.8

5.6

3.2

Rdc(m

Ω)

Max

100

110

124

130

132

167

222

247

359

392

450

509

674

760

978

1000

1240

1940

2000

3200

3640

4060

4580

6880

7470

8320

13160

14400

15000

18900

20400

27500

29800

40000

Rated DC

Current (A)

4.40

4.00

3.10

2.90

2.60

2.30

2.10

1.70

1.50

1.30

1.20

1.15

1.00

0.90

0.78

0.75

0.70

0.65

0.61

0.55

0.45

0.43

0.38

0.35

0.33

0.30

0.25

0.21

0.20

0.18

0.16

0.14

0.12

0.10

0.08

0.06

0.05

0.04

Revised: 10.20.11

30332 Esperanza, Rancho Santa Margarita, Califo 92688

rnia

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
