SET111403 datasheet, PDF - EEWORLD Datasheet

SET111403: DescriptionBridge Rectifiers A 3PHFW 45A STD 1KV; CategoryDiscrete semiconductor diode; File Size116KB，4 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

Download Datasheet Parametric Compare View All

SET111403 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SET111403	-	-	View	Buy Now

Bridge Rectifiers A 3PHFW 45A STD 1KV

Parameter Name	Attribute value
package instruction	R-XUFM-D3
Reach Compliance Code	unknown
Factory Lead Time	14 weeks
Is Samacsys	N
Configuration	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JESD-30 code	R-XUFM-D3
Maximum non-repetitive peak forward current	100 A
Number of components	6
Phase	3
Number of terminals	3
Maximum operating temperature	175 °C
Maximum output current	45 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

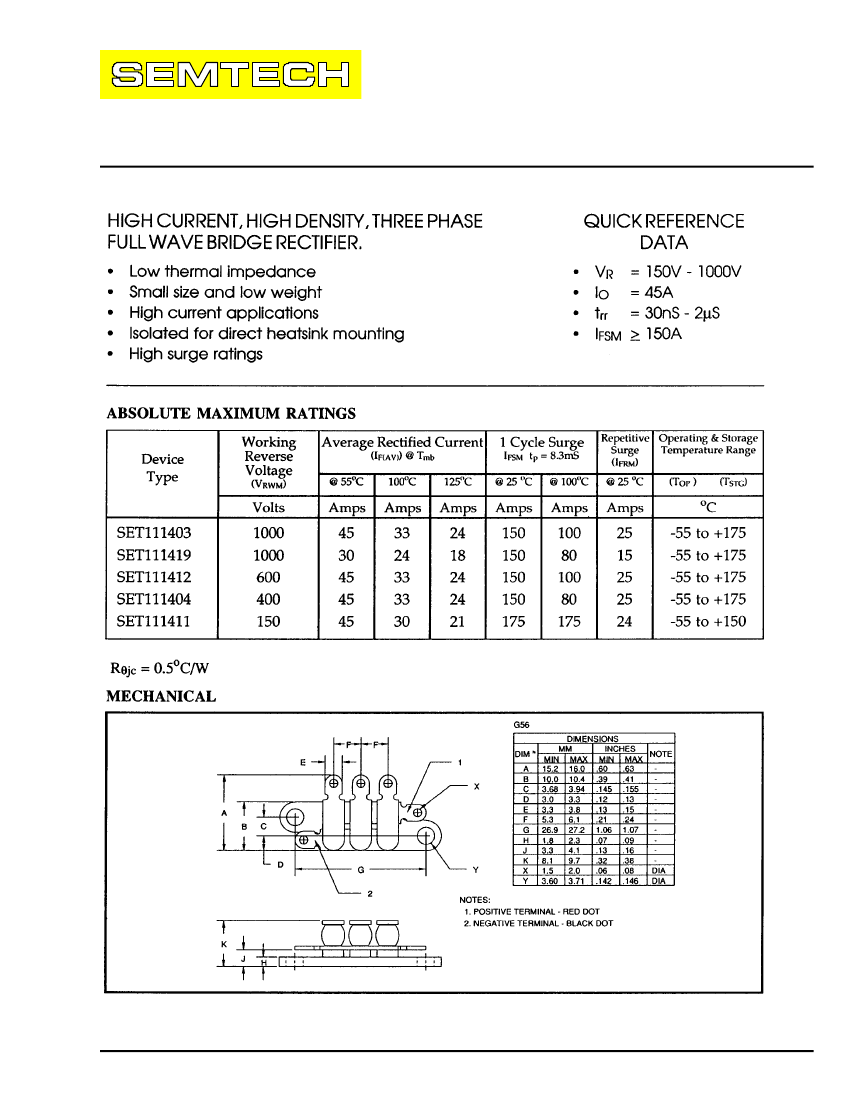

HIGH CURRENT, 3-PHASE

FULL WAVE BRIDGE ASSEMBLY

SET111403

SET111419

SET111412

SET111404

SET111411

January 16, 1998

TEL:805-498-2111 FAX:805-498-3804 WEB:http://www.semtech.com

652 MITCHELL ROAD NEWBURY PARK CA 91320

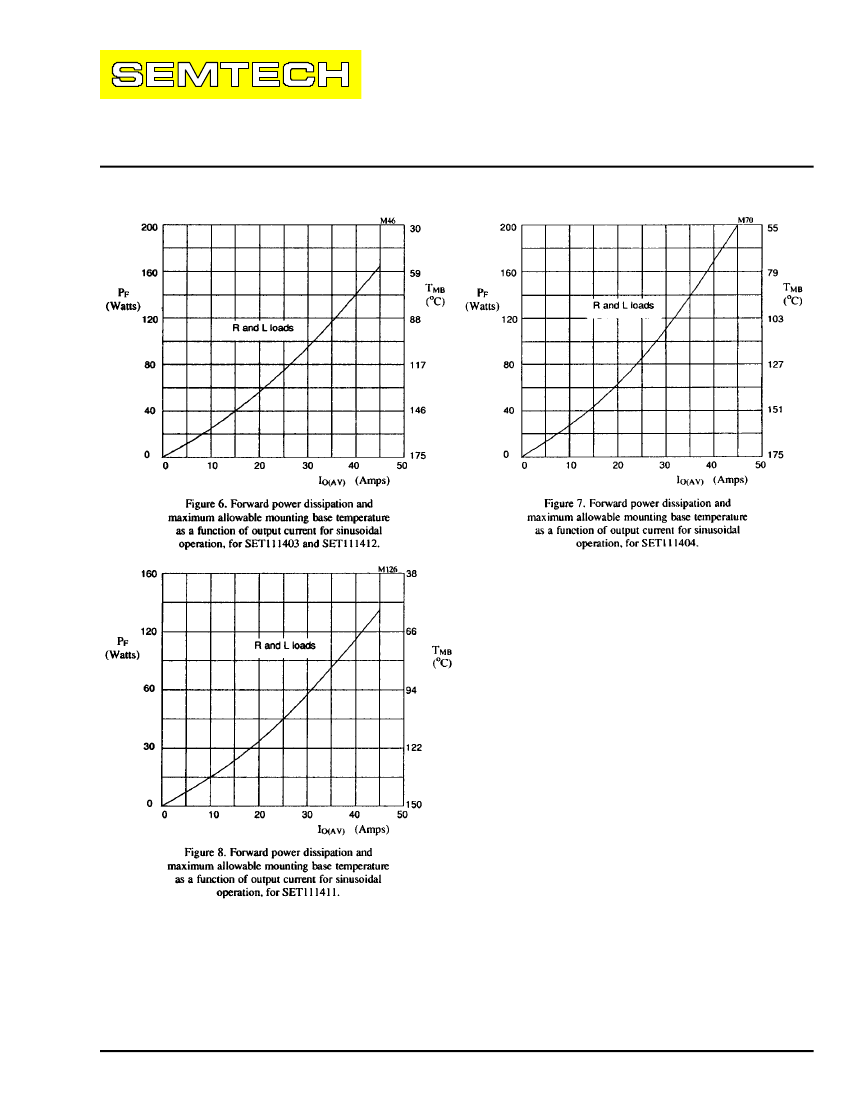

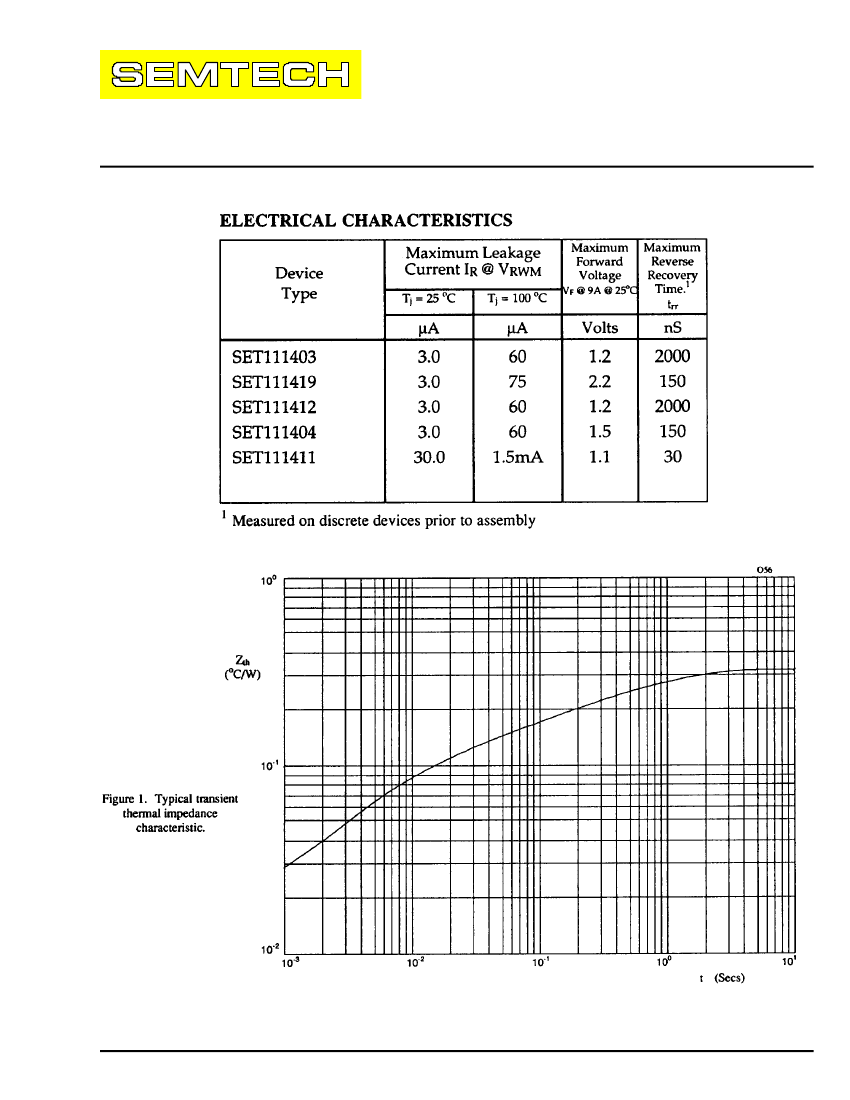

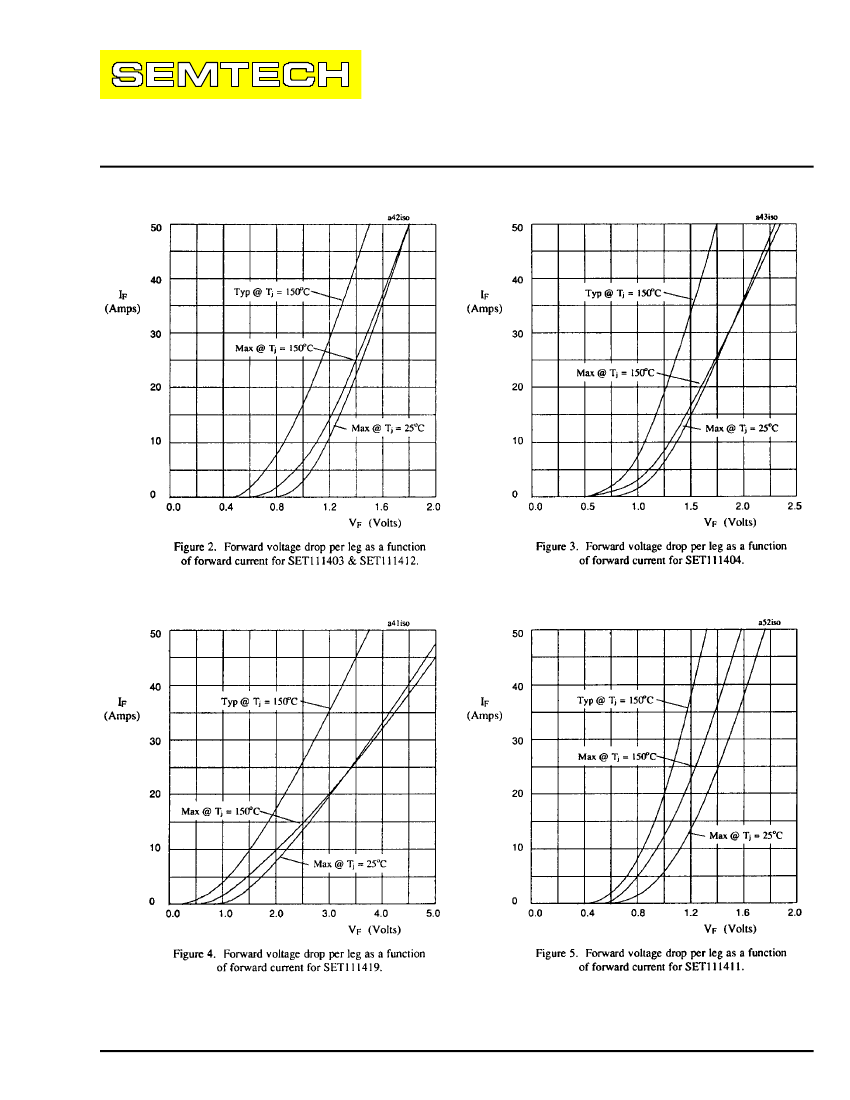

	SET111403	SET111412	SET111404
Description	Bridge Rectifiers A 3PHFW 45A STD 1KV	Bridge Rectifiers A 3PHFW 45A STD 600V	Bridge Rectifiers A 3PHFW 45A FAST 400V
Reach Compliance Code	unknown	unknown	unknown
Configuration	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V	1.2 V	1.4 V
JESD-30 code	R-XUFM-D3	R-XUFM-D3	R-XUFM-D3
Maximum non-repetitive peak forward current	100 A	100 A	80 A
Number of components	6	6	6
Phase	3	3	3
Number of terminals	3	3	3
Maximum operating temperature	175 °C	175 °C	175 °C
Maximum output current	45 A	45 A	45 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1000 V	600 V	400 V
surface mount	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER
package instruction	R-XUFM-D3	-	R-XUFM-D3
Factory Lead Time	14 weeks	14 weeks	-
Is Samacsys	N	-	N
Base Number Matches	1	-	1
