TM
ACTS04MS
Radiation Hardened
Hex Inverter
Pinouts
14 PIN CERAMIC DUAL-IN-LINE MIL-STD-1835
DESIGNATOR CDIP2-T14, LEAD FINISH C
TOP VIEW
A1 1
Y1 2
A2 3
Y2 4
A3 5
Y3 6
GND 7
14 VCC
13 A6
12 Y6
11 A5
10 Y5
9 A4
8 Y4
January 1996
tle
TS
S)
-
ia-
d-
Features
• Devices QML Qualified in Accordance with MIL-PRF-38535
• Detailed Electrical and Screening Requirements are Contained in
SMD# 5962-96712 and Intersil’s QM Plan
• 1.25 Micron Radiation Hardened SOS CMOS
• Total Dose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >300K RAD (Si)
• Single Event Upset (SEU) Immunity: <1 x 10
-10
Errors/Bit/Day
(Typ)
• SEU LET Threshold . . . . . . . . . . . . . . . . . . . . . . . >100 MEV-cm
2
/mg
• Dose Rate Upset . . . . . . . . . . . . . . . . >10
11
RAD (Si)/s, 20ns Pulse
• Dose Rate Survivability . . . . . . . . . . . >10
12
RAD (Si)/s, 20ns Pulse
rte
hor
-
ds
r-
ia-
d-
,
• Latch-Up Free Under Any Conditions
• Military Temperature Range . . . . . . . . . . . . . . . . . . -55
o
C to +125
o
C
• Significant Power Reduction Compared to ALSTTL Logic
• DC Operating Voltage Range . . . . . . . . . . . . . . . . . . . . 4.5V to 5.5V
• Input Logic Levels
- VIL = 0.8V Max
- VIH = VCC/2 Min
• Input Current
≤
1µA at VOL, VOH
• Fast Propagation Delay . . . . . . . . . . . . . . . . . 14ns (Max), 9ns (Typ)
14 PIN CERAMIC FLATPACK MIL-STD-1835
DESIGNATOR CDFP3-F14, LEAD FINISH C
TOP VIEW
A1
Y1
A2
Y2
A3
Y3
GND
1
2
3
4
5
6
7
14
13
12
11
10
9
8
VCC
A6
Y6
A5
Y5
A4
Y4
TRUTH TABLE
Description
The Intersil ACTS04MS is a Radiation Hardened Hex Inverter.
INPUTS
An
L
H
OUTPUTS
Yn
H
L
d,
L,
l-
,
s
ic,
S,
,
rte
The ACTS04MS utilizes advanced CMOS/SOS technology to achieve
high-speed operation. This device is a member of radiation hardened,
high-speed, CMOS/SOS Logic Family.
The ACTS04MS is supplied in a 14 lead Ceramic Flatpack (K suffix) or a
Ceramic Dual-In-Line Package (D suffix).
NOTE: L = Logic Level Low, H = Logic level High
Functional Diagram
An
Yn
Ordering Information
PART NUMBER
5962F9671201VCC
5962F9671201VXC
ACTS04D/Sample
ACTS04K/Sample
ACTS04HMSR
TEMPERATURE RANGE
-55
o
C to +125
o
C
-55
o
C to +125
o
C
25
o
C
25
o
C
25
o
C
SCREENING LEVEL
MIL-PRF-38535 Class V
MIL-PRF-38535 Class V
Sample
Sample
Die
PACKAGE
14 Lead SBDIP
14 Lead Ceramic Flatpack
14 Lead SBDIP
14 Lead Ceramic Flatpack
Die
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 321-724-7143
|
Intersil and Design is a trademark of Intersil Americas Inc.
Copyright © Intersil Americas Inc. 2001, All Rights Reserved
1
Spec Number
File Number
518782
3383.1

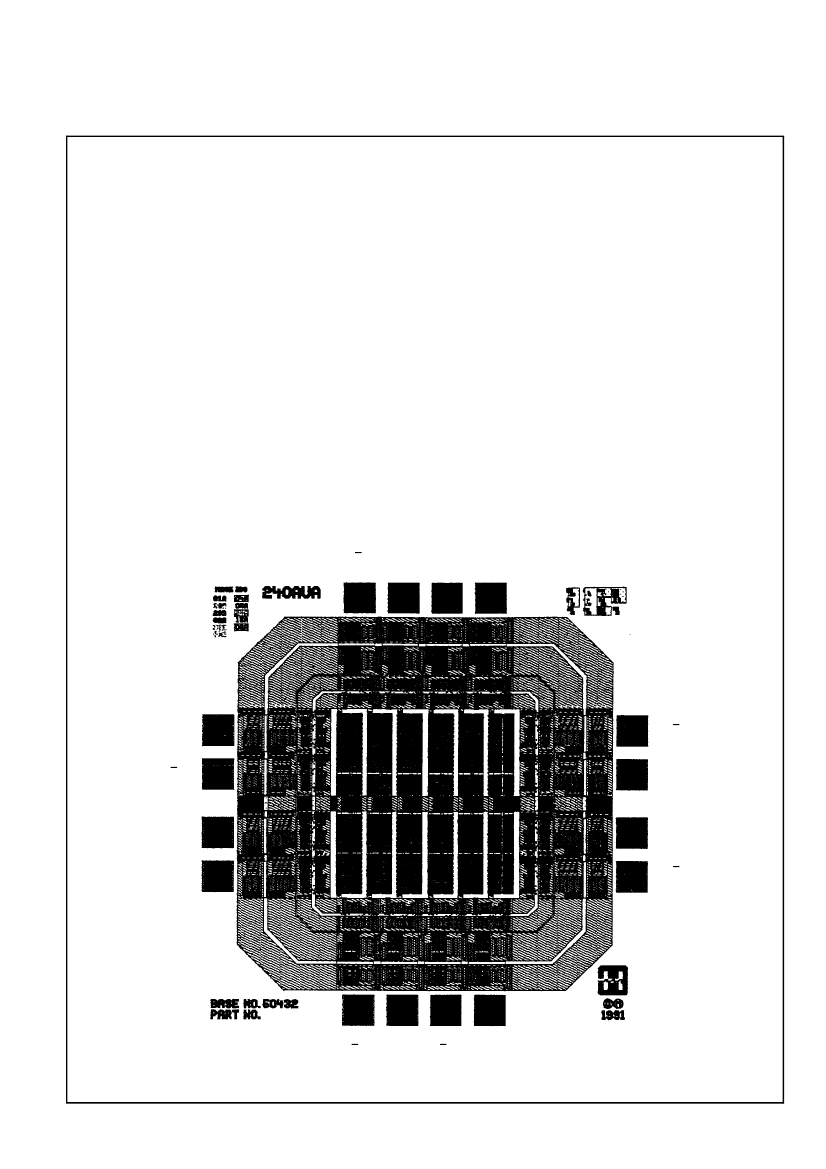

ACTS04MS
All Intersil products are manufactured, assembled and tested utilizing ISO9000 quality systems.
Intersil Corporation’s quality certifications can be viewed at www.intersil.com/design/quality
Intersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice.
Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliable.
However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result from its
use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.
For information regarding Intersil Corporation and its products, see www.intersil.com
Sales Office Headquarters
NORTH AMERICA
Intersil Corporation
7585 Irvine Center Drive
Suite 100
Irvine, CA 92618
TEL: (949) 341-7000
FAX: (949) 341-7123
Intersil Corporation
2401 Palm Bay Rd.
Palm Bay, FL 32905
TEL: (321) 724-7000
FAX: (321) 724-7946
EUROPE
Intersil Europe Sarl
Ave. C - F Ramuz 43
CH-1009 Pully
Switzerland
TEL: +41 21 7293637
FAX: +41 21 7293684
ASIA
Intersil Corporation
Unit 1804 18/F Guangdong Water Building
83 Austin Road
TST, Kowloon Hong Kong
TEL: +852 2723 6339
FAX: +852 2730 1433
Spec Number
