GaAs INTEGRATED CIRCUIT
PG2406TK
0.01 to 3.0 GHz SPDT SWITCH
DESCRIPTION
The
PG2406TK is a GaAs MMIC for L, S-band SPDT (Single Pole Double Throw) switch which were designed
for mobile phone and another L, S-band application.
This device can operate 2 control switching by control voltage 1.8 to 5.3 V. This device can operate frequency
from 0.01 to 3.0 GHz, having the low insertion loss and high isolation.
This device is housed in a 6-pin lead-less minimold package. And this package is able to high-density surface
mounting.
FEATURES
• Switch control voltage
• Low insertion loss
• High isolation
• Handling power
: V
cont (H)
= 1.8 to 5.3 V (2.7 V TYP.)
: V
cont (L)
=
0.2
to +0.2 V (0 V TYP.)
: L
ins
= 0.40 dB TYP. @ f = 1.0 GHz, V
cont (H)
= 2.7 V, V
cont (L)
= 0 V
: L
ins
= 0.47 dB TYP. @ f = 2.5 GHz, V
cont (H)
= 2.7 V, V
cont (L)
= 0 V
: ISL = 27 dB TYP. @ f = 1.0 GHz, V
cont (H)
= 2.7 V, V
cont (L)
= 0 V
: ISL = 17 dB TYP. @ f = 2.5 GHz, V
cont (H)
= 2.7 V, V
cont (L)
= 0 V
: P
in (0.1 dB)
= +29.0 dBm TYP. @ f = 2.0/2.5 GHz, V
cont (H)
= 2.7 V, V
cont (L)
= 0 V
: P
in (1 dB)
= +30.5 dBm TYP. @ f = 0.5 to 3.0 GHz, V
cont (H)
= 2.7 V, V
cont (L)
= 0 V
• High-density surface mounting : 6-pin lead-less minimold package (1.5
1.1
0.55 mm)
APPLICATIONS
• L, S-band digital cellular or cordless telephone
• W-LAN, WLL and Bluetooth
TM
etc.
ORDERING INFORMATION
Part Number
Order Number
Package
6-pin lead-less minimold
(1511 PKG) (Pb-Free)
Marking
G5K
Supplying Form
Embossed tape 8 mm wide
Pin 1, 6 face the perforation side of the tape
Qty 5 kpcs/reel
PG2406TK-E2
PG2406TK-E2-A
Remark
To order evaluation samples, contact your nearby sales office.
Part number for sample order:
PG2406TK-A
Caution
Although this device is designed to be as robust as possible, ESD (Electrostatic
Discharge) can damage this device. This device must be protected at all times from ESD. Static
charges may easily produce potentials of several kilovolts on the human body or equipment, which
can discharge without detection. Industry-standard ESD precautions must be employed at all times.
Document No. PG10746EJ01V0DS (1st edition)
Date Published January 2009 NS
PG2406TK

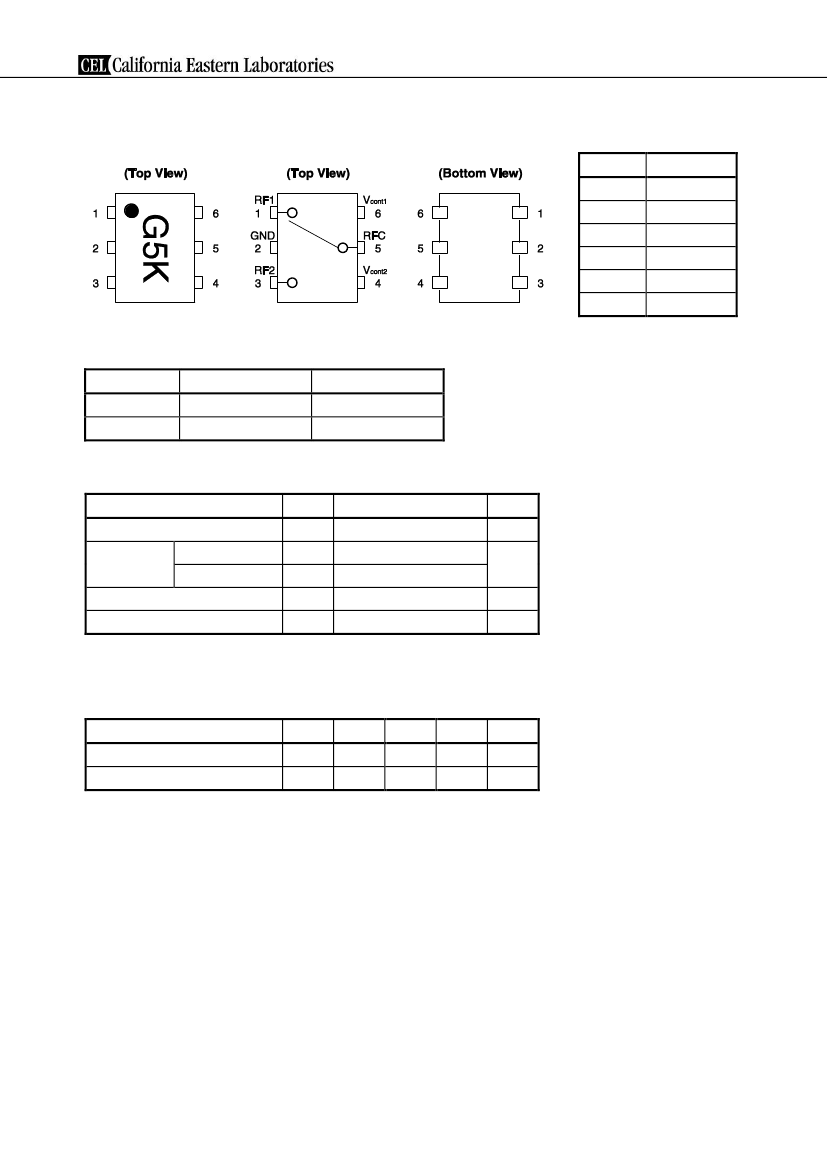

PIN CONNECTIONS AND INTERNAL BLOCK DIAGRAM
Pin No.
1
2
3
4
5
6
Pin Name
RF1
GND
RF2
V
cont2
RFC
V
cont1
SW TRUTH TABLE
ON Path
RFC-RF1
RFC-RF2
V
cont1
High
Low
V
cont2
Low
High
ABSOLUTE MAXIMUM RATINGS (T
A
= +25C, unless otherwise specified)
Parameter
Switch Control Voltage
Input Power
f = 0.01 to 0.5 GHz
f = 0.5 to 3.0 GHz
Operating Ambient Temperature
Storage Temperature
Symbol
V
cont
P
in
1
P
in
2
T
A
T
stg
Ratings
+6.0
Note
Unit
V
dBm
+24.0
+31.0
45
to +85
55
to +150
C
C
Note
V
cont1
V
cont2
6.0 V
RECOMMENDED OPERATING RANGE (T
A
= +25C, unless otherwise specified)
Parameter
Switch Control Voltage (H)
Switch Control Voltage (L)
Symbol
V
cont (H)
V
cont (L)
MIN.
1.8
0.2
TYP.
2.7
0
MAX.
5.3
0.2
Unit
V
V
2
Data Sheet PG10746EJ01V0DS
PG2406TK
ELECTRICAL CHARACTERISTICS
(T
A
= +25C, V
cont (H)
= 2.7 V, V
cont (L)
= 0 V, DC blocking capacitors = 56 pF, unless otherwise
specified)
Parameter
Insertion Loss 1
Insertion Loss 2
Insertion Loss 3
Insertion Loss 4
Insertion Loss 5
Insertion Loss 6
Isolation 1
Isolation 2
Isolation 3
Isolation 4
Isolation 5
Isolation 6
Input Return Loss 1
Input Return Loss 2
Input Return Loss 3
Output Return Loss 1
Output Return Loss 2
Output Return Loss 3
0.1 dB Loss Compression
Input Power
Note 3
Symbol
L
ins
1
L
ins
2
L
ins
3
L
ins
4
L
ins
5
L
ins
6
ISL1
ISL2
ISL3
ISL4
ISL5
ISL6
RL
in
1
RL
in
2
RL
in
3
RL
out
1
RL
out
2
RL
out
3
P
in (0.1 dB)
Test Conditions
f = 0.01 to 0.05 GHz
f = 0.05 to 0.5 GHz
f = 0.5 to 1.0 GHz
f = 1.0 to 2.0 GHz
f = 2.0 to 2.5 GHz
f = 2.5 to 3.0 GHz
f = 0.01 to 0.05 GHz
f = 0.05 to 0.5 GHz
f = 0.5 to 1.0 GHz
f = 1.0 to 2.0 GHz
f = 2.0 to 2.5 GHz
f = 2.5 to 3.0 GHz
f = 0.01 to 0.05 GHz
f = 0.05 to 0.5 GHz
f = 0.5 to 3.0 GHz
f = 0.01 to 0.05 GHz
f = 0.05 to 0.5 GHz
f = 0.5 to 3.0 GHz
f = 2.0/2.5 GHz
f = 0.5 to 3.0 GHz
Note 1
Note 1
Note 1
Note 1
MIN.
23
23
16
14
14
15
15
15
15
+26.0
TYP.
0.40
0.40
0.40
0.45
0.47
0.53
27
27
27
19
17
17
20
20
20
20
20
20
+29.0
+29.0
+30.5
MAX.
0.45
0.45
0.50
0.55
0.60
Unit
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
dBm
Note 2
Note 2
Note 2
Note 2
1 dB Loss Compression
Input Power
Note 4
P
in (1 dB)
f = 0.5 to 3.0 GHz
2nd Harmonics
3rd Harmonics
Intermodulation Intercept Point
2f
0
3f
0
IIP
3
f = 2.0/2.5 GHz, P
in
= +20 dBm
f = 2.0/2.5 GHz, P
in
= +20 dBm
f = 0.5 to 3.0 GHz, 2 tone,
5 MHz spicing
65
65
75
75
+60
dBc
dBc
dBm
Switch Control Current
Switch Control Speed
I
cont
t
SW
No RF input
50% CTL to 90/10% RF
0.2
50
20
500
A
ns
Notes 1.
DC blocking capacitors = 10 000 pF at f = 0.01 to 0.05 GHz
2.
DC blocking capacitors = 1 000 pF at f = 0.05 to 0.5 GHz
3.
P
in (0.1 dB)
is measured the input power level when the insertion loss increases more 0.1 dB than that of
linear range.
4.
P
in (1 dB)
is measured the input power level when the insertion loss increases more 1 dB than that of
linear range.
Caution This device is used it is necessary to use DC blocking capacitors.
The value of DC blocking capacitors should be chosen to accommodate the frequency of
operation, bandwidth, switching speed and the condition with actual board of your system. The
range of recommended DC blocking capacitor value is less than 56 pF.
Data Sheet PG10746EJ01V0DS
3
PG2406TK
ELECTRICAL CHARACTERISTICS
(T
A
= +25C, V
cont (H)
= 1.8 V, V
cont (L)
= 0 V, DC blocking capacitors = 56 pF, unless otherwise
specified)
Parameter
Insertion Loss 7
Insertion Loss 8
Insertion Loss 9
Insertion Loss 10
Insertion Loss 11
Insertion Loss 12
Isolation 7
Isolation 8
Isolation 9
Isolation 10
Isolation 11
Isolation 12
Input Return Loss 4
Input Return Loss 5
Input Return Loss 6
Output Return Loss 4
Output Return Loss 5
Output Return Loss 6
0.1 dB Loss Compression
Input Power
Note 3
Symbol
L
ins
7
L
ins
8
L
ins
9
L
ins
10
L
ins
11
L
ins
12
ISL7
ISL8
ISL9
ISL10
ISL11
ISL12
RL
in
4
RL
in
5
RL
in
6
RL
out
4
RL
out
5
RL
out
6
P
in (0.1 dB)
Test Conditions
f = 0.01 to 0.05 GHz
f = 0.05 to 0.5 GHz
f = 0.5 to 1.0 GHz
f = 1.0 to 2.0 GHz
f = 2.0 to 2.5 GHz
f = 2.5 to 3.0 GHz
f = 0.01 to 0.05 GHz
f = 0.05 to 0.5 GHz
f = 0.5 to 1.0 GHz
f = 1.0 to 2.0 GHz
f = 2.0 to 2.5 GHz
f = 2.5 to 3.0 GHz
f = 0.01 to 0.05 GHz
f = 0.05 to 0.5 GHz
f = 0.5 to 3.0 GHz
f = 0.01 to 0.05 GHz
f = 0.05 to 0.5 GHz
f = 0.5 to 3.0 GHz
f = 2.0/2.5 GHz
f = 0.5 to 3.0 GHz
Note 1
Note 1
Note 1
Note 1
MIN.
23
23
16
14
14
15
15
15
15
+19.0
TYP.
0.40
0.40
0.40
0.46
0.48
0.54
27
27
27
19
17
17
20
20
20
20
20
20
+22.0
+22.0
+25.0
MAX.
0.46
0.47
0.52
0.57
0.62
Unit
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
dBm
Note 2
Note 2
Note 2
Note 2
1 dB Loss Compression
Input Power
Note 4
P
in (1 dB)
f = 0.5 to 3.0 GHz
Switch Control Current
Switch Control Speed
I
cont
t
SW
No RF input
50% CTL to 90/10% RF
0.2
50
20
500
A
ns
Notes 1.
DC blocking capacitors = 10 000 pF at f = 0.01 to 0.05 GHz
2.
DC blocking capacitors = 1 000 pF at f = 0.05 to 0.5 GHz
3.
P
in (0.1 dB)
is measured the input power level when the insertion loss increases more 0.1 dB than that of
linear range.
4.
P
in (1 dB)
is measured the input power level when the insertion loss increases more 1 dB than that of
linear range.
Caution This device is used it is necessary to use DC blocking capacitors.
The value of DC blocking capacitors should be chosen to accommodate the frequency of
operation, bandwidth, switching speed and the condition with actual board of your system. The
range of recommended DC blocking capacitor value is less than 56 pF.
4
Data Sheet PG10746EJ01V0DS
PG2406TK
EVALUATION CIRCUIT
Note
C1 : 0.01 to 0.05 GHz 10 000 pF
: 0.05 to 0.5 GHz
: 0.5 to 3.0 GHz
C2 : 1 000 pF
The application circuits and their parameters are for reference only and are not intended for use in actual design-ins.
1 000 pF
56 pF
APPLICATION INFORMATION
• L
ESD
provides a means to increase the ESD protection on a specific RF port, typically the port attached to the
antenna.
• The value may be tailored to provide specific electrical responses.
• The RF ground connections should be kept as short as possible and connected to directly to a good RF ground
for best performance.
Data Sheet PG10746EJ01V0DS
5
