Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief
Type G - Rotatable Coupling -Split Shell
39
CONNECTOR
DESIGNATORS
390 F P 061 M 16 10 H
Product Series
Connector Designator
Angle and Profile
P = Split 45°
R = Split 90°
Basic Part No.
Strain Relief Style (H, A, M, D)
Cable Entry (Tables X, XI)
Shell Size (Table I)
Finish (Table II)
A-F-H-L-S
ROTATABLE
COUPLING
TYPE G INDIVIDUAL
AND/OR OVERALL
SHIELD TERMINATION
O-Ring
E (Table III)
A Thread
or
(Table I)
R (Table IV)
D Typ. (Table III)
C Typ.
or
(Table I)
P Typ. (Table IV)
G (Table III)
or
T (Table IV)
O-Ring
F (Table III)
or
S (Table IV)
Split
45°
Split
90°
H (Table III)
or
U (Table IV)
Use Table IV data
when C diameter
exceeds D diameter.

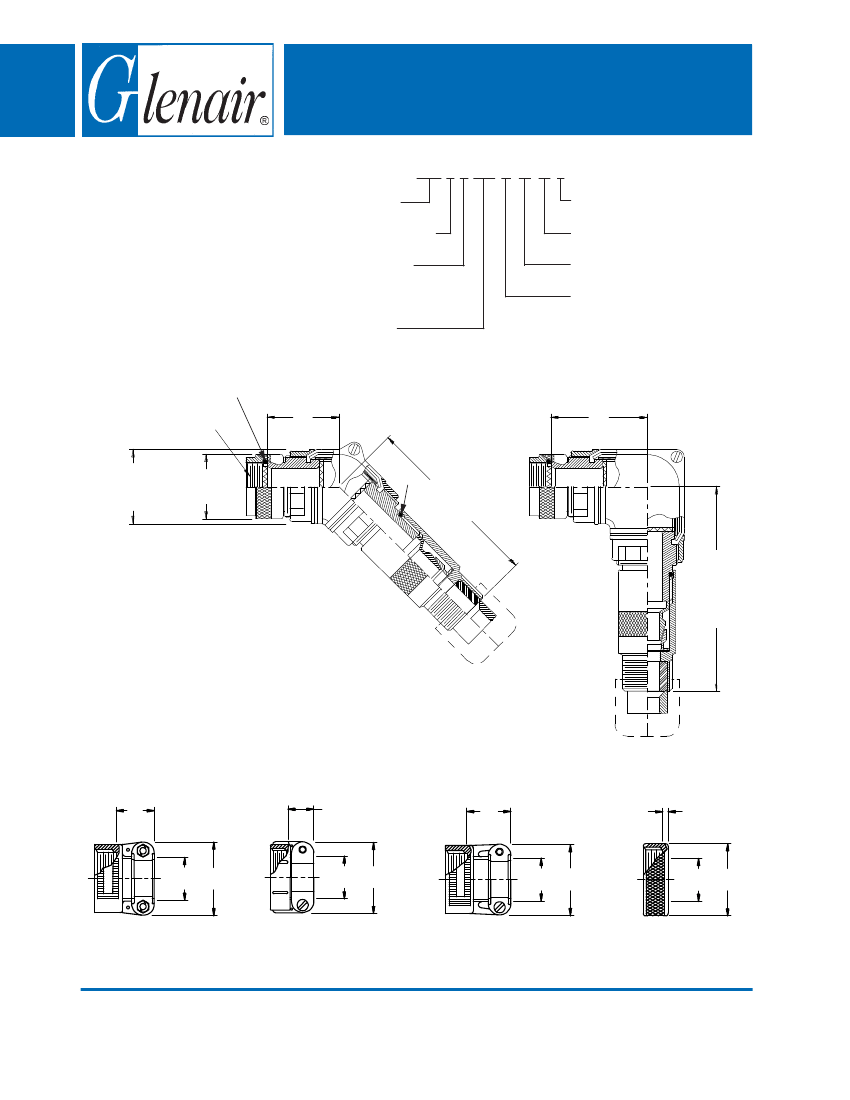

STYLE H
Heavy Duty
(Table X)
T
STYLE A
Medium Duty
(Table XI)
W
STYLE M
Medium Duty
(Table XI)
X
STYLE D
Medium Duty
(Table XI)
.135 (3.4)
Max
Cable
Range
V
Cable
Range
Y
Cable
Range
Y
Cable
Entry
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 82
with Strain Relief
Type G - Rotatable Coupling - Split Shell
TABLE III
Shell Size
D
Conn. Desig.
A-F-L-S H
Max
08 09 1.188 (30.2)
10 11 1.188 (30.2)
12 13 1.188 (30.2)
14 15 1.188 (30.2)
16 17 1.438 (36.5)
18 19 1.438 (36.5)
20 21 1.438 (36.5)
22 23 1.688 (42.9)
24 25 1.688 (42.9)
Dash
P
No.
Max
08 1.438 (36.5)
10 1.688 (42.9)
12 1.688 (42.9)
16 1.688 (42.9)
20 2.188 (55.6)
24 2.188 (55.6)
28 2.688 (68.3)
E
Max
1.781 (45.2)
1.781 (45.2)
1.781 (45.2)
1.781 (45.2)
1.906 (48.4)
1.906 (48.4)
1.906 (48.4)
2.031 (51.6)
2.031 (51.6)
F
Max
4.406 (111.9)
4.406 (111.9)
4.406 (111.9)
4.406 (111.9)
4.531 (115.1)
4.531 (115.1)
4.531 (115.1)
4.656 (118.3)
4.656 (118.3)
G
Max
1.781 (45.2)
1.781 (45.2)
1.781 (45.2)
1.781 (45.2)
1.906 (48.4)
1.906 (48.4)
1.906 (48.4)
2.031 (51.6)
2.031 (51.6)
H
Max
4.406 (111.9)
4.406 (111.9)
4.406 (111.9)
4.406 (111.9)
4.531 (115.1)
4.531 (115.1)
4.531 (115.1)
4.656 (118.3)
4.656 (118.3)
TABLE IV
R
S
Max
Max
1.906 (48.4) 4.531 (115.1)
2.031 (51.6) 4.656 (118.3)
2.031 (51.6) 4.656 (118.3)
2.031 (51.6) 4.656 (118.3)
2.281 (57.9) 4.906 (124.6)
2.281 (57.9) 4.906 (124.6)
2.531 (64.3) 5.156 (131.0)
TABLE X
V
Max
.957 (24.3)
1.145 (29.1)
1.332 (33.8)
1.332 (33.8)
1.551 (39.4)
1.770 (45.0)
2.113 (53.7)
2.363 (60.0)
2.770 (70.4)
T
Max
1.906 (48.4)
2.031 (51.6)
2.031 (51.6)
2.031 (51.6)
2.281 (57.9)
2.281 (57.9)
2.531 (64.3)
U
Max
4.531 (115.1)
4.656 (118.3)
4.656 (118.3)
4.656 (118.3)
4.906 (124.6)
4.906 (124.6)
5.156 (131.0)
See inside back cover
fold-out or pages 13 and
14 for Tables I and II.
Dash
T
No.
Max
.780 (19.8)
04
06
.780 (19.8)
.780 (19.8)
08
.780 (19.8)
10
12
.811 (20.6)
16
.905 (23.0)
20
1.092 (27.7)
24
1.124 (28.5)
28
1.399 (35.5)
Cable Range
Min
Max
.125 (3.2) .312 (7.9)
.250 (6.4) .437 (11.1)
.387 (9.8) .562 (14.3)
.350 (8.9) .625 (15.9)
.500 (12.7) .750 (19.1)
.625 (15.9) .937 (23.8)
.875 (22.2) 1.250 (31.8)
1.000 (25.4) 1.375 (34.9)
1.250 (31.8) 1.625 (41.3)
1. Metric dimensions (mm) are indicated
in parentheses.
2. Cable range is defined as the accom-
modations range for
the wire bundle or cable. Dimensions
shown are not intended for inspection
criteria.
3. Interface O-Ring not supplied with
connector designator A.
W
Dash
X
Max
Max
No.
03* .437 (11.1) .760 (19.3)
04* .437 (11.1) .760 (19.3)
06* .500 (12.7) .760 (19.3)
08 .563 (14.3) .760 (19.3)
10 .563 (14.3) .760 (19.3)
12 .563 (14.3) .760 (19.3)
16 .656 (16.7) 1.073 (27.3)
20 .656 (16.7) 1.323 (33.6)
24 .656 (16.7) 1.323 (33.6)
28 1.188 (30.2) 1.572 (39.9)
* Not available in Style M clamp.
© 2005 Glenair, Inc.
TABLE XI
Y
Z
Cable Range
Max
Min
Max
Max
.843 (21.4)
.630 (16.0) .156 (4.0) .250 (6.4)
.906 (23.0)
.755 (19.2) .188 (4.8) .312 (7.9)
1.093 (27.8)
.942 (23.9) .281 (7.1) .438 (11.1)
1.187 (30.1) 1.067 (27.1) .387 (9.8) .562 (14.3)
1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
1.719 (43.7) 1.535 (39.0) .625 (15.9) .938 (23.8)
2.062 (52.4) 1.848 (46.9) .875 (22.2) 1.250 (31.8)
2.312 (58.7) 2.255 (57.3) 1.000 (25.4) 1.375 (34.9)
2.719 (69.1) 2.505 (63.6) 1.250 (31.8) 1.625 (41.3)
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 83
